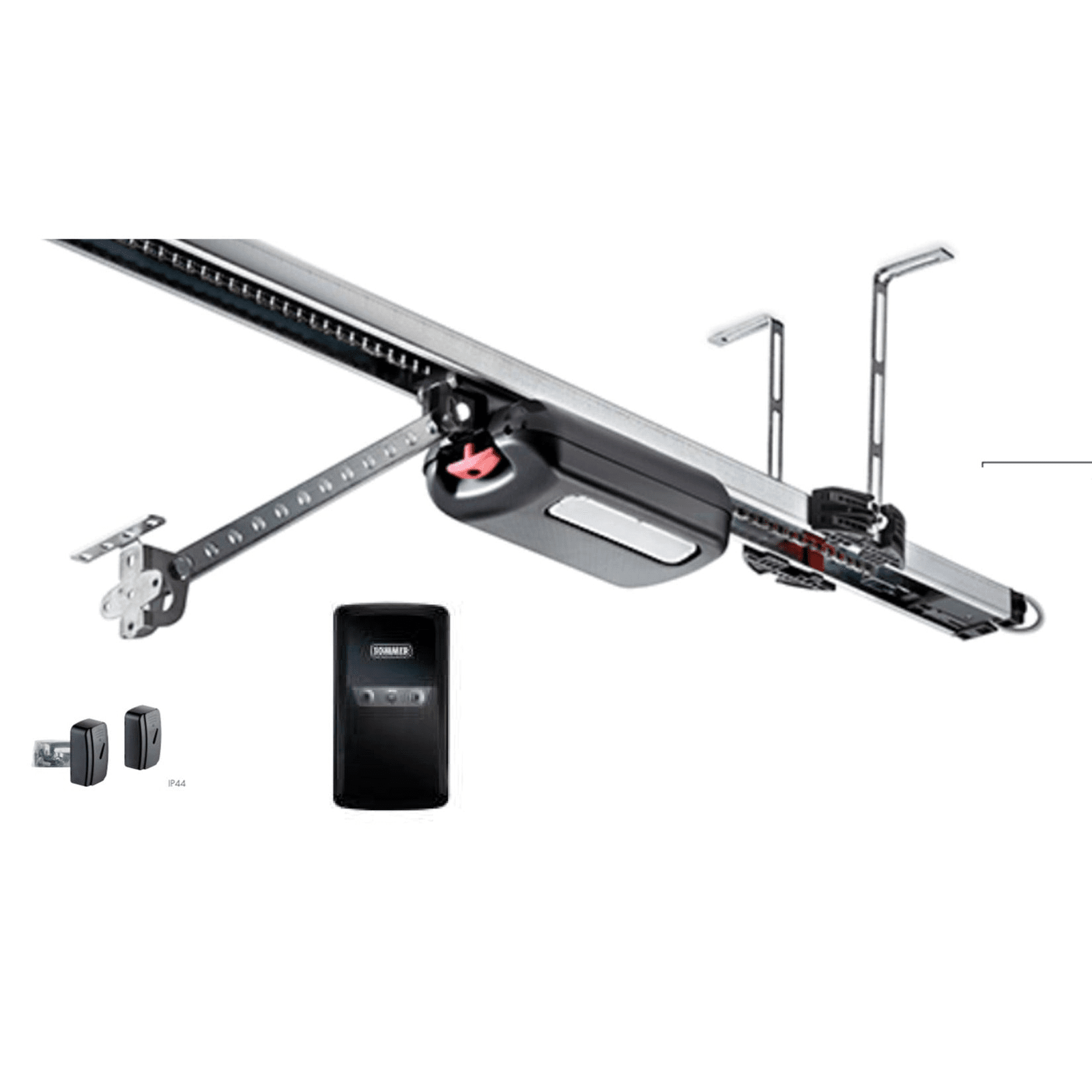

Sommer 2060 pro+ 8' Standard operators no transmitter - YS10249-00004

Sommer 2060 pro+ 8' Standard operators no transmitter - YS10249-00004

Features

• 600 Newton Motor (3/4 HP equivalent)

• 3-piece c-channel rail for doors up to 8' tall

• Wired safety sensors

• Remote-mount control housing with integrated buttons

• Direct drive technology with one moving part for maximum force and longevity

• Soft start and stop on a variable curve ramp

• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation

• Active motor braking during travel helps minimize loss of control during door malfunction

• Operator actively pushes in the closed direction during attempted break-in

• Emergency release can be disengaged and re-engaged in any position

• Built-in LED lighting at the motor carriage and control housing

• Easily cut down rail and chain for tight spaces and/or use GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)

• Add Short, Medium and/or Long Rail Extension for taller doors up to 24' (see Door Height by Rail Extension Chart)

• Monitored safety edge and optical safety edge terminals on motor carriage to avoid coil cords or take up reels

• Interlock capable for pass doors, mechanical locks, etc.

• Repeating and forwarding radio functions for maximum range

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from operator

• Multiple functions available through radio commands: pulse operation, light function, partial opening, defined open, and defined close

• Transmitter management on-site or remotely through Codemaster+

• Accu internal battery back up or Accu 2.2 external battery back up provide power for standby operation during power outages

• Compatible with SOMweb for remote online access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed

• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner

• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)

• Use Relay for switching external garage lighting up to 240V/5A

• Maintenance-free for most environments

• The motor carriage can be easily removed for service or repair without needing to disassemble the rail

• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

Included in the Box

1. 2060 motor carriage
2. Control housing
3. 3x operator rail

4. 2x connecting sleeve
5. Connector wire
6. Chain with isolator
7. Straight door arm
8. Curved door arm
9. Installation bag
10. Door hardware bag
11. Ceiling bracket kit
12. Safety sensor kit
13. Docs bag
14. English technical manual
15. Spanish technical manual

Additional Documents

pro+ Brochure
pro+ Quick Install Guide

What Our Experts Think

• Durable Construction: Designed for 8' garage doors, it delivers reliable and long-lasting operation in all conditions.
• Quiet Operation: Features noise-reduction technology for a smooth and quiet experience, making it ideal for residential areas.
• Robust Motor: Engineered to handle frequent use, providing strong lifting capabilities and consistent performance.
• Space-Saving Design: A compact unit that integrates efficiently into various garage setups without sacrificing power.
• Customizable Compatibility: Works with a wide range of transmitters and accessories to meet specific needs.
• Easy Installation: Straightforward installation process, ideal for professionals and DIY users alike.

Q&A

Q: What is the Sommer 2060 PRO+ 8' Standard Operator Kit without Transmitter - YS10249-00004?
A: The Sommer 2060 PRO+ 8' Standard Operator is a reliable garage door opener designed for 8-foot residential garage doors. This version does not include a transmitter but offers strong performance and efficiency for homeowners who may already have a compatible remote control or prefer to purchase one separately.

Q: What are its key features?

• 8-Foot Garage Door Compatibility: Ideal for residential garage doors up to 8 feet in height.
• Quiet Operation: Utilizes a belt-drive system for smooth and silent operation.
• Powerful Motor: Provides reliable and consistent performance, even for heavy doors.
• Durable Construction: Built with high-quality materials for long-lasting durability.
• Expandable System: Can be paired with a transmitter and other accessories (sold separately).

Q: Does this kit include a transmitter?
A: No, this kit does not include a transmitter. It is designed for those who already have or wish to purchase a compatible remote control separately.

Q: Why choose the Sommer 2060 PRO+ 8' Standard Operator Kit?
A: This system is perfect for those seeking a quiet, efficient, and durable garage door operator without the added cost of a transmitter. It is ideal for users who want to customize their remote control options.

Q: Is professional installation recommended?
A: While the operator is designed for easy installation, professional installation is recommended to ensure optimal performance and safety

Maintenance Tips

• Regular Cleaning: Clean the operator system, motor, and surrounding areas with a soft, dry cloth. Avoid using water or abrasive cleaners that can damage the surfaces.

• Lubricate Moving Parts: Apply silicone-based lubricant to the moving parts, such as rails and hinges, to ensure smooth and quiet operation. Lubricate at least twice a year.

• Battery Backup Maintenance: Check the battery backup system to ensure it is charged and functional. Replace the battery every 2-3 years or if it shows signs of wear.

• Inspect for Wear and Damage: Periodically inspect the motor, gears, and all mechanical components for signs of wear, cracks, or other damage. Replace any worn-out parts promptly to avoid system failure.

• Test Safety Mechanisms: Verify the function of safety sensors and reverse mechanism every 1-2 months. Adjust or recalibrate as needed to ensure the system responds to obstacles.

• Check Electrical Connections: Regularly check all wiring and connections for loose terminals or corrosion. Ensure they are secure and clean for optimal electrical conductivity.

• Prevent Overload: Ensure that the operator and door system are not subjected to excessive weight or force beyond the manufacturer's recommended limits to avoid motor strain.

• Protect from Power Surges: Use a surge protector to prevent damage from electrical surges or fluctuations that could affect the operator's electronics.

• Test Operational Efficiency: Manually operate the system occasionally to verify its functionality, ensuring the motor is running smoothly without strange noises or resistance.

• Professional Inspection: Schedule an annual inspection with a professional technician to check the overall condition of the operator and its components for optimal performance.
