Sommer 2080 evo+ 8' Standard operator kits no transmitter with battery back up - YUSKS10251-00021

Sommer 2080 evo+ 8' Standard operator kits no transmitter with battery back up - YUSKS10251-00021

Compatible with evo+ and pro+

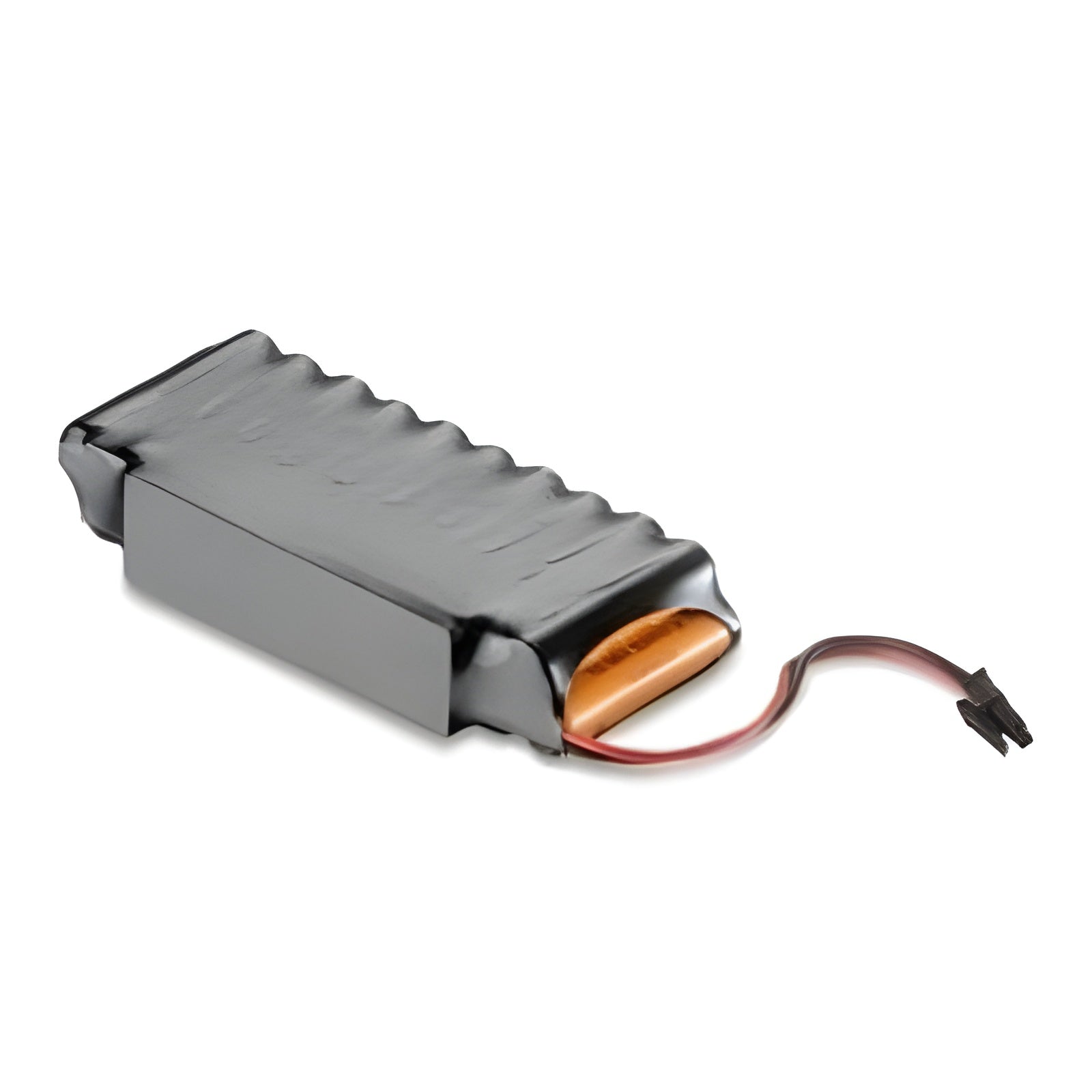

Battery backup
Integrated in the control unit, the battery pack will supply power during power outages.
Reliable NiMH battery backup solution. Life cycle up to 10x greater compared to a Lead-Acid battery.

Features

• 800 Newton Motor (1 HP equivalent)

• 3-piece c-channel rail for doors up to 8' tall

• Wired safety sensors

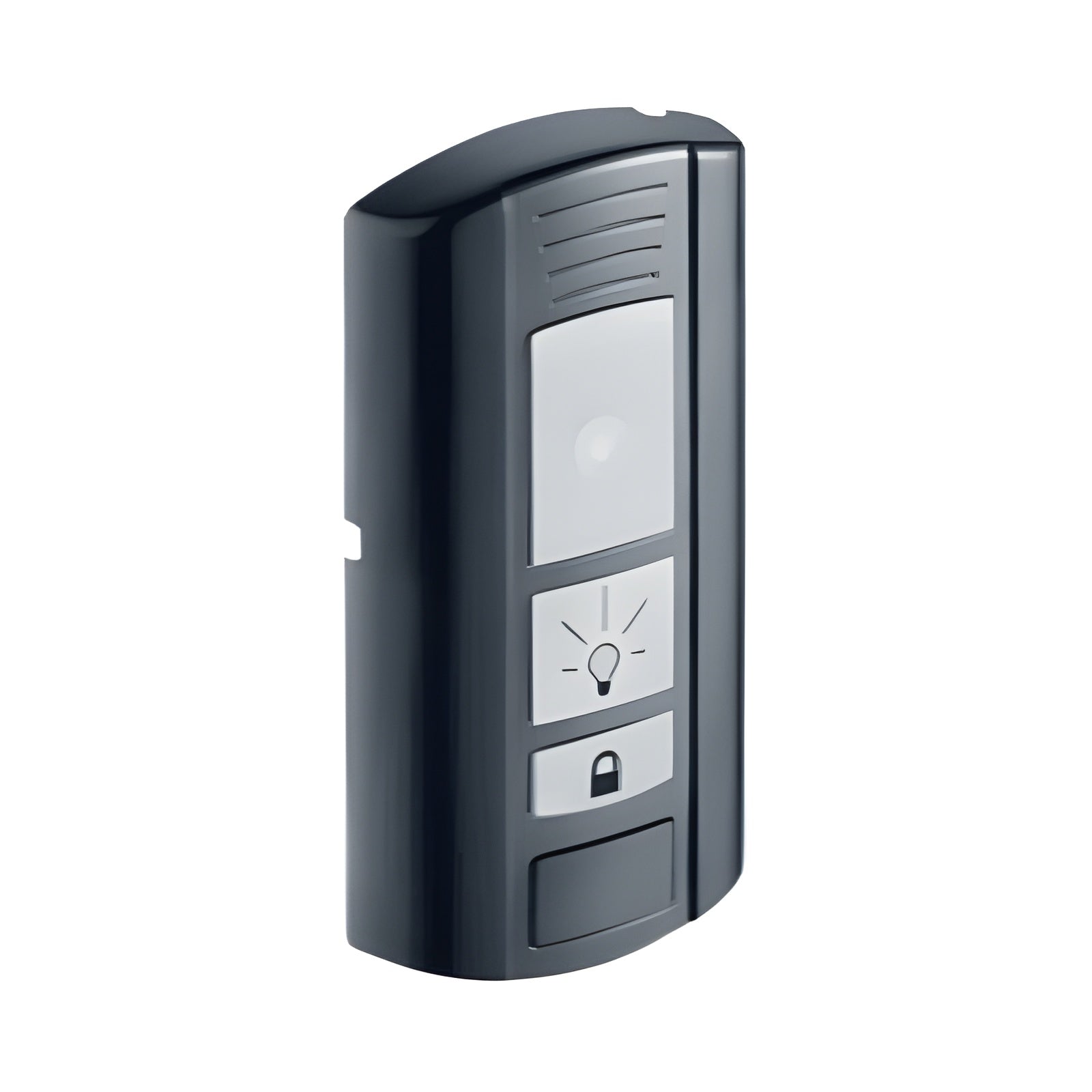

• Wired 3-button wall station

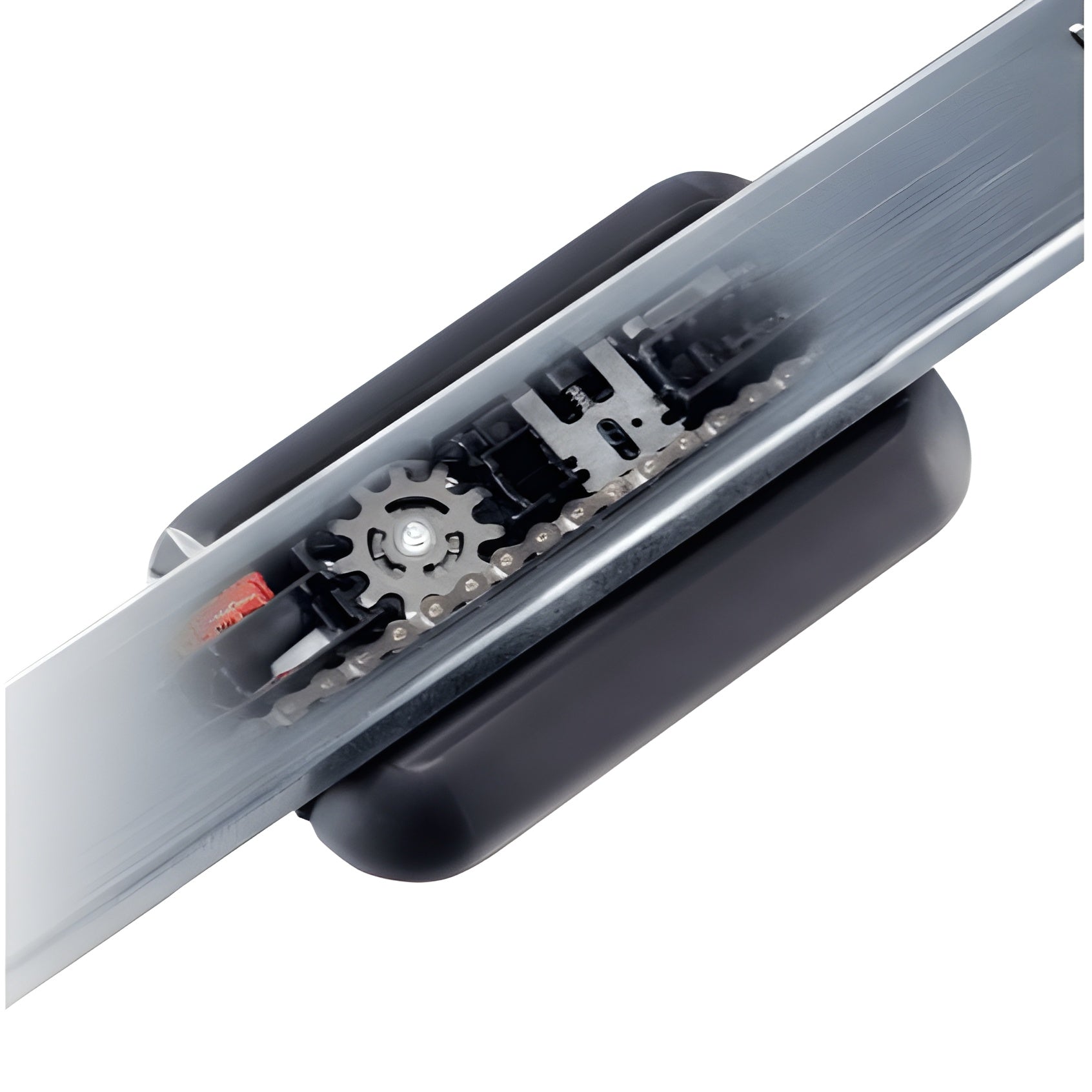

• Direct drive technology with one moving part for maximum force and longevity

• Soft start and stop on a variable curve ramp

• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation

• Active motor braking during travel helps minimize loss of control during door malfunction

• The operator actively pushes in the closed direction during an attempted break-in

• The emergency release can be disengaged and re-engaged in any position

• Built-in LED lighting at the motor carriage

• Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)

• Add Short and/or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)

• Monitored safety edge and optical safety edge terminals on the motor carriage to avoid coil cords or taking up reels

• Interlock capable for pass doors, mechanical locks, etc.

• Repeating and forwarding radio functions for maximum range

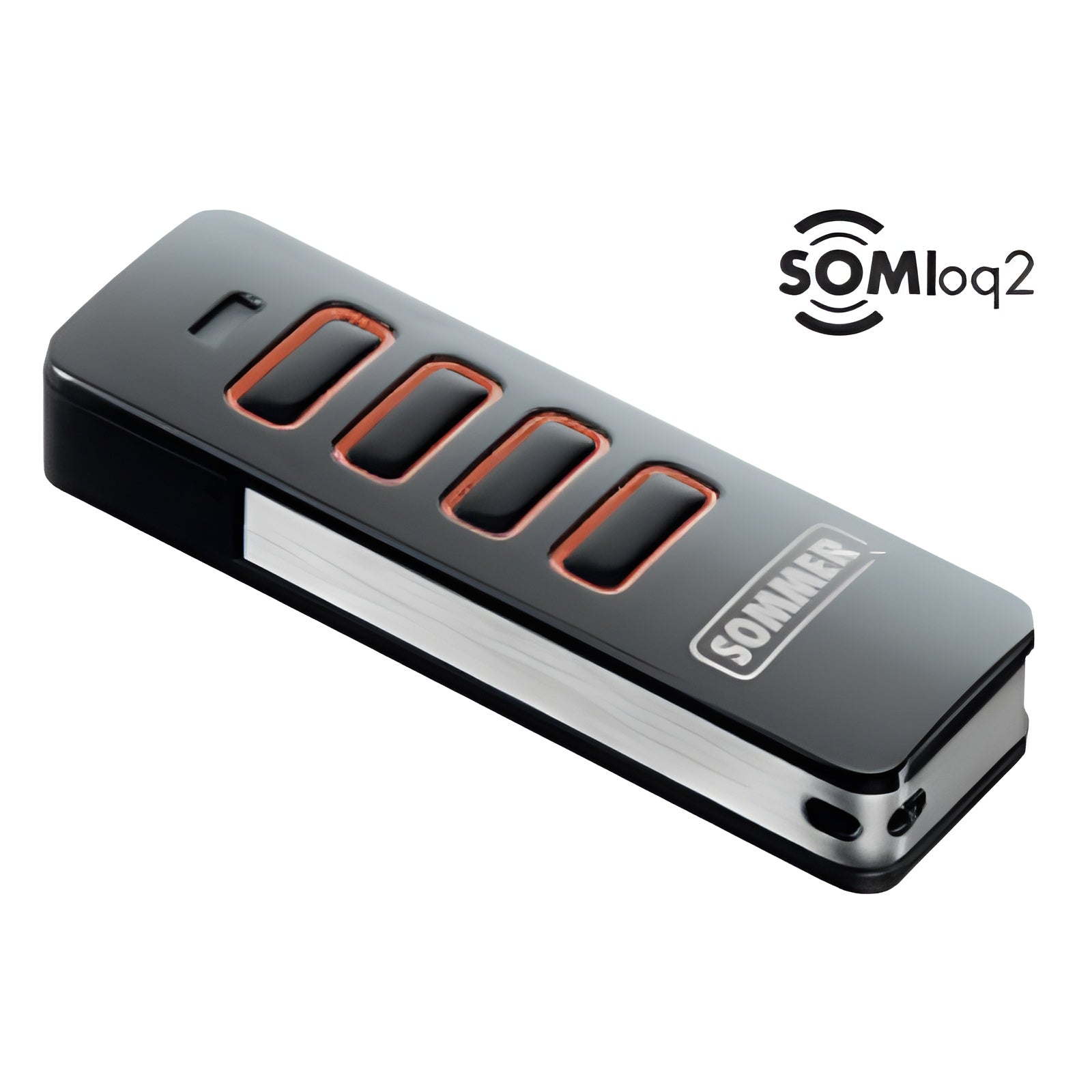

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator

• Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close

• Transmitter management on-site or remotely through Codemaster+

• Accu internal battery backup or Accu 2.2 external battery backup provide power for standby operation during power outages

• Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed

• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner

• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)

• Use Relay for switching external garage lighting up to 240V/5A

• Maintenance-free for most environments

• The motor carriage can be easily removed for service or repair without needing to disassemble rail

• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

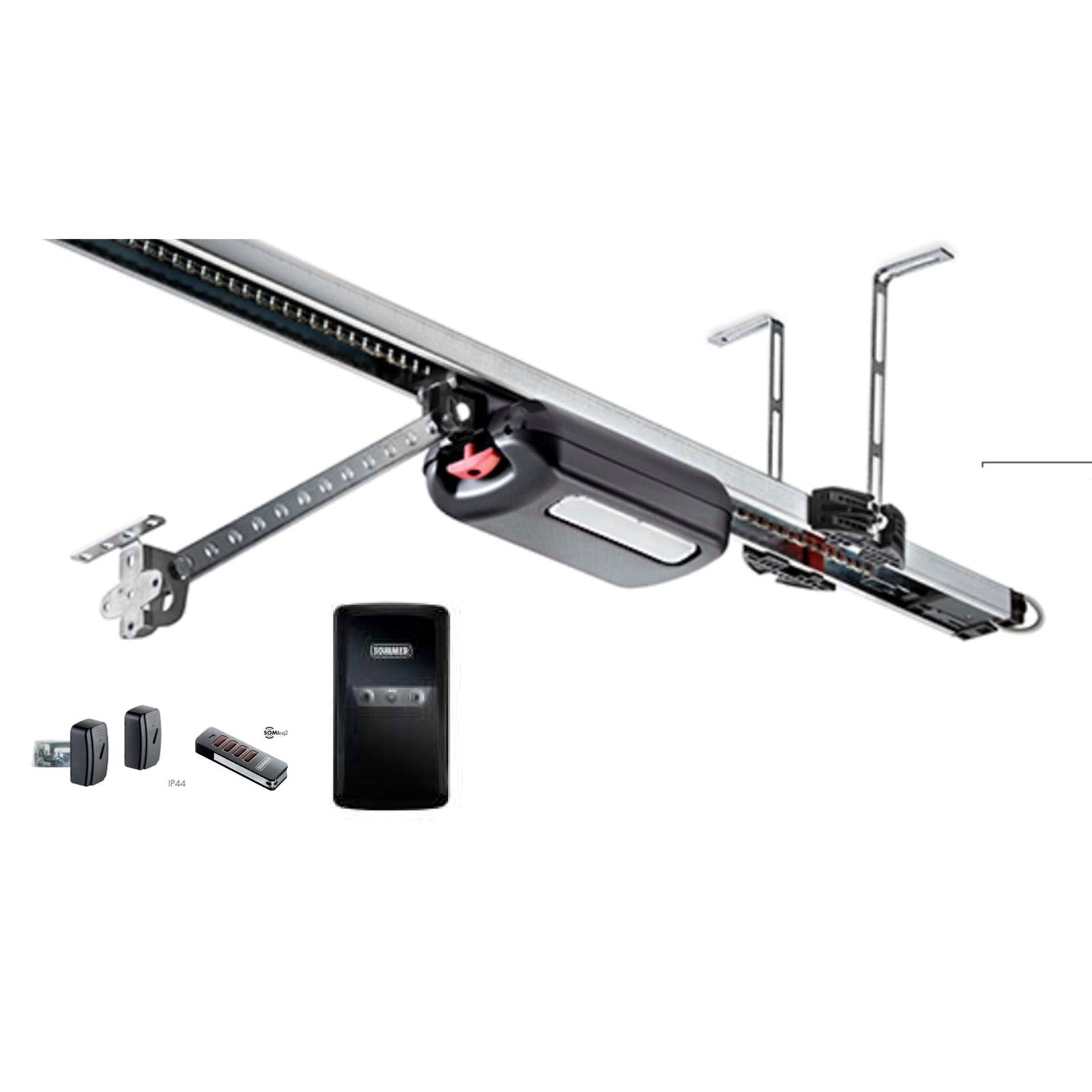

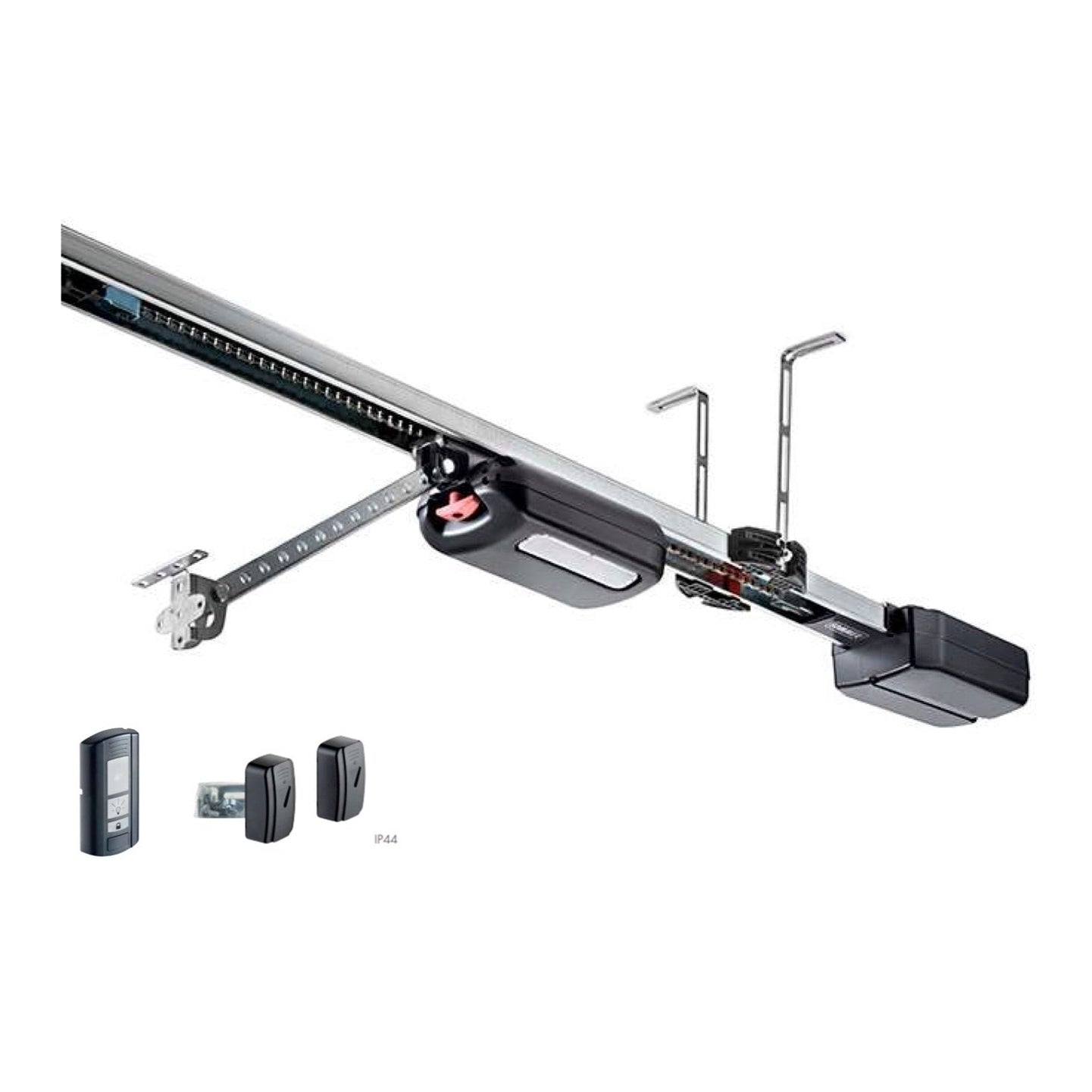

Included in the Box

1. 2080 motor carriage
2. Controller
3. 3x operator rail

4. 2x connecting sleeve
5. Chain with isolator
6. Straight door arm
7. Curved door arm
8. Installation bag
9. Door hardware bag
10. Ceiling bracket kit
11. Safety sensor kit
12. Wired 3-button wall station kit
13. Wiring kit
14. Docs bag
15. English technical manual
16. Spanish technical manual

Video

Additional Documents

evo+ Brochure
evo+ Technical Manual

What Our Experts Think

• Battery Backup: Guarantees continued operation even during power outages, ensuring convenience and security.
• Heavy-Duty Performance: Designed for 8' garage doors, it delivers robust lifting power and smooth operation, ideal for heavy usage.
• Quiet Technology: Features noise-reduction technology, ensuring a quiet and smooth experience, perfect for residential environments.
• Durable and Reliable: Built with high-quality materials for longevity and minimal maintenance, it stands up to daily use.
• Compact and Efficient: A space-saving design that integrates easily into various garage systems without sacrificing strength or power.
• Customizable Compatibility: Works seamlessly with a variety of transmitters and accessories, allowing for further personalization.

Q&A

Q: What is the Sommer 2080 evo+ 8' Standard Operator Kit with Battery Backup - YUSKS10251-00021?
A: The Sommer 2080 evo+ 8' is a garage door operator kit designed for residential doors up to 8 feet tall. It features a powerful motor, silent operation, and comes with battery backup for continued use during power outages. This kit does not include a transmitter but is compatible with additional remotes.

Q: What are its key features?

• 8-Foot Garage Door Compatibility: Ideal for residential garage doors up to 8 feet high.
• Battery Backup: Ensures your garage door will still operate even during a power failure, keeping your home secure.
• Powerful and Quiet Motor: Offers reliable performance with a silent operation, thanks to its belt drive system.
• Durable Construction: High-quality components provide a long-lasting and low-maintenance system.
• Standard Kit: Does not include a transmitter, but it is compatible with various remotes and accessories.

Q: Does this kit include a transmitter?
A: No, this kit does not include a transmitter. However, it can be paired with Sommer remotes or other compatible transmitters.

Q: Why choose the Sommer 2080 evo+ 8' with Battery Backup?
A: This system is perfect for homeowners who need a reliable, quiet, and efficient garage door opener with the added security of battery backup. It is a great choice for areas prone to power outages, ensuring that your garage door remains functional when you need it most.

Q: Is professional installation recommended?
A: While this system is designed for easy installation, it’s recommended to have it professionally installed for optimal performance and safety

Maintenance Tips

• Regular Cleaning: Clean the operator unit and surrounding components with a dry cloth to prevent the build-up of dust and debris. Avoid using liquids or harsh chemicals that may damage the unit.

• Lubricate Moving Parts: Apply silicone-based lubricant to rails, hinges, and other moving parts at least twice a year to maintain smooth operation and reduce wear.

• Battery Backup Care: Since the system includes battery backup, monitor the battery charge regularly. Replace the battery every 2-3 years or when it starts losing charge efficiency.

• Inspect Safety Features: Periodically test safety sensors and reverse mechanisms to ensure they are working correctly. Clean and adjust as needed for proper operation.

• Check and Replace Transmitter Batteries: If using a transmitter, ensure the batteries are not running low. Replace them as needed for consistent communication between the transmitter and operator.

• Inspect for Wear and Tear: Regularly inspect the operator, gears, motor, and all moving parts for signs of wear, cracks, or damage. Replace worn-out components to prevent potential issues.

• Electrical Connection Maintenance: Inspect electrical wiring and connections for any loose or corroded terminals. Tighten connections and clean terminals to maintain secure electrical contact.

• Surge Protection: Install a surge protector to prevent potential damage from electrical surges or fluctuations.

• Check for Overloading: Ensure the operator is not subjected to more weight or pressure than specified in the manufacturer’s guidelines. Overloading can cause stress on the motor and lead to damage.

• Annual Professional Check-Up: Schedule an annual inspection by a professional technician to ensure the system, including the motor, battery backup, and safety mechanisms, are all functioning properly.
