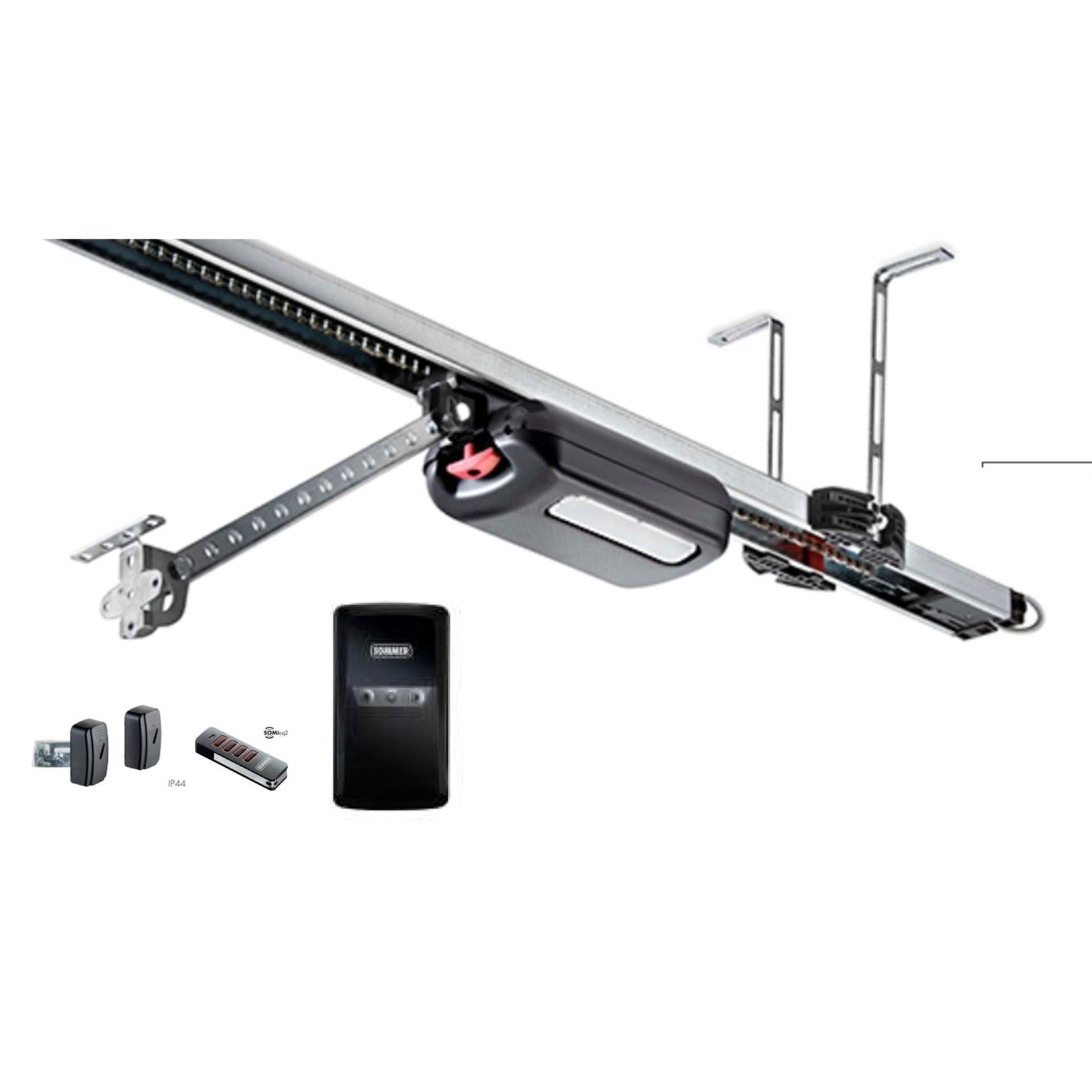

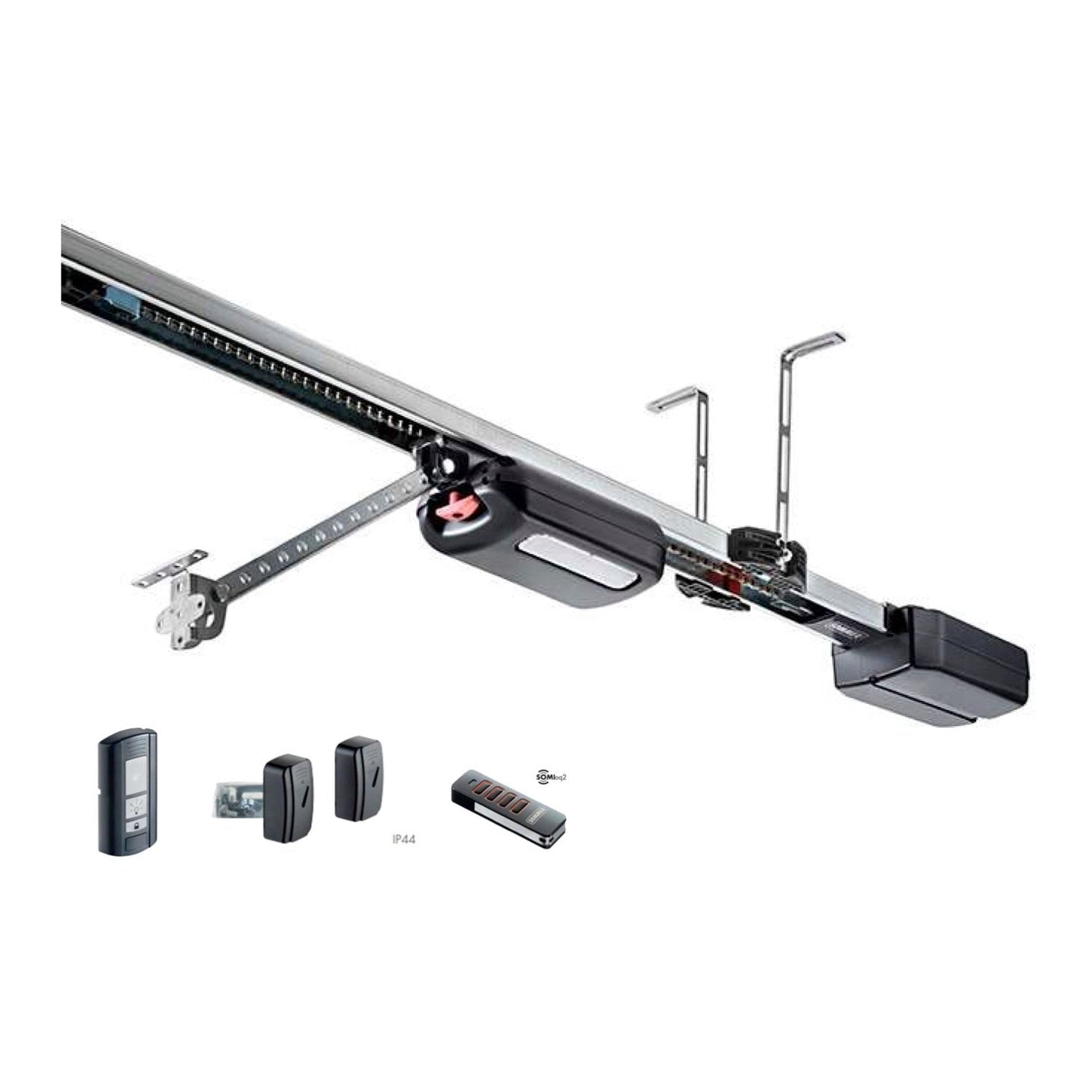

Sommer 2080 evo+ 8' with Pearl Transmitter and Accu - YUSKS10251-00013

Sommer 2080 evo+ 8' with Pearl Transmitter and Accu - YUSKS10251-00013

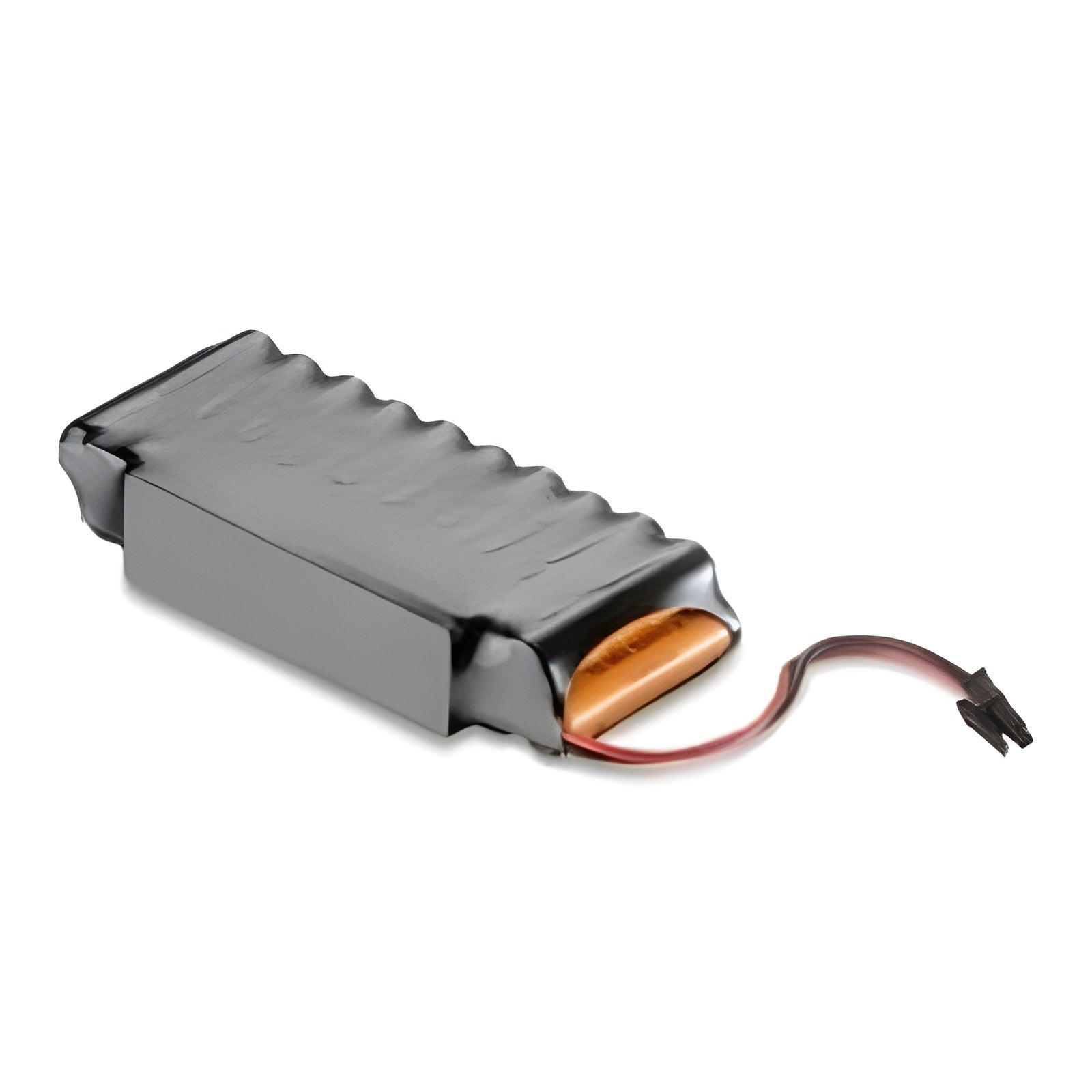

Accu - Battery backup

Compatible with evo+ and pro+

Battery backup
Integrated into the control unit, the battery pack will supply power during power outages.
Reliable NiMH battery backup solution. Life cycles up to 10x greater compared to a Lead-Acid battery.

Features

• 800 Newton Motor (1 HP equivalent)

• 3-piece c-channel rail for doors up to 8' tall

• One 4-button Pearl transmitter included

• Wired safety sensors

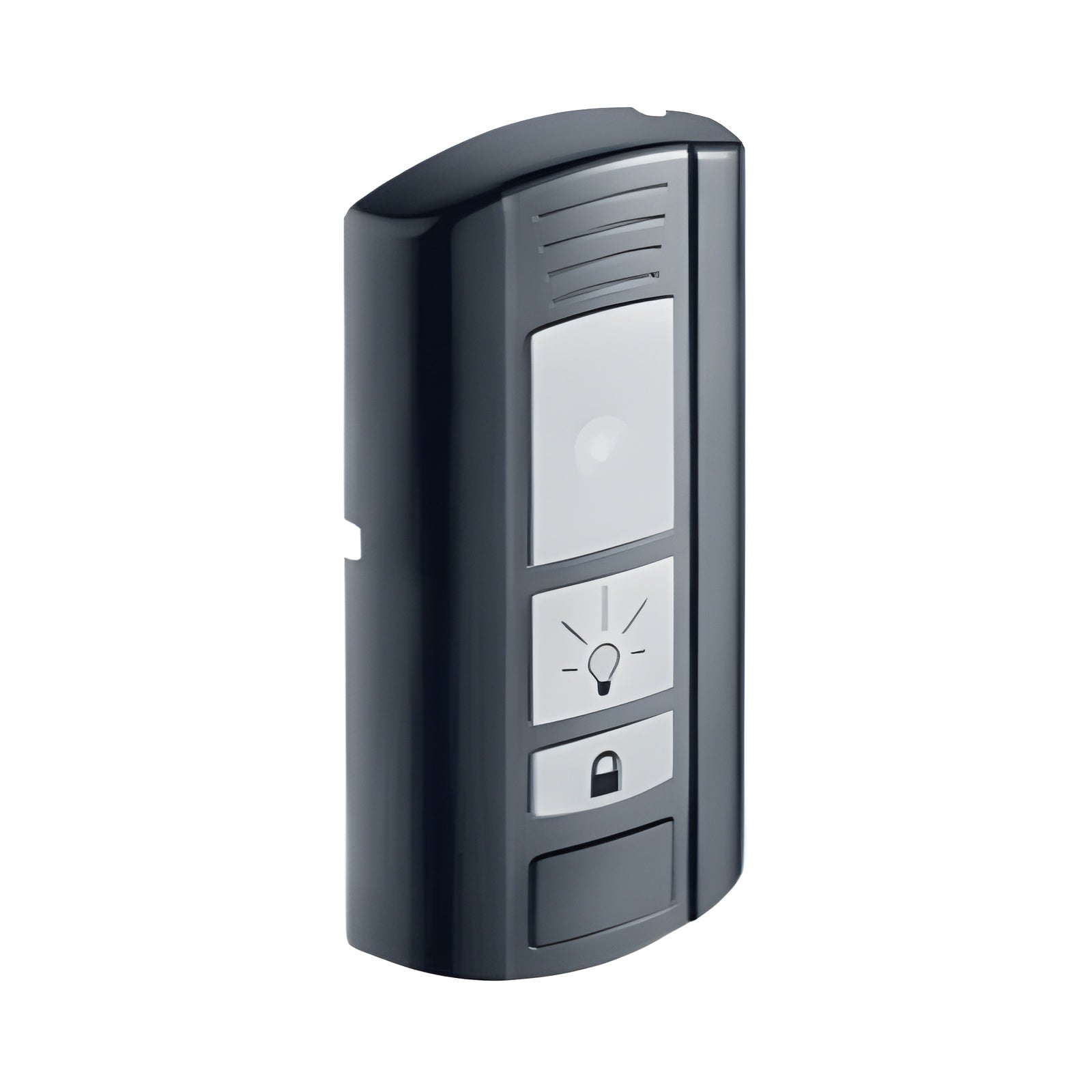

• Wired 3-button wall station

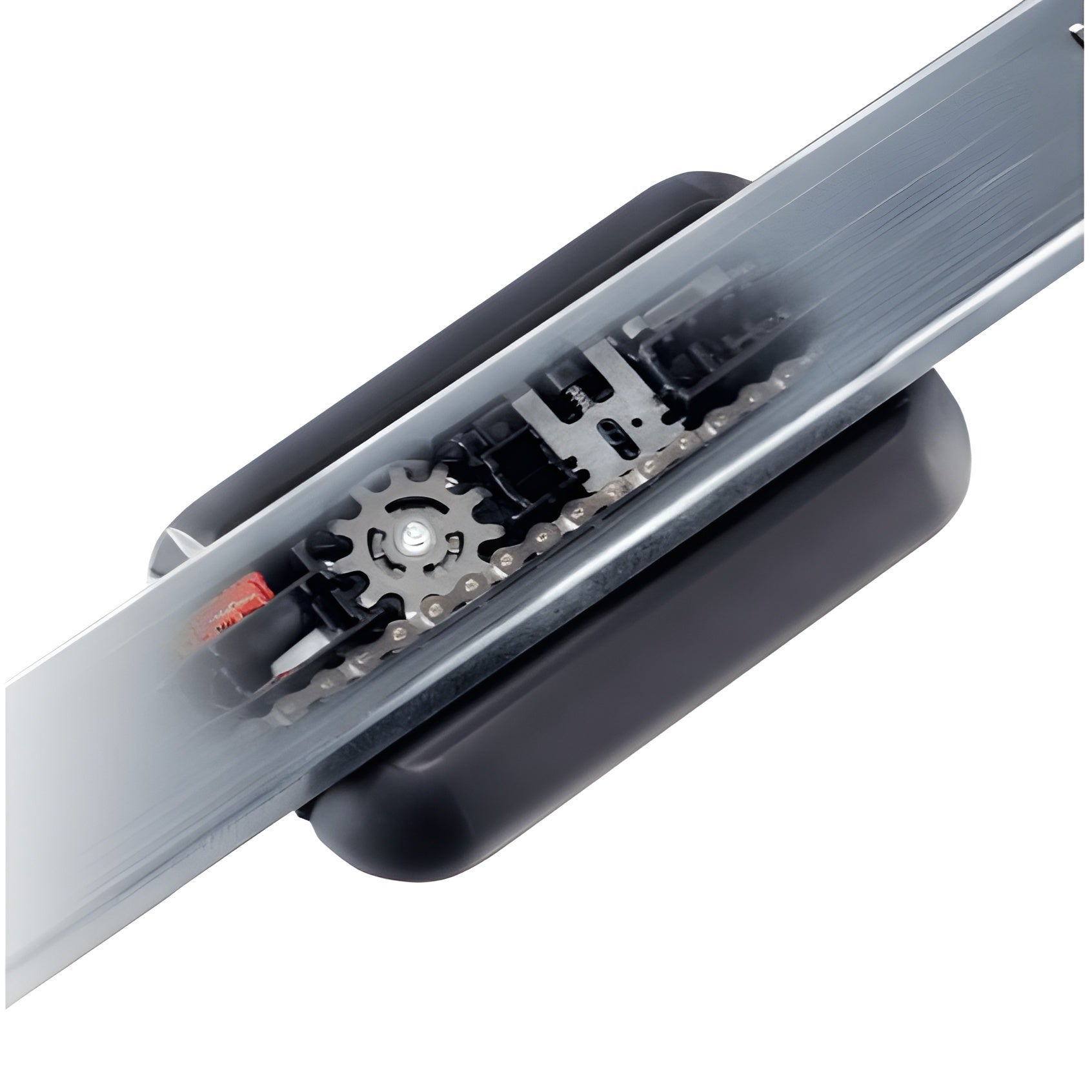

• Direct drive technology with one moving part for maximum force and longevity

• Soft start and stop on a variable curve ramp

• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation

• Active motor braking during travel helps minimize loss of control during door malfunction

• The operator actively pushes in the closed direction during an attempted break-in

• The emergency release can be disengaged and re-engaged in any position

• Built-in LED lighting at the motor carriage

• Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)

• Add Short and/or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)

• Monitored safety edge and optical safety edge terminals on the motor carriage to avoid coil cords or taking up reels

• Interlock capable for pass doors, mechanical locks, etc.

• Pre-programmed 4-button Pearl transmitter in the box

• Repeating and forwarding radio functions for maximum range

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator

• Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close

• Transmitter management on-site or remotely through Codemaster+

• Accu internal battery backup or Accu 2.2 external battery backup provide power for standby operation during power outages

• Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed

• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner

• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)

• Use Relay for switching external garage lighting up to 240V/5A

• Maintenance-free for most environments

• The motor carriage can be easily removed for service or repair without needing to disassemble rail

• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

Items Included in the Box

1. 2080 motor carriage
2. Controller
3. Pearl 4-button transmitter with visor clip
4. 3x operator rail
5. 2x connecting sleeve
6. Chain with isolator
7. Straight door arm
8. Curved door arm
9. Installation bag
10. Door hardware bag
11. Ceiling bracket kit
12. Safety sensor kit
13. Wired 3-button wall station kit
14. Wiring kit
15. Docs bag
16. English technical manual
17. Spanish technical manual

Video

Additional Documents

evo+ Brochure
evo+ Quick Install Guide

What Our Experts Think

• Battery Backup (Accu): Ensures uninterrupted operation during power outages for added reliability.
• Efficient EVO+ Technology: Delivers quiet, smooth, and energy-efficient garage door operation.
• Pearl Transmitter: Provides a secure, long-range signal with easy programming for convenience.
• Robust Compatibility: Designed to handle garage doors up to 8 feet in height with precision.
• Enhanced Safety: Integrated obstacle detection and secure coding protect your property and family.

Q&A

Q: What is the Sommer 2080 EVO+ 8' with Pearl Transmitter and Accu?
A: It’s a premium 8-foot garage door opener system featuring a direct-drive motor, a Pearl Transmitter, and an Accu rechargeable backup battery.

Q: What is the Accu feature?
A: The Accu is a built-in rechargeable backup battery that ensures uninterrupted operation during power outages.

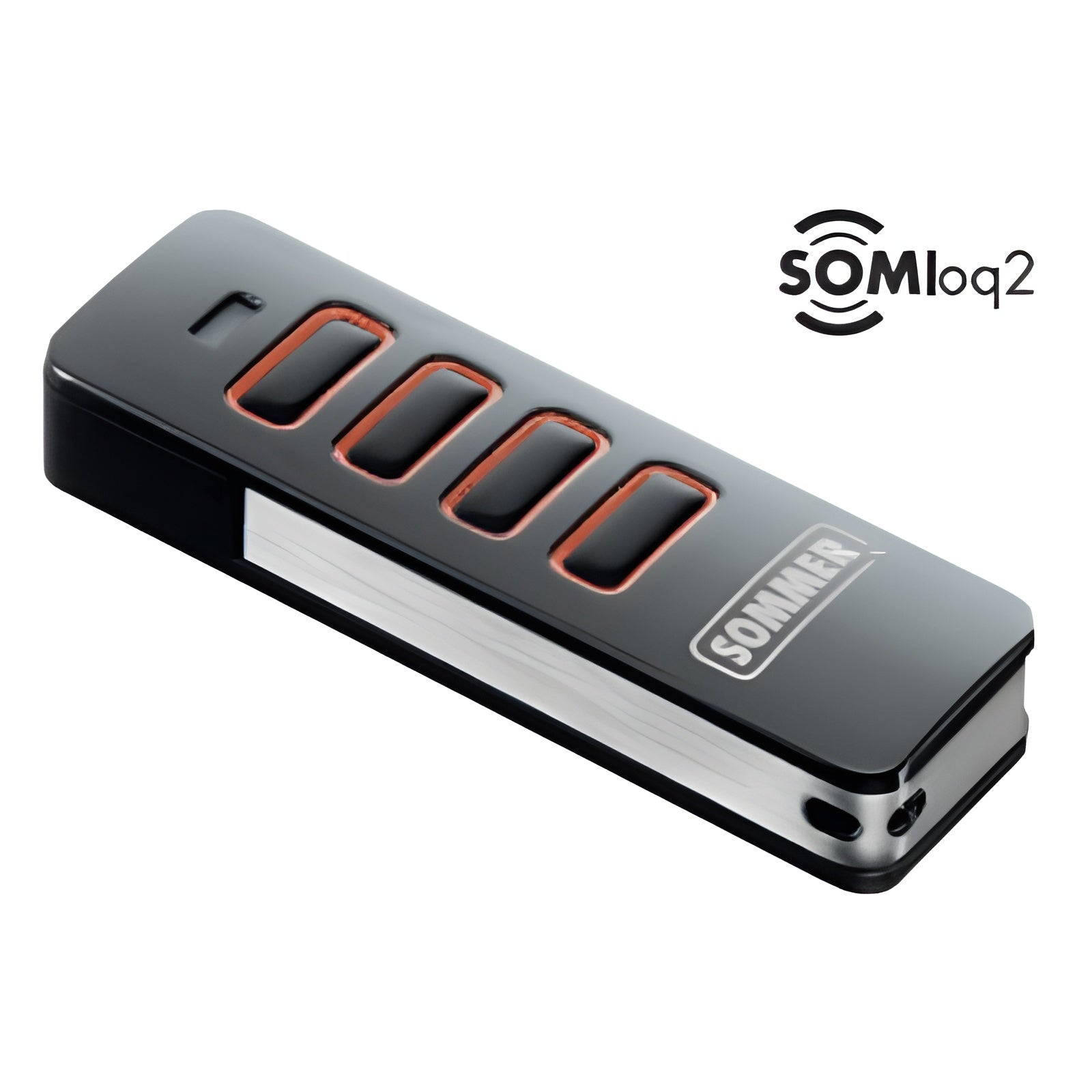

Q: What is the Pearl Transmitter?
A: The Pearl Transmitter is a secure, easy-to-use remote control included for convenient garage door operation.

Q: What makes the EVO+ special?
A: It offers quiet, durable performance with advanced energy efficiency and minimal maintenance needs.

Q: Is it suitable for all garage doors?
A: It’s compatible with most residential garage doors up to 8 feet in height.

Q: Why choose this model?
A: It combines reliability, quiet operation, backup power, and advanced security for ultimate peace of mind

Maintenance Tips

• Lubricate Regularly: Apply lubricant to hinges, rollers, and tracks for smooth operation.
• Inspect Accu Backup: Check battery charge status and replace as needed for uninterrupted operation during power outages.
• Clean Tracks: Keep tracks clear of debris for consistent door movement.
• Test Safety Features: Verify auto-reverse and photo-eye alignment for safety compliance.
• Transmitter Battery: Replace the Pearl Transmitter battery promptly when signal weakens.
• Check Connections: Inspect and tighten all screws, bolts, and electrical connections.
• Professional Service: Schedule periodic servicing for motor and electronics to ensure peak performance.
