Sommer 2080 evo+ 8' Standard operators no transmitter - YS10251-00006

Sommer 2080 evo+ 8' Standard operators no transmitter - YS10251-00006

Features

• 800 Newton Motor (1 HP equivalent)

• 3-piece c-channel rail for doors up to 8' tall

• Wired safety sensors

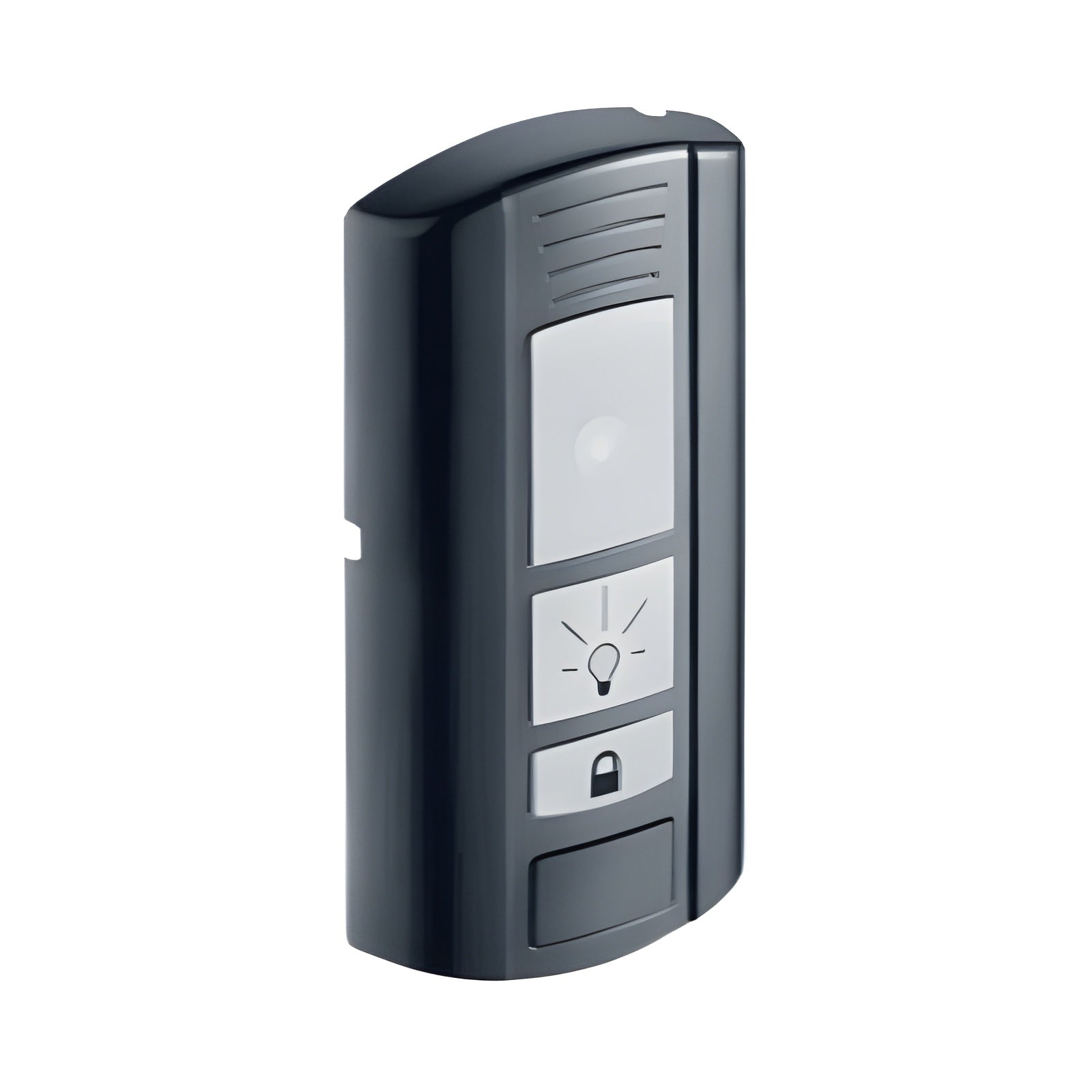

• Wired 3-button wall station

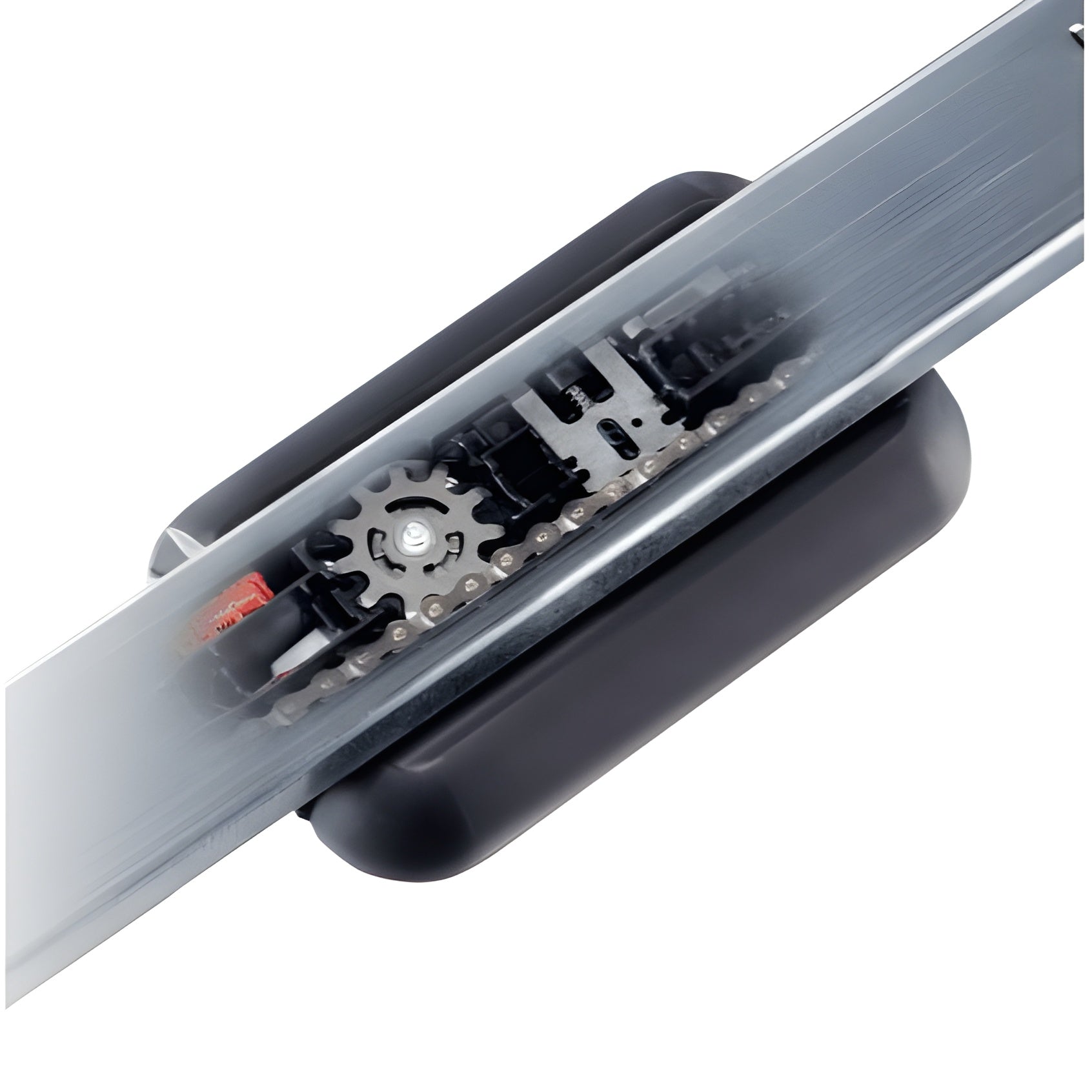

• Direct drive technology with one moving part for maximum force and longevity

• Soft start and stop on a variable curve ramp

• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation

• Active motor braking during travel helps minimize loss of control during door malfunction

• The operator actively pushes in the closed direction during an attempted break-in

• The emergency release can be disengaged and re-engaged in any position

• Built-in LED lighting at the motor carriage

• Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)

• Add Short and/or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)

• Monitored safety edge and optical safety edge terminals on the motor carriage to avoid coil cords or taking up reels

• Interlock capable for pass doors, mechanical locks, etc.

• Repeating and forwarding radio functions for maximum range

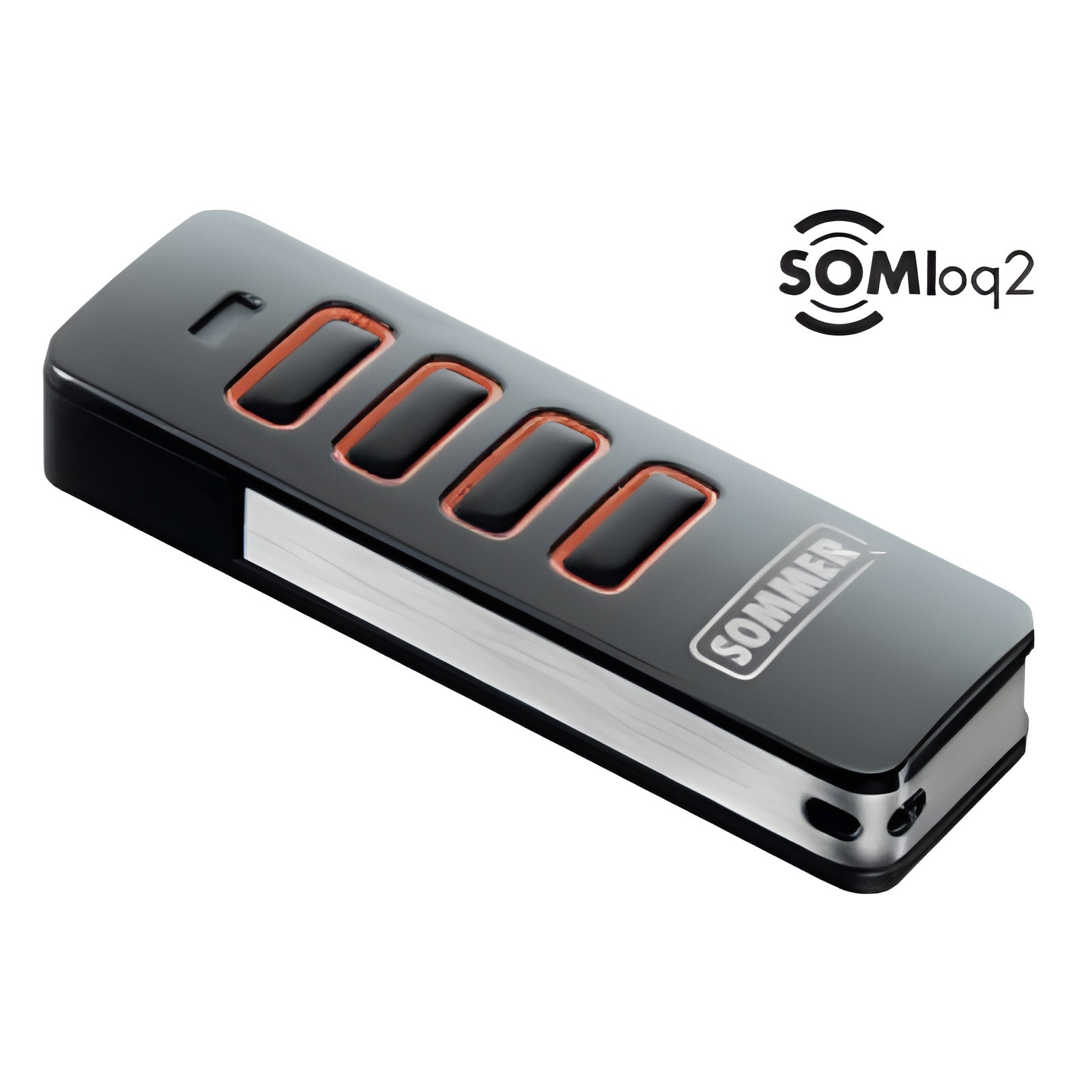

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator

• Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close

• Transmitter management on-site or remotely through Codemaster+

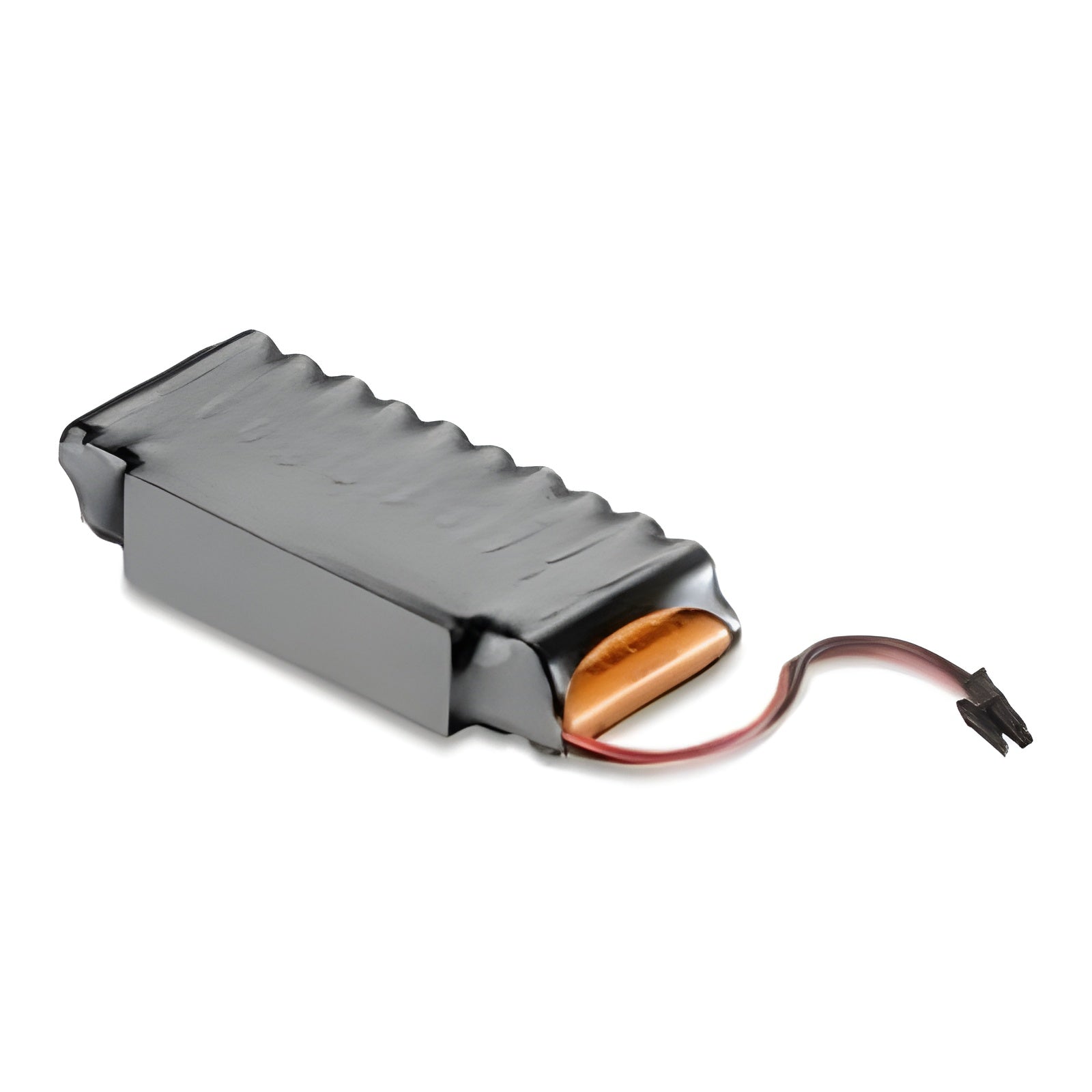

• Accu internal battery backup or Accu 2.2 external battery backup provide power for standby operation during power outages

• Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed

• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner

• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)

• Use Relay for switching external garage lighting up to 240V/5A

• Maintenance-free for most environments

• The motor carriage can be easily removed for service or repair without needing to disassemble rail

• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

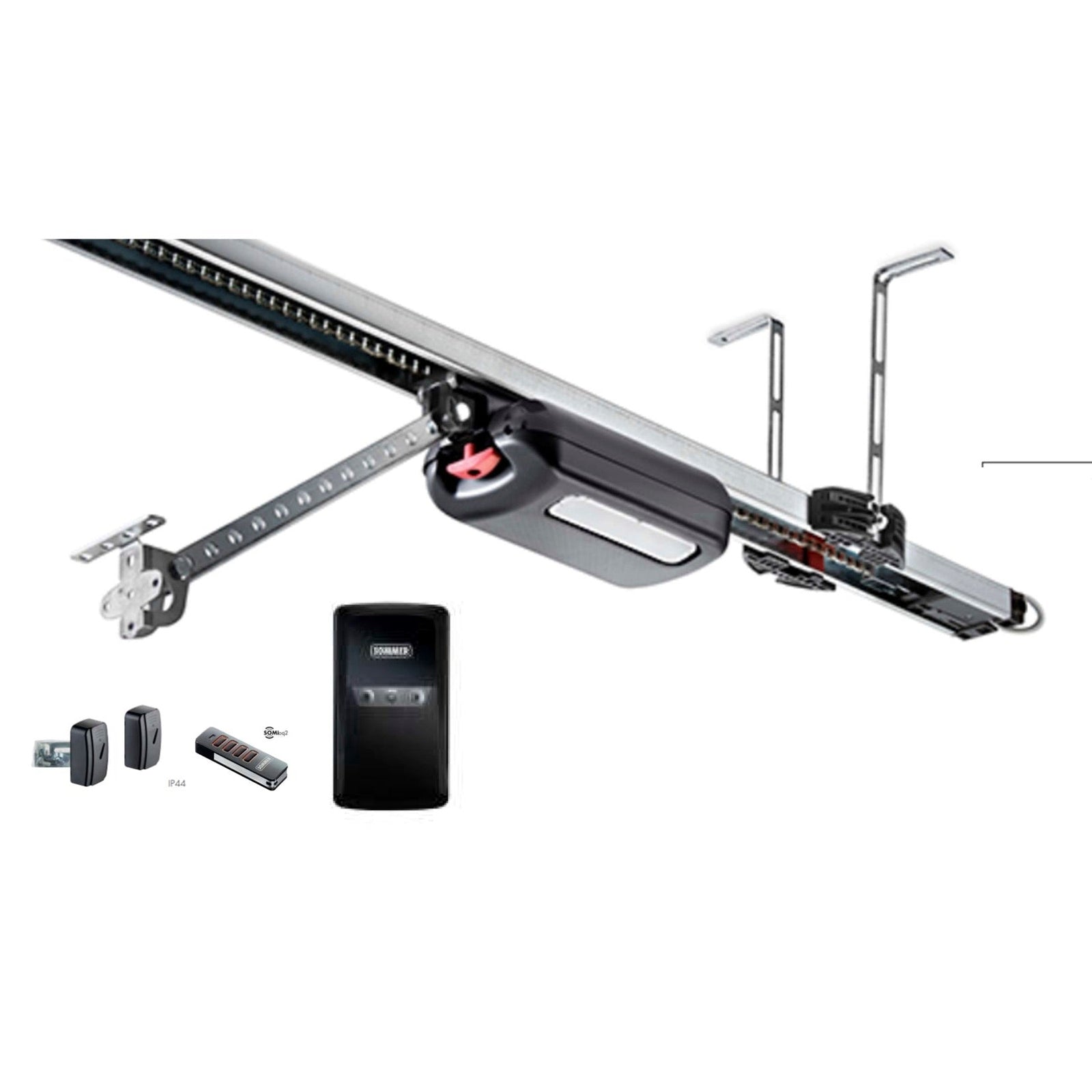

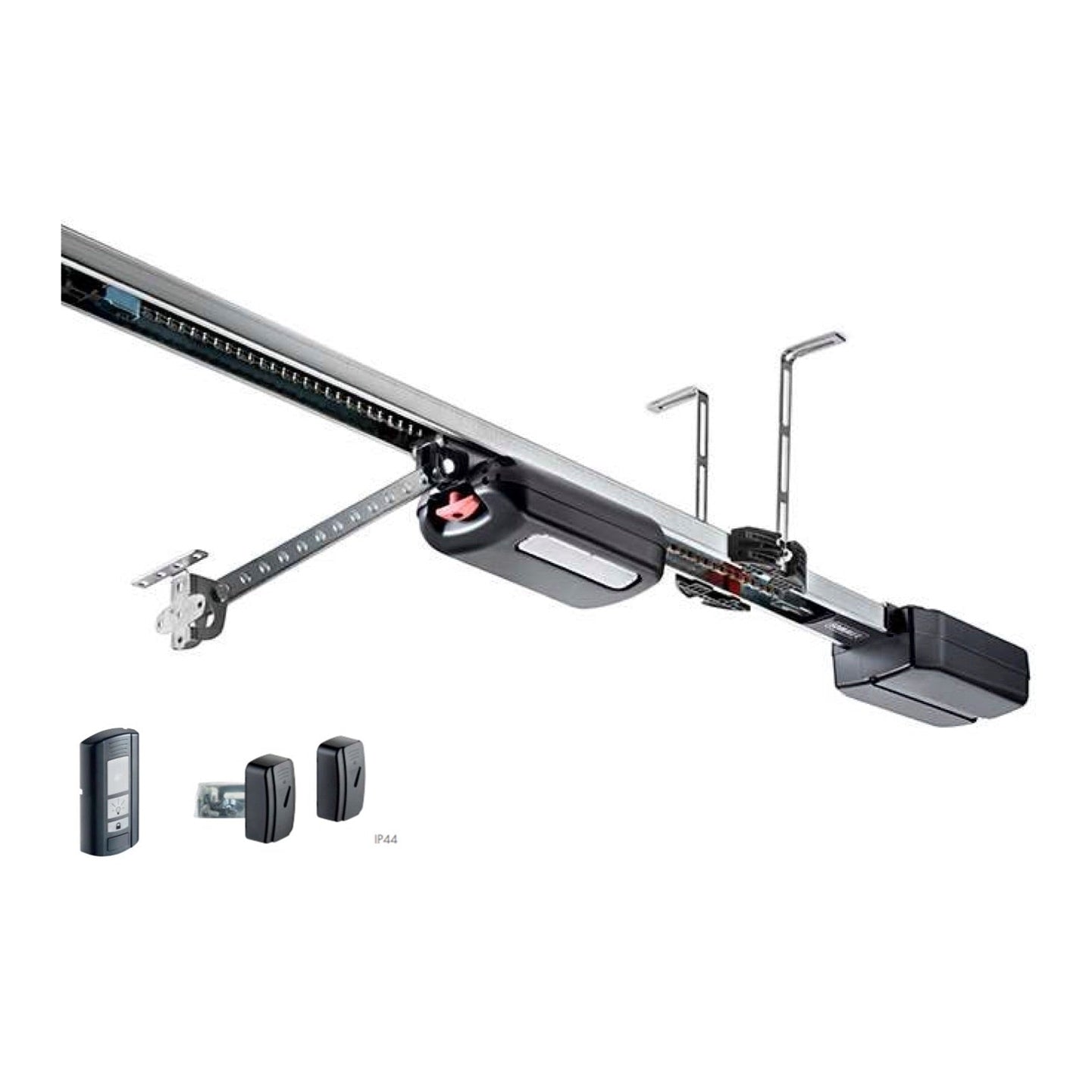

Items Included in the Box

1. 2080 motor carriage
2. Controller
3. 3x operator rail

4. 2x connecting sleeve
5. Chain with isolator
6. Straight door arm
7. Curved door arm
8. Installation bag
9. Door hardware bag
10. Ceiling bracket kit
11. Safety sensor kit
12. Wired 3-button wall station kit
13. Wiring kit
14. Docs bag
15. English technical manual
16. Spanish technical manual

Additional Documents

evo+ Brochure
evo+ Quick Install Guide

What Our Experts Think

• Robust Performance: Built to handle 8' garage doors with strong lifting capabilities, ensuring reliable operation for residential or commercial use.
• Quiet Operation: Equipped with noise-reduction features to deliver a smooth, quiet experience, ideal for garages attached to living spaces.
• Durable Build: Constructed with high-quality materials for long-lasting performance and minimal maintenance.
• Space-Saving Design: Compact and efficient, this operator fits seamlessly into various garage configurations without sacrificing power.
• Customizable Options: Works with a wide range of transmitters and accessories to allow for further personalization based on specific needs.

Q&A

Q: What is the Sommer 2080 evo+ 8' Standard Operator Kit without Transmitter - YS10251-00006?
A: The Sommer 2080 evo+ 8' Standard Operator Kit is a high-performance garage door opener designed for residential doors up to 8 feet in height. This version does not include a transmitter but offers a powerful and quiet motor for smooth operation, along with durable components for long-lasting use.

Q: What are its key features?

• 8-Foot Garage Door Compatibility: Suitable for residential garage doors up to 8 feet tall.
• No Transmitter Included: This kit does not come with a remote control transmitter but is compatible with Sommer remotes and other compatible transmitters.
• Quiet Belt Drive System: Offers smooth, silent operation, making it ideal for homes with bedrooms near the garage.
• Durable and Reliable: Built with high-quality materials for lasting performance and low maintenance.
• Powerful Motor: Designed to lift heavy garage doors reliably and efficiently.

Q: Does this kit include a transmitter?
A: No, this kit does not include a transmitter. It can be paired with compatible remotes or additional transmitters for remote control functionality.

Q: Why choose the Sommer 2080 evo+ 8' Standard Operator Kit without Transmitter?
A: If you already have a compatible transmitter or prefer to choose your remote separately, this option provides the essential operator unit with no extra cost for a transmitter. It's ideal for those who want a high-quality, quiet, and durable garage door opener.

Q: Is professional installation recommended?
A: While installation is straightforward, professional installation is recommended for the best setup and safety, ensuring the system performs optimally

Maintenance Tips

• Regular Cleaning: Clean the operator, motor, and surrounding components with a dry, soft cloth to keep dust and debris from accumulating. Avoid using water or harsh chemicals that could damage the unit.

• Lubricate Moving Parts: Apply a silicone-based lubricant to rails, hinges, and moving components at least twice a year to ensure smooth operation and prevent premature wear.

• Inspect and Test Safety Features: Check safety mechanisms such as photo eyes, sensors, and reverse features regularly. Clean and recalibrate them as needed to ensure they function properly.

• Inspect for Wear and Tear: Regularly examine the operator's gears, motor, and moving parts for signs of damage, wear, or fatigue. Replace any worn-out parts immediately to avoid further damage.

• Check Electrical Connections: Ensure all electrical wiring and connections are tight and free from corrosion. Clean and secure any loose connections to maintain optimal performance.

• Inspect the Motor: Periodically check the motor for unusual sounds or overheating. If the motor shows signs of malfunction, consult a professional for servicing.

• Avoid Overloading: Be sure the operator is not subjected to excessive weight or pressure beyond the manufacturer's specifications. Overloading could damage the motor or mechanical components.

• Surge Protection: Install surge protectors to prevent potential damage from electrical surges, ensuring the longevity of the motor and control unit.

• Battery Backup (if applicable): If your model includes a battery backup system, check the battery regularly and replace it as needed. Ensure it holds a charge and shows no signs of corrosion.

• Professional Inspection: Schedule an annual inspection by a qualified technician to ensure all components, including the motor and safety features, are functioning optimally.
