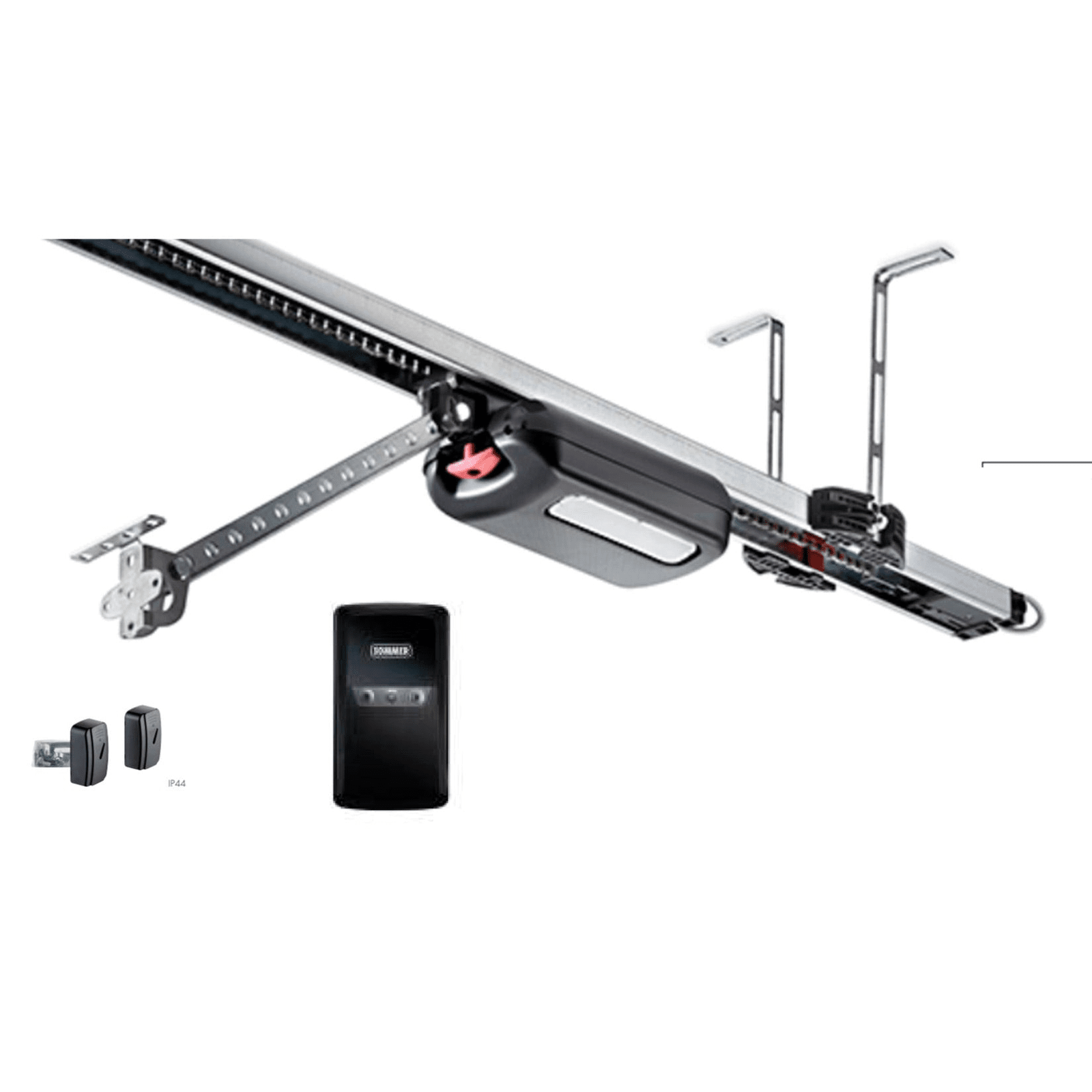

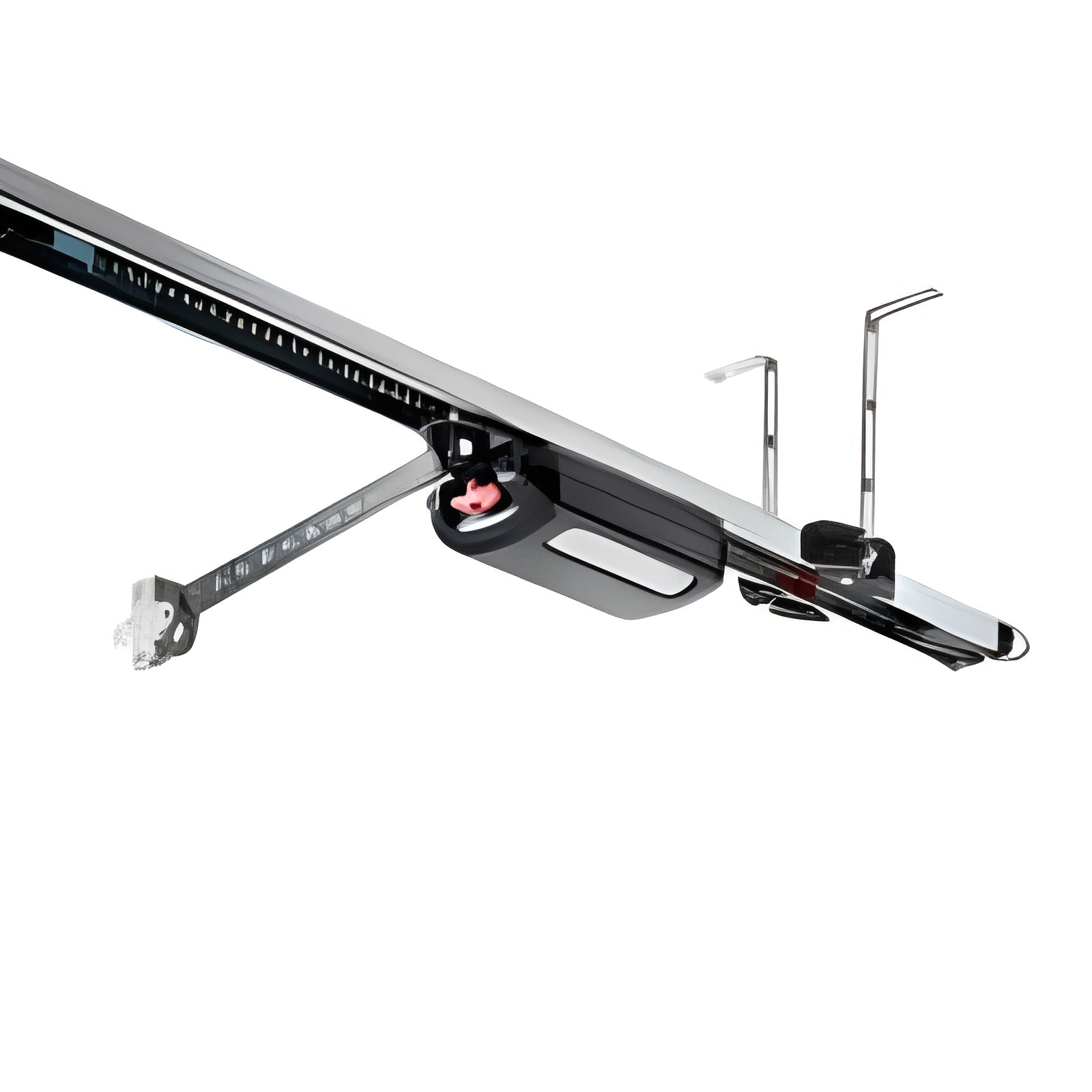

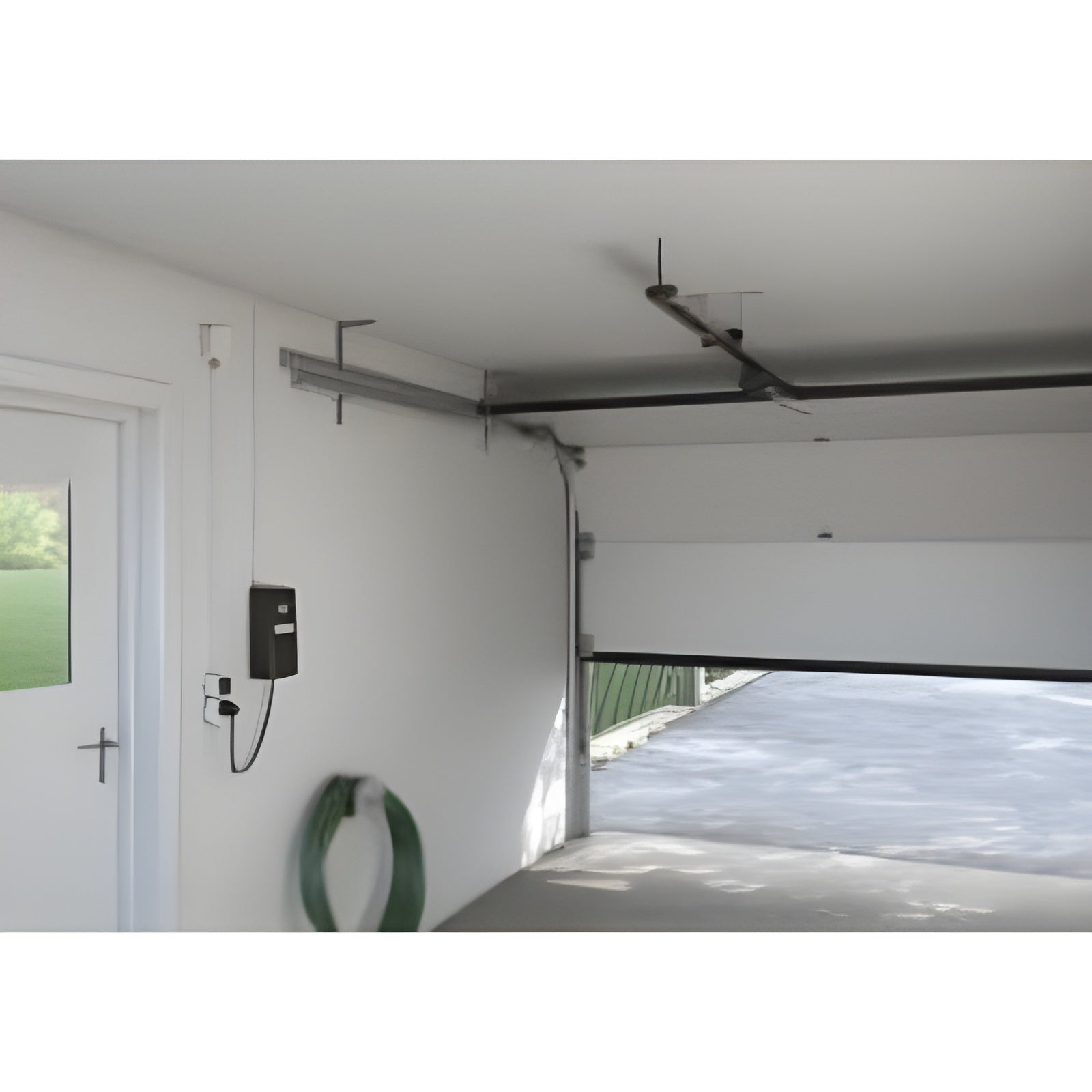

Sommer 2080 pro+ 8' Standard operator kits no transmitter with battery back up - YUSKS10252-00021

Sommer 2080 pro+ 8' Standard operator kits no transmitter with battery back up - YUSKS10252-00021

Compatible with evo+ and pro+

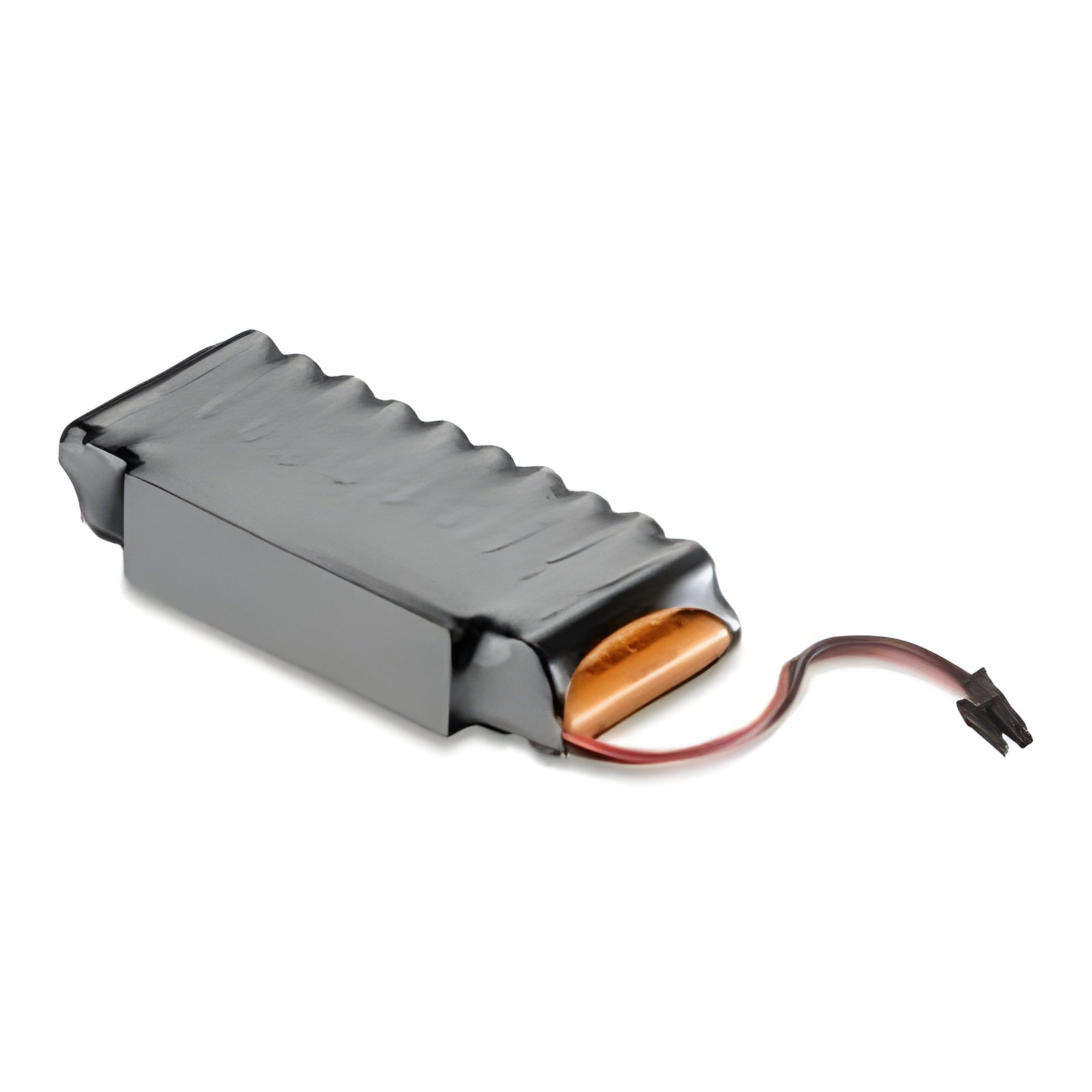

Battery backup
Integrated in the control unit, the battery pack will supply power during power outages.
Reliable NiMH battery backup solution. Life cycles up to 10x greater compared to a Lead-Acid battery.

Features

• 800 Newton (1 HP)
• 3-piece c-channel rail for doors up to 8' tall
• Wired safety sensors

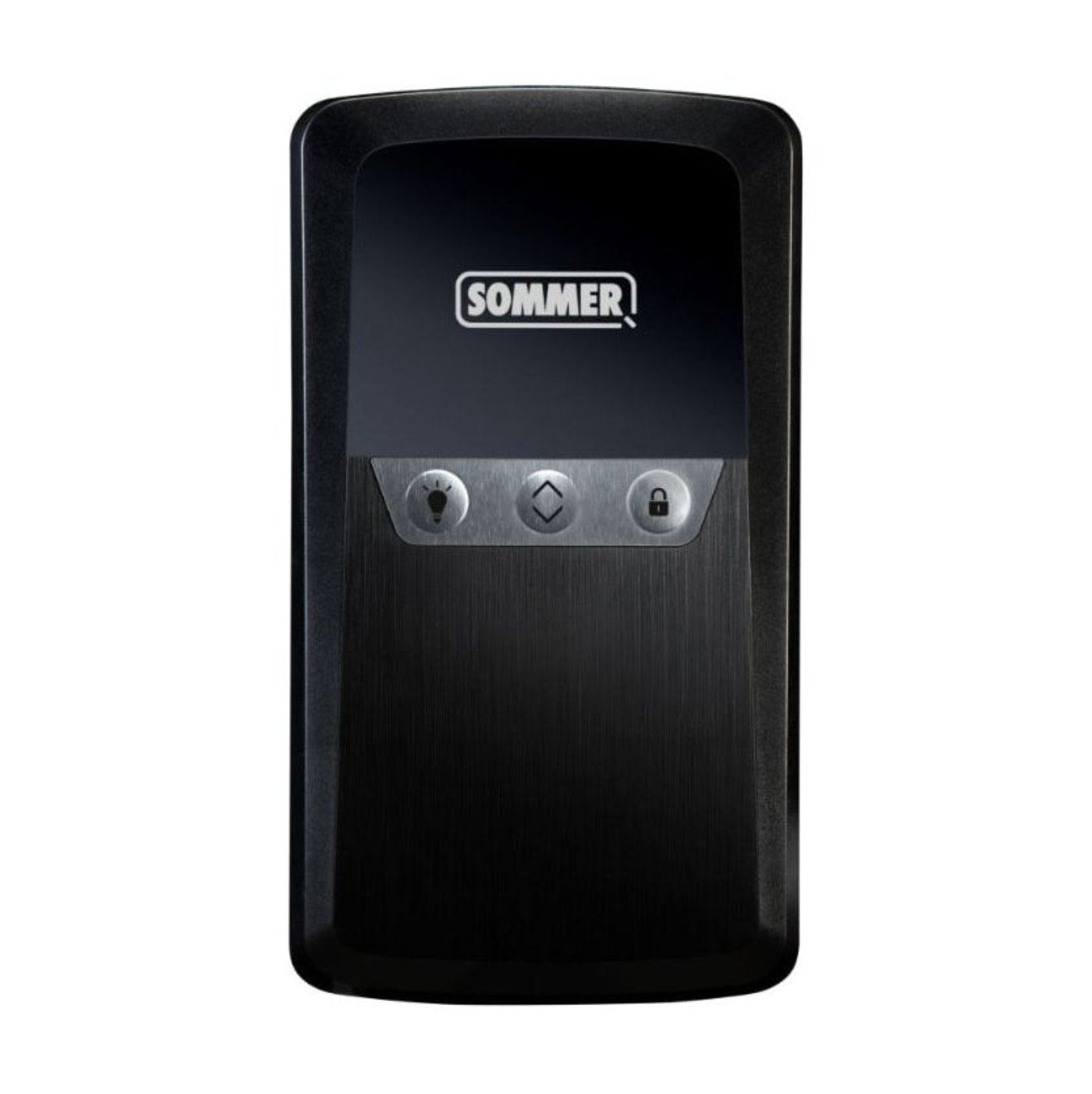

• Remote-mount control housing with integrated buttons

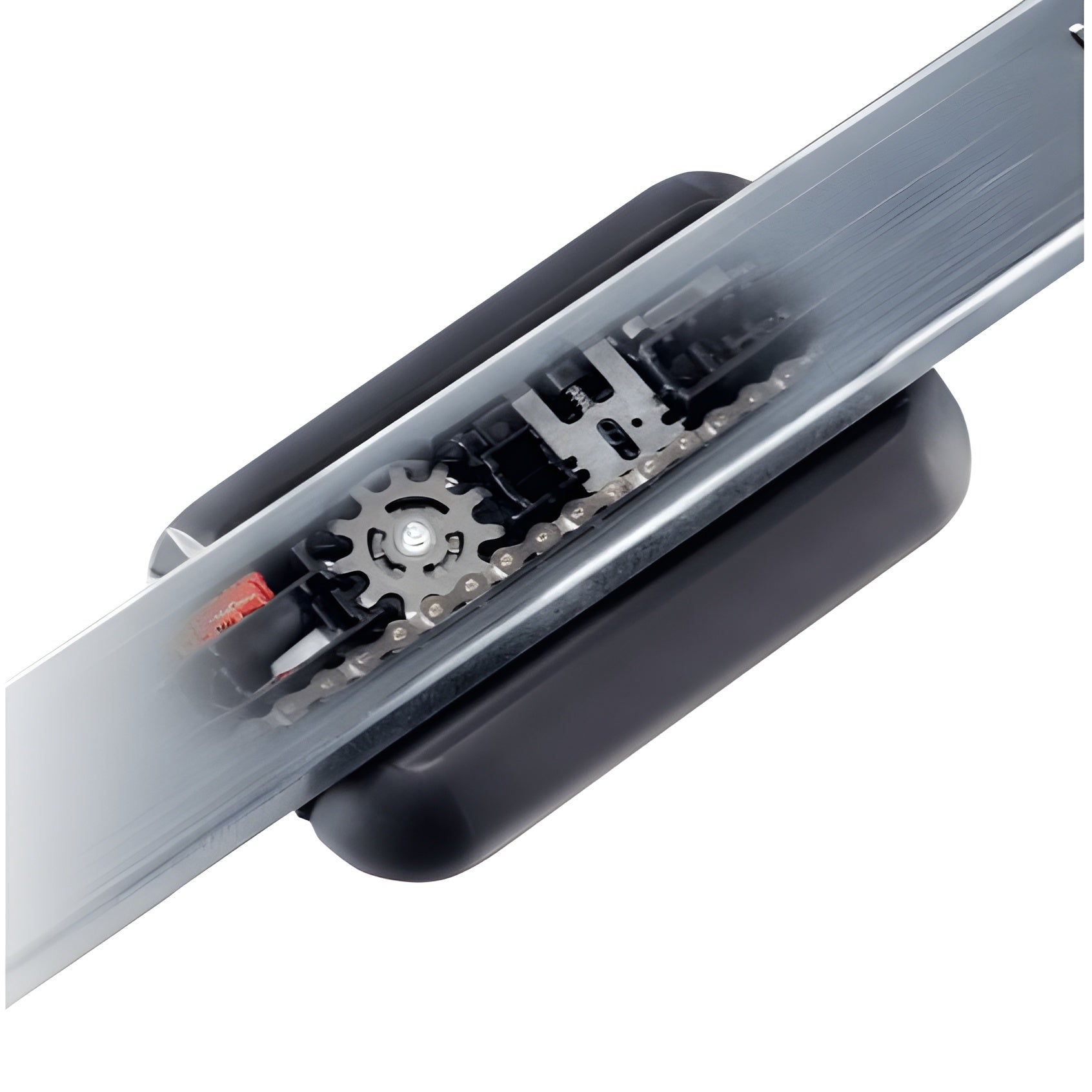

• Direct drive technology with one moving part for maximum force and longevity
• Soft start and stop on a variable curve ramp
• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation
• Active motor braking during travel helps minimize loss of control during door malfunction
• Operator actively pushes in the closed direction during attempted break-in
• Emergency release can be disengaged and re-engaged in any position
• Built-in LED lighting at the motor carriage and control housing
• Easily cut down rail and chain for tight spaces and/or use GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)
• Add Short, Medium and/or Long Rail Extension for taller doors up to 24' (see Door Height by Rail Extension Chart)
• Monitored safety edge and optical safety edge terminals on motor carriage to avoid coil cords or take up reels
• Interlock capable for pass doors, mechanical locks, etc.
• Repeating and forwarding radio functions for maximum range

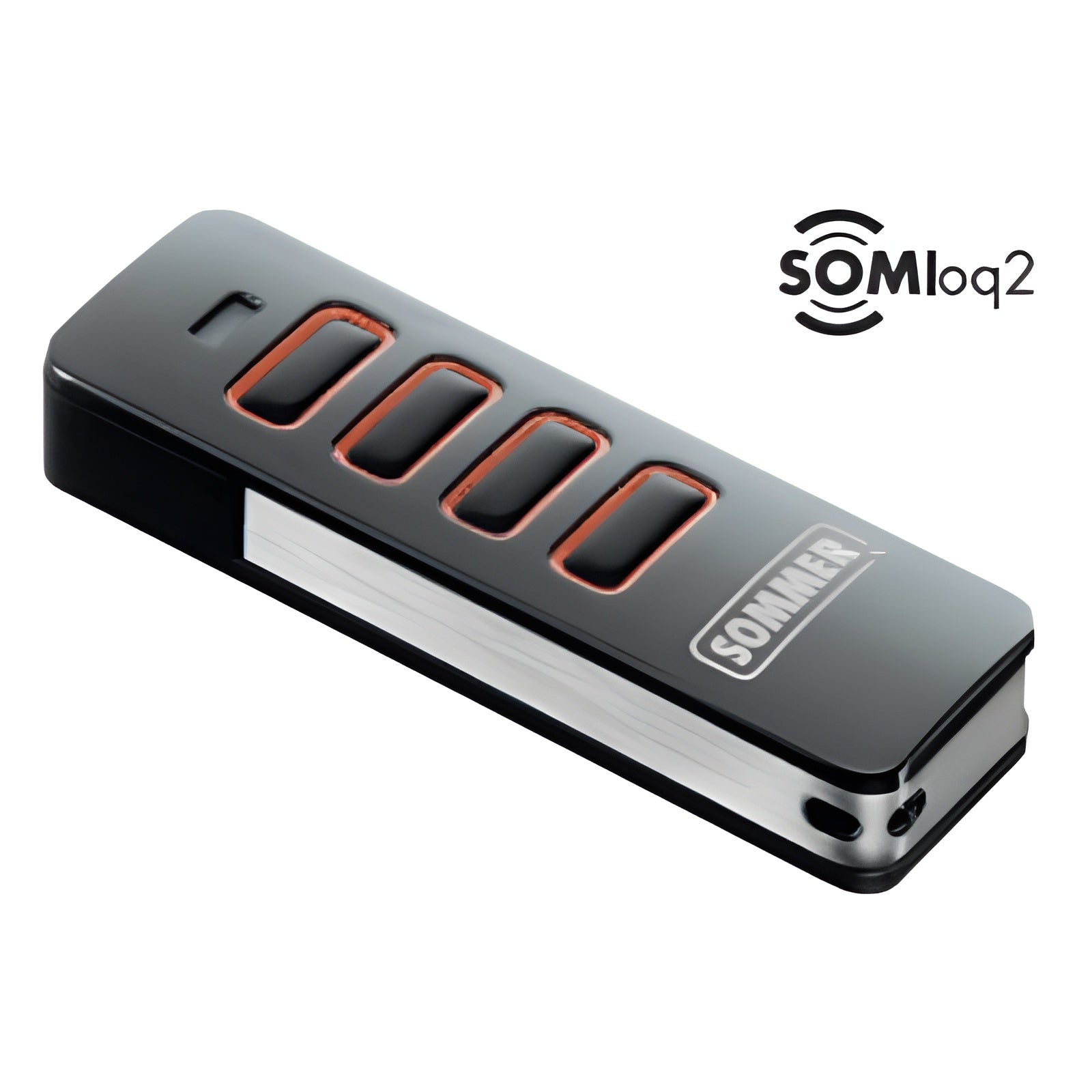

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from operator
• Multiple functions available through radio commands: pulse operation, light function, partial opening, defined open, and defined close
• Transmitter management on-site or remotely through Codemaster+
• Accu internal battery back up or Accu 2.2 external battery back up provide power for standby operation during power outages
• Compatible with SOMweb for remote online access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed
• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner
• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)
• Use Relay for switching external garage lighting up to 240V/5A
• Maintenance-free for most environments
• The motor carriage can be easily removed for service or repair without needing to disassemble the rail
• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

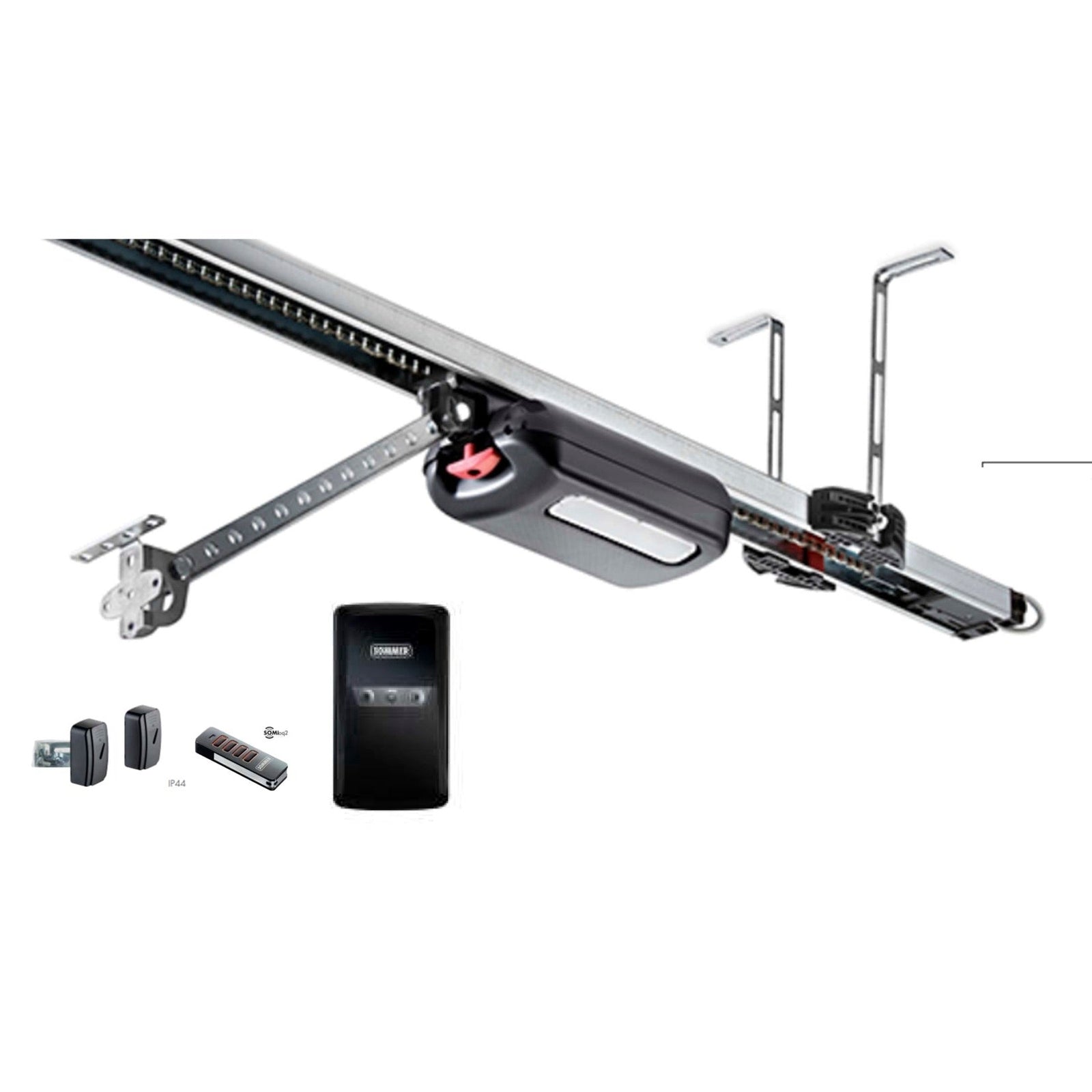

Items Included in the Box

1. 2080 motor carriage
2. Control housing
3. 3x operator rail

4. 2x connecting sleeve
5. Connector wire
6. Chain with isolator
7. Straight door arm
8. Curved door arm
9. Installation bag
10. Door hardware bag
11. Ceiling bracket kit
12. Safety sensor kit
13. Docs bag
14. English technical manual
15. Spanish technical manual

Additional Documents

pro+ Brochure
pro+ Quick Install Guide

What Our Experts Think

• Battery Backup: Keeps the garage door functional during power outages for peace of mind.
• PRO+ Performance: Designed for heavy-duty, quiet, and efficient operation, ideal for daily use.
• Compatibility: Supports garage doors up to 8 feet in height, meeting diverse residential needs.
• Customizable Setup: Does not include a transmitter, allowing tailored pairing with existing control systems.
• Durable and Secure: Features robust construction and integrated safety mechanisms, including obstacle detection.

Q&A

Q: What is the Sommer 2080 PRO+ 8' Standard Operator Kit?
A: It’s a professional-grade 8-foot garage door opener system featuring a direct-drive motor and a built-in battery backup, without a transmitter included.

Q: Does it have battery backup?
A: Yes, the built-in battery backup ensures uninterrupted operation during power outages.

Q: What makes the PRO+ different from the EVO+?
A: The PRO+ offers enhanced performance and is designed for professional applications, providing greater durability and reliability.

Q: Is it compatible with transmitters?
A: Yes, compatible transmitters can be purchased separately for remote operation.

Q: What type of doors is it suitable for?
A: It works with most residential garage doors up to 8 feet in height.

Q: Why choose the Sommer 2080 PRO+?
A: It’s ideal for those needing a robust, quiet, and reliable opener with battery backup for professional or heavy-duty use

Maintenance Tips

• Lubricate Parts: Apply lubricant to hinges, tracks, and rollers for smooth door movement.
• Clean Tracks: Remove dirt and debris to avoid obstructions and ensure seamless operation.
• Battery Backup: Test the backup battery regularly and replace it as necessary to maintain reliability during outages.
• Inspect Door Balance: Check the door’s balance to reduce strain on the motor.
• Tighten Connections: Secure all screws, bolts, and hardware for stability.
• Motor Maintenance: Ensure the motor is free of dust and debris; schedule annual professional servicing.
• Safety Checks: Test auto-reverse and emergency release mechanisms for proper functionality
