Sommer 2080 pro+ 8' Standard operators no transmitter - YS10252-00003

Sommer 2080 pro+ 8' Standard operators no transmitter - YS10252-00003

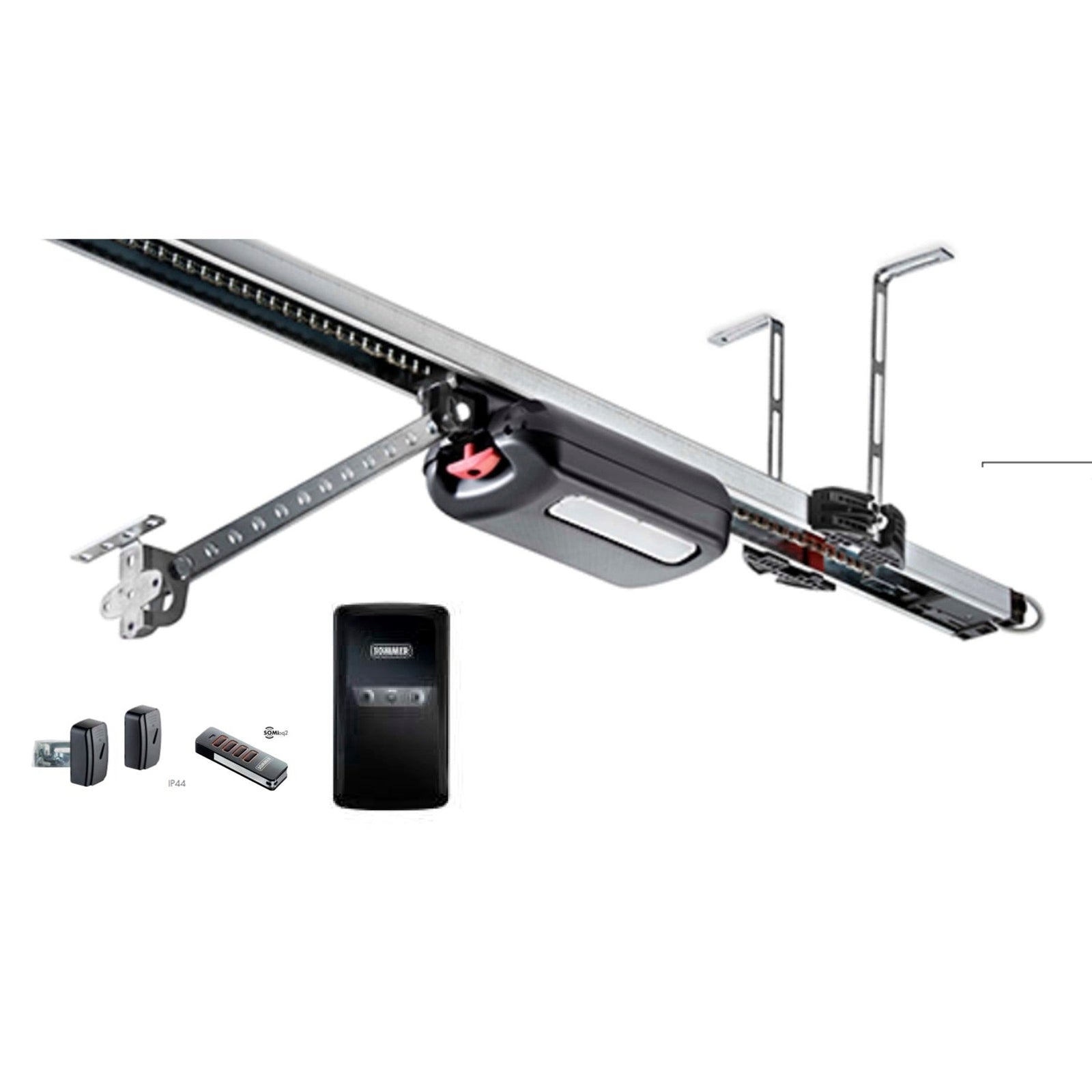

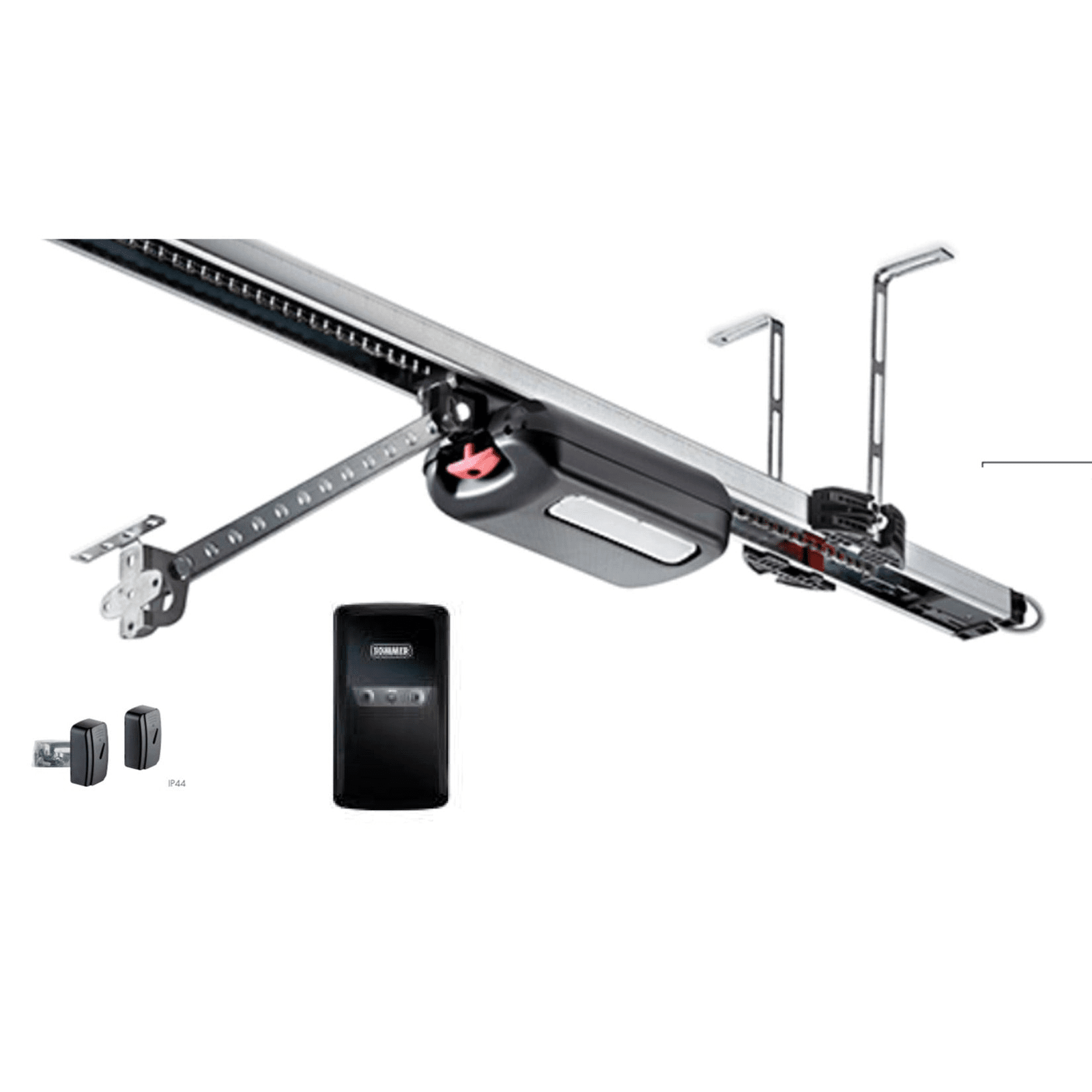

2080 pro+ Garage Door Operator

Includes Wall-Mounted Controller with Wall Buttons Integrated

Features

• 800 Newton (1 HP)

• 3-piece c-channel rail for doors up to 8' tall

• Wired safety sensors

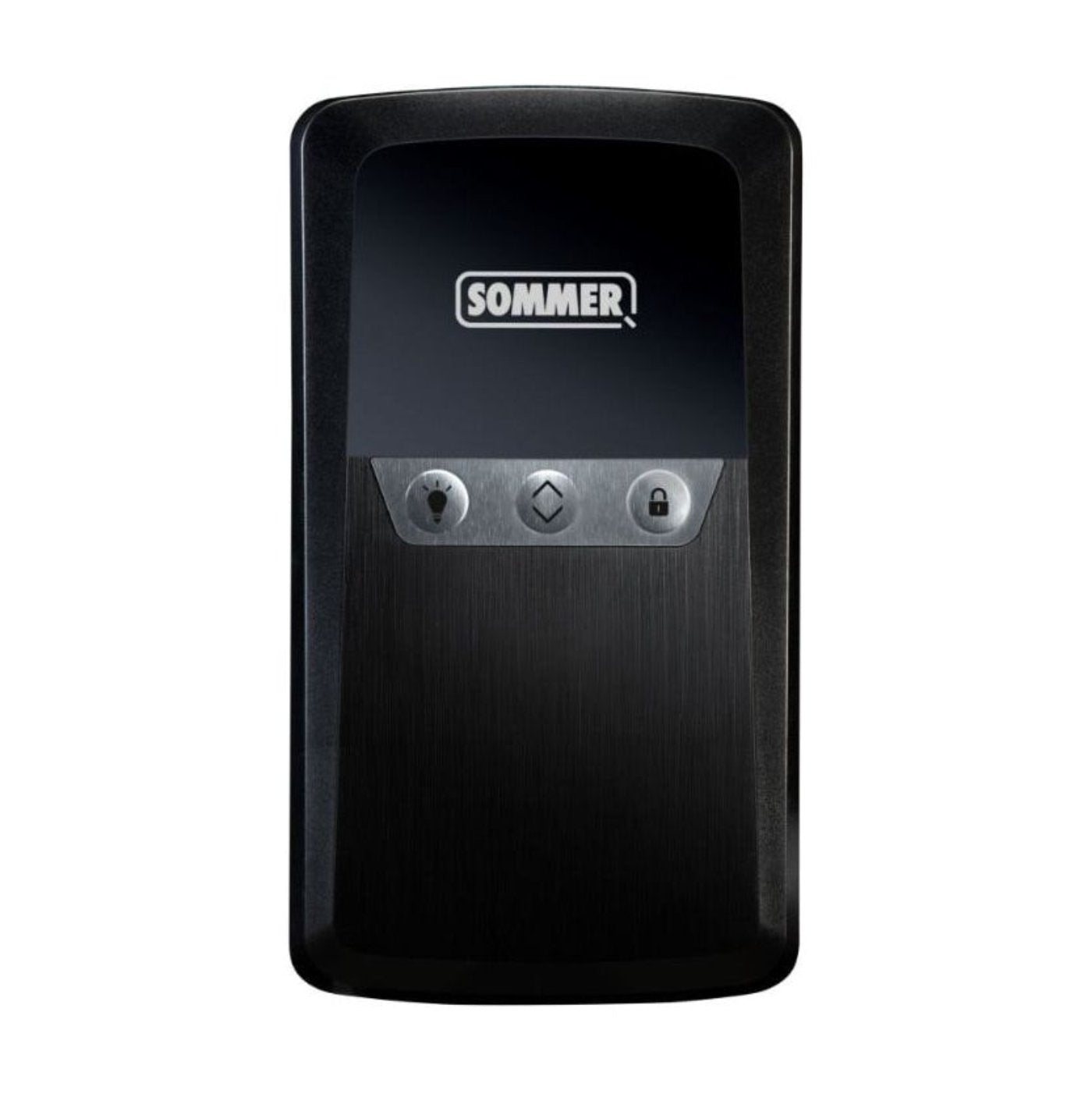

• Remote-mount control housing with integrated buttons

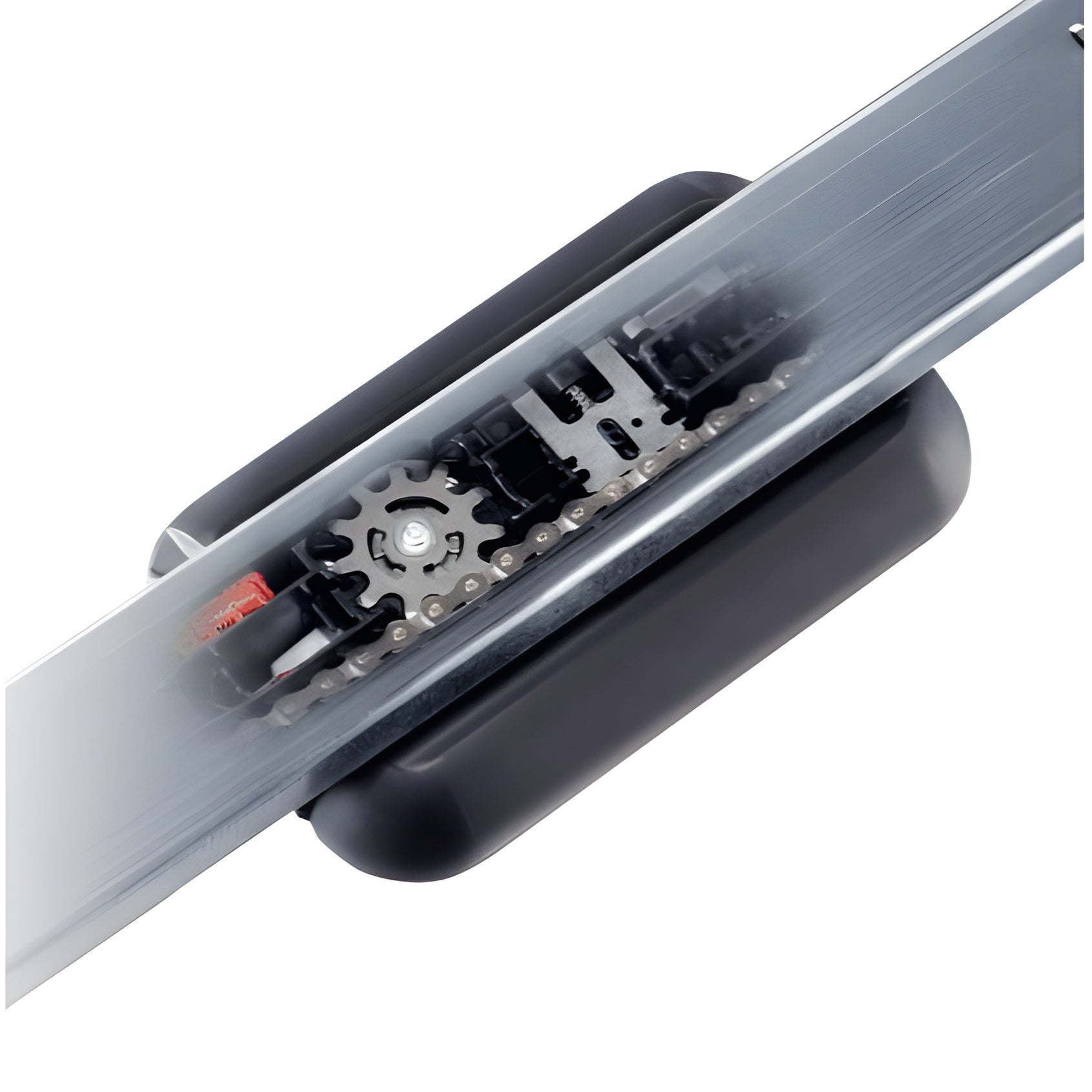

• Direct drive technology with one moving part for maximum force and longevity

• Soft start and stop on a variable curve ramp

• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation

• Active motor braking during travel helps minimize loss of control during door malfunction

• Operator actively pushes in the closed direction during attempted break-in

• Emergency release can be disengaged and re-engaged in any position

• Built-in LED lighting at the motor carriage and control housing

• Easily cut down rail and chain for tight spaces and/or use GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)

• Add Short, Medium and/or Long Rail Extension for taller doors up to 24' (see Door Height by Rail Extension Chart)

• Monitored safety edge and optical safety edge terminals on motor carriage to avoid coil cords or take up reels

• Interlock capable for pass doors, mechanical locks, etc.

• Repeating and forwarding radio functions for maximum range

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from operator

• Multiple functions available through radio commands: pulse operation, light function, partial opening, defined open, and defined close

• Transmitter management on-site or remotely through Codemaster+

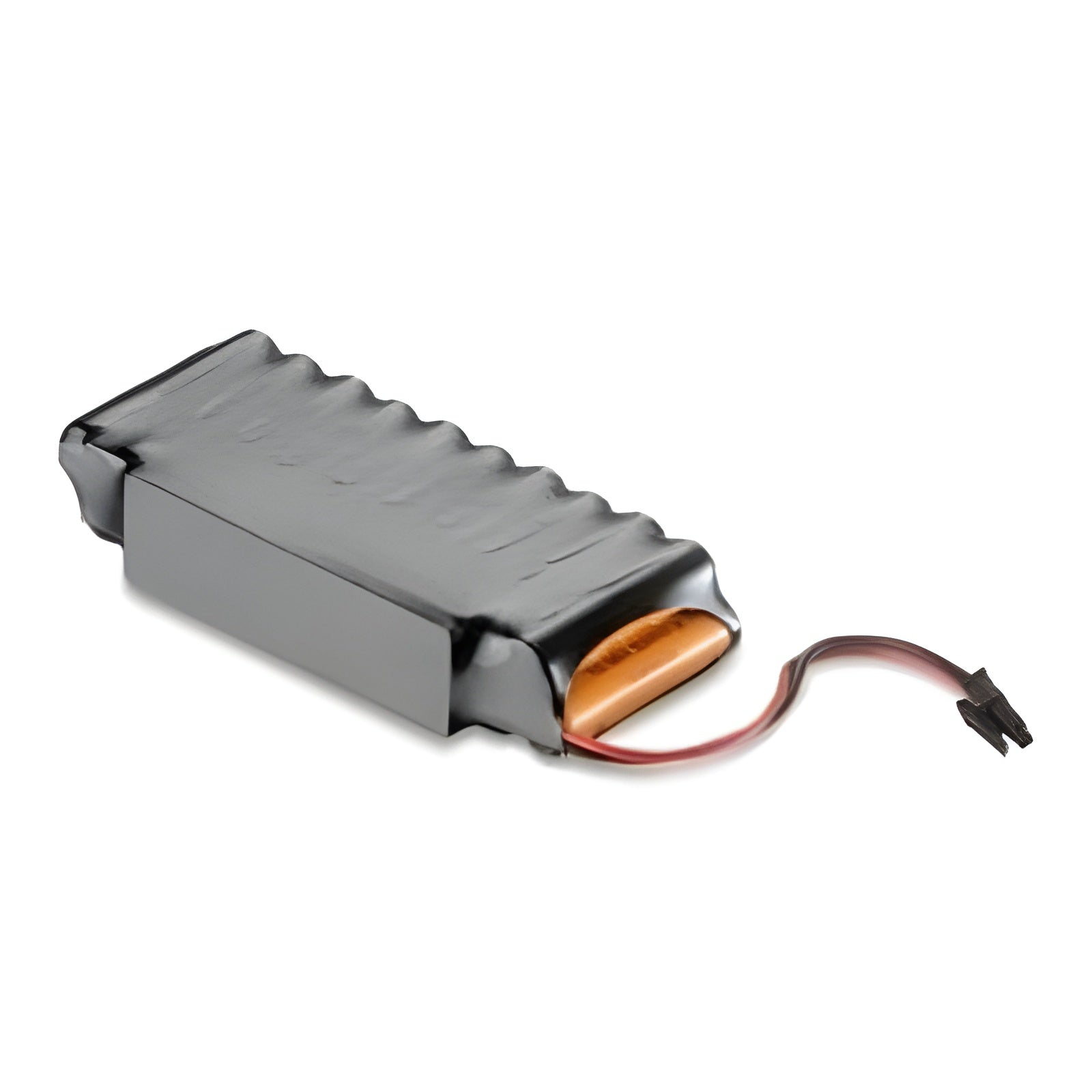

• Accu internal battery back up or Accu 2.2 external battery back up provide power for standby operation during power outages

• Compatible with SOMweb for remote online access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed

• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner

• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)

• Use Relay for switching external garage lighting up to 240V/5A

• Maintenance-free for most environments

• The motor carriage can be easily removed for service or repair without needing to disassemble the rail

• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

Items Included in the Box

1. 2080 motor carriage
2. Control housing
3. 3x operator rail

4. 2x connecting sleeve
5. Connector wire
6. Chain with isolator
7. Straight door arm
8. Curved door arm
9. Installation bag
10. Door hardware bag
11. Ceiling bracket kit
12. Safety sensor kit
13. Docs bag
14. English technical manual
15. Spanish technical manual

Additional Documents

pro+ Brochure
pro+ Quick Install Guide

What Our Experts Think

• Quiet and Efficient: PRO+ technology ensures smooth, silent, and energy-efficient operation.
• Wide Compatibility: Designed to handle garage doors up to 8 feet in height with ease.
• Customizable Control: Ships without a transmitter, offering flexibility to pair with existing systems or preferred remote controls.
• Durable Build: Built to withstand frequent use, ensuring long-term reliability.
• Safety First: Features integrated obstacle detection for added security and peace of mind.

Q&A

Q: What is the Sommer 2080 PRO+ 8' Standard Operator Kit (No Transmitter)?
A: It’s an 8-foot garage door opener system featuring a durable direct-drive motor, designed for professional-grade performance. This kit does not include a transmitter.

Q: What makes the PRO+ unique?
A: It offers a quiet, low-maintenance operation with enhanced durability for demanding applications.

Q: Does it include a backup power option?
A: No, this model does not come with a battery backup.

Q: Is it compatible with additional accessories?
A: Yes, transmitters and other compatible accessories can be purchased separately.

Q: What garage doors is it compatible with?
A: It is suitable for residential garage doors up to 8 feet high.

Q: Why choose the Sommer 2080 PRO+?
A: It’s perfect for users seeking a professional-grade, reliable, and quiet garage door opener without pre-included accessories

Maintenance Tips

• Lubricate Components: Regularly oil hinges, tracks, and rollers for smooth operation.
• Clean Tracks: Keep tracks free from debris to prevent disruptions.
• Inspect Door Balance: Ensure the door is properly balanced to reduce motor strain.
• Tighten Hardware: Check and secure bolts, screws, and brackets for stability.
• Motor Care: Keep the motor clean and schedule annual professional servicing.
• Safety Tests: Test auto-reverse and emergency release mechanisms to ensure safe operation.
• Power Supply: Inspect and maintain electrical connections for consistent performance.
