Sommer 2110 evo+ 8' Standard operator kits no transmitter with battery back up - YUSKS10254-00021

Sommer 2110 evo+ 8' Standard operator kits no transmitter with battery back up - YUSKS10254-00021

Compatible with evo+ and pro+

Battery backup
Integrated in the control unit, the battery pack will supply power during power outages.
Reliable NiMH battery backup solution. Life cycles up to 10x greater compared to a Lead-Acid battery.

Features

• 1100 Newton Motor (1.25 HP equivalent)
• 3-piece c-channel rail for doors up to 8' tall
• Wired safety sensors

• Wired 3-button wall station
• Direct drive technology with one moving part for maximum force and longevity
• Soft start and stop on a variable curve ramp
• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation
• Active motor braking during travel helps minimize loss of control during door malfunction
• The operator actively pushes in the closed direction during an attempted break-in
• The emergency release can be disengaged and re-engaged in any position

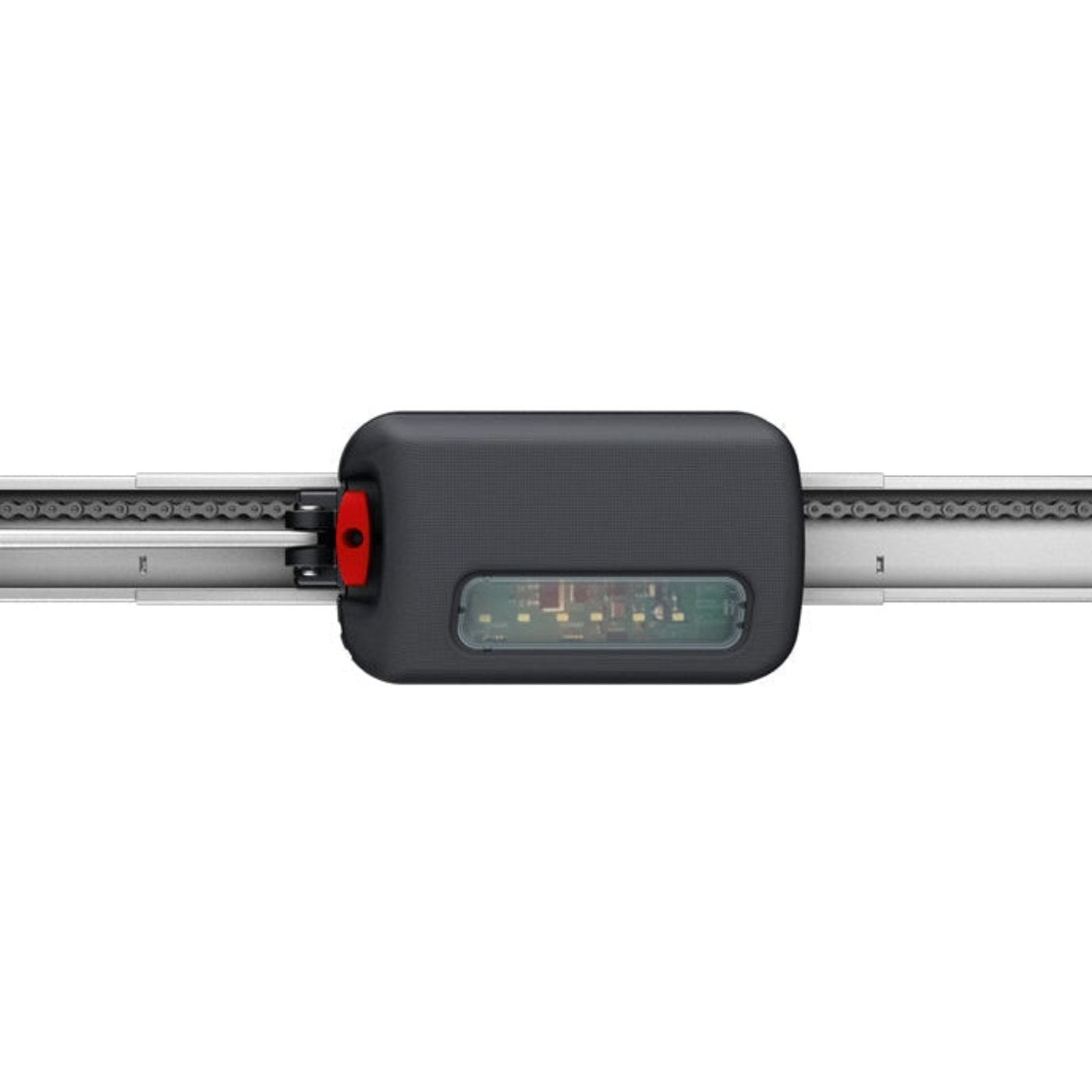

• Built-in LED lighting at the motor carriage
• Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)
• Add Short and/or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)
• Monitored safety edge and optical safety edge terminals on the motor carriage to avoid coil cords or taking up reels
• Interlock capable for pass doors, mechanical locks, etc.
• Repeating and forwarding radio functions for maximum range

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator
• Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close
• Transmitter management on-site or remotely through Codemaster+
• Accu internal battery backup or Accu 2.2 external battery backup provide power for standby operation during power outages
• Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed
• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner
• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)
• Use Relay for switching external garage lighting up to 240V/5A
• Maintenance-free for most environments
• The motor carriage can be easily removed for service or repair without needing to disassemble rail
• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

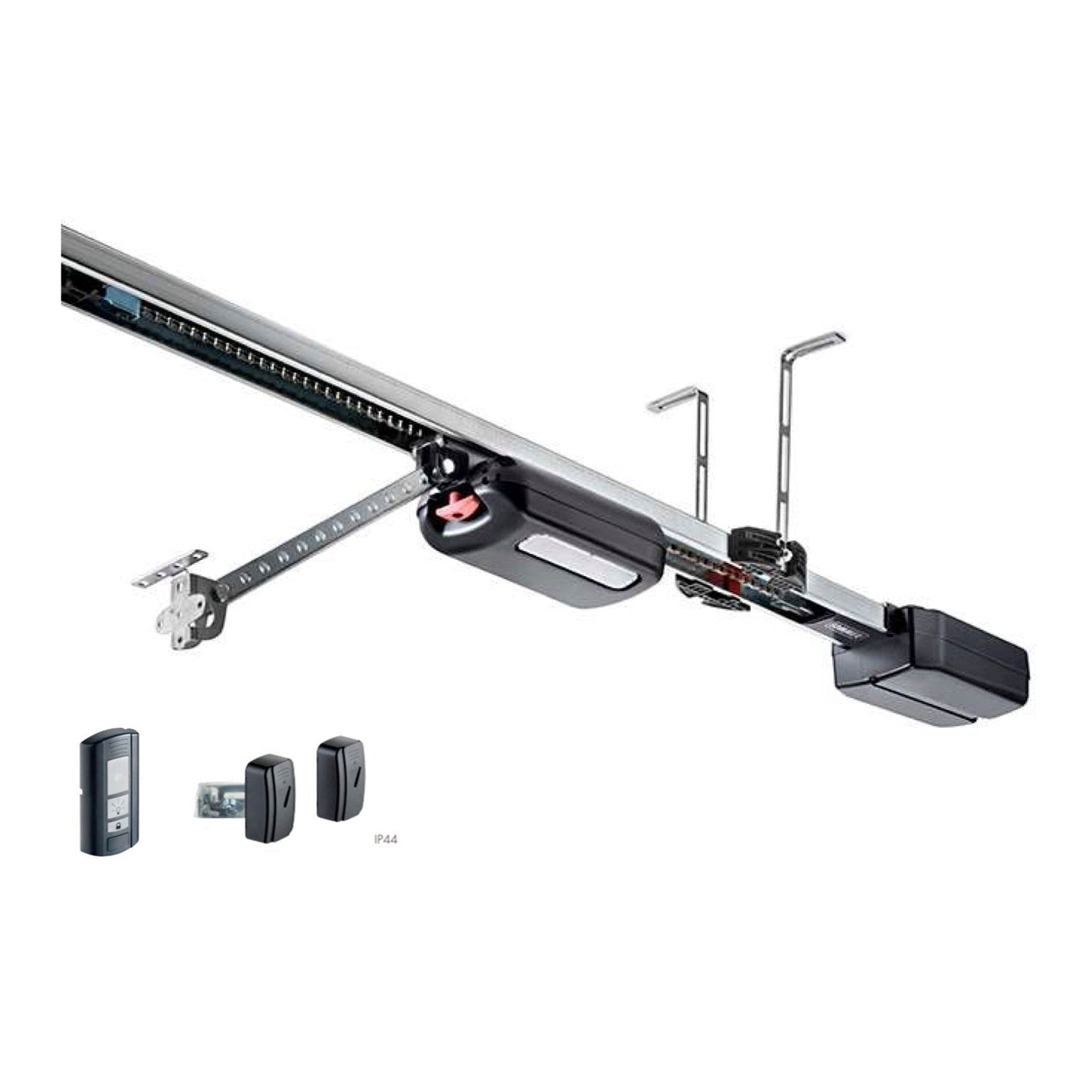

Included in the Box

1. 2110 motor carriage
2. Controller
3. 3x operator rail

4. 2x connecting sleeve
5. Chain with isolator
6. Straight door arm
7. Curved door arm
8. Installation bag
9. Door hardware bag
10. Ceiling bracket kit

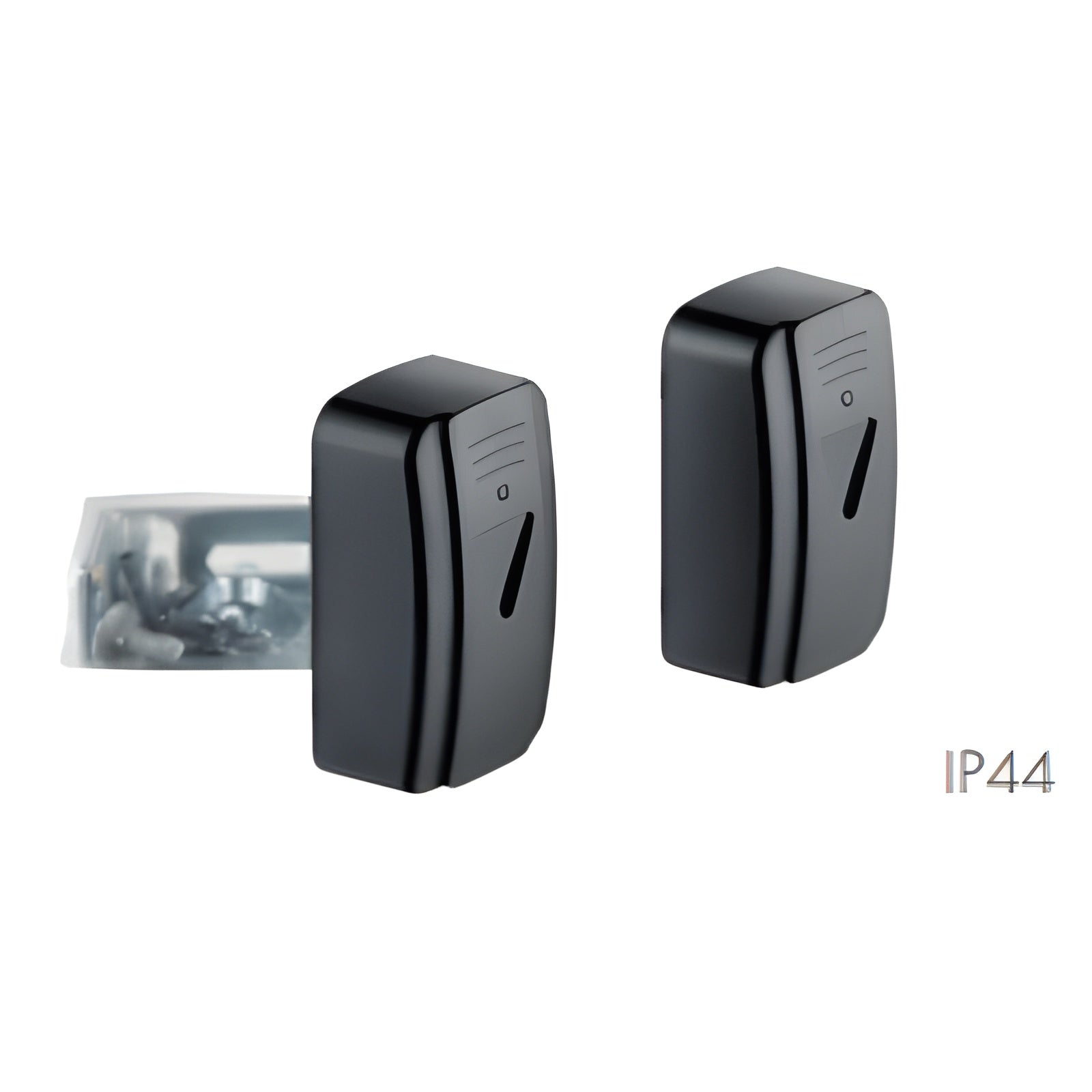

11. Safety sensor kit
12. Wired 3-button wall station kit
13. Wiring kit
14. Docs bag
15. English technical manual
16. Spanish technical manual

Video

Additional Documents

evo+ Brochure
evo+ Quick Install Guide

What Our Experts Think

• Battery Backup: Maintains operation during power outages, ensuring uninterrupted access.
• EVO+ Technology: Delivers smooth, quiet, and energy-efficient performance for daily use.
• Wide Compatibility: Designed for garage doors up to 8 feet in height, accommodating various residential setups.
• Customizable Solution: Excludes a transmitter, allowing integration with your preferred control system.
• Built for Safety: Features integrated obstacle detection and secure coding for enhanced protection.

Q&A

Q: What is the Sommer 2110 EVO+ 8' Standard Operator Kit?
A: It’s an 8-foot garage door opener system featuring a direct-drive motor and a built-in battery backup, designed for reliable and efficient operation. This kit does not include a transmitter.

Q: Does it come with a battery backup?
A: Yes, the built-in battery backup ensures uninterrupted functionality during power outages.

Q: What is the difference between the 2110 EVO+ and other models?
A: The 2110 EVO+ offers enhanced power and performance for larger or heavier garage doors while maintaining quiet and efficient operation.

Q: Is it compatible with remote transmitters?
A: Yes, compatible transmitters can be purchased separately for remote operation.

Q: What type of garage doors is it suited for?
A: It’s ideal for residential garage doors up to 8 feet high, including heavier door types.

Q: Why choose the Sommer 2110 EVO+?
A: It’s a great option for homeowners seeking a powerful, quiet, and reliable opener with battery backup for uninterrupted use

Maintenance Tips

• Lubricate Components: Apply lubricant to hinges, rollers, and tracks for smooth operation.
• Clean Tracks: Keep tracks clear of debris to prevent operational issues.
• Battery Backup: Test and replace the backup battery as needed for reliable power during outages.
• Check Door Balance: Ensure proper door balance to reduce wear on the motor.
• Tighten Hardware: Inspect and secure all screws, bolts, and brackets.
• Motor Maintenance: Dust the motor area and schedule annual servicing for longevity.
• Safety Tests: Verify the auto-reverse and emergency release mechanisms for safe operation.
