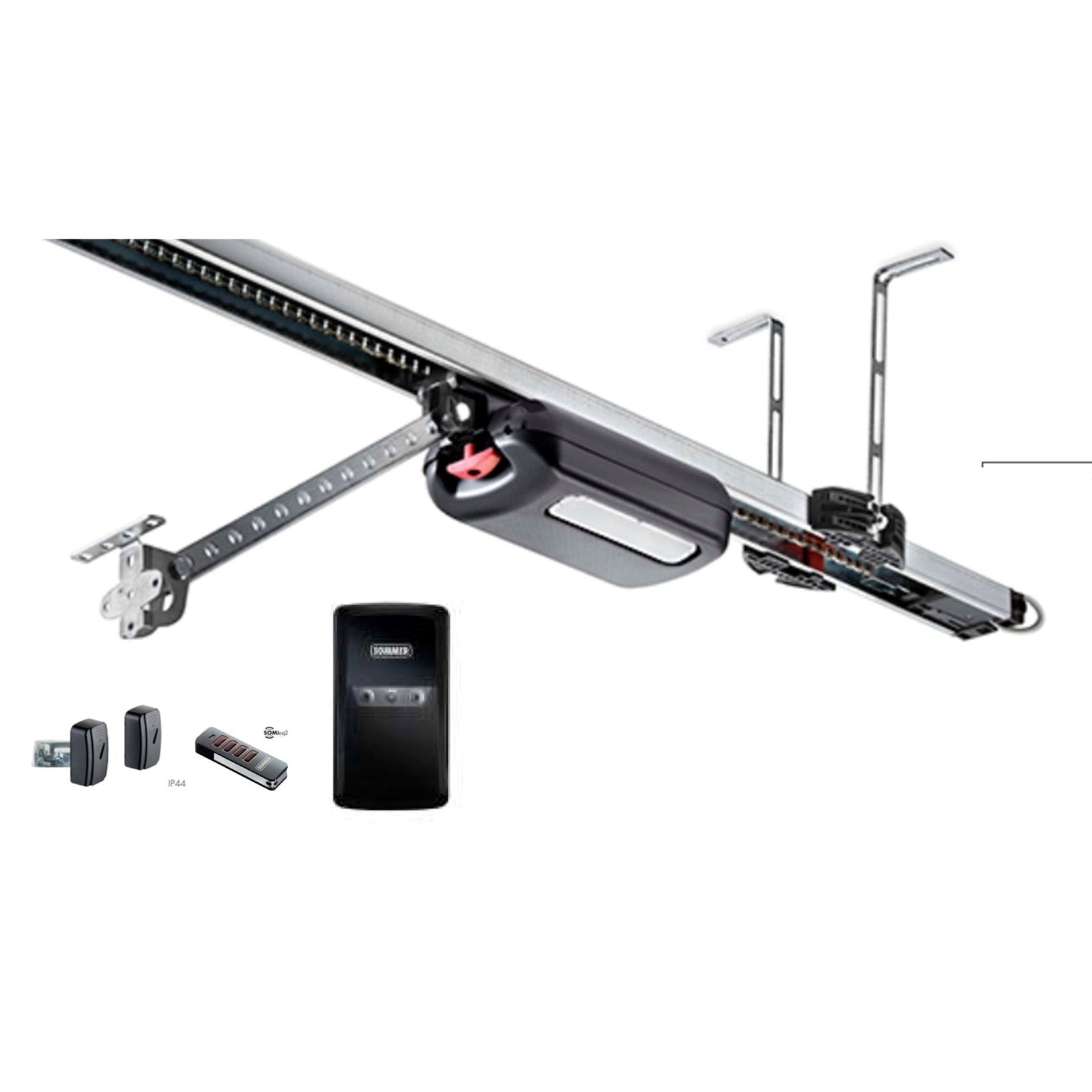

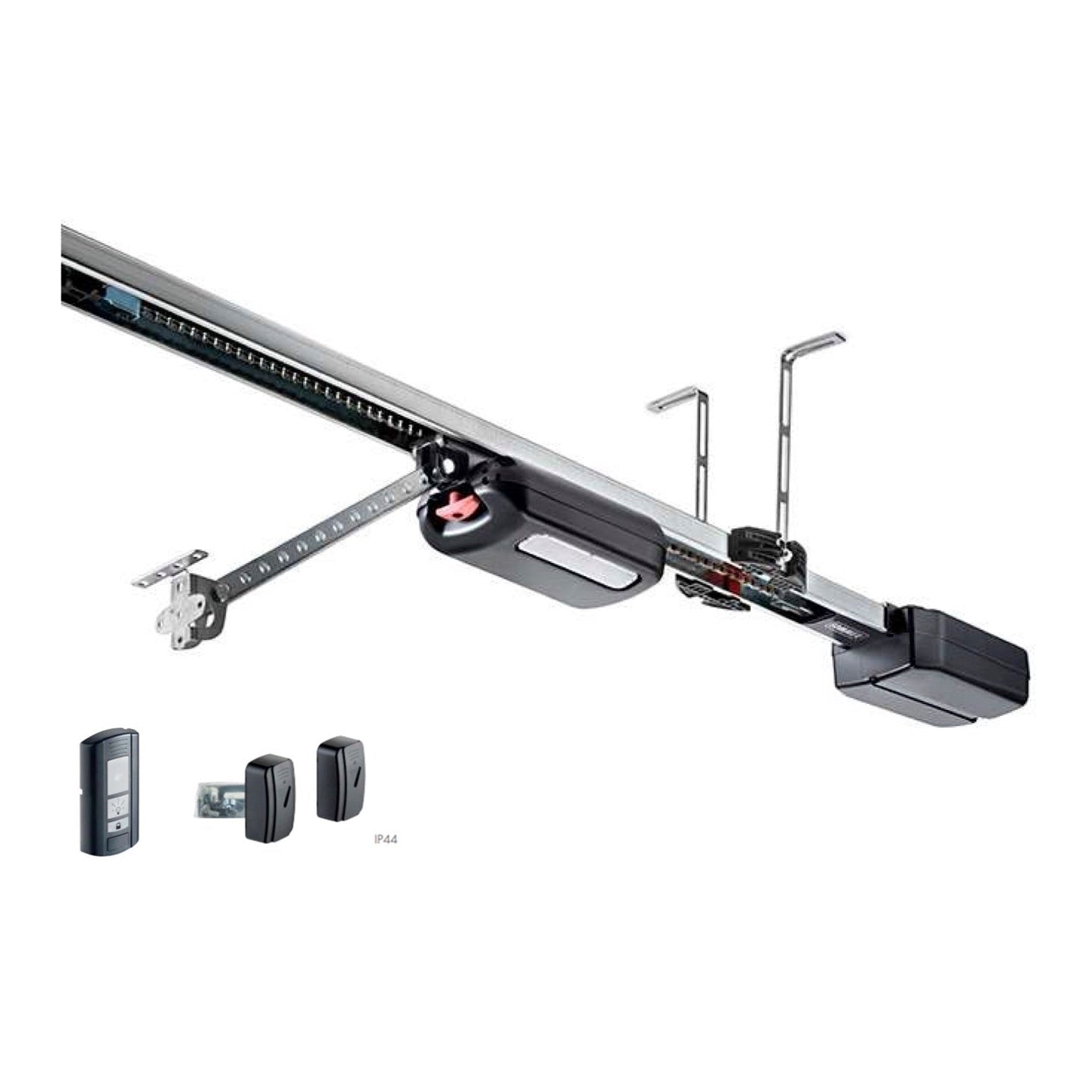

Sommer 2110 evo+ 8' Standard operators no transmitter - YS10254-00004

Sommer 2110 evo+ 8' Standard operators no transmitter - YS10254-00004

Features

• 1100 Newton Motor (1.25 HP equivalent)

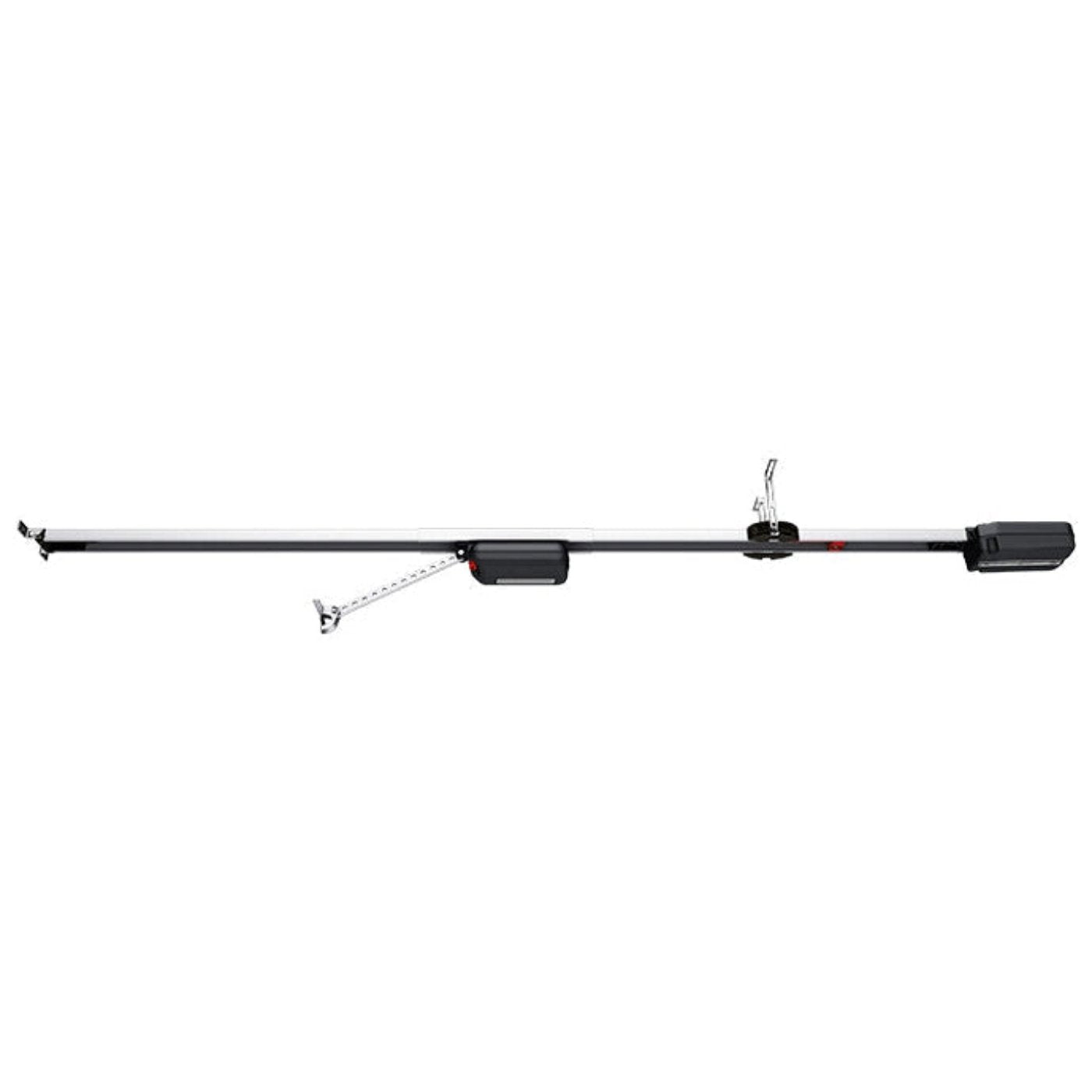

• 3-piece c-channel rail for doors up to 8' tall
• Wired safety sensors

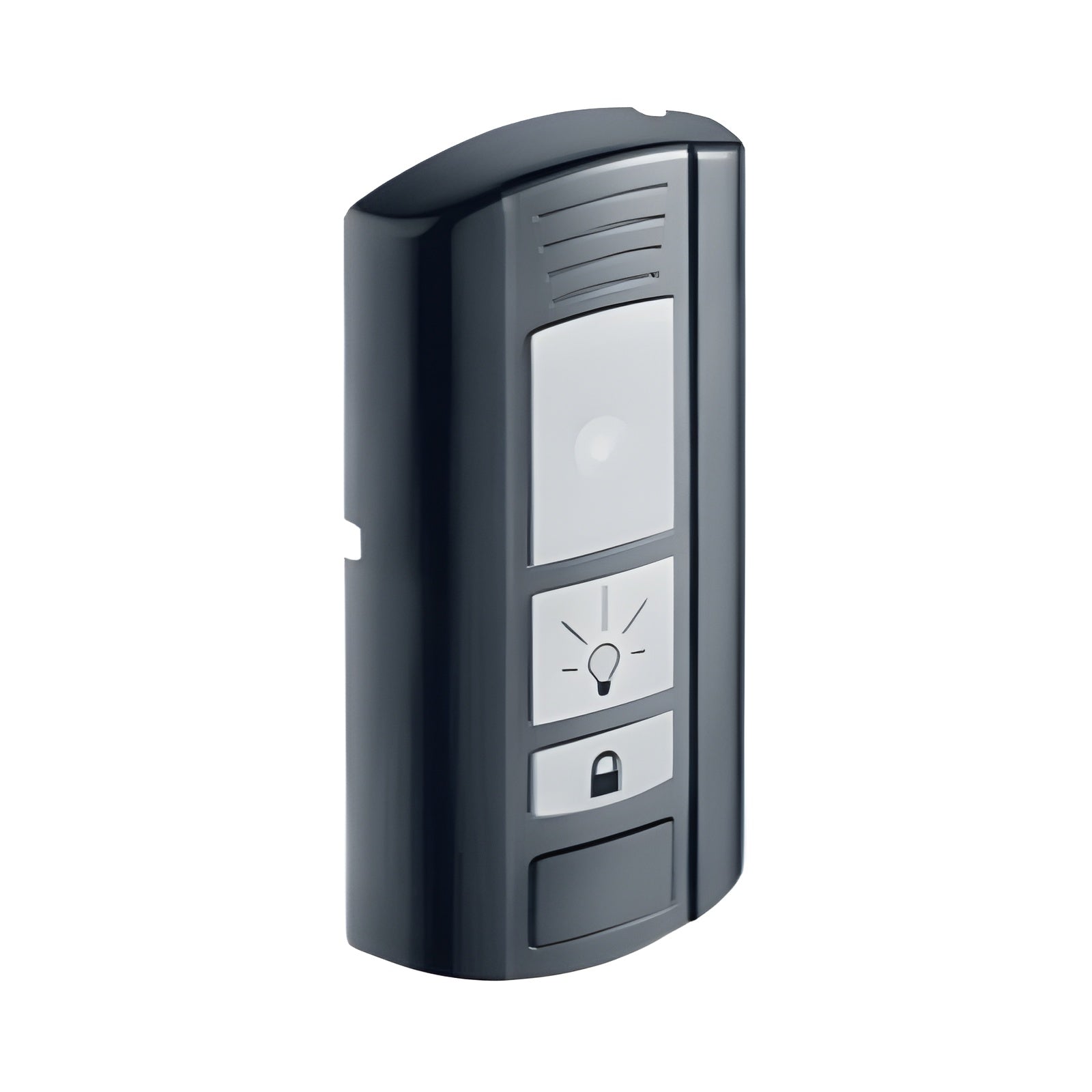

• Wired 3-button wall station

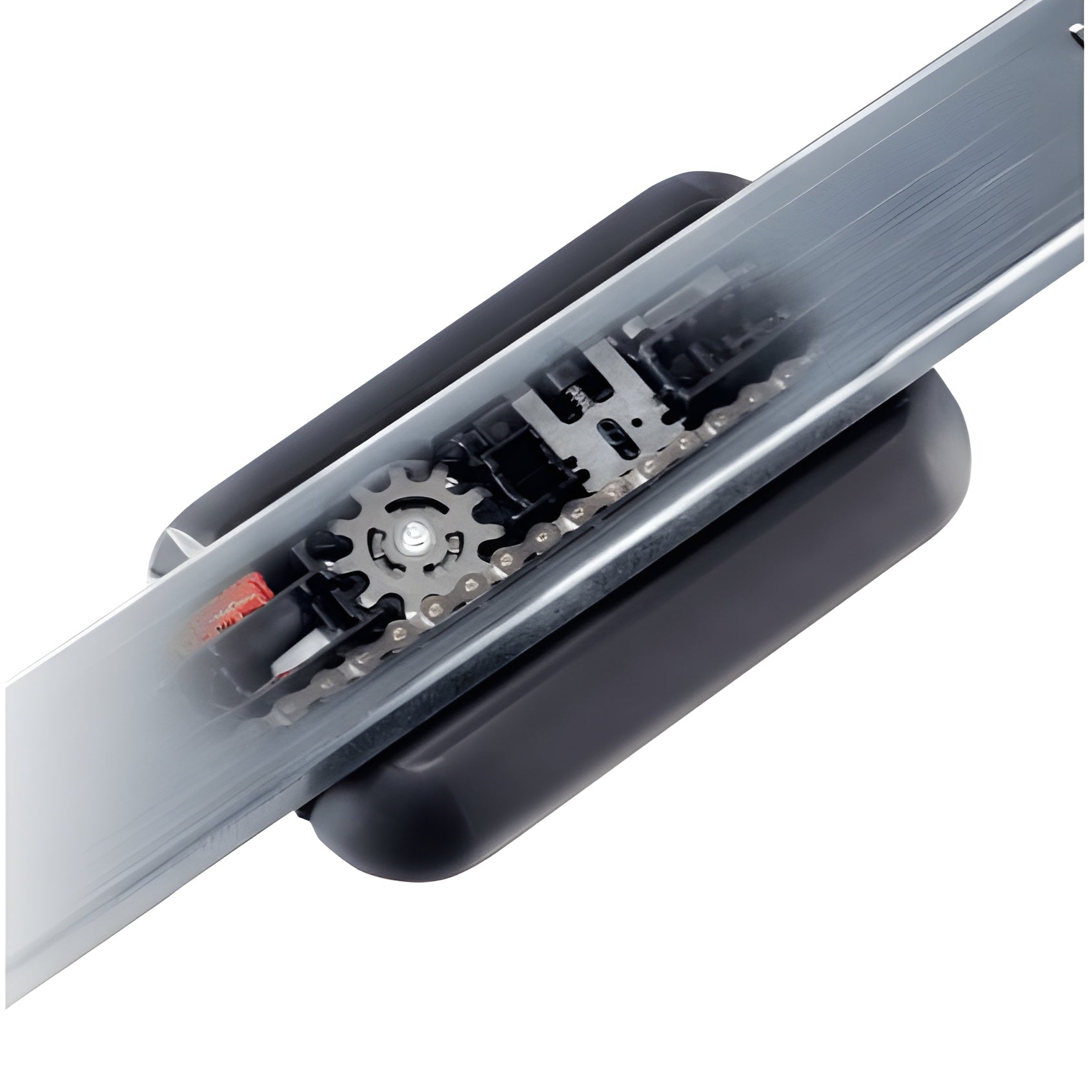

• Direct drive technology with one moving part for maximum force and longevity
• Soft start and stop on a variable curve ramp
• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation
• Active motor braking during travel helps minimize loss of control during door malfunction
• The operator actively pushes in the closed direction during an attempted break-in
• The emergency release can be disengaged and re-engaged in any position

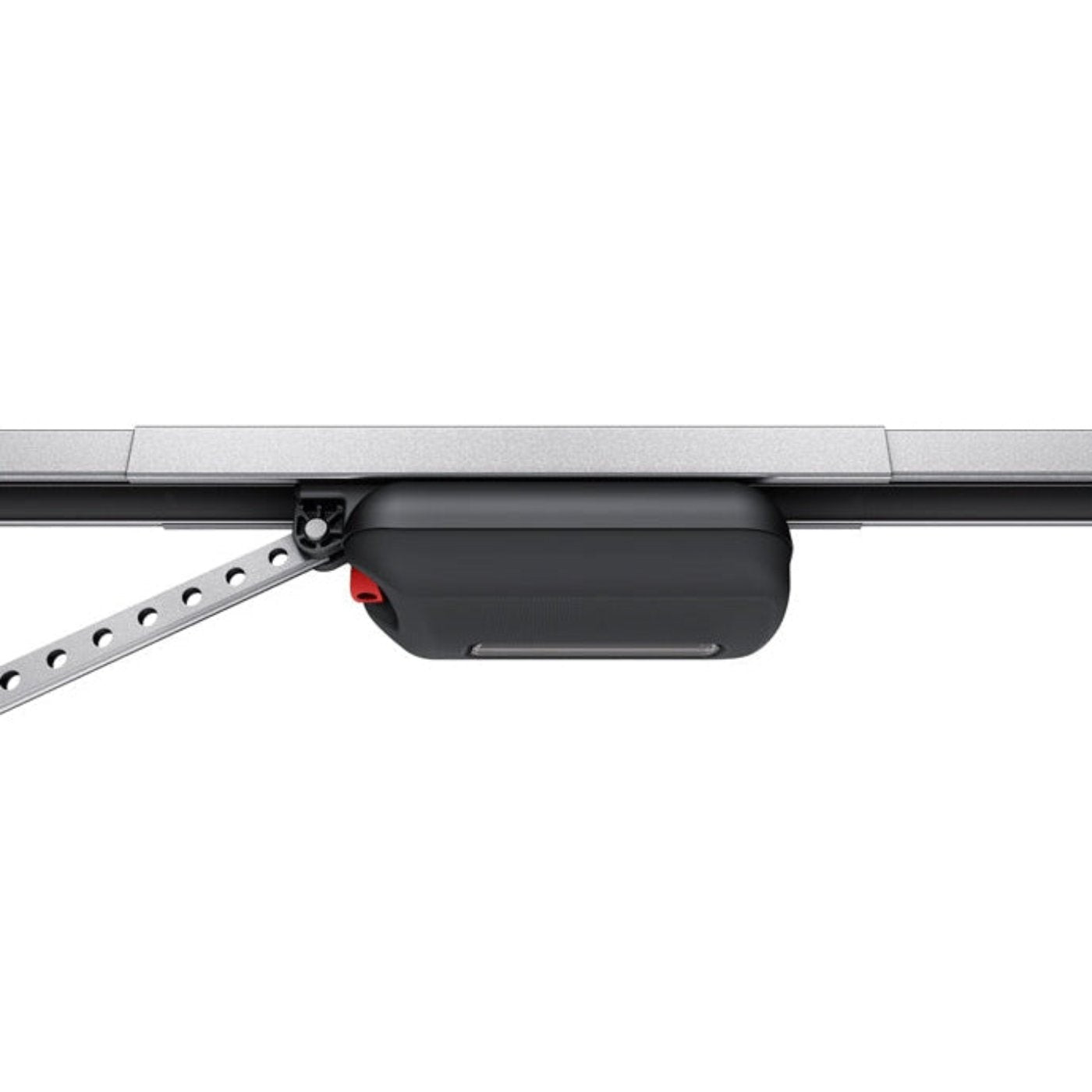

• Built-in LED lighting at the motor carriage
• Easily cut down rail and chain for tight spaces and/or use Connector Wire and GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)
• Add Short and/or Long Rail Extensions for taller doors up to 24' (see Door Height by Rail Extension Chart)
• Monitored safety edge and optical safety edge terminals on the motor carriage to avoid coil cords or taking up reels
• Interlock capable for pass doors, mechanical locks, etc.
• Repeating and forwarding radio functions for maximum range

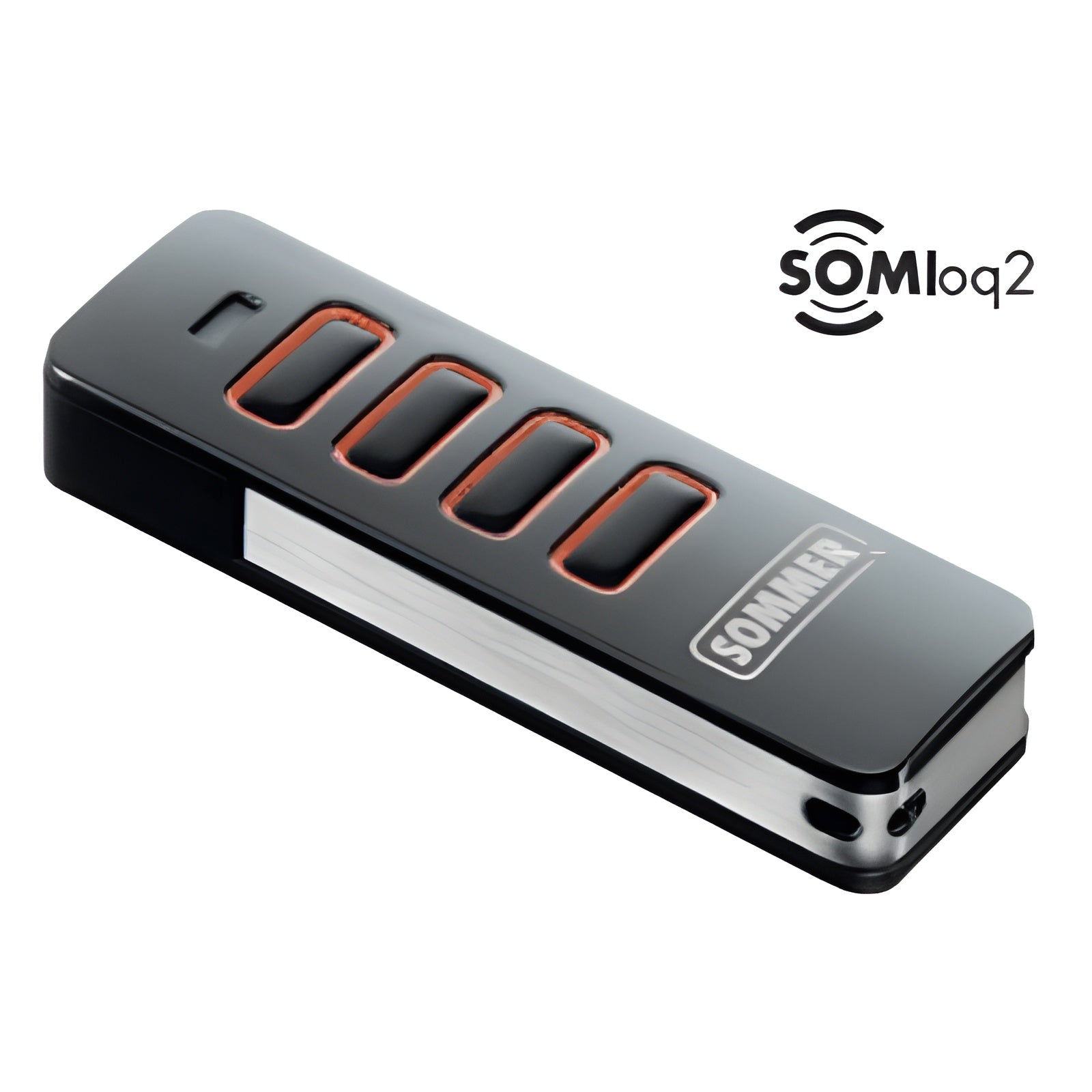

• Use Pearl Vibe or Slider Vibe transmitters for live feedback from the operator
• Multiple functions are available through radio commands: pulse operation, light function, partial opening, defined open and defined close
• Transmitter management on-site or remotely through Codemaster+

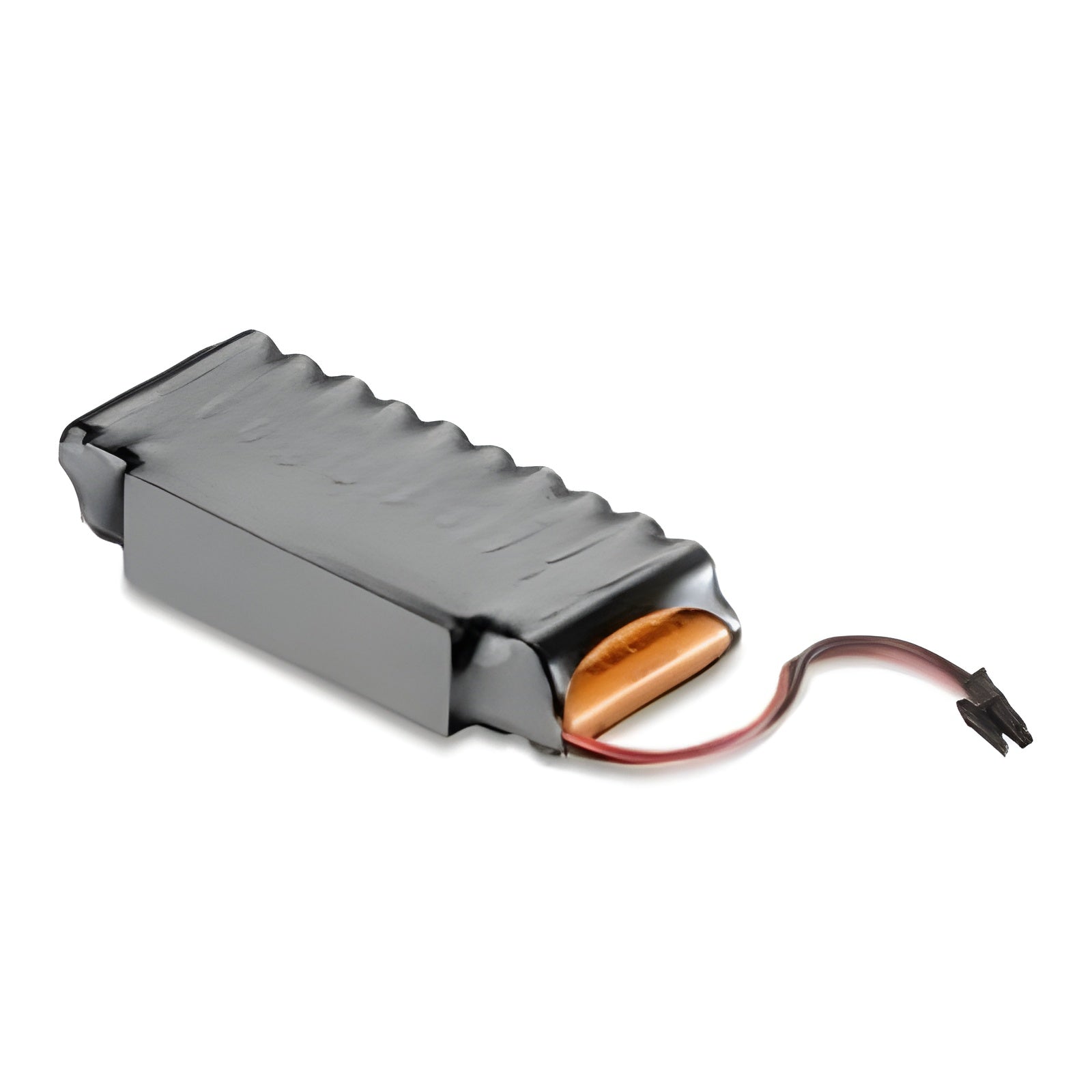

• Accu internal battery backup or Accu 2.2 external battery backup provide power for standby operation during power outages
• Compatible with SOMweb for remote access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed
• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner
• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)
• Use Relay for switching external garage lighting up to 240V/5A
• Maintenance-free for most environments
• The motor carriage can be easily removed for service or repair without needing to disassemble rail
• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

Items Included in the Box

1. 2110 motor carriage
2. Controller
3. 3x operator rail

4. 2x connecting sleeve
5. Chain with isolator
6. Straight door arm
7. Curved door arm
8. Installation bag
9. Door hardware bag
10. Ceiling bracket kit
11. Safety sensor kit
12. Wired 3-button wall station kit
13. Wiring kit
14. Docs bag
15. English technical manual
16. Spanish technical manual

Additional Documents

evo+ Brochure
evo+ Technical Manual

What Our Experts Think

• Quiet and Smooth Performance: EVO+ technology ensures seamless and energy-efficient operation.
• Wide Compatibility: Designed to support garage doors up to 8 feet in height with ease.
• Customizable Setup: Ships without a transmitter, allowing integration with existing or preferred control systems.
• Durable Construction: Engineered for reliability and long-term use in demanding environments.
• Enhanced Safety: Includes obstacle detection for secure and safe operation.

Q&A

Q: What is the Sommer 2110 EVO+ 8' Standard Operator (No Transmitter)?
A: It’s an 8-foot garage door opener system featuring a robust direct-drive motor, designed for quiet and reliable performance. This kit does not include a transmitter.

Q: Does it have a backup battery?
A: No, this model does not come with a built-in battery backup.

Q: What makes the 2110 EVO+ unique?
A: It offers enhanced power, making it suitable for larger or heavier residential garage doors, while maintaining efficient and quiet operation.

Q: Is it compatible with accessories?
A: Yes, transmitters and other compatible accessories can be purchased separately.

Q: What types of garage doors is it designed for?
A: It’s ideal for residential garage doors up to 8 feet in height, including heavier door models.

Q: Why choose the Sommer 2110 EVO+?
A: It’s perfect for users who need a powerful and durable garage door opener without pre-included accessories.

Maintenance Tips

• Lubricate Moving Parts: Regularly oil hinges, rollers, and tracks to ensure smooth door operation.
• Clean Tracks: Remove dirt and debris from tracks to avoid obstructions.
• Inspect Door Balance: Check the door's balance to prevent unnecessary strain on the motor.
• Tighten Hardware: Secure all bolts, screws, and brackets to maintain stability.
• Motor Care: Clean the motor area and schedule annual professional maintenance for optimal performance.
• Safety Features: Test the auto-reverse and emergency release systems regularly for safety compliance.
• Electrical Connections: Inspect and maintain wiring to ensure consistent power supply
