Sommer 2110 pro+ 8' Standard operators no transmitter - YS10255-00002

Sommer 2110 pro+ 8' Standard operators no transmitter - YS10255-00002

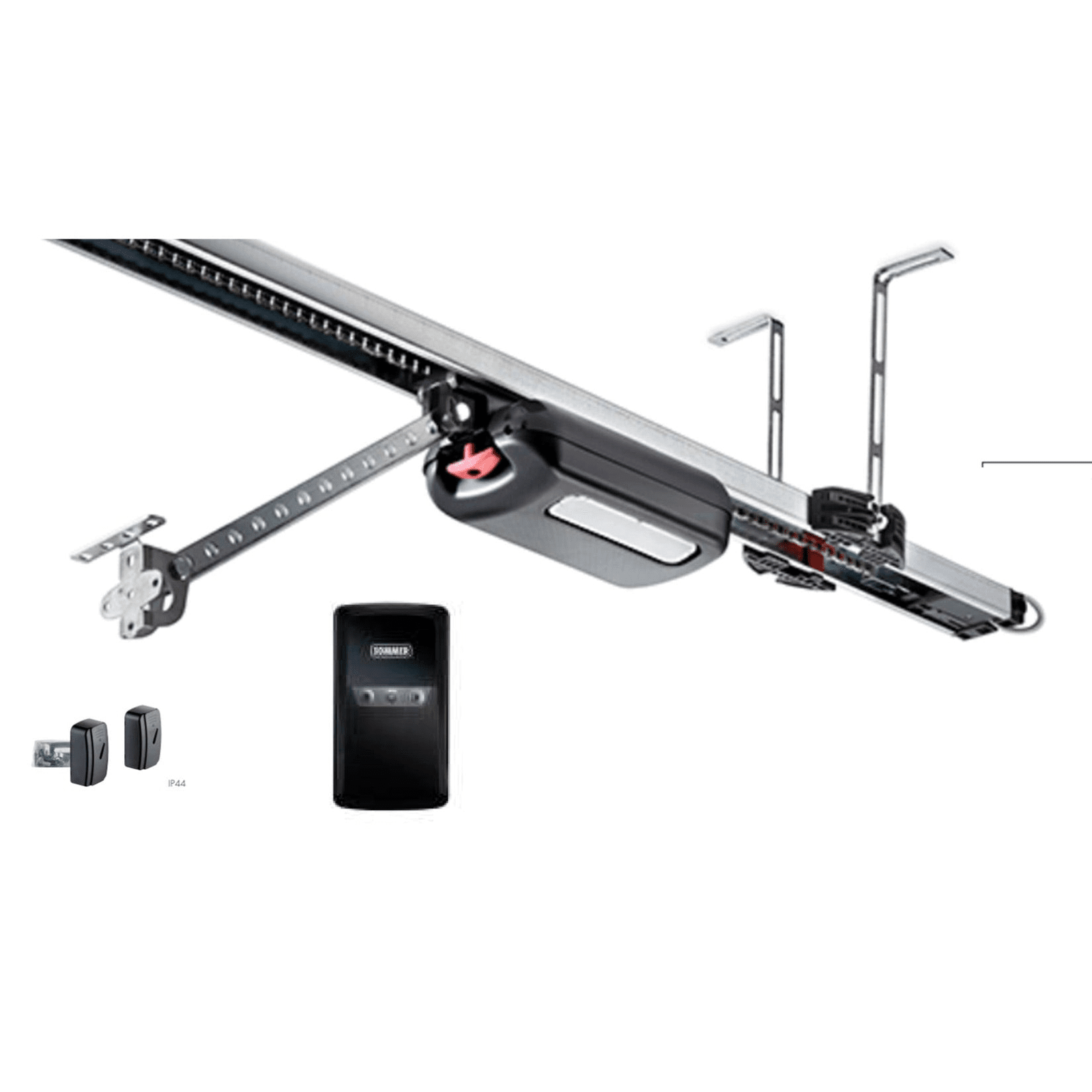

2110 pro+ Garage Door Operator

Includes Wall-Mounted Controller with Wall Buttons Integrated

Features

• 1,100 Newton (1.25 HP)
• 3-piece c-channel rail for doors up to 8' tall
• One 4-button Pearl transmitter included
• Wired safety sensors
• Remote-mount control housing with integrated buttons

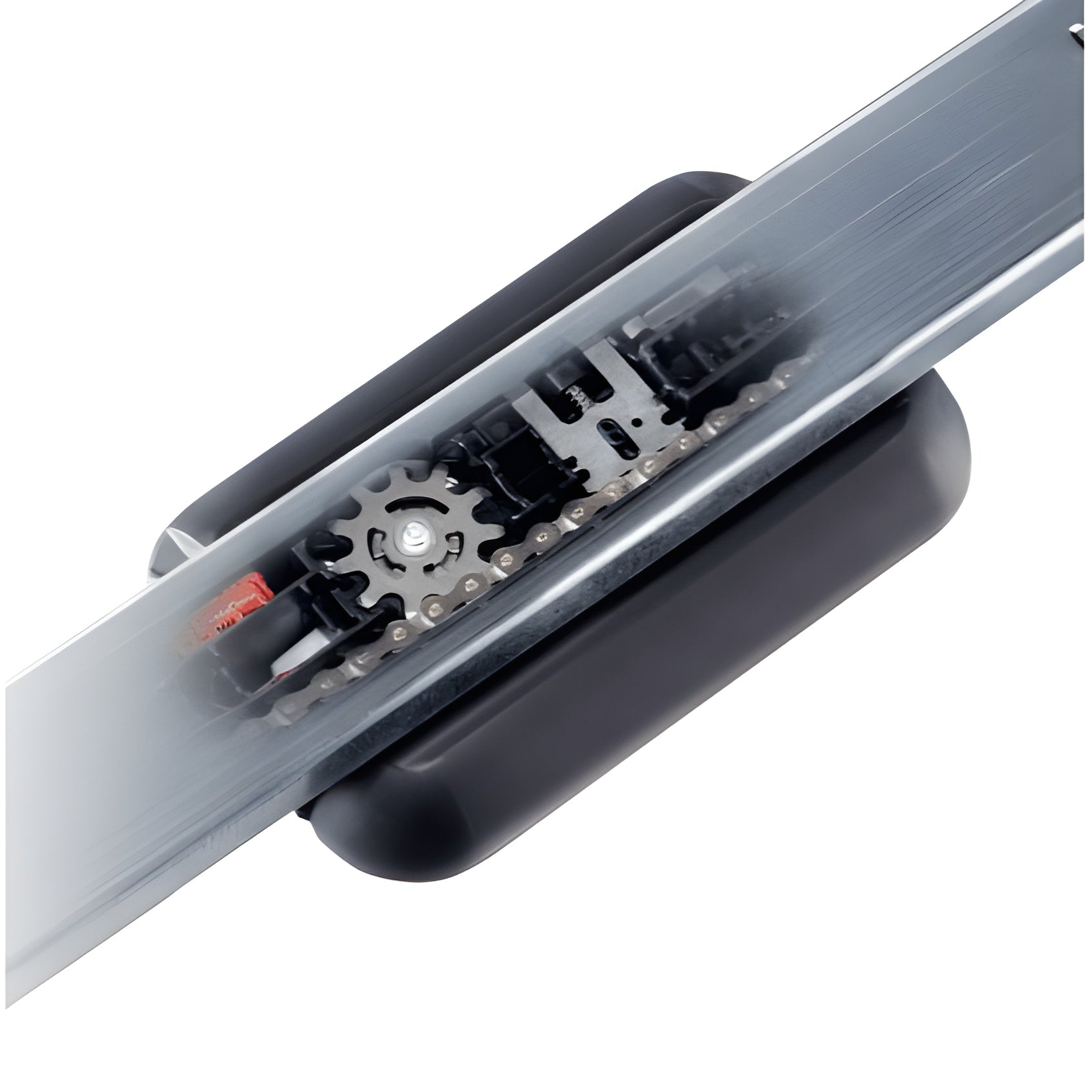

• Direct drive technology with one moving part for maximum force and longevity
• Soft start and stop on a variable curve ramp
• Dynamic force and speed settings automatically adjust over time for changing door and environmental conditions to optimize safety and operation
• Active motor braking during travel helps minimize loss of control during door malfunction
• Operator actively pushes in the closed direction during attempted break-in
• Emergency release can be disengaged and re-engaged in any position
• Built-in LED lighting at the motor carriage and control housing
• Easily cut down rail and chain for tight spaces and/or use GDO Connection Coupler to gain additional travel (see Header to Obstruction Chart)
• Add Short, Medium and/or Long Rail Extension for taller doors up to 24' (see Door Height by Rail Extension Chart)
• Monitored safety edge and optical safety edge terminals on motor carriage to avoid coil cords or take up reels
• Interlock capable for pass doors, mechanical locks, etc.
• Pre-programmed 4-button Pearl transmitter in the box
• Repeating and forwarding radio functions for maximum range
• Use Pearl Vibe or Slider Vibe transmitters for live feedback from operator
• Multiple functions available through radio commands: pulse operation, light function, partial opening, defined open, and defined close
• Transmitter management on-site or remotely through Codemaster+

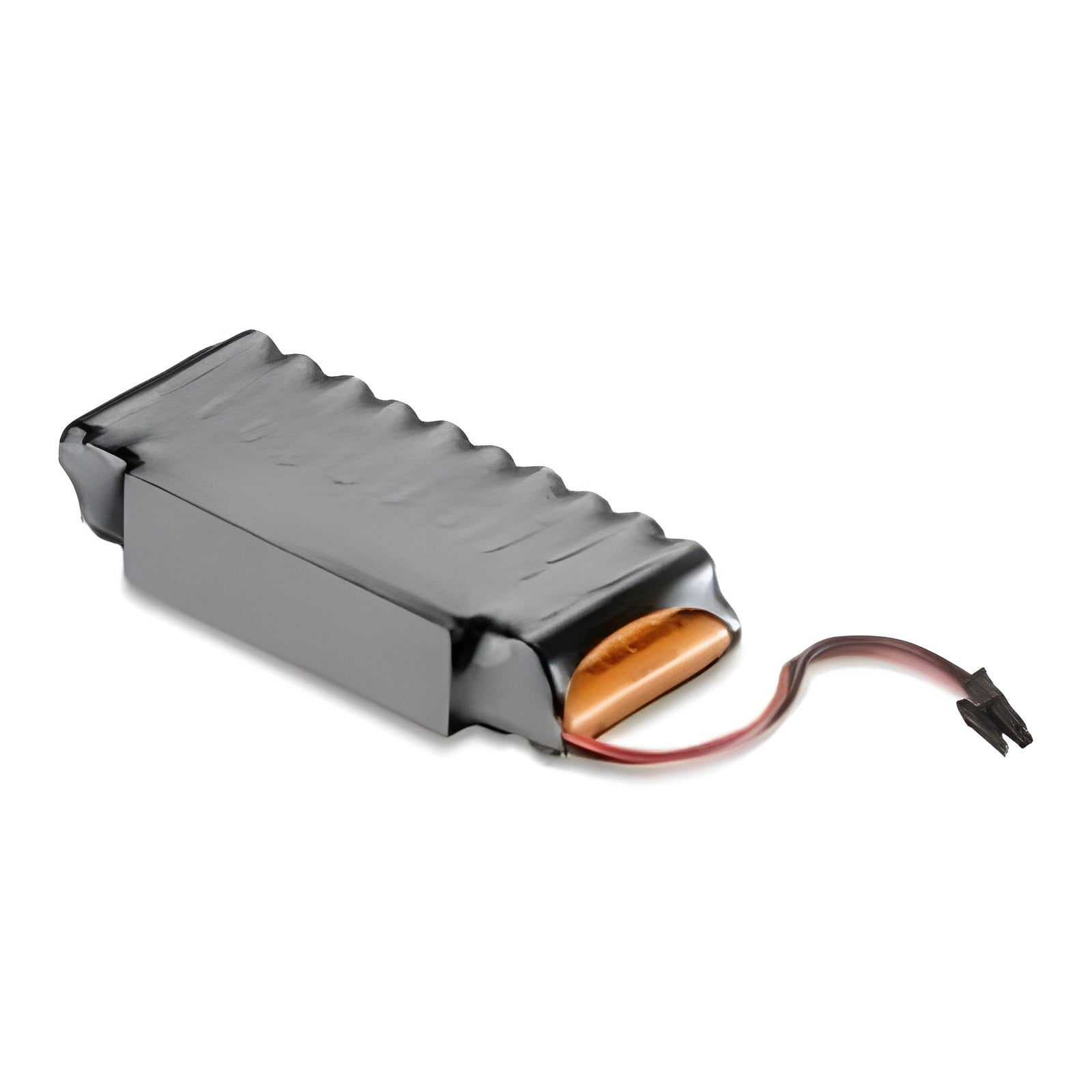

• Accu internal battery back up or Accu 2.2 external battery back up provide power for standby operation during power outages
• Compatible with SOMweb for remote online access and monitoring by push notifications and/or with the live in-app indoor or outdoor camera feed
• Use Telecody Courier for parcel delivery to your garage with any delivery service--opening distance is adjustable by the homeowner
• Automatic closing in either semi-automatic or fully automatic modes (Buzzer required for activation)
• Use Relay for switching external garage lighting up to 240V/5A
• Maintenance-free for most environments
• The motor carriage can be easily removed for service or repair without needing to disassemble the rail
• ~100 settings adjustments, ~60 diagnostic features, and ~180 standard operating codes available through the SOMlink service interface

Technical Specifications

Items Included in the Box

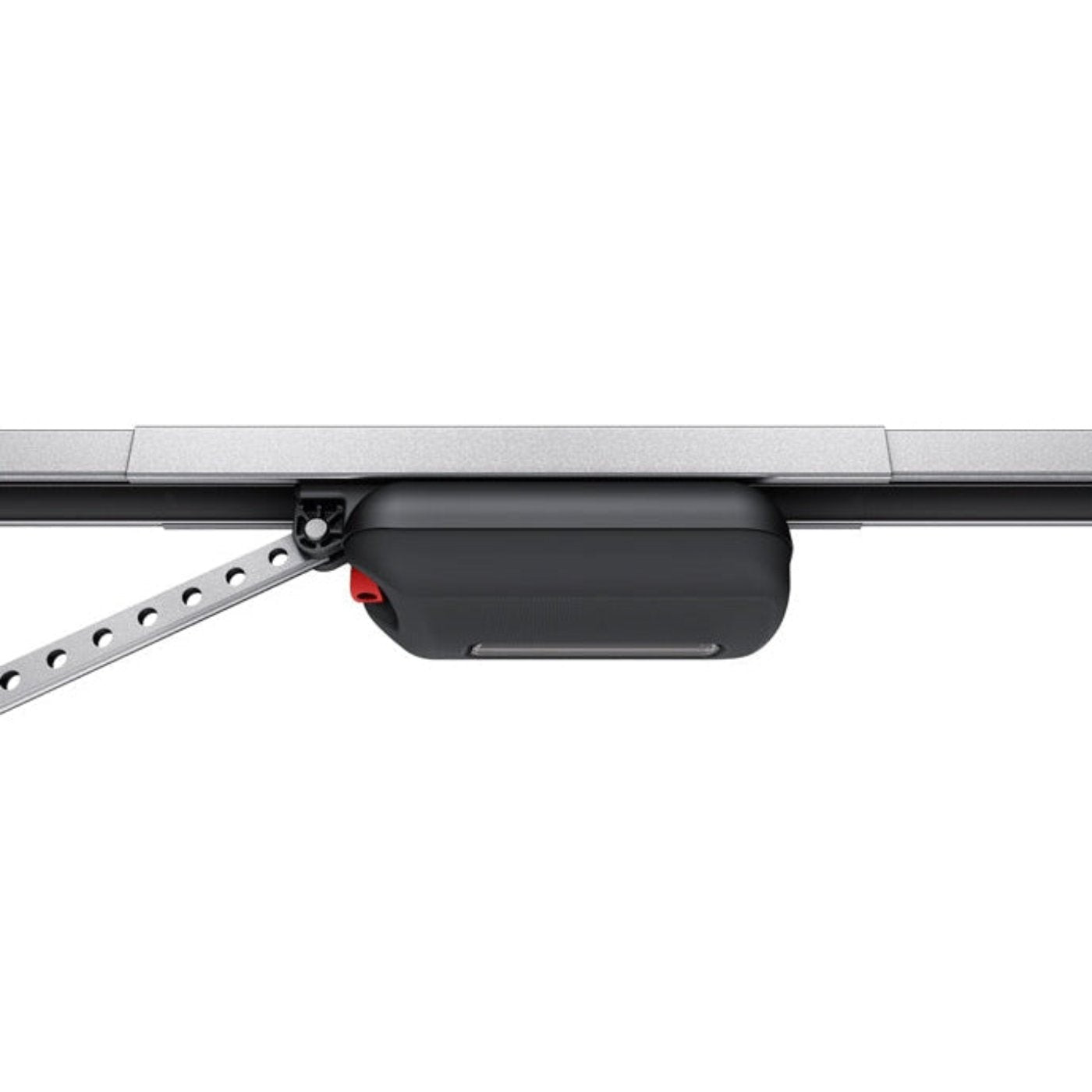

1. 2110 motor carriage

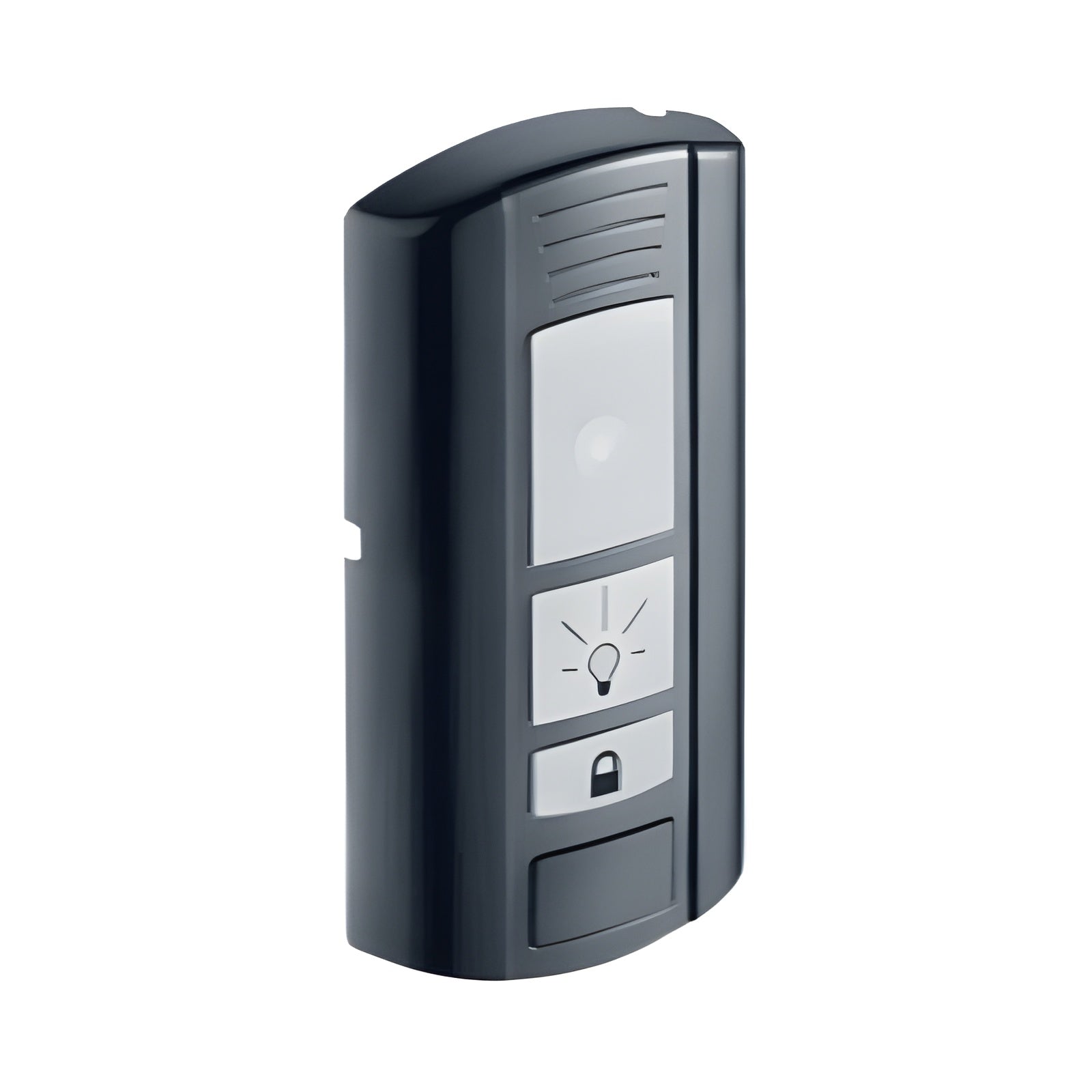

2. Control housing

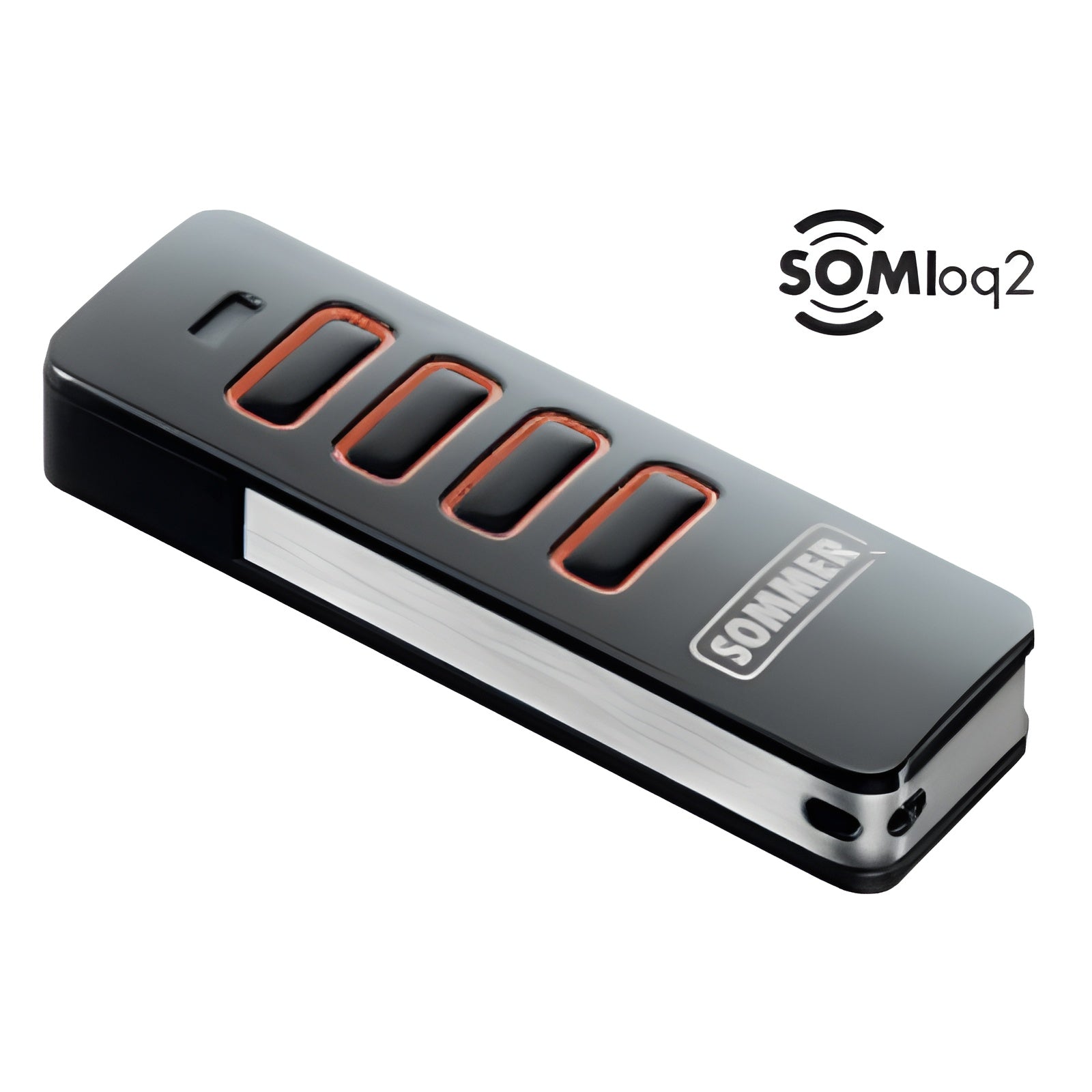

3. Pearl 4-button transmitter with visor clip
4. 3x operator rail
5. 2x connecting sleeve
6. Connector wire
7. Chain with isolator
8. Straight door arm
9. Curved door arm
10. Installation bag
11. Door hardware bag
12. Ceiling bracket kit
13. Safety sensor kit
14. Docs bag
15. English technical manual
16. Spanish technical manual

What Our Experts Think

• Smooth and Quiet Operation: PRO+ technology ensures efficient and noise-free performance.
• Wide Compatibility: Designed for garage doors up to 8 feet in height, suitable for most residential needs.
• Customizable Control: Excludes a transmitter, allowing integration with preferred or existing remote systems.
• Durable Build: Constructed with high-quality materials to withstand frequent and long-term use.
• Enhanced Safety: Integrated obstacle detection enhances security and prevents accidents.

Q&A

Q: What is the Sommer 2110 PRO+ 8' Standard Operator (No Transmitter)?
A: It’s a professional-grade 8-foot garage door opener system featuring a powerful direct-drive motor for reliable and quiet operation. This kit does not include a transmitter.

Q: Does this model include a backup battery?
A: No, this version does not come with a built-in battery backup.

Q: What distinguishes the 2110 PRO+ from other models?
A: The PRO+ is designed for enhanced durability and performance, making it ideal for heavier or high-usage residential garage doors.

Q: Can accessories be added?
A: Yes, compatible transmitters and other accessories can be purchased separately to enhance functionality.

Q: What types of garage doors is it suited for?
A: It’s compatible with residential garage doors up to 8 feet in height, including heavier models.

Q: Why choose the Sommer 2110 PRO+ Standard Operator?
A: It’s an excellent option for those seeking a robust, low-maintenance, and professional-grade opener without pre-included accessories

Maintenance Tips

• Lubricate Regularly: Apply lubricant to hinges, tracks, and rollers to ensure smooth operation.
• Clean Tracks: Remove dirt and debris from tracks to prevent obstructions.
• Check Door Balance: Ensure the door is balanced properly to minimize motor strain.
• Tighten Hardware: Inspect and secure all bolts, screws, and brackets for stability.
• Motor Maintenance: Clean the motor area and schedule annual professional servicing.
• Safety Tests: Verify the functionality of auto-reverse and emergency release mechanisms.
• Inspect Wiring: Ensure electrical connections are clean and secure for consistent performance.
