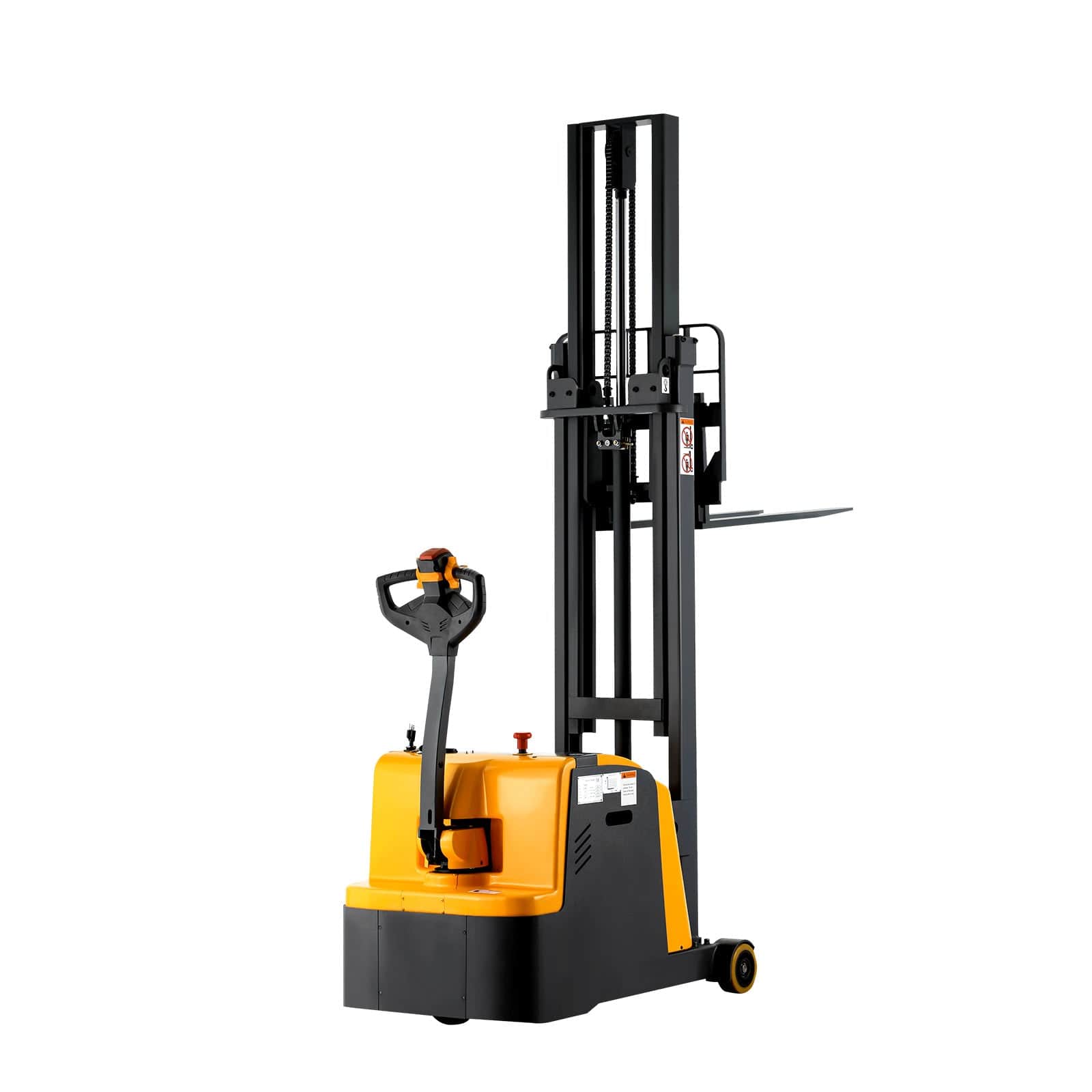

Apollolift Counterbalanced Electric Stacker 2200lbs 118" High - A-3040

• 650-watt drive motor,  2,200-watt lift motor.
• Perfect for approaching racks and trucks, as there are no straddle legs to obstruct to close approach.
• With upright walking function, especially suitable for narrow aisle.
• 2 minutes will replacement thanks to the wheel because of the upper horizontal structure design.
• 4-5 hours service per charge: two 12-volt, 105 Ah rechargeable GEL batteries

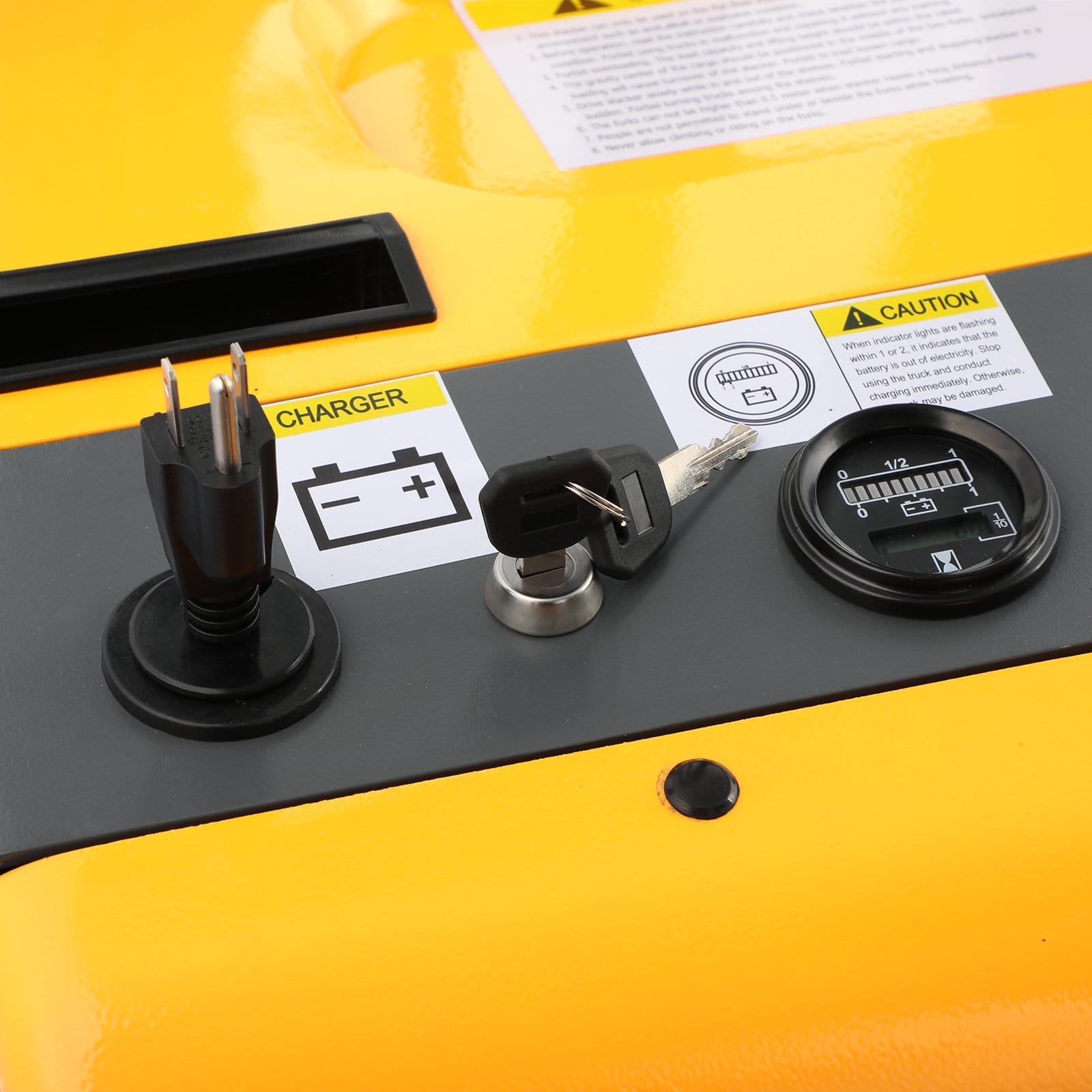

• 110V Built-in charger.

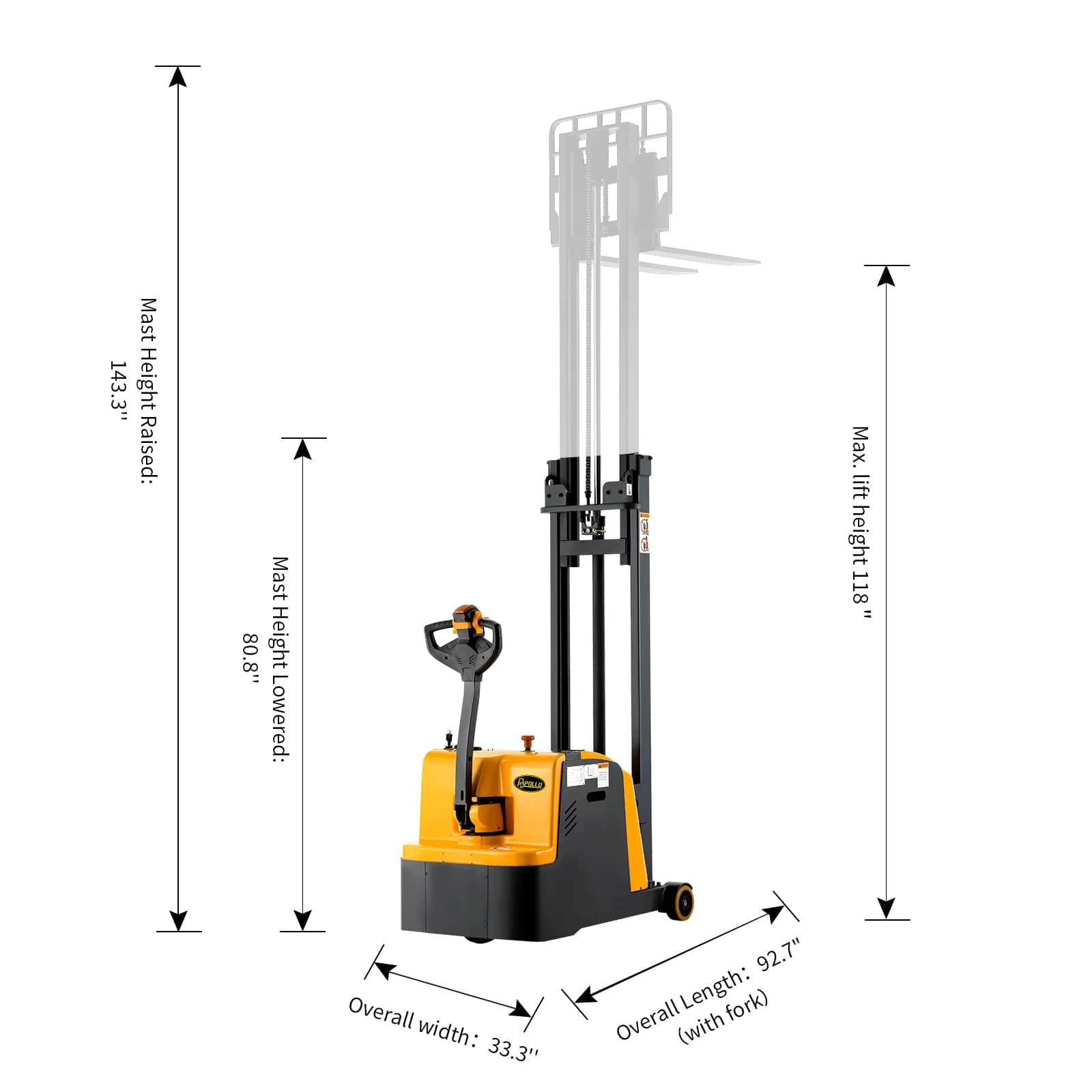

DIMENSIONS

• Overall Length：92.76"
• Overall Width: 33.3''
• Recommended Aisle Width：113.38"/ 9.45 feet
• Turning Radius：52.52"
• Load Center: 15.7"
• Gradeability(laden/unladen):5%/10%

MAST

• Mast Height Lowered: 80.8''
• Mast Lifting Height: 118''
• Mast Height Raised: 143.3''
• Mast tilt(forward/backward):1°/3°

FORKS

• Thickness: 1''
• Width:3.9''
• Length: 33.3"
• Fork width range: 8.6-25.4''

FEATURES

• Long handle structure makes truck steering light and flexible
• Thoughtful mast design for wide viewing angles
• Normal Ambient temperature shall not be higher than +104°F and no lower than -13°F.

SPEED

• Lifting speed(laden/unladen) : 0.11/0.15 m/s
• Lowering speed(laden/unladen) : 0.85/0.9 m/s

What Our Experts Think

• 2200lbs Capacity: The Apollolift Counterbalanced Electric Stacker with a 2200lbs capacity is designed to handle a variety of heavy-duty lifting tasks in warehouses, manufacturing plants, and distribution centers. Its higher weight capacity allows it to efficiently manage bulkier loads with confidence.
• 118" Maximum Lift Height: With a lift height of 118", this stacker provides excellent reach for stacking or retrieving items from high shelves. It’s ideal for environments that require vertical storage and optimized space usage, offering precise control at elevated heights.
• Counterbalanced Design for Stability: The counterbalanced design ensures the stacker remains stable and balanced during operation, even when lifting at full capacity. This minimizes the risk of tipping, allowing for safe and reliable handling of heavy loads.
• Electric Powered for Effortless Operation: The electric-powered system makes lifting heavy loads effortless, reducing physical strain on operators. It improves operational speed and enhances overall efficiency, allowing staff to handle tasks with less fatigue and increased productivity.
• Compact Size for Maneuverability: Despite its 2200lbs capacity, this electric stacker is designed for maneuverability in tight spaces. It can navigate narrow aisles and confined areas, making it ideal for smaller warehouse environments or areas with limited room for larger equipment.
• Durable and Heavy-Duty Construction: Built with high-quality, industrial-grade materials, this stacker is designed for long-lasting durability and reliable performance in demanding environments. Its rugged construction ensures that it can withstand frequent use without compromising on strength.
• Simple and Efficient Controls: The user-friendly controls make the Apollolift stacker easy to operate, reducing training time and improving safety. Operators can smoothly lift, lower, and maneuver loads with precision, ensuring fast and accurate task completion.
• Energy-Efficient Lithium Battery: The stacker is powered by an efficient lithium battery, which ensures extended operational hours and faster charging times. This energy-efficient power source minimizes downtime and lowers operating costs by reducing the need for frequent recharging.
• Low Maintenance Design: The Apollolift Counterbalanced Electric Stacker requires minimal maintenance, which means fewer interruptions to workflow and reduced servicing costs. Its durable battery and high-quality components contribute to long-term reliability with less maintenance effort.
• Expert-Recommended: Experts highly recommend the Apollolift Counterbalanced Electric Stacker for businesses needing a powerful, efficient, and space-saving solution for handling moderate to heavy lifting tasks. Its robust lifting capacity, stability, and energy-efficient operation make it a dependable choice for warehouses and industrial operations that prioritize productivity and safety.

Q&A

Q: What is the Apollolift Counterbalanced Electric Stacker A-3040?
A: The Apollolift A-3040 is a counterbalanced electric stacker with a 2200 lbs capacity and a maximum lifting height of 118". It is designed for efficient stacking and material handling in warehouses, offering a compact solution for lifting heavy loads in tight spaces.

Q: What is the weight capacity of the Apollolift A-3040 electric stacker?
A: The Apollolift A-3040 has a weight capacity of 2200 lbs, making it ideal for handling medium-duty loads, allowing for efficient stacking and material transport in warehouses and industrial environments.

Q: What is the maximum lifting height of the A-3040 electric stacker?
A: The A-3040 can lift loads up to 118", making it suitable for high stacking needs in areas where vertical storage space is at a premium.

Q: How does the counterbalanced design benefit the A-3040?
A: The counterbalanced design enhances stability while lifting heavy loads, allowing the A-3040 to operate in narrow aisles and confined spaces, providing better maneuverability and preventing tipping.

Q: How does the electric system work in the A-3040?
A: The A-3040 is powered by an electric motor, providing smooth, controlled lifting and lowering of loads. This reduces manual labor, boosts productivity, and ensures safer operation when stacking goods.

Q: How long does the battery last on a single charge?
A: The battery typically lasts for an entire work shift, depending on load weight and usage frequency. The battery can be recharged quickly, minimizing downtime during operations.

Q: Is the Apollolift A-3040 easy to operate?
A: Yes, the A-3040 is designed with simple, intuitive controls, allowing operators to easily maneuver the stacker and handle loads in tight spaces with ease.

Q: What are the dimensions of the Apollolift A-3040 electric stacker?
A: The A-3040 features standard fork dimensions, making it compatible with most pallets and suitable for handling materials in a variety of industrial settings.

Q: How is the maintenance for the Apollolift A-3040?
A: The A-3040 requires minimal maintenance due to its electric system. Routine checks on the battery and other moving parts will help ensure the stacker performs optimally over time.

Q: Is the Apollolift A-3040 built for durability?
A: Yes, the A-3040 is built with durable, high-quality materials that can withstand the demands of heavy-duty use in industrial and commercial environments, ensuring long-lasting reliability.

Q: Can the Apollolift A-3040 be used outdoors?
A: While the A-3040 is primarily designed for indoor use, it can be used outdoors on dry, flat surfaces. However, it performs best in indoor environments with smooth floors, where optimal stability and functionality are maintained.

Maintenance Tips

• Battery Maintenance: Charge the battery after each use and avoid deep discharges. Store in a cool, dry location to extend battery life.
• Tire Inspection: Regularly inspect the tires for signs of wear or damage. Replace when necessary to ensure stability and smooth operation.
• Lift Mechanism Checks: Inspect the lifting mechanism for smooth operation, ensuring that the forks, mast, and moving parts are well-lubricated to reduce friction and wear.
• Hydraulic System Monitoring: Periodically check for hydraulic leaks or irregularities, ensuring the lift and lower functions work smoothly.
• Regular Cleaning: Keep the stacker clean, particularly around the motor, wheels, and lift components, to prevent dirt and debris buildup that can hinder performance.
• Test Controls: Test the stacker’s steering, lifting, and lowering controls regularly to ensure proper responsiveness and operation.
• Weight Capacity: Do not exceed the 2200lbs capacity to avoid overloading and straining the motor or hydraulic system.
