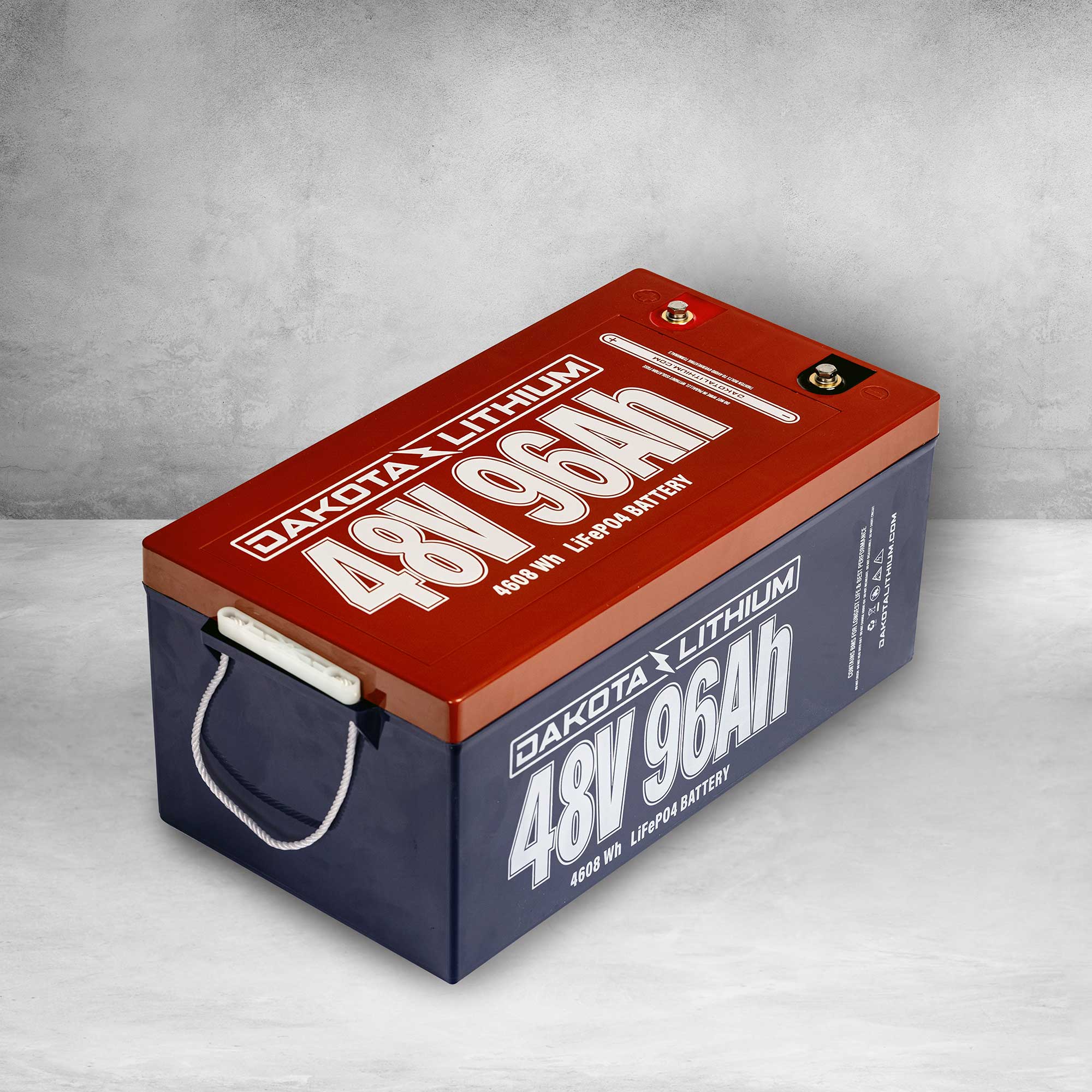

Dakota Lithium 48V/96Ah LiFePO4 Deep Cycle Battery

Dakota Lithium 48V/96Ah LiFePO4 Deep Cycle Battery

Experience the Dakota Lithium Difference

The DL 48V 96Ah battery is built with Dakota Lithium's legendary LiFePO4 cells. 2,000+ recharge cycles (roughly 5 year lifespan at daily use) vs. 500 for other lithium batteries or lead acid. Optimal performance down to minus 20 degrees Fahrenheit (for winter warriors). Plus twice the power of lead-acid batteries at half the weight.

Built Dakota tough, this single 48 volt lithium battery will help you play longer and go further with twice the run time for your golf cart, electric vehicle, or electric outboard motor, while lasting 4x longer, providing exceptional lifetime value. Built out of our legendary lithium iron phosphate (LiFePO4) cells, this battery requires no maintenance or watering, can be installed in any orientation, and can charge 5X faster then lead acid – giving you more time, and more freedom. The best part is this single Dakota Lithium battery weighs 1/4 as much as a set of lead acid golf cart batteries, allowing you to cut 300 lbs or more off your cart. Experience better vehicle handling, less wear & tear, and lower maintenance costs.

With a whopping 5kWh of deep cycle power inside of a single power source, this is the largest battery Dakota Lithium makes and it optimized for deep cycle and marine applications like 48V solar energy storage, 48V electric outboard motors, 48V golf carts, or any 48V application where you need steady power for a long time. Free 48V 8A amp LiFePO4 chargers included!

Suitable For

• Drop in 48V Lithium Replacement Battery
• 48V Golf Carts
• 48V Electric Outboard Motors
• 48V Solar Energy Power Systems
• 48V Electric Vehicles
• Single 48V liFePO4 Replacement for 6V, 8V, and 12V Golf Cart Batteries
• 40 - 60 Mile Battery Range for Most Golf Carts
• Torqueedo 48V Outboard Motors
• Wire 2 in Parallel for Double the Battery Range
• Elco 48V Outboard Motors
• Yamaha 48V Golf Carts
• Excellent for 48V Taylor-Dunn Golf Carts
• Ideal for 48V Par Car
• Compatible with most 48V Golf Battery

Specifications

• 11 Year Warranty: World beating, best in class, eleven year manufacturer defect warranty.
• Storage Capacity: 96 ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 96 amp hours. DL LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.
• Voltage: 48V (not intended for wiring multiple batteries in series, 48V systems only)
• Energy: 4,915 Watt hours (Wh) per battery (4.9 kWh power system)
• Terminals: F12 terminals (posts that screw in) with M8 terminal bolts included. Easy to adapt to different connection needs. (Max torque 15 ft. lbs.)
• Weight: 77 lbs (35Kg). That's 80% lighter than a set of lead acid batteries, saving 300 lbs. of weight.
• Size: 20.5 in (520mm) L x 10.5 in (267mm) W x 8.66 in (220mm) H
• Battery Range: For carts with a max speed of 23 mph or less expect a battery range of 40 - 60 miles depending on cart model. For carts with a max speed of 27 mph expect a battery range of 30 - 40 miles. Wire 2 units in parallel to double the battery range.
• Lifecycles (Battery Lifespan): Up to 100% capacity for 2,000 recharge cycles (100%DOD), 80% capacity at ≥4,000 recharge cycles (80%DOD), 50% capacity at ≥6,000 (50%DOD - battery half life). The typical SLA has 500 cycles. Dakota Lithium batteries last so long that the price per use is a fraction of traditional batteries.
• Operating Temperature: Ideal for rugged & harsh environments. Much better than SLA or other lithium’s. -20'F min, +120'F max optimal environmental operating temps
• Discharge: 100 A max continuous, 200 A max pulse for 3-5 minutes. The flat discharge voltage curve provides a 75% bigger capacity then a SLA 100Ah battery.
• Charge: 50 A max, 57.6 V max recommended. Free 8A LiFePO4 battery charger is included.
• Includes Active BMS Protection: Contains a circuit that handles cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection for increased performance and longer life. A LiFePO4 battery charger is required to turn the battery back on after a BMS cut off (included w purchase).
• Certifications: All batteries are UN 38 certified. Dakota Lithium's cells are UL1642 certified and have been tested per IEC62133 standards. Meets all US & International regulations for air, ground, train, & marine transport.
• Charger Included: Free 48V 8A LiFePO4 charger included. Upgrade to 48V 15A charger for 2X the charging time.
• Free Freight Shipping: Free shipping included to lower 48 US states. Battery must ship via Freight and will be delivered on a shipping pallet.

What Our Experts Think

• Maximum Power for Demanding Systems: The Dakota Lithium 48V/96Ah LiFePO4 Deep Cycle Battery provides high capacity and voltage, making it perfect for large-scale systems like commercial solar setups, electric vehicles, RVs, and boats that require continuous, reliable power over extended periods.
• Exceptional Lifespan: With over 2,000 charge cycles, the 48V/96Ah battery offers remarkable durability, outlasting traditional lead-acid batteries and providing long-term value by reducing the frequency of replacements.
• Outstanding Energy Efficiency: This battery leverages LiFePO4 technology, which ensures high energy density, minimal self-discharge, and peak efficiency, allowing it to maintain its performance even in demanding applications.
• Space-Saving and Lightweight: Despite its large capacity, this battery is designed to be lighter and more compact than its lead-acid counterparts, making it easier to install and integrate into space-limited applications without sacrificing performance.
• Built-In Safety: The Dakota Lithium 48V/96Ah battery includes integrated safety features such as overcharge protection, short circuit protection, and temperature monitoring to ensure safe and reliable operation in all environments

Q&A

Q: What is the Dakota Lithium 48V/96Ah LiFePO4 Deep Cycle Battery designed for?
A: The Dakota Lithium 48V/96Ah LiFePO4 battery is designed for high-power applications, providing reliable energy storage for larger systems like solar power setups, electric vehicles, RVs, and off-grid applications requiring a 48V battery.

Q: What are the key features of the Dakota Lithium 48V/96Ah LiFePO4 battery?
A: It features advanced LiFePO4 technology, offering up to 4,000 charge cycles, fast charging, and a lightweight design. The battery has a built-in battery management system (BMS) for safety and is resistant to extreme temperatures, making it durable and low-maintenance.

Q: What is the weight of the Dakota Lithium 48V/96Ah battery?
A: The Dakota Lithium 48V/96Ah battery weighs approximately 97 lbs (44 kg), offering a robust, energy-dense solution for high-demand systems.

Q: How long does the Dakota Lithium 48V/96Ah battery last?
A: The Dakota Lithium 48V/96Ah battery can last up to 4,000 charge cycles, ensuring long-lasting performance far beyond conventional lead-acid batteries.

Q: How do I maintain the Dakota Lithium 48V/96Ah battery?
A: To maintain the battery, avoid deep discharges, overcharging, and extreme temperatures. Store the battery in a cool, dry place and check the voltage periodically. Always keep it fully charged if not in use for extended periods

Maintenance Tips

• Regular Charging: Use a charger designed for LiFePO4 batteries to ensure safe and efficient charging. Keep the charge level between 20% and 100% for optimal performance. Avoid charging to 100% regularly to prolong the battery’s lifespan.
• Avoid Deep Discharge: Never discharge the battery below 20% capacity. Consistently deep discharging can lead to a significant reduction in the number of charge cycles and decrease its overall capacity.
• Proper Storage: If the battery is not in use for an extended period, store it in a cool, dry location. Maintain a charge level of 50% to 60% for long-term storage to prevent over-discharging.
• Temperature Control: Store and operate the battery in a temperature range between 32°F and 113°F (0°C to 45°C). Exposure to extreme temperatures can lead to damage and reduced performance.
• Monitor Voltage: Periodically check the battery’s voltage. The voltage should remain between 48V (fully charged) and 38.4V (fully discharged). If the voltage falls below 38V, recharge the battery to avoid potential damage.
• Clean the Terminals: Inspect the battery terminals for any corrosion, dirt, or loose connections. Use a dry cloth or a baking soda and water solution to clean the terminals and prevent corrosion.
• Prevent Short Circuits: Ensure the battery’s terminals are insulated and protected from accidental short circuits. Avoid exposing the terminals to conductive materials that may cause a short.
• Avoid Overheating: Properly ventilate the battery and avoid exposing it to direct sunlight or areas with high temperatures. High temperatures can reduce the battery’s efficiency and lifespan.
• Routine Inspections: Regularly inspect the battery for any visible signs of damage, swelling, leakage, or other abnormalities. If any issues are detected, cease use and contact a professional.
• Follow Manufacturer Guidelines: Always adhere to the manufacturer’s recommendations for use, charging, and maintenance. This ensures the battery’s performance is maximized and warranty conditions are met
