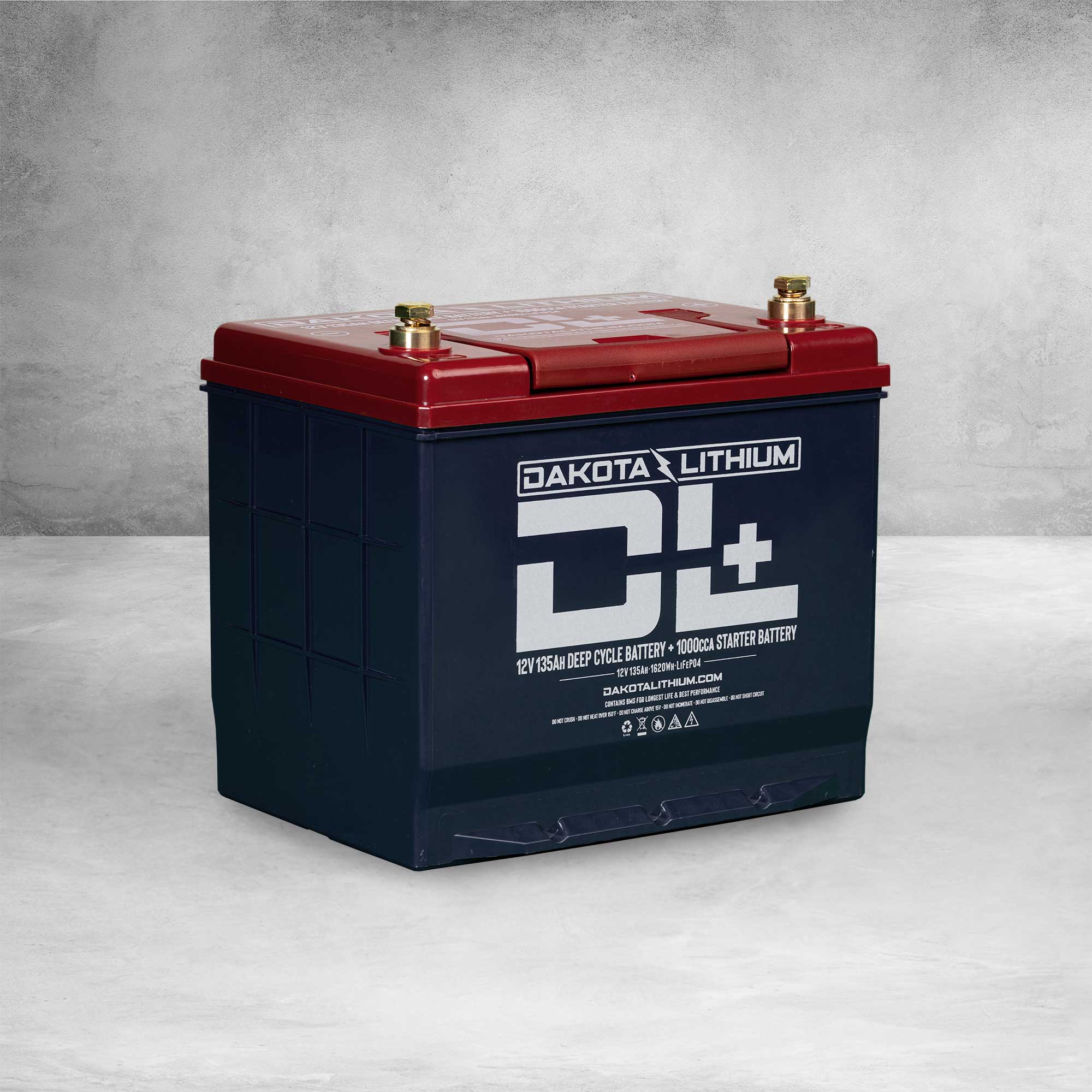

Dakota Lithium DL+ 12V/135Ah Dual Purpose 1000CCA LiFePO4 Deep Cycle Starter Battery

Dakota Lithium DL+ 12V/135Ah Dual Purpose 1000CCA LiFePO4 Deep Cycle Starter Battery

Experience the Dakota Lithium Difference

The DL+ 135Ah battery is built with Dakota Lithium's legendary LiFePO4 cells. 2,000+ recharge cycles (roughly 5 year lifespan at daily use) vs. 500 for other lithium batteries or lead acid. Internal even heat tech provides optimal performance down to minus 20 degrees Fahrenheit (for winter warriors). Plus five times the power of lead-acid batteries at half the weight.

The ultimate battery in energy density and versatility. 135 Amp Hours of deep cycle Dakota Lithium performance PLUS 1,000 CCA of engine starting power PLUS internal even-heat technology for use in extreme temperatures = unlimited possibilities. Start your car or boat’s motor, crank up the car audio, or run your trolling motor, golf cart, or any electronics — this is one battery built to power many passions. Engineered for high performance in rugged and extreme conditions, the DL+ 12V 135Ah battery includes DL’s internal even heating technology that allows for charging and using the battery in extreme temperatures down to -20F. Built to start boat and car engines, the DL+ 12V 135Ah battery also has 135 Amps of charging capacity, allowing you to charge the battery from your vehicle’s alternator. Charges 5X faster than traditional batteries. 60 minutes or less when combined with a 135 Amp charger or alternator.

Exceptional energy density with 5X the power of traditional batteries. 135 Amp Hours (Ah) of capacity engineered to fit inside a group 24 battery case that is 25% smaller than a Dakota Lithium 100 Ah battery.

Engineered with Lithium Iron Phosphate (LiFePO4) technology this battery has 5X the power, half the weight, and lasts 5 times longer than a lead acid battery – providing exceptional lifetime value. Built for dual purpose performance, the DL+ 12V 135Ah battery provides 1,000 cold cranking amps (CCA) and a high continuous discharge rate, making it a great choice for high amp draw applications like starting engines, car audio, heavy machinery, golf carts, or any electronics that require a lot of power at one time. In addition, the DL+ 12V 135Ah battery provides the same legendary deep cycle marine performance that Dakota Lithium batteries are known for, giving you lots of power for a long time. This is the most versatile Dakota Lithium battery and includes a terminal adapter kit compatible with most marine, automotive, and deep cycle applications. Easily link in series to create 24V, 36V, or 48V systems. LiFePO4 charger included. Backed up by an 11 year warranty.

Suitable For

• Starting Car, Boat, and Light Truck Engines
• Marine Applications
• Deep Cycle Applications
• Trolling Motors
• Overland & Truck Builds
• VanLife & RV Battery Upgrade
• Car Audio
• Golf Carts & Electric Vehicles
• Link in Series for 24V, 36V, 48V
• Industrial Batteries
• LiFePO4 Replacement for SLA 12V
• Fish Finders, Flashers, & Boating Electronics
• Recreational Vehicles, Campers, and Trailers
• Off-grid Homes

Specifications

• 11 Year Warranty: World beating, best in class, eleven year manufacturer defect warranty.
• Storage Capacity: 135 ampere hours (Ah). Dakota Lithium batteries provide consistent power for all 135 amp hours. DL LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.
• Voltage: 12.8V (Dakota Lithium 12V batteries can be used in series for up to 48V systems)
• Engine Starting Power: Lithium battery equivalent to 1,000 Cold Cranking Amps (CCA) of lead acid battery engine starting power. Suitable for marine, automotive, and other applications. 1/2 the weight of a normal car battery.
• Size: 9.5”L x 6.9” W x 7.44” H (242.5mm x 176mm x 189 mm) Group 24 equivalent
• Group Size 24: Group 24 compatible physical dimensions & 24F terminal orientation. Cranking power (CCA rating) & usable deep cycle capacity is much higher than a lead-acid battery of the same group size.
• Energy: 1620 Watts (Wh)
• Terminals: F12 terminals (posts that screw in) with M8 size bolts. Includes a terminal adapter kit with automotive & marine posts that screw into the M8 bolt terminal, and M8 brass terminal bolts. Easy to adapt to different connection needs. (Max torque 15 ft. lbs.) (Max 5 ft. lbs. on terminal post adapters)
• Weight: 27.2 lbs (12.3 Kg). 65% lighter than a SLA or lead battery.
• Lifecycles (Battery Lifespan): Up to 80% capacity for 2,500 cycles in recommended conditions. The typical automotive SLA has 500 cycles. Dakota Lithium batteries last so long that the price per use is a fraction of traditional batteries.
• Operating Temperature: Ideal for rugged & harsh environments. Much better than SLA or other lithium batteries. -20'F min, +150'F max optimal operating temps (battery performs well down to -20'F). Internal even-heat technology allows for charging below 32'F. BMS high temp cut off at 167'F / 75'C.
• Discharge: 270A max continuous discharge, 1000A max 2 second pulse, 900A max 5 sec pulse. The flat discharge voltage curve provides a 75% bigger capacity than a 135Ah SLA battery with the same CCA rating.
• Charge: Recommend for longest life 70A or less (.5C), Max continuous 135A (1C). 14.4 V recommended, 15 V max, BMS protection from over charging will cut off at 15V. Included is a free 12V 10 Amp (A) LiFePO4 compatible charger that charges at the recommended 14.4 Volts..
• Charge via Alternator: Drop in replacement for lead acid and AGM starter batteries for vehicles and outboard motors. NOTE: THE DL+ 135Ah IS LIMITED TO AN ALTERNATOR CHARGING PROFILE OF 135 AMPS OR LESS.
• Includes Active BMS Protection: Contains a high discharge capable circuit that handles cell balancing, low voltage cutoff (10V) preventing over discharge, high voltage cutoff (15V) preventing over charging, short circuit protection and temperature protection for increased performance and longer life.
• Internal Even-heat Technology: Increases performance in extreme cold. When charging the battery in temperatures below 0'C/32'F DL's internal heating element will warm the cells to 0'C/32'F. This increases the lifespan, performance, and efficiency of the battery.
• Certifications: All DL batteries are UN 38 certified. Dakota Lithium's cells are UL1642 certified and have been tested per IEC62133 standards. Meets all US & International regulations for air, ground, train, & marine transport.
• ISO:9001 Quality Control Certified: Engineering, design, uality control and manufacturing
• Dual Purpose Use: Multi-purpose use as a deep cycle battery and/or as a starter battery for starting gasoline engines.
• Charger Included: 10A LiFePO4 charger included

What Our Experts Think

• Dual-Purpose Power: The Dakota Lithium DL+ 12V/135Ah LiFePO4 Battery is a versatile dual-purpose battery, offering both deep cycle and starting capabilities. Ideal for users who need a reliable power source for starting engines as well as providing continuous power for off-grid systems, RVs, boats, and other high-demand applications.
• High Cranking Amps (1000CCA): With 1000 cold-cranking amps (CCA), this battery is designed to easily start engines in extreme conditions, making it a great choice for marine, RV, and outdoor applications where reliable starting power is essential.
• Exceptional Lifespan: Built with LiFePO4 technology, the DL+ battery offers over 2,000 charge cycles, significantly outlasting traditional lead-acid batteries and offering a long-term, cost-effective solution for both starting and deep cycle needs.
• Energy Efficiency and Reliability: This battery provides efficient power delivery, ensuring minimal voltage drops and optimal performance throughout its charge and discharge cycles. It maintains a stable output for all types of applications.
• Lightweight and Compact: Compared to lead-acid batteries, the Dakota Lithium DL+ is much lighter and more compact, making installation and handling easier without sacrificing power or performance.
• Built-In Protection: Equipped with overcharge protection, temperature control, and short circuit prevention, the DL+ offers a safe and reliable power solution for various environments, ensuring peace of mind in all conditions.

Q&A

Q: What is the Dakota Lithium DL+ 12V/135Ah Dual Purpose 1000CCA LiFePO4 Deep Cycle Starter Battery designed for?
A: The Dakota Lithium DL+ 12V/135Ah battery is a dual-purpose deep cycle and starter battery, ideal for high-demand applications like RVs, boats, and off-grid systems. It provides both reliable power for running appliances and enough cranking power for starting engines.

Q: What are the key features of the Dakota Lithium DL+ 12V/135Ah LiFePO4 battery?
A: It features 1000 cold-cranking amps (CCA) for engine starting and up to 4,000 charge cycles for deep cycle use. The battery has fast charging capabilities, a lightweight design, built-in battery management system (BMS) for safety, and is resistant to extreme temperatures.

Q: What is the weight of the Dakota Lithium DL+ 12V/135Ah battery?
A: The Dakota Lithium DL+ 12V/135Ah battery weighs approximately 34 lbs (15.4 kg), making it much lighter than traditional lead-acid batteries with similar capacity.

Q: How long does the Dakota Lithium DL+ 12V/135Ah battery last?
A: The Dakota Lithium DL+ 12V/135Ah battery can last up to 4,000 charge cycles, significantly outlasting lead-acid batteries and offering years of reliable service.

Q: How do I maintain the Dakota Lithium DL+ 12V/135Ah battery?
A: To maintain the battery, avoid deep discharges, overcharging, and extreme temperatures. Store it in a cool, dry location and regularly check the voltage. It should be stored fully charged if not in use for long periods

Maintenance Tips

• Regular Charging: Use a LiFePO4-specific charger for safe, efficient charging. Maintain a charge between 20% and 100% for optimal battery health. Avoid keeping it at full charge for prolonged periods to prevent unnecessary wear.
• Avoid Deep Discharge: Never discharge the battery below 20% regularly. Discharging too deeply reduces the total charge cycles and can decrease capacity over time.
• Proper Storage: If not in use for extended periods, store the battery in a cool, dry environment. Ensure the battery is charged to about 50% to 60% before long-term storage to prevent over-discharge.
• Temperature Control: Keep the battery in temperatures between 32°F and 113°F (0°C to 45°C). Exposure to extreme temperatures, whether too hot or too cold, can cause performance issues and shorten battery life.
• Monitor Voltage: Regularly check the voltage. A healthy charge should read around 12.8V (fully charged). Avoid letting the voltage drop below 11.5V, as this may harm the battery.
• Clean Terminals: Inspect and clean the terminals periodically. Use a dry cloth or a baking soda solution to remove dirt and corrosion, which can interfere with electrical connections. Ensure that connections are tight and secure.
• Prevent Short Circuits: Ensure the battery terminals are properly insulated and protected from accidental short circuits. This will help avoid any safety hazards.
• Overheating Prevention: Keep the battery in a well-ventilated area to avoid overheating during charging or discharging, especially when used for high-power applications.
• Routine Inspections: Regularly inspect the battery for signs of damage, leakage, or unusual wear. If any swelling, cracks, or other abnormalities are noticed, stop using the battery and consult a professional.
• Follow Manufacturer Guidelines: Always adhere to the manufacturer’s recommended charging, discharging, and storage practices. This helps maintain the warranty and ensures the battery performs at its best.
