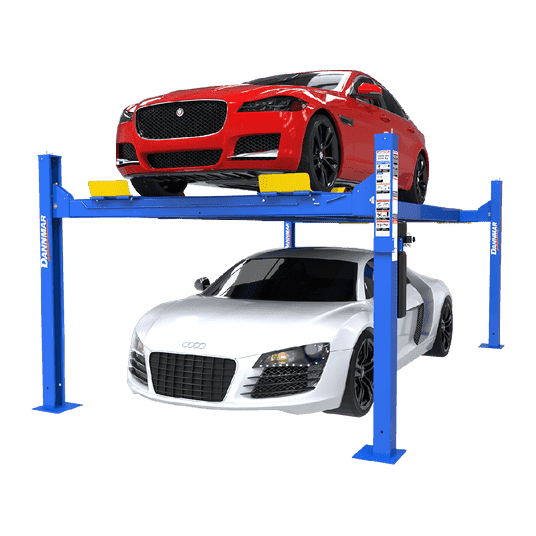

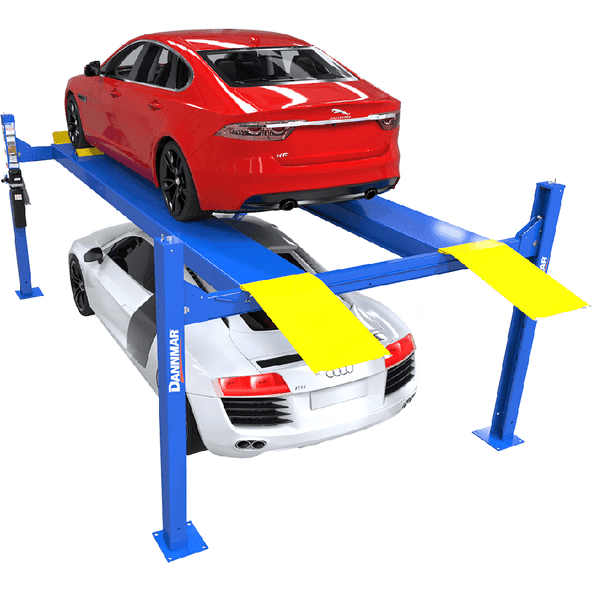

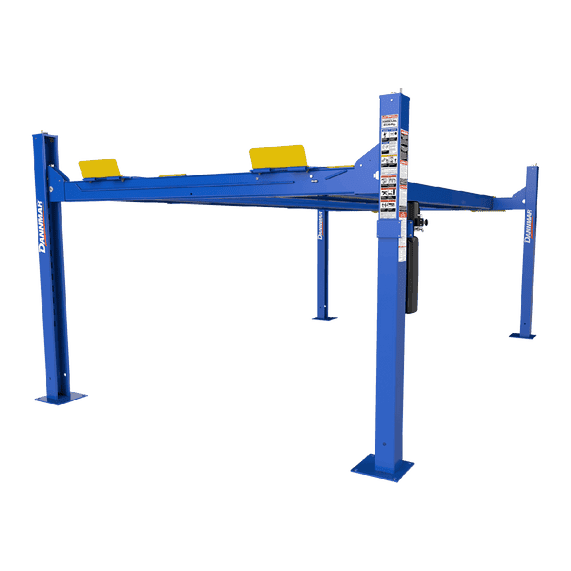

Dannmar 12,000-lbs. Capacity Four-Post Lift - 5175317

Dannmar 12,000-lbs. Capacity Four-Post Lift - 5175317

Dannmar’s four-post D4-12 lift is designed to work with most vehicles. With a 12,000 lb. capacity you not only know that it is capable of lifting most anything, but it also has to be built very strong, rugged, and durable. With Dannmar’s extended runways, moving onto the runway is safe and simple for vehicles of all sizes.The quality built into each Dannmar lift is demonstrated by the Dual-hub cable sheaves that reduce stress, fatigue and wear. Huge 10.5” diameter cable sheaves within the runway and cross tubes combine with massive 2.25” diameter sheave axles. These larger components help to share the load, which dramatically decreases cable wear and increases critical component lifespan.To help raise and lower the hefty 12,000 lb. load are a series of heavy-duty aircraft cables. The Dannmar D4-12 incorporates four, 1/2” diameter, stainless-steel lifting cables specifically designed for lifting applications. To keep everything moving freely, the Dannmar D4-12 utilizes built-in lubrication points located on each sheave and sheave axle.

Features

• CE Approved and Certified

• Meets or exceeds the standards prescribed by European Standard EN-1493

• Mid to long-style approach ramps for low-ground clearance vehicles

• Runways include rail-kit for optional accessories

• Single hydraulic cylinder mounted underneath runway

• Fully enclosed lifting cables, safety locks and sheaves

• Internal anti-sway slider blocks in each column

• Pneumatic push-button safety release

• Heavy-duty 1/2” aircraft cable and 1.75” roller axles

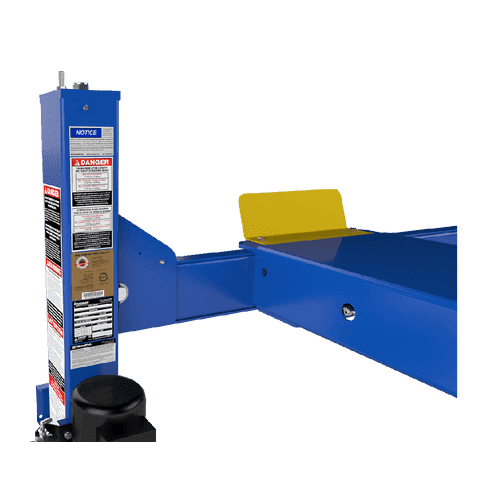

• Safety locks enclosed in columns minimize pinch points

• Oversized sheave diameter reduces cable fatigue

• Large self-lubricating cable rollers

• Multi-position safety locks in each column

• Customizable power unit location

• Approach ramps incorporate built-in rear-wheel chocks

• Independent backup slack-cable safety latches

• Runways feature non-skid surface

• ETL approved

Specifications

What Our Experts Think

• 12,000-lb. Capacity: With a robust 12,000-lb. capacity, this four-post lift is ideal for heavy-duty vehicles such as trucks and SUVs.
• Versatile Lifting: Perfect for tire changes, oil changes, and other maintenance tasks, offering ample clearance and stability.
• Durable Construction: Made with high-strength materials to withstand the demands of busy workshops and provide reliable, long-term performance.
• Smooth Operation: Features high-quality hydraulic systems for smooth, stable lifting and lowering.
• Space-Efficient Design: The four-post configuration maximizes available space while offering superior lifting capabilities.
• Safety Features: Equipped with automatic safety locks and robust lifting arms to ensure vehicles remain securely in place during service.

Q&A

Q: What is the weight capacity of the Dannmar 12,000-lbs. Four-Post Lift?
A: The Dannmar four-post lift has a 12,000 lbs. weight capacity, making it ideal for lifting heavy-duty vehicles.

Q: What type of lift is the Dannmar 12,000-lbs. Four-Post Lift?
A: It is a four-post lift, providing excellent stability and support for a wide range of vehicles, including cars, trucks, and SUVs.

Q: Is the Dannmar four-post lift suitable for professional use?
A: Yes, this lift is built for professional automotive shops, offering reliable performance for vehicle repairs, maintenance, and storage.

Q: What are the benefits of using a four-post lift?
A: The four-post design allows for easy access to the undercarriage and is ideal for long-term vehicle storage and heavy-duty lifting tasks.

Maintenance Tips

• Inspect Hydraulic System: Regularly check for leaks and maintain proper hydraulic fluid levels. Replace fluid as necessary.
• Lubricate Moving Components: Apply grease to all moving parts, including the lift arms, rollers, and chains, to ensure smooth operation.
• Clean the Lift: Keep the lift free of dirt, oil, and debris, particularly around the base, posts, and lifting mechanisms.
• Check Safety Features: Test all safety mechanisms, such as limit switches and emergency stops, to ensure they function properly.
• Inspect Cables and Chains: Check cables and chains for wear or fraying and replace them as needed.
• Examine Lifting Pads: Ensure the lifting pads are in good condition and properly positioned for safe lifting.
