Dannmar D2-10a 10,000 Lbs Asymmetric Clear-Floor 2-Post Lift - 5175313

Dannmar D2-10a 10,000 Lbs Asymmetric Clear-Floor 2-Post Lift - 5175313

The D2-10A is an asymmetric clearfloor two-post lift that features a 10,000 lb. lifting capacity and accommodates full-size trucks, vans, and standard passenger cars. Single-piece column construction, tubular steel lifting carriage, and direct-drive hydraulic cylinders ensure the best possible performance and reliability. Rotated asymmetric columns allow vehicles to be loaded with doors clear of the columns for convenient entry and exit of vehicles. The D2-10A is designed to tackle the toughest jobs in your garage or workshop and outperform and outlast almost every lift in its class. With a powerful 10,000 lb. lifting capacity, the D2-10A has been designed to accommodate full-size trucks and vans, standard passenger cars, and sport and performance vehicles. Equipped with a self-contained electric-hydraulic power unit and twin direct-drive hydraulic cylinders, the D2-10A is extremely reliable and durable. Nested inside the unyielding welded-steel columns are solidly-built carriage assemblies that glide on maintenance-free UHMW bearings. Soft-cushioning column guides provide silent staging and shudder-free movement of the lifting carriage during both lifting and lowering.

Features

• Telescoping screw pads offer increased versatility

• Added overhead safety shutoff bar

• Tru-Metric™ arm design for versatile arm positions

• 30° rotated single-piece columns

• Single-point safety release

• Drop-end arms provide a lower pad height

• Dual hydraulic direct-drive cylinders

• Oversized 53" tall carriage for superior strength

• Electric/hydraulic power system

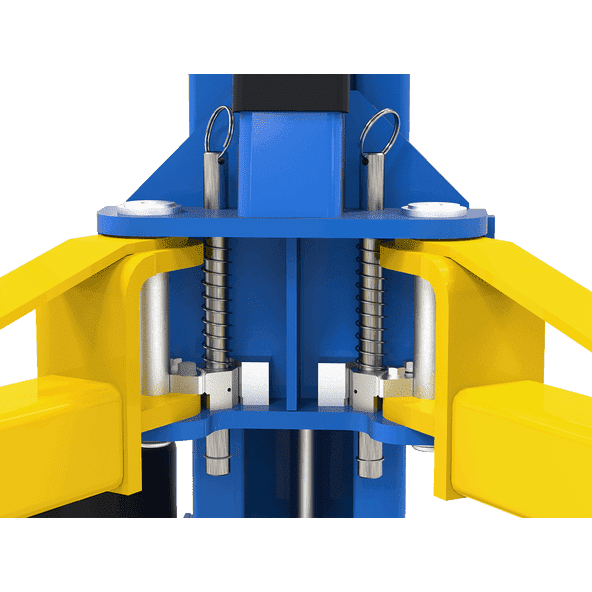

• Automatic arm restraints

• Heavy-duty 1/2” aircraft-quality equalizer cables

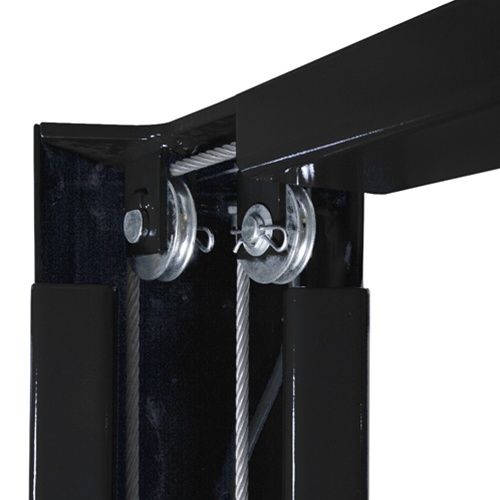

• Oversized cable sheave reduces cable fatigue

• 4-piece 63 mm stackable adapter set included

• Versatile drop-in contact pads with stackable adapter pins

Specifications

What Our Experts Think

The Dannmar D2-10A 10,000 Lbs Asymmetric Clear-Floor 2-Post Lift (Model 5175313) is a professional-grade solution for automotive shops and enthusiasts. Here's why it stands out:

• 10,000 lbs Capacity: Robust enough to handle a wide range of vehicles, from sedans to light trucks.
• Asymmetric Design: Provides better access to vehicle doors, enhancing safety and convenience for technicians.
• Clear-Floor Design: Ensures an obstruction-free workspace, allowing easy movement of tools and equipment.
• Adjustable Height Settings: Adapts to various ceiling heights and vehicle profiles, offering unmatched flexibility.
• Durable Construction: Built with heavy-duty materials and a powder-coated finish for long-lasting performance.
• Safety First: Equipped with dual-point safety locks and a single-piece column design for maximum stability and reliability.
• User-Friendly Operation: Features an ergonomic control system for smooth and precise lifting.

Q&A

Q: What is the Dannmar D2-10A?
A: The Dannmar D2-10A is a professional-grade 10,000 lbs capacity asymmetric 2-post lift designed for automotive service shops and enthusiasts needing efficient vehicle lifting.

Q: What are its key features?
A:

• Asymmetric design: Provides easier access to vehicle interiors and doors.
• Clear-floor design: Ensures unobstructed movement under the lift.
• 10,000 lbs capacity: Ideal for a wide range of vehicles, from sedans to light trucks.
• Dual hydraulic cylinders: Ensure smooth and reliable lifting performance.

Q: What is the lift’s height and clearance?
A: Its clear-floor design provides ample space for movement and accommodates vehicles with varying heights. The precise specifications are suitable for standard garage or workshop setups.

Q: Who is this lift ideal for?
A: Perfect for professional mechanics, service shops, and serious automotive enthusiasts seeking reliable and efficient vehicle lifting solutions.

Q: Is it easy to install and use?
A: Yes, the Dannmar D2-10A comes with clear instructions and is designed for straightforward installation and safe operation.

Q: Why choose the Dannmar D2-10A?
A: Its robust construction, high capacity, and user-friendly features make it a top choice for professionals and hobbyists looking for durability and performance in a 2-post lift.

Maintenance Tips

• Inspect Daily: Check for hydraulic fluid leaks, damaged cables, or loose bolts before each use.
• Lubricate Regularly: Apply lubricant to moving parts, including the lift carriage and pivot points, every 30 days.
• Hydraulic System: Check fluid levels monthly and replace the hydraulic oil every 12–24 months or as recommended by the manufacturer.
• Anchor Bolts: Inspect anchor bolts for tightness periodically to ensure the lift remains securely mounted.
• Cables and Chains: Inspect lifting cables and chains for wear and proper tension monthly; replace if frayed or stretched.
• Safety Locks: Test safety locks and release mechanisms regularly to ensure proper function.
• Cleaning: Keep the lift clean and free of debris, especially in the area around the base plates and posts.
• Professional Inspection: Schedule a certified technician to inspect the lift annually for safety and performance compliance.
