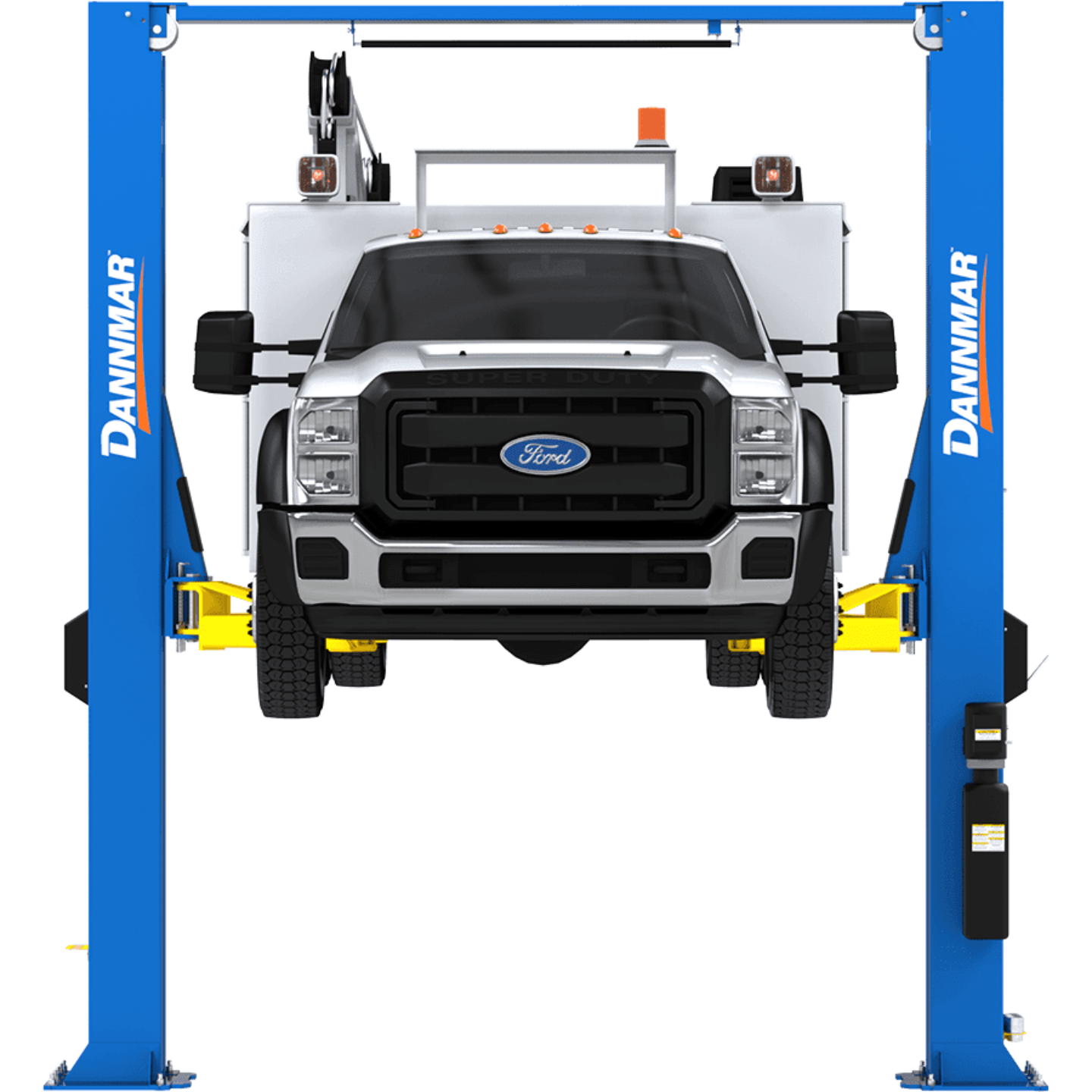

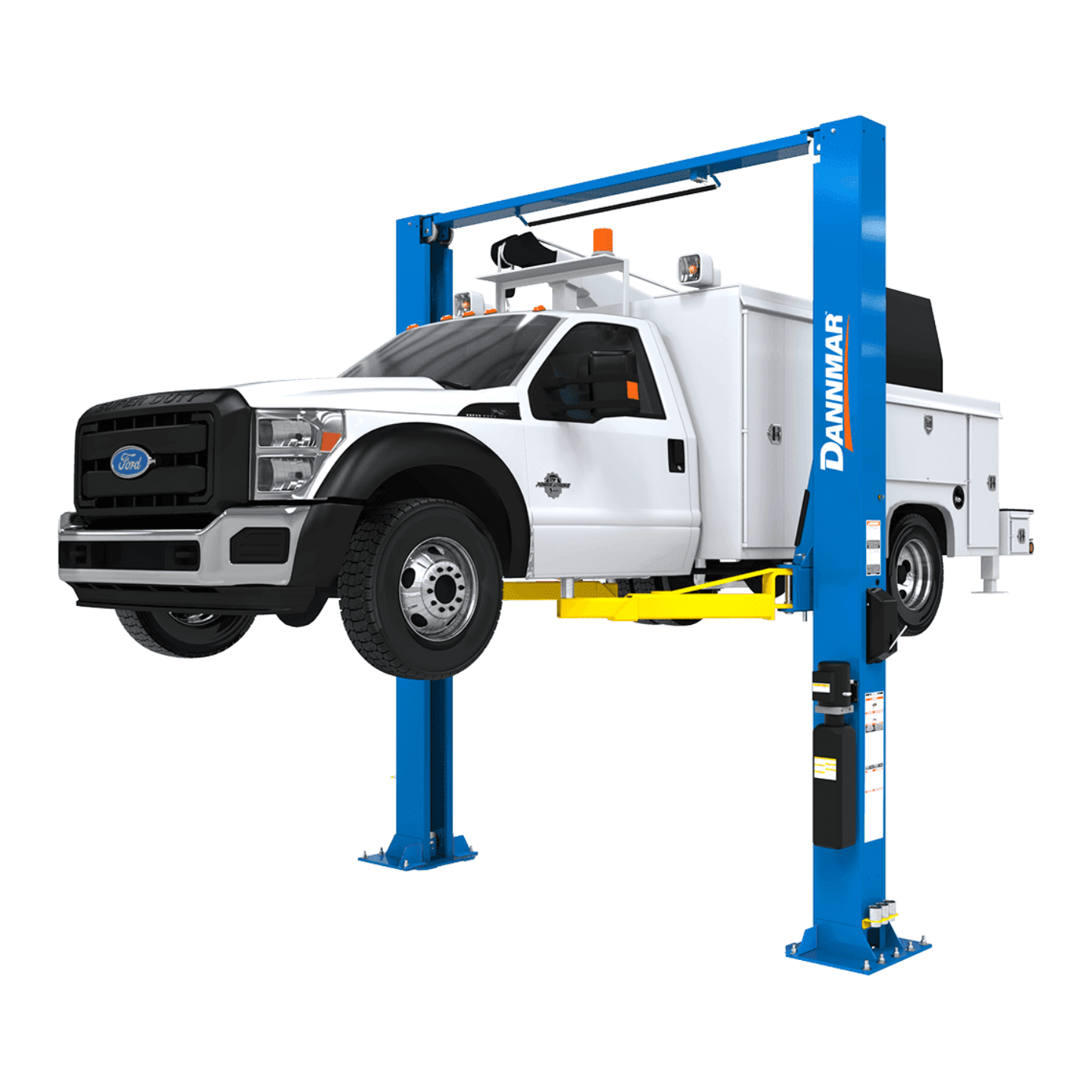

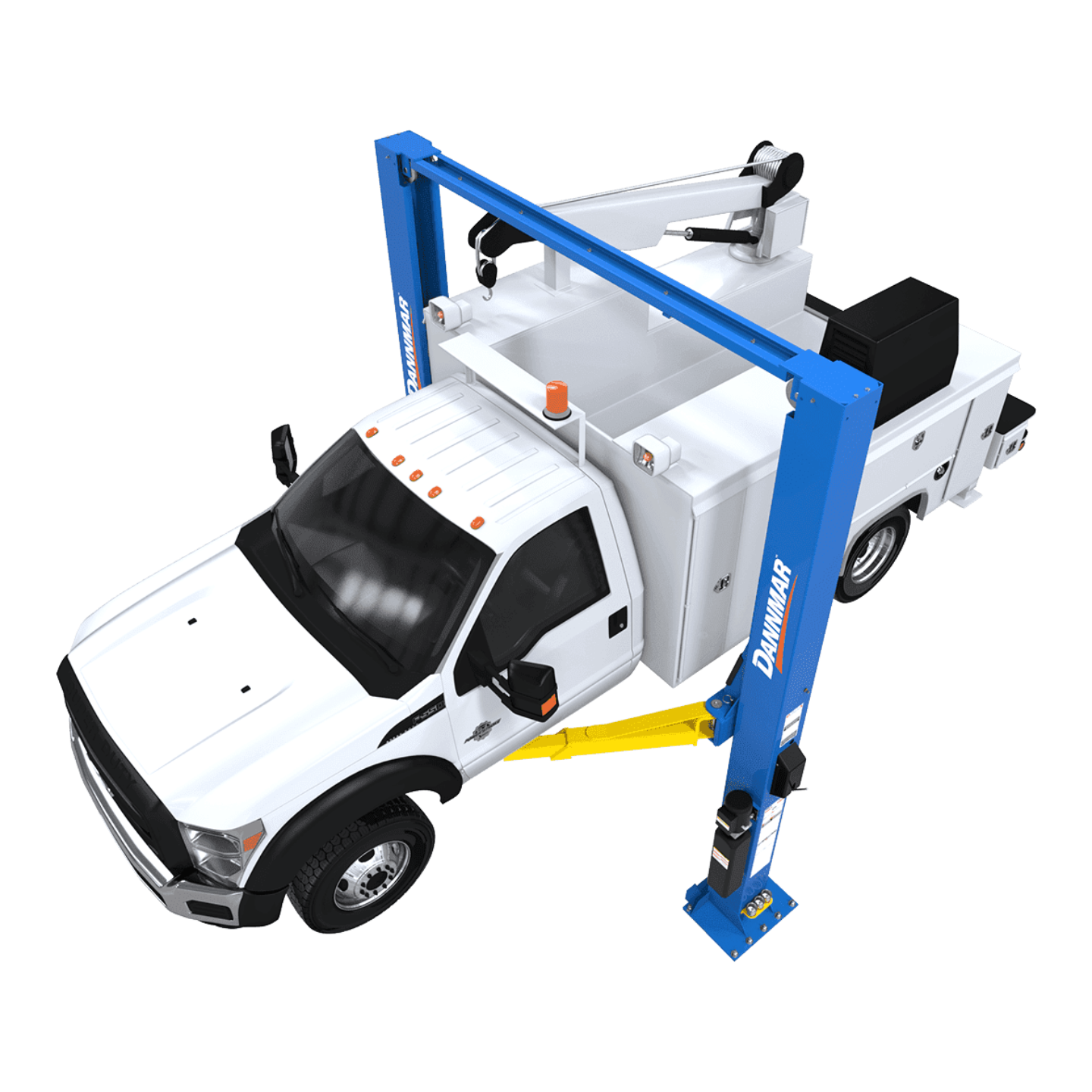

Dannmar D2-15C 15,000-lbs. Capacity Heavy-Duty Two-Post Lift / Symmetric Clearfloor / Triple-Telescoping Arms
Dannmar has the two-post lift you need with large-by-huge lifting power. If many of your truck customers have a variety of 1-ton diesels (or larger) with 4-wheel drive and extra equipment, you might want to consider Dannmar’s two-post D2-15C. This lift is capable of raising a 15,000 lb. vehicle and is well suited for heavy-duty lifting. Plus the two columns are placed farther apart to clear far-reaching towing mirrors. And the good news is that of course this lift also works well on many passenger cars.
With Dannmar’s very capable D2-15C two-post, lifting an unusually heavy vehicle is not a problem. The telescoping arms on this Dannmar two-post lift can safely support and lift up to 15,000 lbs. with industrial grade hydraulic cylinders. Lift movement is sped up with Dannmar’s high-sp
Features
- 15,000-lb. lifting capacity
- Padded overhead safety shutoff bar
- Extended height top-beam provides greater clearance
- Single-point safety release
- Dual direct-drive hydraulic cylinders
- Dual-synchro equalization system for equal lifting
- Oversized 53” tall carriage for superior strength
- Electric / hydraulic power system
- Oversized A36 steel base plates
- Self-lubricating Dura-glide UHMW polyethylene bearings
- Safety locks in each column spaced every 3”
- Automatic arm restraints
- Heavy-duty 1/2” aircraft-quality equalizer cables
- Oversized cable sheave diameter reduces cable fatigue
- Durable, rubber lift pads with stackable adapters
- Multi-piece adapter set includes four 6” stackable adapters, four 3” stackable adapters, four polyurethane contact pads and four frame cradle pads. Ideal for trucks and vans with running boards or auxiliary fuel tanks.
- Convenient storage is included for truck and van adapters
- Versatile drop-in contact pads with stackable adapters
Specs
| Attribute |
Details |
| Style |
Asymmetric |
| SKU# |
5175313 |
| Lifting Capacity |
15,000 lbs. (6,804 kg) |
| Lowered Height + Pad |
6.5" (108 mm) |
| Max. Lift Height (Top Lock) |
83" (2,032 mm) |
| Max. Rise |
69" (1,753 mm) |
| Height Overall |
168.75" (4,286 mm) |
| Width Overall |
155.25" (3,943 mm) |
| Width Outside Columns |
142.5" (3,620 mm) |
| Width Inside Columns |
119.5" (3,035 mm) |
| Drive-Thru Clearance |
105” (2,663 mm) |
| Floor to Top Switch |
162.75” (4,131 mm) |
| Arm Reach |
37.25" (946 mm) - 58” (1,473 mm) |
| Max. Load per Arm |
3,750 lbs. (1,701 kg) |
| Time to Full Rise |
55 seconds |
| Noise |
45 dB |
| Motor |
220 VAC / 60 Hz / 1 Ph |
| Shipping Weight |
2,684 lbs. (1,217 kgs) |
| Shipping Dimensions |
177" x 29" x 42" (4,495 mm x 736 mm x 1,066 mm) |
What Our Experts Think
-
Heavy-Duty Capacity: The Dannmar D2-15C lift offers a 15,000-lb capacity, making it perfect for handling a wide range of vehicles, from cars to light trucks.
-
Symmetric Clearfloor Design: The symmetric configuration ensures easy vehicle access and maximizes workspace under the lift for smooth operations.
-
Triple-Telescoping Arms: Features triple-telescoping arms for better reach and easier lifting of vehicles with varying wheelbases and sizes.
-
Durable & Reliable: Built with high-quality materials, this lift is designed for long-lasting performance and heavy-duty use in commercial or professional environments.
-
Enhanced Safety Features: Equipped with safety locks, robust hydraulic systems, and a heavy-duty structure to ensure safe lifting and secure vehicle support.
Q&A
Q: What is the Dannmar D2-15C Two-Post Lift?
A: The Dannmar D2-15C is a heavy-duty two-post lift with a 15,000-lb. lifting capacity, designed for automotive shops to handle a wide range of vehicles.
Q: What are the key features?
A: It features symmetric clearfloor design, triple-telescoping arms for improved reach, and robust construction for maximum safety and performance.
Q: What is the lifting capacity?
A: This lift can handle up to 15,000 lbs., making it ideal for lifting heavy trucks, vans, and larger vehicles.
Q: Is it easy to use?
A: Yes, it includes an ergonomic control system and versatile arm configurations, providing easy operation for various vehicle types.
Q: Who is it best suited for?
A: Perfect for professional automotive shops and heavy-duty repair facilities requiring reliable, high-capacity lifting equipment.
Maintenance Tips
-
Check Hydraulic Fluid: Regularly inspect and top off the hydraulic fluid to ensure smooth operation and prevent strain on the lift system.
-
Lubricate Moving Parts: Apply grease to all moving parts, including the lift arms and column pivot points, to reduce wear and keep everything functioning properly.
-
Inspect Cables and Chains: Check the lift cables or chains for signs of wear or damage. Replace if necessary to ensure safe operation.
-
Tighten Fasteners: Periodically check and tighten all nuts, bolts, and fasteners to prevent loosening due to vibration or heavy use.
-
Test Safety Features: Verify the proper operation of all safety mechanisms, such as the automatic safety locks, before each use.
-
Inspect Post and Base: Ensure that the posts and base of the lift are securely anchored and free from any cracks or damage.
-
Clean and Debris-Free: Keep the lift clear of dirt, grease, and debris to avoid interfering with the lift’s operation and to maintain a safe working environment.
