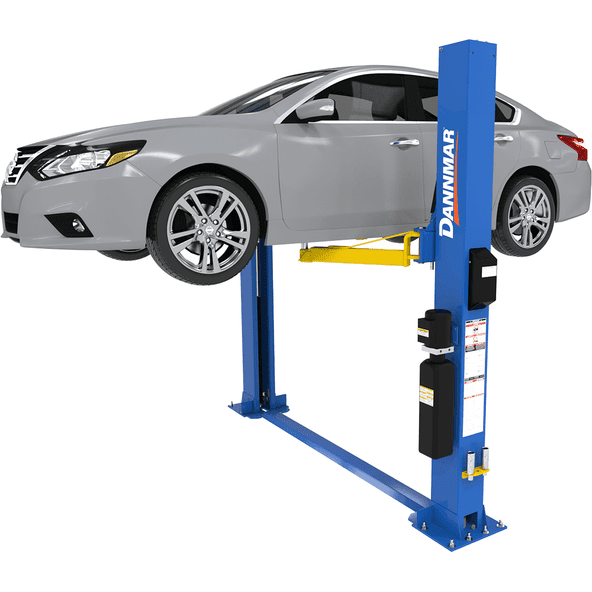

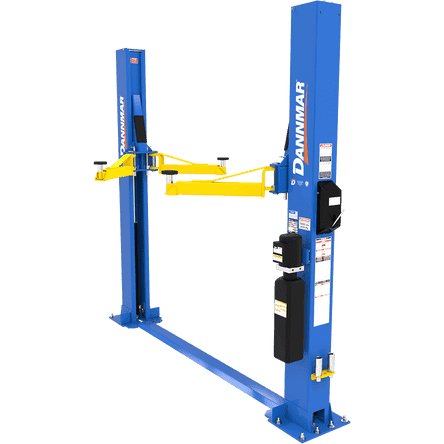

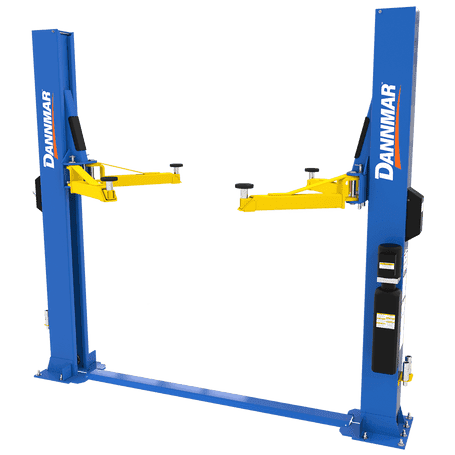

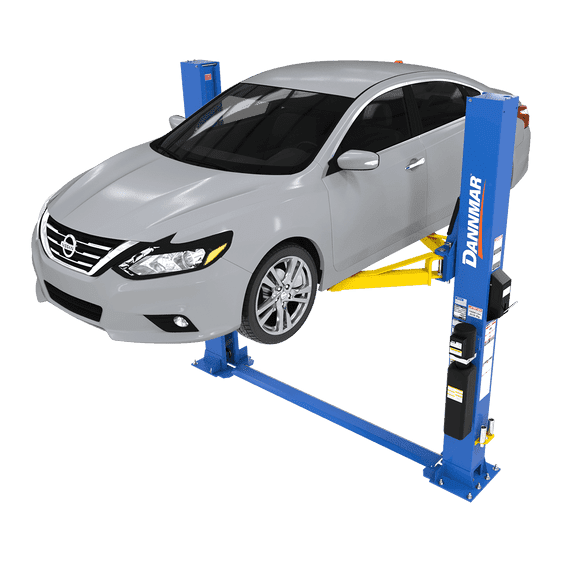

Dannmar D2-8F 8,000-lbs. Capacity Two-Post Lift / Floorplate / Includes Stackable Pads and Adapters
Dannmar’s tube arms have been redesigned to make it easier to open doors when vehicle lift points are engaged. This is especially useful if your vehicle has low-opening doors. Dannmar makes every effort to prevent damage to your vehicle’s body with the two-post lift design.
Features
-
Electric / hydraulic power system
-
Large, 17" x 19" A36 steel base plate
-
Self-lubricating dura-glide UHMW polyethylene bearings
-
Safety locks in each column spaced every 3”
-
Automatic arm restraints
-
Heavy-duty 1/2" aircraft-quality equalizer cables
-
Oversized cable sheave diameter reduces cable fatigue
-
4-piece 63 mm stackable adapter set comes standard
-
Telescoping arm design for more versatile arm positioning
-
Single-point safety release
-
Drop-end arms provide a lower pad height
-
Dual hydraulic direct-drive cylinders
Specifications
| Actual Door Height (in.) | 96" |
|---|---|
| Actual Door Thickness (in.) : 3" | 3" |
| Style | Floorplate |
| SKU# | 5175316 |
| Lifting Capacity | 8,000 lbs. (3,629 kg) |
| Lowered Height + Pad | 4.25” (108 mm) |
| Max. Lift Height (Top Lock) | 80.5” (2,045 mm) |
| Max. Rise | 72” (1,829 mm) |
| Height Overall | 113” (2,870 mm) |
| Width Overall | 132” (3,353 mm) or 145” (3,683 mm) |
| Width Outside Columns | 142.5" (3,620 mm) |
What Our Experts Think
- Heavy-Duty Performance: The Dannmar D2-8F provides an 8,000-lb. lifting capacity, making it ideal for both small shops and high-demand environments.
- Space-Saving Design: Its two-post configuration maximizes available floor space while ensuring strength and stability.
- Ease of Use: The stackable pads ensure a versatile fit for different vehicle heights, enhancing efficiency during lifting.
- Durability: Engineered with high-quality materials for long-lasting reliability, even under frequent use.
- Safety First: Features like automatic safety locks and mechanical lifts ensure your vehicle is secure at all times.
- Efficient Setup: The floorplate design simplifies installation with minimal space requirement, helping reduce installation time.
Q&A
Q: What is the Dannmar D2-8F Two-Post Lift?
A: The Dannmar D2-8F is an 8,000-lb capacity two-post floorplate-style lift designed for efficient vehicle maintenance in garages with lower ceiling heights.
Q: What are its key features?
A: Key features include a floorplate design for low-clearance spaces, dual hydraulic cylinders for smooth operation, symmetric lifting arms, and stackable adapters to accommodate various vehicle heights.
Q: What vehicles can it handle?
A: The lift is ideal for cars, light trucks, and SUVs, offering versatility for residential and light commercial use.
Q: What accessories are included?
A: The package includes stackable pads, allowing precise vehicle positioning for secure and stable lifting.
Q: Who is this lift best suited for?
A: This lift is perfect for home mechanics, small auto shops, and those with space constraints who need a reliable and robust lifting solution.
Maintenance Tips
- Daily Inspection: Check cables, safety locks, and hydraulic lines for wear or leaks.
- Lubrication: Grease lift arm pivots and guide tracks monthly.
- Stackable Pads: Ensure pads are clean and securely attached before use.
- Hydraulics: Monitor fluid levels and address leaks immediately.
- Fasteners: Tighten bolts, nuts, and floor anchors every 3 months.
- Cleanliness: Keep lift and surrounding area free of debris.
