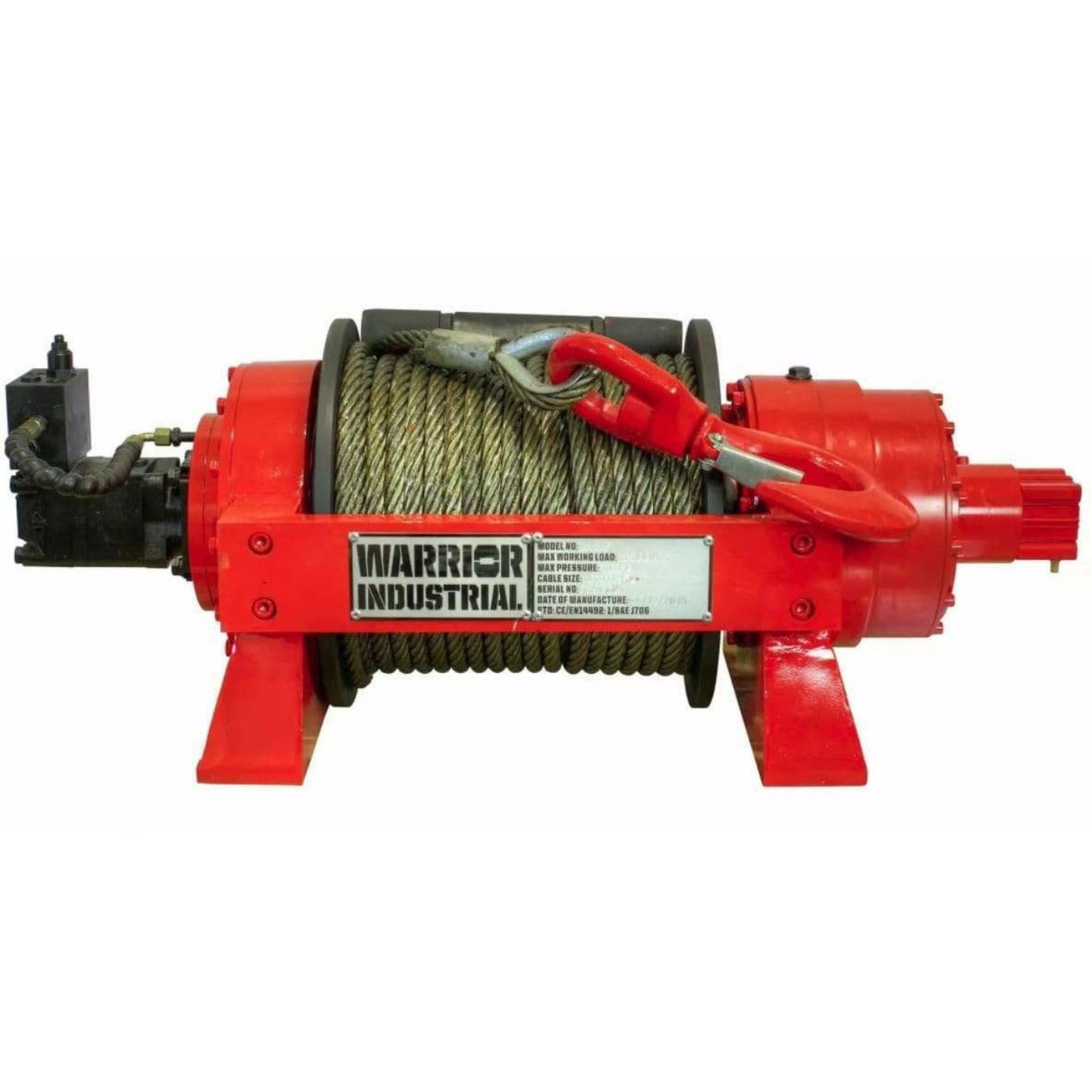

DK2 44,000LB JP HYDRAULIC WINCH
THE JP SERIES WINCHES HAVE BEEN DEVELOPED FOR THE PROFESSIONAL OPERATOR.
BUILT SPECIFICALLY FOR MILITARY USE & ABLE TO WITHSTAND EXTREME CLIMATES AND TEMPERATURES.
These winches have been designed to ensure that as a part of an installation solution they can meet the requirements of EN 14492 : 1. Superb heavy duty winches supplied complete with balance valve, cable and heavy duty tensioner. Standard features include air operated clutch, high precision 2 stage planetary gearing and a rugged high torque motor. The ultimate winch for heavy recovery and commercial applications.
Features
-
Full float heavy duty planetary gearing
-
Multi disc friction brake
-
High torque industrial motor
-
Air and manual clutch operation
-
Heavy duty rope tensioner as standard
-
Minimum 10:1 rope/drum ratio
-
Balance valve as standard
Specification
| ITEM NUMBER | 20TJP |
|---|---|
| RATED LINE PULL | 44092 LBS (20000 KG) |
| GEARING | 36:1 |
| BRAKING ACTION | AUTO HYDRAULIC |
| DRUM SIZE - DIAMETER x LENGTH | 210 x 340mm (8.26 x 13.39') |
| CABLE - DIAMETER x LENGTH | 26mm x 50m (1.02' x 164') |
| DIMENSIONS | 1224 x 640 x 420mm (48.19 x 25.2 x 16.5') |
| MOUNTING PATTERN | 532 x 160 / 280mm (20.9 x 6.3 / 11.02') |
| WEIGHT | 370 KG (815 LBS) |
| CERTIFICATION | CE CERTIFIED |
| MAX FLOW L/MIN | 120 |
| MAX PRESSURE MPA | 170 BAR |
| CLUTCH | AIR CLUTCH |
| WORKING SPEED | 6 M/MIN |
| RESPONSE PRESSURE OF ARRESTER | LESS THAN 2.5MPA |
Manual
What Our Experts Think
- Powerful Performance: The DK2 44,000LB JP Hydraulic Winch is engineered for maximum strength, offering 44,000 lbs of pulling capacity, ideal for heavy-duty applications.
- Hydraulic Drive: Powered by hydraulic systems, it ensures continuous operation without the risk of overheating, perfect for extended use.
- Durability: Built with rugged components, it withstands harsh conditions and offers long-lasting reliability.
- Versatile Applications: Suitable for off-road vehicles, trailers, and industrial uses, making it a versatile tool for a wide range of tasks.
- Ease of Installation: User-friendly design with easy installation, saving time and effort.
- Safety Features: Includes safety mechanisms like automatic load-holding brakes, enhancing security during operation.
- Efficiency: Efficient power use ensures reduced fuel consumption, optimizing operational costs.
Q&A
Q: What is the DK2 44,000LB JP Hydraulic Winch?
A: The DK2 44,000LB JP Hydraulic Winch is a powerful, heavy-duty winch designed for demanding tasks, offering a 44,000-pound capacity, ideal for recovery, towing, and off-road applications.
Q: What are the key features of this winch?
A: It features a robust hydraulic system, a durable steel cable, and an efficient planetary gear system for reliable performance in harsh conditions.
Q: How does the DK2 hydraulic winch improve performance?
A: The hydraulic operation ensures continuous, smooth power without overheating, providing maximum pulling force even in the most challenging environments.
Q: What applications is this winch suitable for?
A: Perfect for heavy-duty vehicles, off-road enthusiasts, and industrial use, including towing, recovery, and lifting tasks.
Q: Is the DK2 44,000LB JP Hydraulic Winch easy to install?
A: Yes, the winch is designed for straightforward installation on compatible vehicles and equipment.
Maintenance Tips
- Regular Lubrication: Apply grease to moving parts and check hydraulic fluid levels to ensure smooth operation.
- Inspect Cables: Routinely check for frays, wear, or rust on cables. Replace if necessary to avoid failure.
- Clean After Use: Wash off dirt, debris, and saltwater to prevent corrosion, especially in harsh environments.
- Check Hydraulic System: Inspect hoses and connections for leaks, cracks, or damage. Tighten or replace as needed.
- Motor Maintenance: Test motor functionality regularly and ensure it is free from debris. Replace filters as recommended.
- Store Properly: When not in use, store the winch in a dry, cool place to extend its lifespan.
