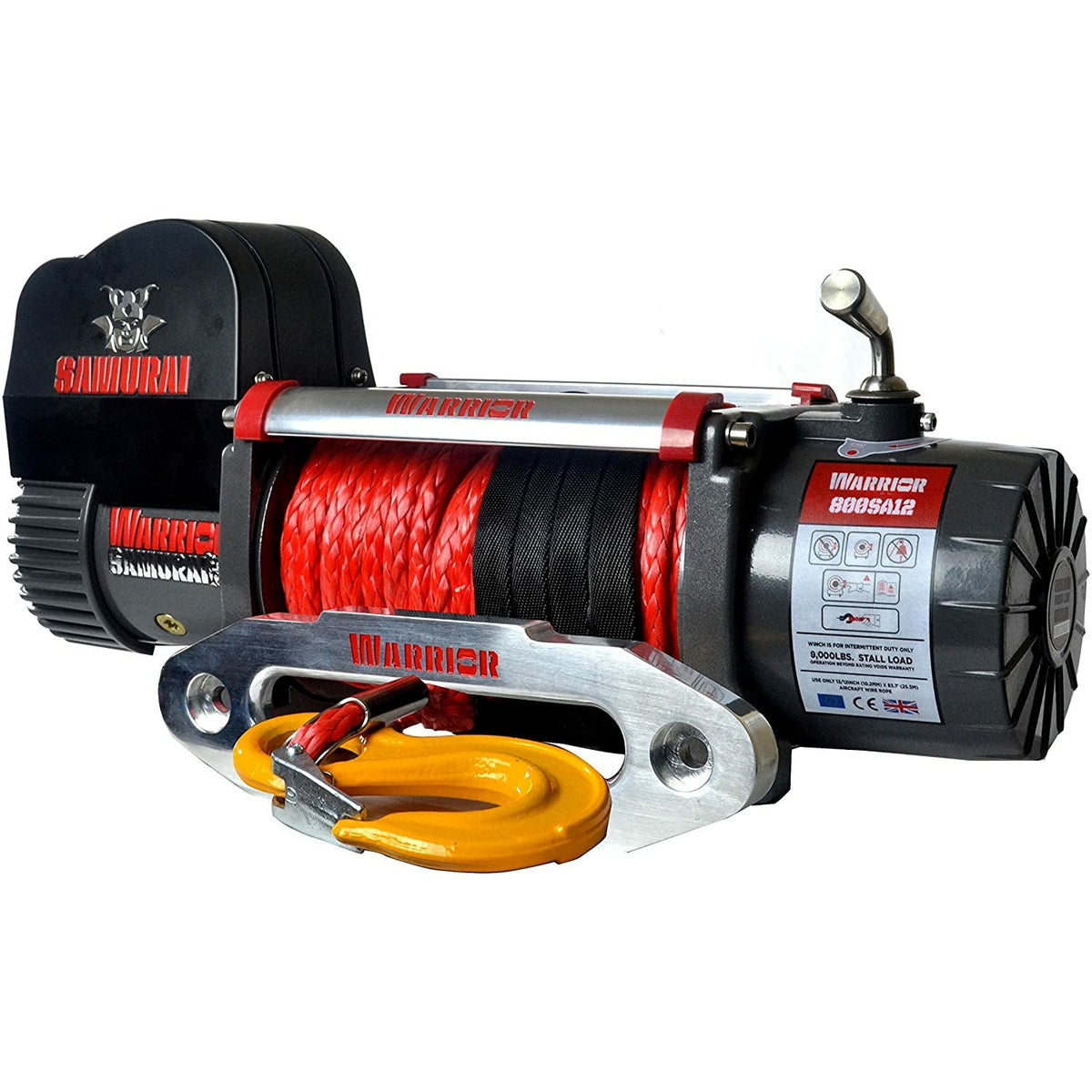

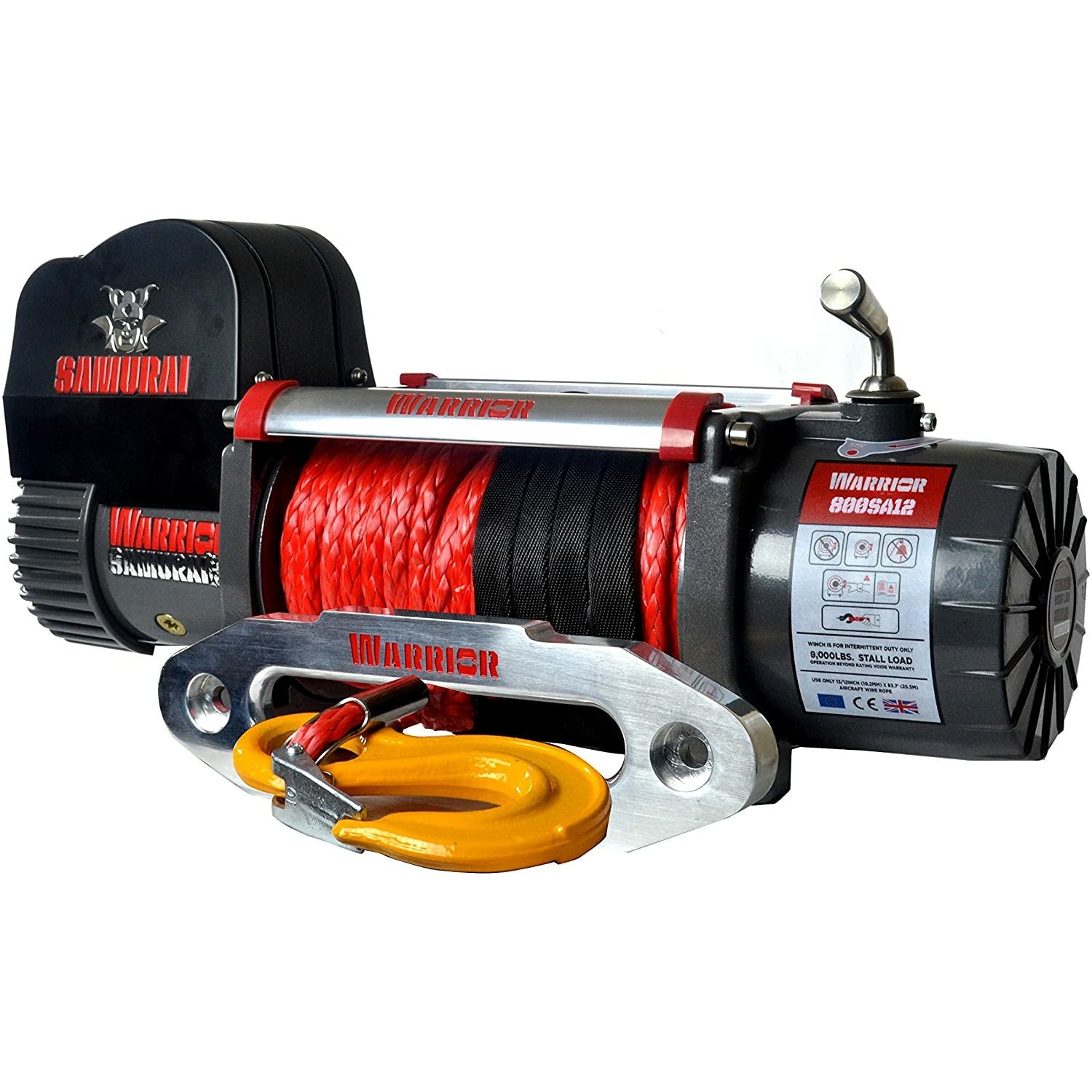

DK2 8,000LB SAMURAI SERIES WINCH (SYNTHETIC ROPE)
SUPERB HIGH SPECIFICATION WINCHES IDEAL FOR RECOVERY AND 4X4 APPLICATIONS

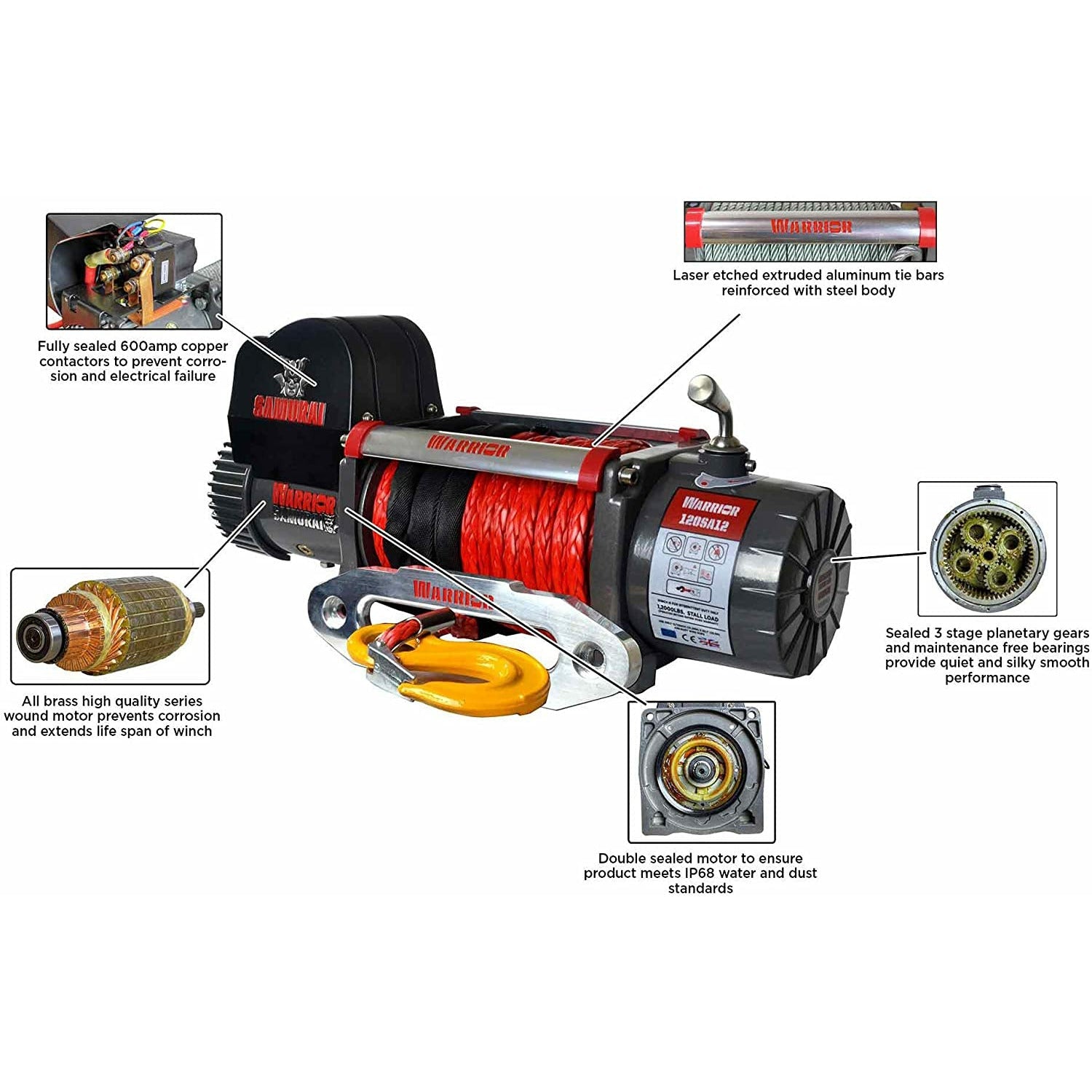

Ideal for recovery and 4x4 applications when you need a Warrior on your side. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing.
Features
-
All brass (no corrosion) series wound motor
-
Double sealed motor
-
Sealed waterproof contactor
-
Steel contactor cover for added protection
-
Double sealed drum (gearbox/motor)
-
Sealed 3 stage planetary gears
-
Stainless steel 4 way fairleads
-
Integrated wireless remote (12V only)
Specification
| ITEM NUMBER | S8000-SR |
|---|---|
| RATED LINE PULL | 8000 LBS (3636 KG) |
| MOTOR | 12V: 4.6 HP / 3.2 KW |
| GEARING | 210:1 |
| BRAKING ACTION | AUTO IN THE DRUM |
| DRUM SIZE - DIAMETER x LENGTH | 62 x 223mm (2.44 x 8.78') |
| CABLE - DIAMETER x LENGTH | 8mm x 25m (0.31' x 82') |
| DIMENSIONS | 540 x 160 x 219mm (21.25 x 6.3 x 8.62') |
| MOUNTING PATTERN | 254 x 114mm (10 x 4.49') |
| WEIGHT | 31.6 KG (69.7 LBS) |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) |
|---|---|
| 1 | 8000 (3636) |
| 2 | 6529 (2962) |
| 3 | 5515 (2502) |
| 4 | 4773 (2165) |
| LINE PULL: LBS (KGS) | LINE SPEED 12V FT/MIN (M/MIN) | AMP DRAW 12V • 24V |
|---|---|---|
| 0 | 32 (9.8) | 80 • 60 |
| 3000 (1361) | 11.5 (3.5) | 190 • 150 |
| 5000 (2268) | 9.1 (2.8) | 260 • 220 |
| 8000 (3629) | 6 (1.8) | 360 • 300 |
Manual
What Our Experts Think
- Optimal Strength: Offering 8,000 lbs of pulling power, the Samurai Series winch is perfect for medium-duty vehicles and off-road adventures.
- Synthetic Rope: The lightweight, durable synthetic rope provides greater safety and ease of use compared to traditional steel cables.
- Reliable Performance: Powered by a robust 12V motor, this winch ensures dependable operation in all conditions.
- Compact & Lightweight: Designed for easy handling and storage, ideal for smaller vehicles and tight spaces.
- Enhanced Safety: The synthetic rope minimizes recoil, reducing the risk of injury during operation.
- Quick Installation: User-friendly setup process ensures you can get up and running quickly.
- Durability: Built with weather-resistant materials to handle tough environments and long-term use.
Q&A
Q: What is the DK2 8,000LB Samurai Series Winch?
A: The DK2 8,000LB Samurai Series Winch is a reliable, compact winch with an 8,000-pound capacity, featuring a synthetic rope for efficient, lightweight performance in off-road recovery.
Q: What are the key features of this winch?
A: It boasts a powerful motor, a durable synthetic rope, and a robust planetary gear system, designed for smooth, consistent pulling power.
Q: Why choose synthetic rope over steel cable?
A: Synthetic rope is lighter, safer, and easier to handle compared to steel cable, reducing the risk of injury and making recovery tasks more efficient.
Q: What applications is the DK2 8,000LB Samurai Series Winch ideal for?
A: It’s perfect for off-road vehicles, ATV/UTVs, and light-duty towing or recovery tasks.
Q: Is the DK2 Samurai Series Winch easy to install?
A: Yes, the winch is designed for quick installation on compatible vehicles, ensuring a straightforward setup.
Maintenance Tips
- Clean Synthetic Rope: After use, wash the synthetic rope with mild soap and water to remove dirt and debris. Allow it to dry before storing.
- Inspect Rope for Damage: Regularly check for frays, cuts, or abrasions. Replace the rope if any damage is found.
- Lubricate Moving Parts: Grease the winch's moving components and check the hydraulic fluid levels to ensure smooth operation.
- Check Electrical Connections: Inspect the wiring for any signs of wear, corrosion, or loose connections. Tighten or replace as needed.
- Test Motor Functionality: Ensure the motor operates smoothly. Clean any debris around the motor and replace filters if necessary.
- Proper Storage: Store the winch in a dry, cool place to prevent damage to both the winch and synthetic rope.
