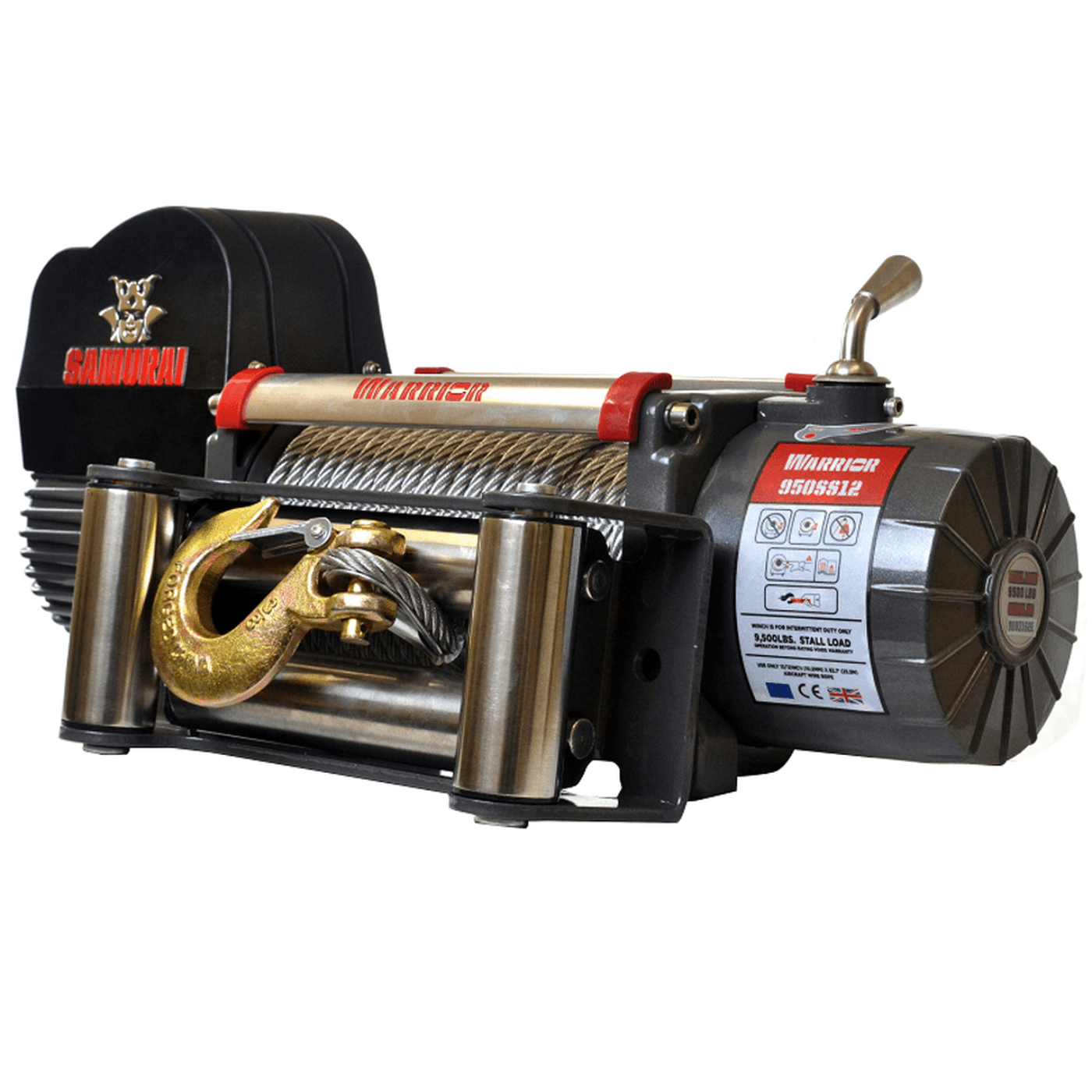

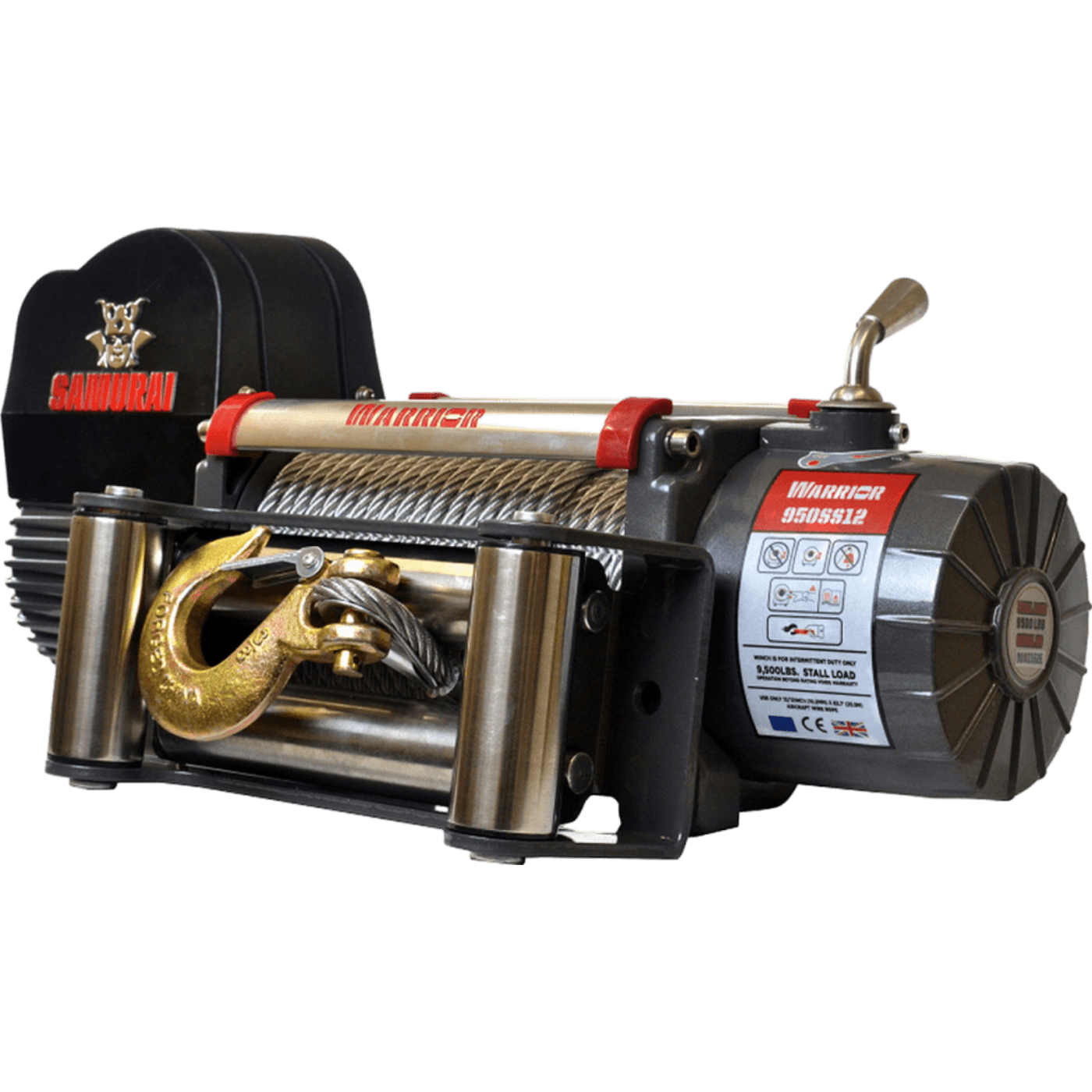

Features Of The SAMURAI SERIES HIGH SPEED WINCH
SUPERB HIGH SPECIFICATION WINCHES IDEAL FOR RECOVERY AND 4X4 APPLICATIONS
Ideal for recovery and 4x4 applications when you need a Warrior on your side. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing.

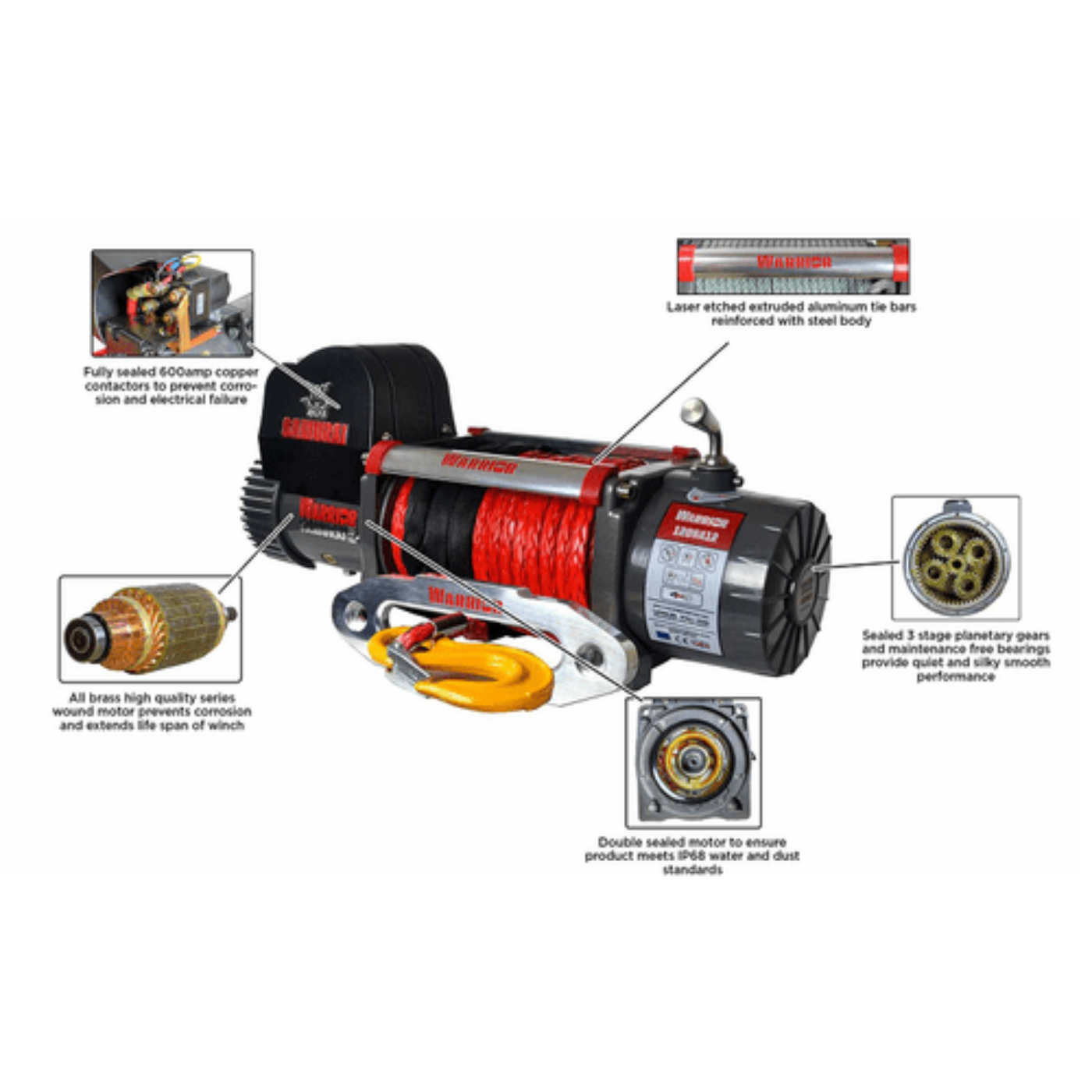

Features
-
All brass (no corrosion) series wound motor
-
Double sealed motor
-
Sealed waterproof contactor
-
Steel contactor cover for added protection
-
Double sealed drum (gearbox/motor)
-
Sealed 3 stage planetary gears
-
Stainless steel 4 way fairleads
-
Integrated wireless remote (12V only)
Specification
| ITEM NUMBER | S9500HS |
|---|---|
| RATED LINE PULL | 9500 LBS (4500 KG) |
| MOTOR | 12V: 6.5 HP / 4.5 KW |
| GEARING | 110:1 |
| BRAKING ACTION | AUTO IN THE DRUM |
| DRUM SIZE - DIAMETER x LENGTH | 63 x 224mm (2.48 x 8.82') |
| CABLE - DIAMETER x LENGTH | 9.5mm x 26m (0.37' x 85.3') |
| DIMENSIONS | 577 x 160 x 215mm (22.72 x 6.3 x 8.46') |
| MOUNTING PATTERN | 254 x 114mm (10 x 4.49') |
| WEIGHT | 31.6 KG (69.7 LBS) |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) |
|---|---|
| 1 | 9500 (4309) |
| 2 | 7706 (3495) |
| 3 | 6482 (2940) |
| 4 | 5400 (2400) |
| LINE PULL: LBS (KGS) | LINE SPEED 12V FT/MIN (M/MIN) | AMP DRAW 12V • 24V |
|---|---|---|
| 0 | 65 (19.8) | 80 • 45 |
| 4000 (1818) | 12.5 (3.8) | 300 • 175 |
| 6000 (2722) | 11.81 (3.6) | 400 • 230 |
| 9500 (4309) | 8.86 (1.9) | 530 • 335 |
Manual
Other quality automotive collections include our popular car lift selection, and tire machine selection.
Other similar products you may be interest in include:
-
DK2 9,500LB Samurai Series High Speed Winch ( Synthetic Rope )
- Ranger R980XR Swing-Arm Tire Changer 30
What Our Experts Think
- High-Speed Recovery: This winch is designed for fast and efficient pulls, providing 9,500 lbs of capacity for quick recovery in off-road and heavy-duty applications.
- Powerful Performance: Features a 12V motor that delivers consistent power for reliable operation in any situation.
- Lightweight & Compact: The winch is designed to be compact and easy to handle, making it perfect for vehicles with limited space.
- Safety-First Design: Includes a user-friendly synthetic rope option (sold separately) that reduces recoil and prevents rusting, enhancing safety during operation.
- Quick Installation: The winch’s simple setup process allows you to get started with minimal effort.
- Built for Durability: Crafted from weather-resistant materials to ensure long-lasting performance, even in harsh environments.
Q&A
Q: What is the DK2 9,500LB Samurai Series High Speed Winch?
A: The DK2 9,500LB Samurai Series High Speed Winch is a robust winch with a 9,500-pound capacity, designed for fast recovery and towing with enhanced performance in off-road conditions.
Q: What are the key features of this winch?
A: It features a high-speed motor, durable synthetic rope, and a reliable planetary gear system, offering quick line retrieval and smooth operation.
Q: What makes the high-speed version stand out?
A: The high-speed motor provides faster winching, allowing for quicker recovery times and more efficient operation in urgent situations.
Q: Why choose synthetic rope over steel cable?
A: Synthetic rope is lighter, easier to handle, and safer than steel cable, reducing risk and providing superior performance in tough environments.
Q: What applications is the DK2 9,500LB Samurai Series High Speed Winch ideal for?
A: Ideal for off-road vehicles, ATVs, UTVs, and quick recovery or towing tasks that require speed and efficiency.
Q: Is the DK2 9,500LB Samurai Series High Speed Winch easy to install?
A: Yes, it’s designed for easy installation on compatible vehicles, providing a hassle-free setup.
Maintenance Tips
- Clean the Winch: After each use, wipe down the winch to remove dirt, mud, and debris, especially around the drum and motor.
- Inspect the Rope or Cable: Check for wear, frays, or damage to the rope (if applicable) or cable. Replace if necessary to ensure safe operation.
- Lubricate Moving Parts: Regularly grease the winch's moving components to reduce friction and wear, ensuring smooth operation.
- Check Electrical Components: Inspect wiring and connections for signs of wear, corrosion, or loose connections. Tighten or replace as needed.
- Test the Motor: Periodically test the motor to ensure it’s functioning properly. Clean any debris from around the motor and replace filters as needed.
- Hydraulic System Check (if applicable): Inspect hydraulic hoses and connections for leaks or cracks. Replace damaged parts to avoid fluid loss.
