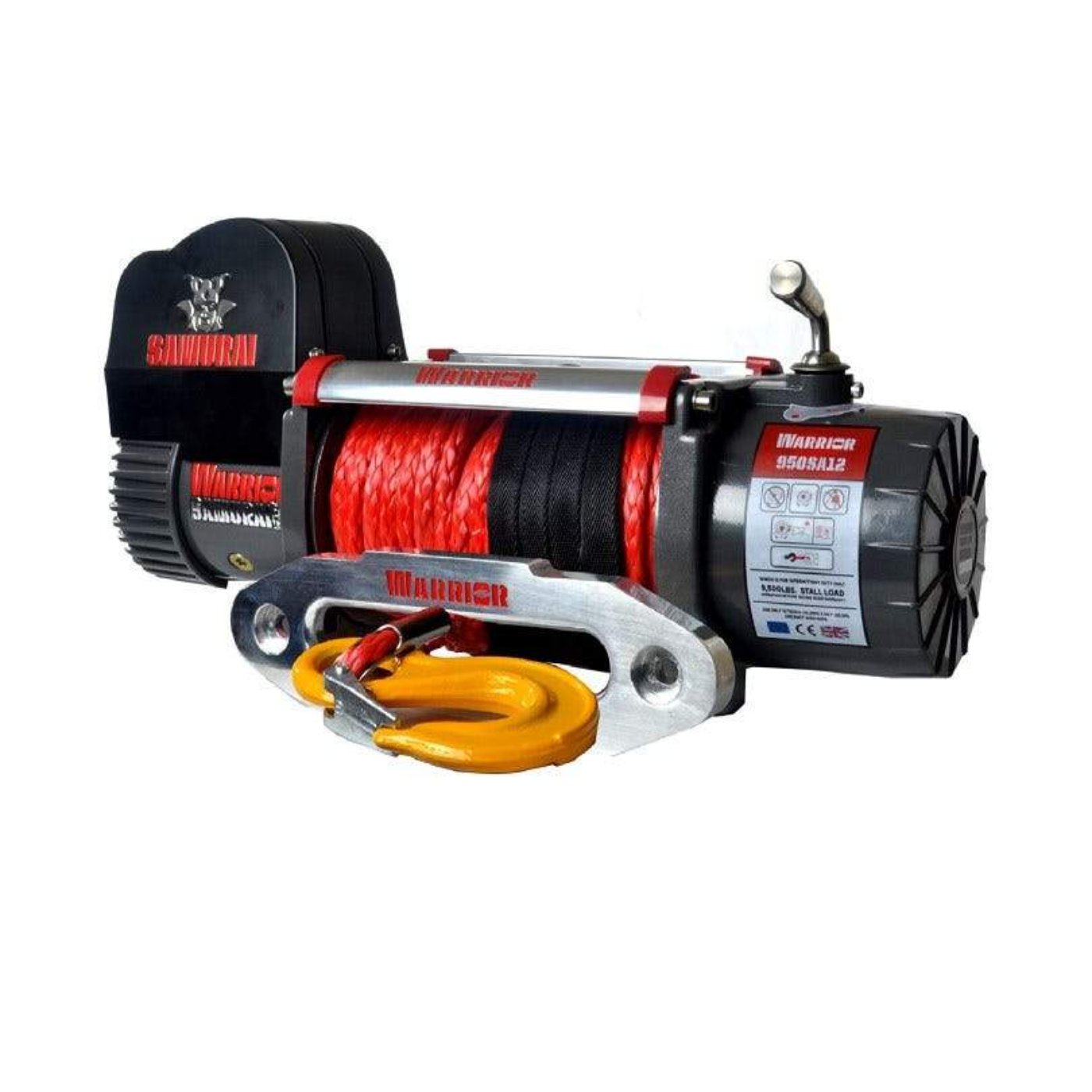

DK2 9,500LB SAMURAI SERIES HIGH SPEED WINCH (SYNTHETIC ROPE)
SUPERB HIGH SPECIFICATION WINCHES IDEAL FOR RECOVERY AND 4X4 APPLICATIONS
Ideal for recovery and 4x4 applications when you need a Warrior on your side. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing.
Features
-
All brass (no corrosion) series wound motor
-
Double sealed motor
-
Sealed waterproof contactor
-
Steel contactor cover for added protection
-
Double sealed drum (gearbox/motor)
-
Sealed 3 stage planetary gears
-
Stainless steel 4 way fairleads
-
Integrated wireless remote (12V only)
Specification
| ITEM NUMBER | S9500HS-SR |
|---|---|
| RATED LINE PULL | 9500 LBS (4500 KG) |
| MOTOR | 12V: 6.5 HP / 4.5 KW |
| GEARING | 110:1 |
| BRAKING ACTION | AUTO IN THE DRUM |
| DRUM SIZE - DIAMETER x LENGTH | 63 x 224mm (2.48 x 8.82') |
| CABLE - DIAMETER x LENGTH | 9.5mm x 25m (0.37' x 82') |
| DIMENSIONS | 577 x 160 x 215mm (22.72 x 6.3 x 8.46') |
| MOUNTING PATTERN | 254 x 114mm (10 x 4.49') |
| WEIGHT | 31.6 KG (69.7 LBS) |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) |
|---|---|
| 1 | 9500 (4309) |
| 2 | 7706 (3495) |
| 3 | 6482 (2940) |
| 4 | 5400 (2400) |
| LINE PULL: LBS (KGS) | LINE SPEED 12V FT/MIN (M/MIN) | AMP DRAW 12V • 24V |
|---|---|---|
| 0 | 65 (19.8) | 80 • 45 |
| 4000 (1818) | 12.5 (3.8) | 300 • 175 |
| 6000 (2722) | 11.81 (3.6) | 400 • 230 |
| 9500 (4309) | 8.86 (1.9) | 530 • 335 |
Manual
What Our Experts Think
- High-Speed Performance: Engineered for rapid recovery, this winch provides quick, efficient pulls with 9,500 lbs of capacity, ideal for fast-paced off-road situations.
- Synthetic Rope: The lightweight, high-strength synthetic rope enhances safety, reducing recoil and making handling easier than traditional steel cables.
- Powerful & Reliable: Equipped with a 12V motor, this winch ensures reliable performance even in challenging conditions.
- Compact & Lightweight: Easy to install and store, making it perfect for vehicles with limited space.
- Safety First: Synthetic rope minimizes risk of injury and prevents rust, offering a safer and more durable option.
- Efficient Setup: Fast and easy installation means you’re ready to tackle tough tasks quickly.
- Durability: Built with corrosion-resistant components to withstand tough environments, ensuring long-lasting performance.
Q&A
Q: What is the DK2 9,500LB Samurai Series High Speed Winch?
A: The DK2 9,500LB Samurai Series High Speed Winch is a high-performance winch with a 9,500-pound capacity and synthetic rope, designed for fast and efficient off-road recovery.
Q: What makes this winch "high speed"?
A: It features a high-speed motor that allows for faster line retrieval and recovery, making it ideal for time-sensitive tasks.
Q: What are the key features of this winch?
A: The winch includes a powerful high-speed motor, durable synthetic rope, and a reliable planetary gear system, offering smooth and efficient performance.
Q: Why is synthetic rope preferred over steel cable?
A: Synthetic rope is lighter, safer, and easier to handle, reducing risks and providing superior performance, especially in harsh conditions.
Q: What applications is the DK2 9,500LB Samurai Series High Speed Winch ideal for?
A: Perfect for off-road vehicles, ATVs, UTVs, and quick recovery or towing tasks in challenging environments.
Q: Is the DK2 9,500LB Samurai Series High Speed Winch easy to install?
A: Yes, it’s designed for quick and simple installation on compatible vehicles, ensuring ease of use.
Maintenance Tips
- Clean Synthetic Rope: Wash the rope with mild soap and water after each use to remove dirt and debris. Allow it to dry fully before storage.
- Inspect Rope for Damage: Regularly check for frays, cuts, or abrasions. Replace the rope if any damage is detected.
- Lubricate Moving Parts: Apply grease to all moving components and ensure hydraulic fluid levels are topped up for smooth operation.
- Check Electrical Connections: Inspect wires and connectors for wear or corrosion. Tighten or replace as necessary to maintain electrical integrity.
- Test Motor Functionality: Run the motor periodically to ensure it operates smoothly. Clean debris from the motor and replace air filters if needed.
- Proper Storage: Store the winch in a dry, cool place to prevent damage to both the winch and the synthetic rope.
