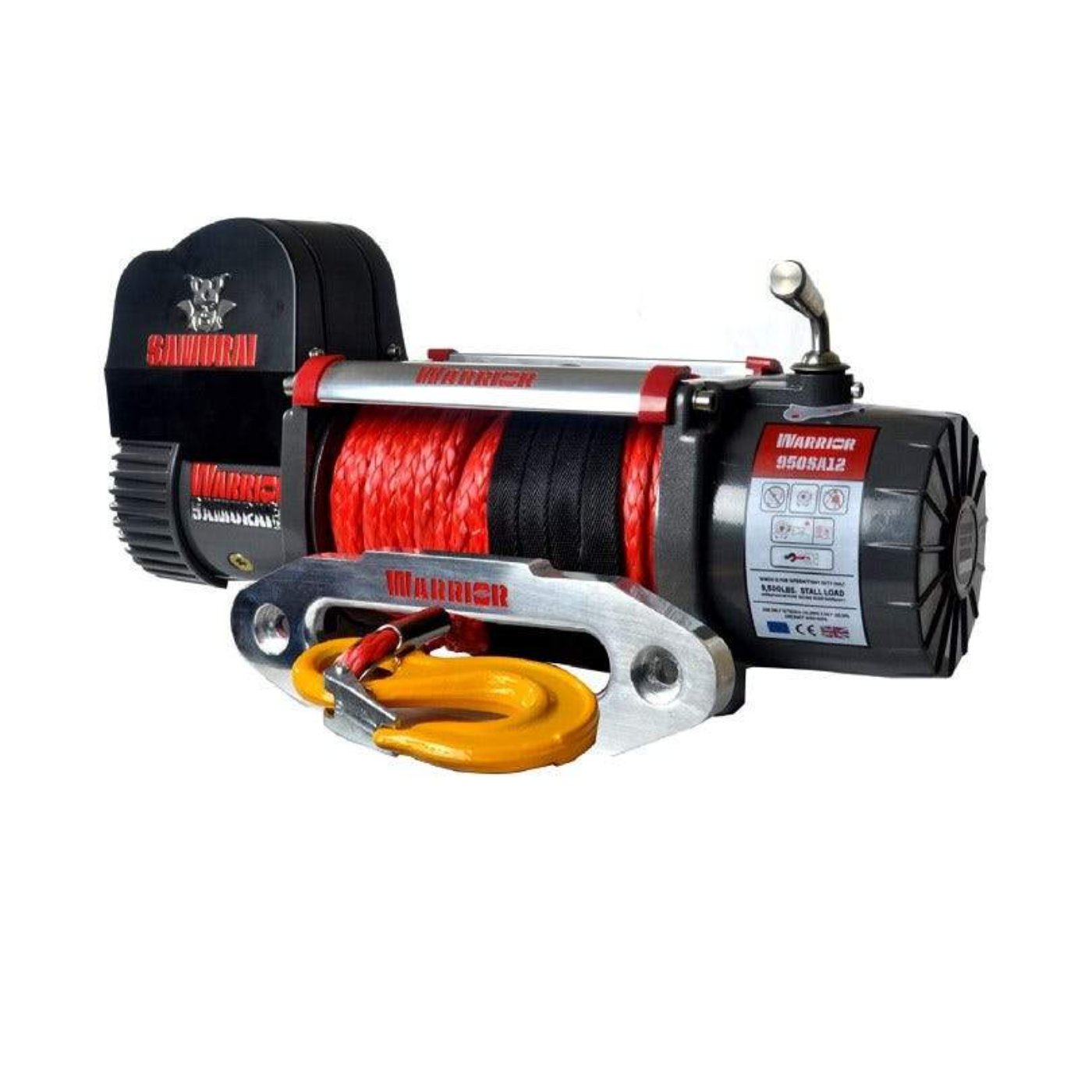

DK2 9,500LB SAMURAI SERIES (SYNTHETIC ROPE)
SUPERB HIGH SPECIFICATION WINCHES IDEAL FOR RECOVERY AND 4X4 APPLICATIONS
Ideal for recovery and 4x4 applications when you need a Warrior on your side. Outstanding features include high quality series wound double sealed motor with brass fittings, heavy duty waterproof contactors, double sealed drum on maintenance free bearings, quiet, efficient full steel planetary gearing.
Features
-
All brass (no corrosion) series wound motor
-
Double sealed motor
-
Sealed waterproof contactor
-
Steel contactor cover for added protection
-
Double sealed drum (gearbox/motor)
-
Sealed 3 stage planetary gears
-
Stainless steel 4 way fairleads
-
Integrated wireless remote (12V only)
Specification
| ITEM NUMBER | S9500-SR |
|---|---|
| RATED LINE PULL | 9500 LBS (4500 KG) |
| MOTOR | 12V: 4.6 HP / 3.2 KW |
| GEARING | 230:1 |
| BRAKING ACTION | AUTO IN THE DRUM |
| DRUM SIZE - DIAMETER x LENGTH | 63 x 223mm (2.48 x 8.78') |
| CABLE - DIAMETER x LENGTH | 9.5mm x 25m (0.37' x 82') |
| DIMENSIONS | 540 x 160 x 219mm (21.25 x 6.3 x 8.62') |
| MOUNTING PATTERN | 254 x 114mm (10 x 4.49') |
| WEIGHT | 32 KG (71 LBS) |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) |
|---|---|
| 1 | 9500 (4309) |
| 2 | 7706 (3495) |
| 3 | 6482 (2940) |
| 4 | 5593 (2537) |
| LINE PULL: LBS (KGS) | LINE SPEED 12V FT/MIN (M/MIN) | AMP DRAW 12V • 24V |
|---|---|---|
| 0 | 19.6 (6) | 80 • 70 |
| 3000 (1361) | 2.5 (3.8) | 170 • 140 |
| 6000 (2722) | 2.5 (3.8) | 260 • 210 |
| 9500 (4309) | 6.4 (1.9) | 380 • 270 |
Manual
What Our Experts Think
- Strong Pulling Power: With 9,500 lbs of capacity, this winch is perfect for medium to heavy-duty vehicles and off-road challenges.
- Synthetic Rope: The durable synthetic rope offers safety, easy handling, and eliminates the risk of rust, unlike traditional steel cables.
- Reliable & Efficient: Powered by a 12V motor, it delivers consistent and efficient performance in demanding conditions.
- Compact Design: Lightweight and compact, making it easy to store and install, even in limited spaces.
- Safety Features: Synthetic rope reduces recoil and is safer to handle, minimizing potential injury during operation.
- Quick Setup: Simple installation process allows for fast and hassle-free use.
- Built to Last: Designed with corrosion-resistant materials, ensuring long-term durability even in harsh environments.
Q&A
Q: What is the DK2 9,500LB Samurai Series Winch?
A: The DK2 9,500LB Samurai Series Winch is a powerful, mid-duty winch with a 9,500-pound capacity, featuring synthetic rope for easy handling and reliable off-road recovery.
Q: What are the key features of this winch?
A: It includes a strong motor, a durable synthetic rope, and a planetary gear system for smooth, efficient pulling power in various conditions.
Q: Why is synthetic rope better than steel cable?
A: Synthetic rope is lighter, safer, and more flexible than steel cable, reducing the risk of injury and offering superior performance in harsh environments.
Q: What tasks is the DK2 9,500LB Samurai Series Winch suitable for?
A: Ideal for off-road vehicles, ATVs, UTVs, and light-to-medium-duty recovery, towing, and lifting tasks.
Q: Is the DK2 9,500LB Samurai Series Winch easy to install?
A: Yes, it’s designed for quick and simple installation on compatible vehicles for hassle-free use.
Maintenance Tips
- Clean the Synthetic Rope: Wash the rope with mild soap and water to remove dirt and debris. Let it dry completely before storage.
- Inspect Rope Condition: Regularly check for fraying, cuts, or damage. Replace the rope if any signs of wear are present.
- Lubricate Moving Parts: Grease the winch's moving components and check the hydraulic fluid to maintain smooth operation.
- Examine Electrical Components: Inspect wiring for any damage or corrosion. Tighten or replace loose or damaged connections.
- Test Motor Performance: Ensure the motor runs smoothly. Clean around the motor and replace filters as needed.
- Store Properly: When not in use, store the winch in a cool, dry location to prevent deterioration.
