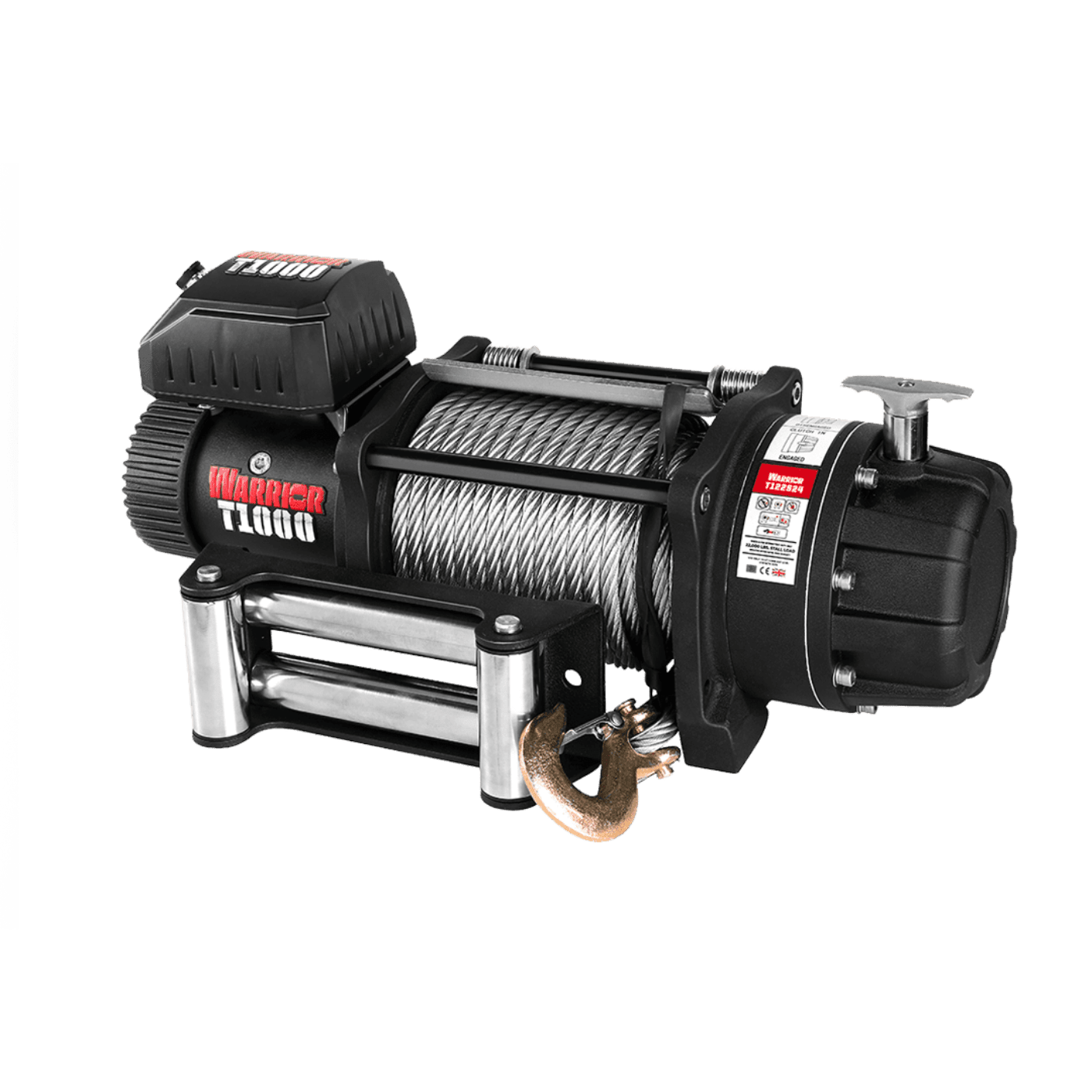

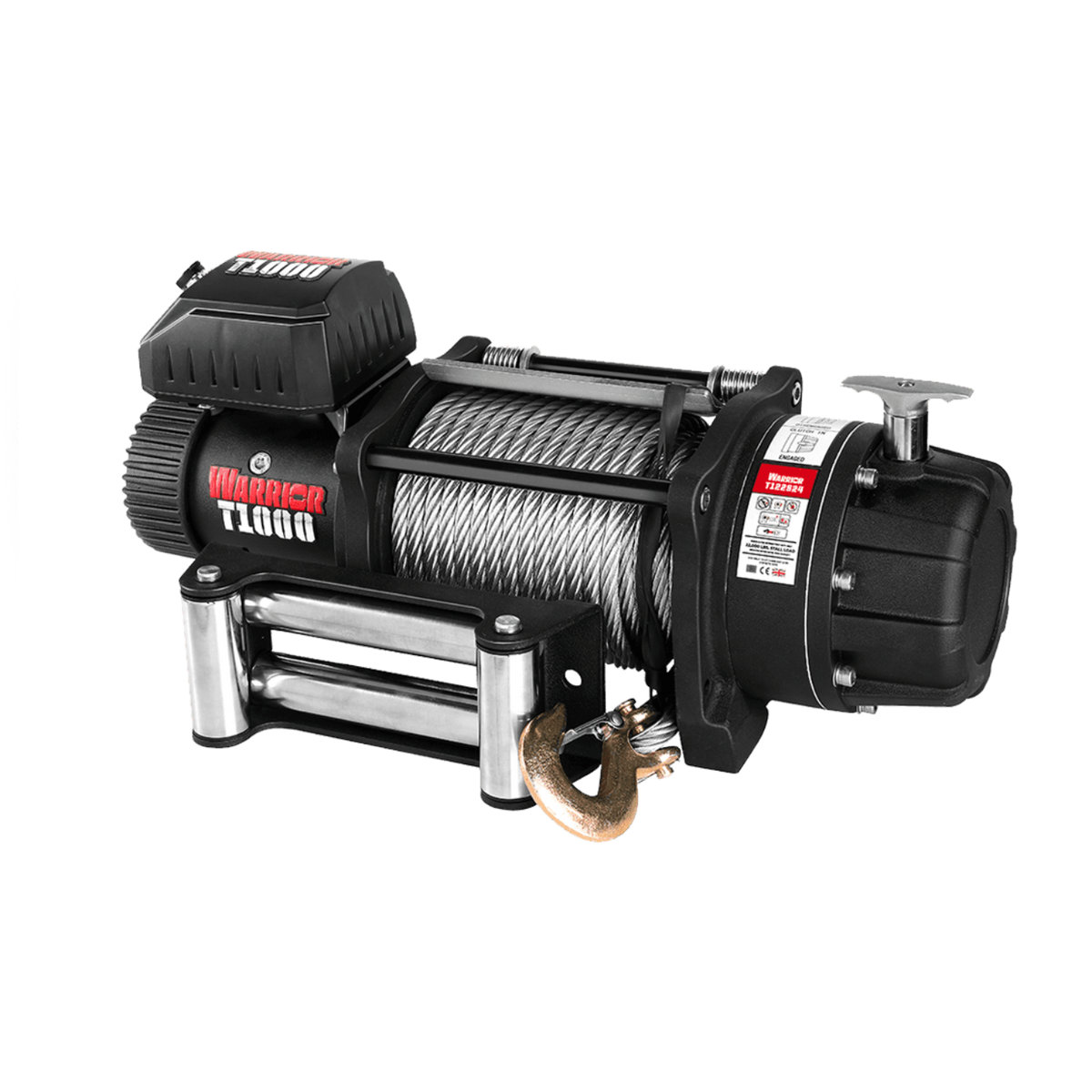

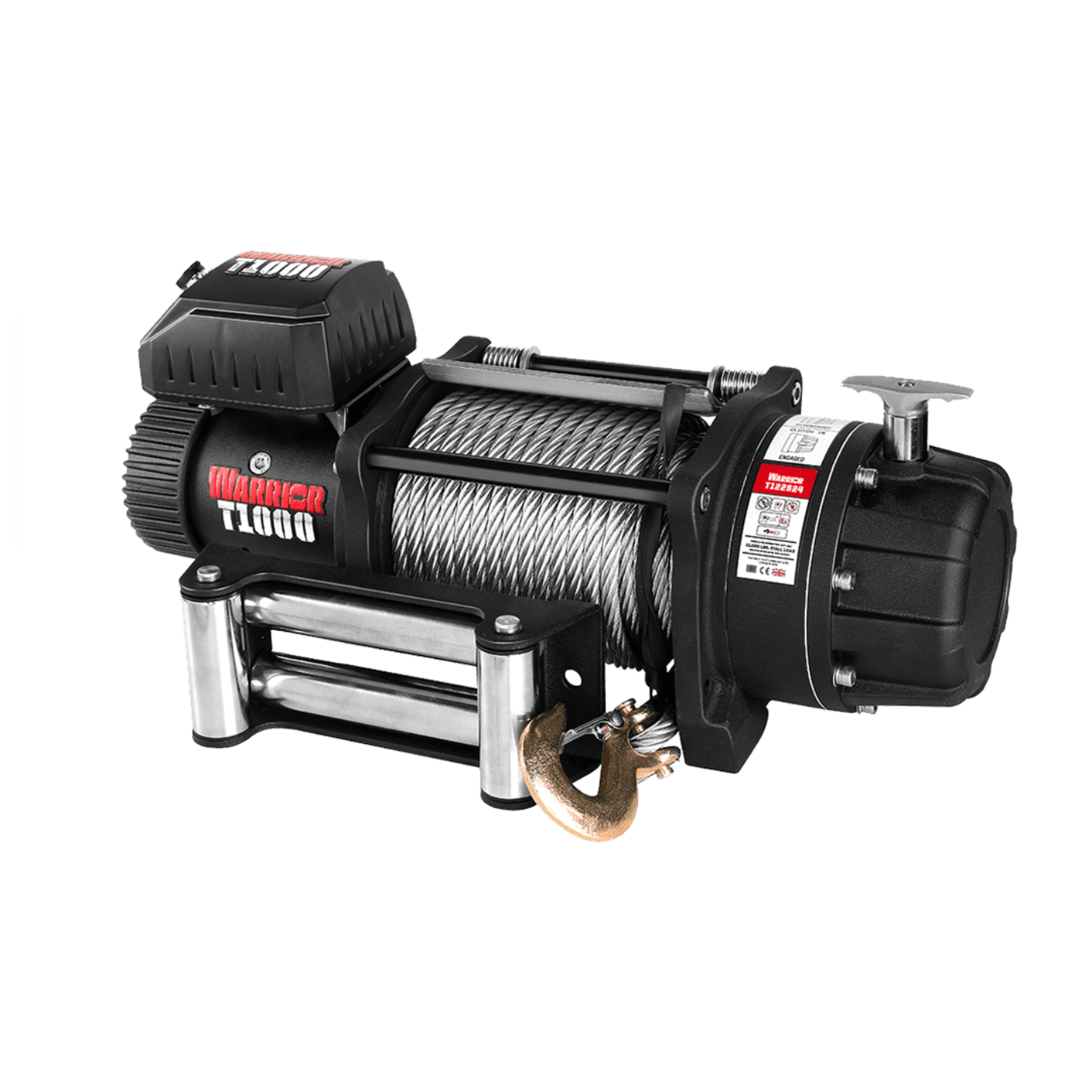

CDK2 T1000 - 10,000 LB 12V - W/ STEEL ROPE
THE T1000 RANGE OF “SEVERE DUTY” WARRIOR WINCHES WERE ORIGINALLY DESIGNED AS HIGHLY ADVANCED PROTOTYPES FOR MILITARY APPLICATION.
This series has been designed to perform in severe climates and the harshest environments imaginable as an essential prerequisite.
After successful operations in the field & following many plaudits at last year’s Defence and Security Equipment International Expo, the decision was made to allow the T1000 range to become widely available for general use. Available in both 12v or 24v options, with either steel or the more widely preferred military grade “Armortek Extreme” ropes, the T1000 Series range from 10,000lbs (4.545 Tonne) right up to the colossal 22,000 pounder (10 Tonne). The T1000 could be a complete game changer as it is a more than capable solution for any Industrial, Commercial or Military applications requiring a truly fully functional battle ready unit, or for those individuals who just demand the ultimate beast of a Warrior on their truck. Like its namesake, T1000 series is undoubtably one of the most the most advanced and durable machines on the market, it really is the best of the best.
Features
-
IP68 rated military grade winch and control box
-
Revolutionary external brake, designed to ensure there is no critical heat build-up in the drum
-
This external brake is also more capable of lowering and holding a vital load than standard brakes
-
Special lithium grease ensures operation in extreme temperatures
-
Hardened 3 stage planetary gears for reliability and efficiency
-
A chemical and corrosion resistant powder coat
-
Stainless steel roller fairlead
-
Stainless steel fittings as standard
Specification
| ITEM NUMBER | T1000-100 |
|---|---|
| RATED LINE PULL | 10000 LBS (4536 KG) |
| MOTOR | 12V: 4.6 KW / 6.2 HP • 24V: 6.5 KW / 8.7 HP |
| GEARING | 228:1 |
| DRUM SIZE - DIAMETER x LENGTH | 63 x 217mm (2.48 x 8.5') |
| CABLE - DIAMETER x LENGTH | 9.1mm x 25m (0.35' x 82') |
| DIMENSIONS | 574 x 160 x 259mm (22.6 x 6.3 x 10.2') |
| MOUNTING PATTERN | 254 x 114.3mm (10 x 4.5') 4-M410 |
| WEIGHT | 37.5 KG (82.7 LBS) |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) | ROPE ON DRUM FT (M) |
|---|---|---|
| 1 | 10000 (4536) | 16.1 (4.9) |
| 2 | 7980 (3620) | 36.4 (11.1) |
| 3 | 6640 (3012) | 61.0 (18.6) |
| 4 | 5680 (2576) | 82.0 (25.0) |
| LINE PULL: LBS (KGS) | LINE SPEED 12V • 24V FT/MIN (M/MIN) | AMP DRAW 12V • 24V |
|---|---|---|
| 0 | 32.2 (9.8) • 34.4 (10.5) | 65 • 45 |
| 3000 (1361) | 14.8 (4.5) • 16.4 (5.0) | 140 • 85 |
| 6000 (2722) | 10.5 (3.2) • 12.5 (3.8) | 260 • 140 |
| 8000 (3629) | 7.5 (2.3) • 9.8 (3.0) | 320 • 175 |
| 10000 (4536) | 5.2 (1.6) • 7.5 (2.3) | 380 • 210 |
Manual
What Our Experts Think
- Strong Capacity: With a 10,000 lbs pulling capacity, the DK2 T1000 is ideal for medium to heavy-duty off-road vehicles and industrial recovery tasks.
- Steel Rope: Equipped with durable steel rope, it provides strength and reliability for tough recovery operations, especially in demanding environments.
- Powerful 12V Motor: Ensures consistent performance, delivering reliable pulling power when you need it most.
- Rugged Construction: Built with high-quality materials, it withstands harsh conditions, offering long-term durability.
- Safety Features: The steel rope offers high strength and resilience, ensuring secure and efficient recovery with minimal risk of breakage.
- Quick Setup: Easy installation process for minimal downtime and fast operation.
- Versatile Use: Suitable for off-road vehicles, trailers, and industrial equipment, making it a versatile and dependable choice for a variety of tasks.
Q&A
Q: What is the DK2 T1000 - 10,000 LB 12V Winch?
A: The DK2 T1000 is a 10,000-pound 12V winch designed for powerful, reliable recovery and towing, featuring a steel rope for tough, heavy-duty applications.
Q: What are the key features of this winch?
A: It includes a strong 12V motor, durable steel rope, and a reliable planetary gear system for efficient, smooth operation in demanding conditions.
Q: Why is steel rope used instead of synthetic rope?
A: Steel rope is highly durable, resistant to abrasion, and suitable for extreme heavy-duty applications, offering increased strength for tough recovery tasks.
Q: What tasks is the DK2 T1000 10,000 LB Winch ideal for?
A: Perfect for off-road vehicles, trucks, and heavy-duty towing or recovery tasks, providing powerful performance in challenging environments.
Q: Is the DK2 T1000 10,000 LB Winch easy to install?
A: Yes, it is designed for straightforward installation on compatible vehicles, making setup quick and simple.
Maintenance Tips
- Clean the Steel Rope: After each use, clean the steel rope to remove dirt, mud, and debris. Use a wire brush to remove rust and keep it smooth.
- Inspect Rope for Damage: Regularly check the steel rope for frays, kinks, or signs of wear. Replace if necessary to prevent failure during use.
- Lubricate the Winch: Apply grease to all moving parts, including the drum and motor components, to ensure smooth operation.
- Check Electrical Connections: Inspect the wiring and connections for corrosion or loose fittings. Tighten or replace damaged parts as needed.
- Test the Motor: Run the motor periodically to ensure it functions properly. Clean around the motor and replace air filters if necessary.
- Hydraulic System Check (if applicable): Inspect hydraulic hoses and fittings for leaks, cracks, or wear. Replace any damaged parts promptly.
