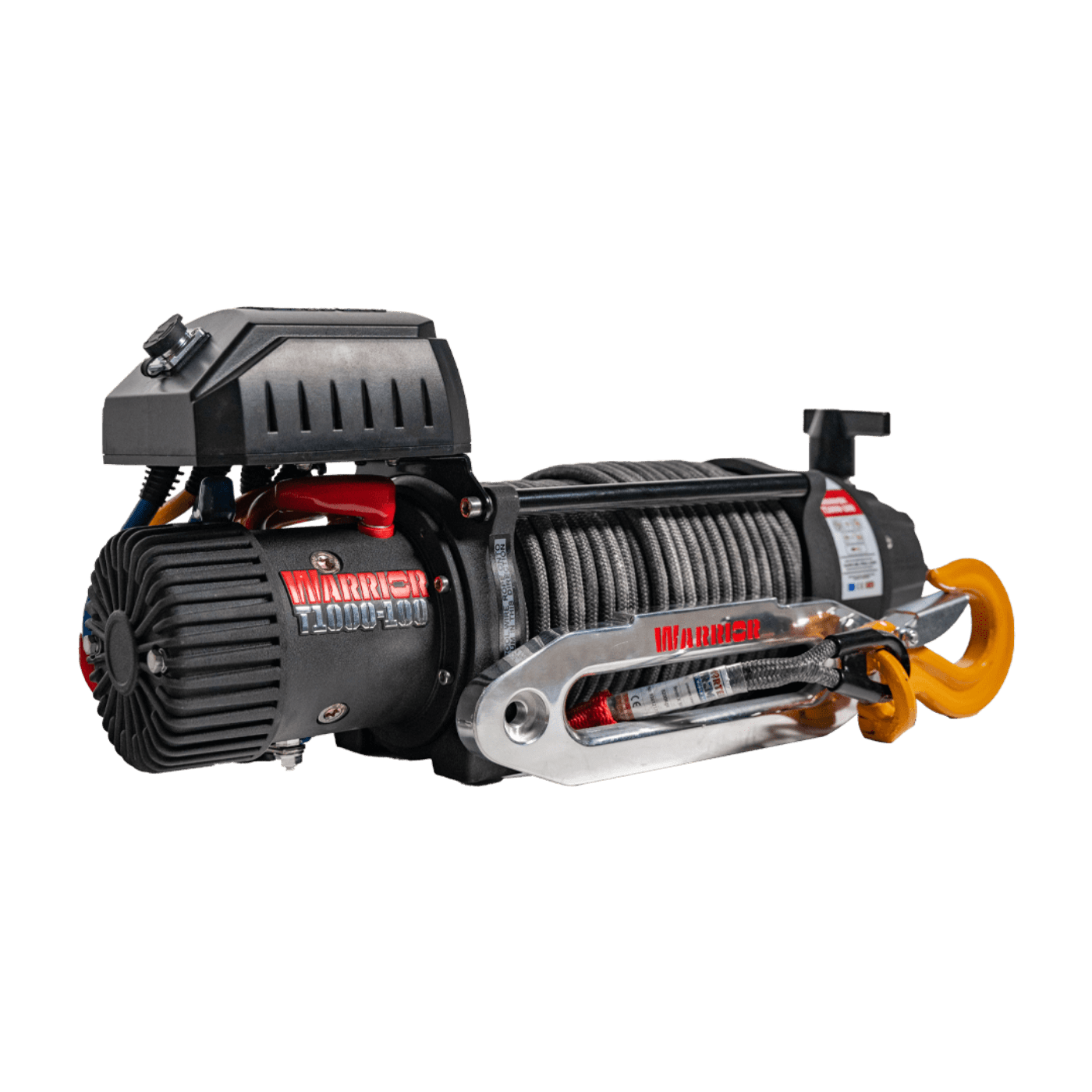

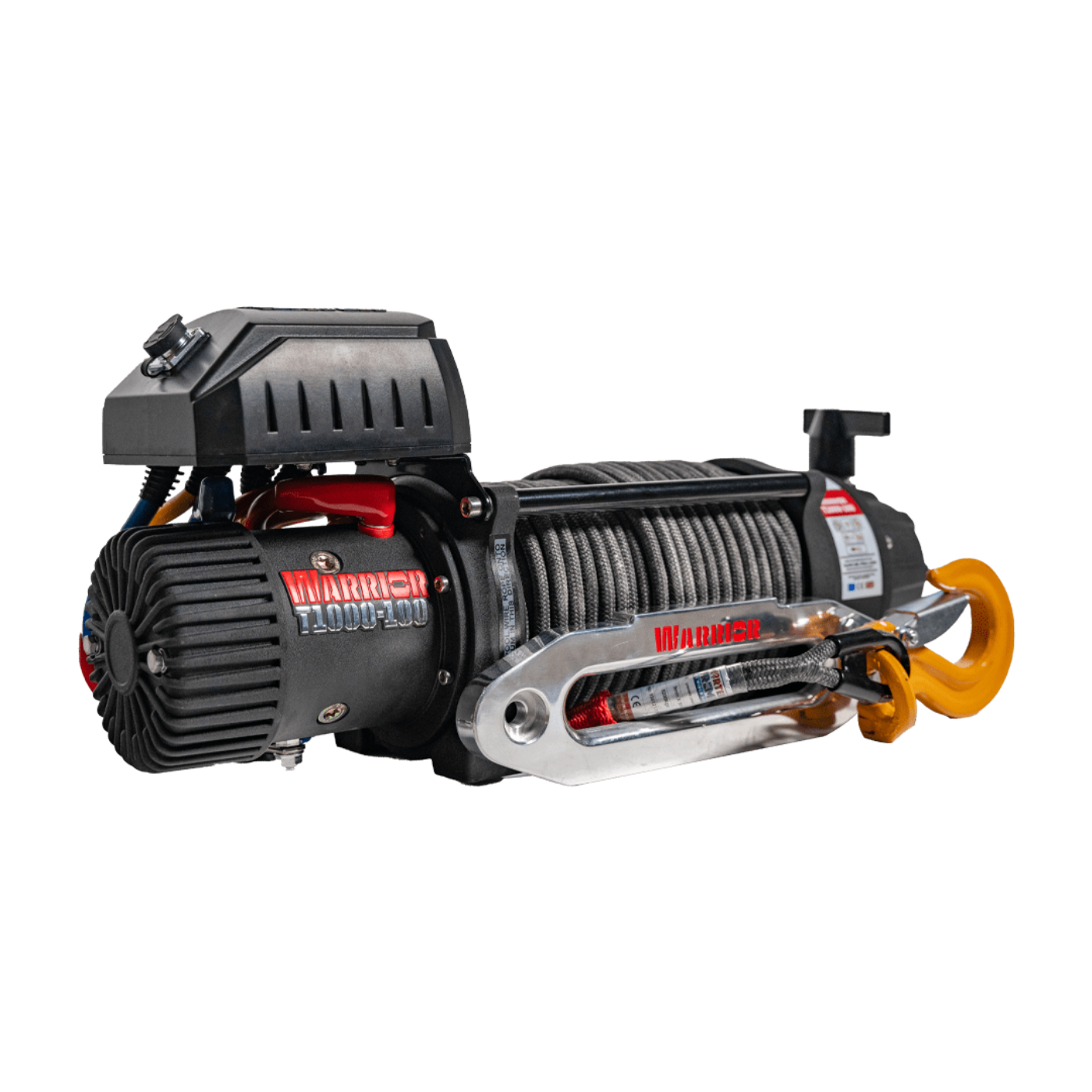

DK2 T1000 - T1000 - 10,000 LB 12V - W/ARMORTEK EXTREME
THE T1000 RANGE OF “SEVERE DUTY” WARRIOR WINCHES WERE ORIGINALLY DESIGNED AS HIGHLY ADVANCED PROTOTYPES FOR MILITARY APPLICATION.
This series has been designed to perform in severe climates and the harshest environments imaginable as an essential prerequisite.
After successful operations in the field & following many plaudits at last year’s Defence and Security Equipment International Expo, the decision was made to allow the T1000 range to become widely available for general use. Available in both 12v or 24v options, with either steel or the more widely preferred military grade “Armortek Extreme” ropes, the T1000 Series range from 10,000lbs (4.545 Tonne) right up to the colossal 22,000 pounder (10 Tonne). The T1000 could be a complete game changer as it is a more than capable solution for any Industrial, Commercial or Military applications requiring a truly fully functional battle ready unit, or for those individuals who just demand the ultimate beast of a Warrior on their truck. Like its namesake, T1000 series is undoubtably one of the most the most advanced and durable machines on the market, it really is the best of the best.
Features
-
IP68 rated military grade winch and control box
-
Revolutionary external brake, designed to ensure there is no critical heat build-up in the drum
-
This external brake is also more capable of lowering and holding a vital load than standard brakes
-
Special lithium grease ensures operation in extreme temperatures
-
Hardened 3 stage planetary gears for reliability and efficiency
-
A chemical and corrosion resistant powder coat
-
Stainless steel roller fairlead
-
Stainless steel fittings as standard
Specification
| ITEM NUMBER | T1000-100-AE |
|---|---|
| RATED LINE PULL | 10000 LBS (4536 KG) |
| MOTOR | 12V: 4.6 KW / 6.2 HP • 24V: 6.5 KW / 8.7 HP |
| GEARING | 228:1 |
| DRUM SIZE - DIAMETER x LENGTH | 63 x 217mm (2.48 x 8.5') |
| CABLE - DIAMETER x LENGTH | 9mm x 25m (0.35' x 82') |
| DIMENSIONS | 574 x 160 x 259mm (22.6 x 6.3 x 10.2') |
| MOUNTING PATTERN | 254 x 114.3mm (10 x 4.5') 4-M410 |
| WEIGHT | 28 KG (61.7 LBS) |
| CERTIFICATION | CE CERTIFIED |
| LAYER OF ROPE / CABLE | LINE PULL: LBS (KGS) | ROPE ON DRUM FT (M) |
|---|---|---|
| 1 | 10000 (4536) | 16.1 (4.9) |
| 2 | 7980 (3620) | 36.4 (11.1) |
| 3 | 6640 (3012) | 61.0 (18.6) |
| 4 | 5680 (2576) | 82.0 (25.0) |
| LINE PULL: LBS (KGS) | LINE SPEED 12V • 24V FT/MIN (M/MIN) | AMP DRAW 12V • 24V |
|---|---|---|
| 0 | 32.2 (9.8) • 34.4 (10.5) | 65 • 45 |
| 3000 (1361) | 14.8 (4.5) • 16.4 (5.0) | 140 • 85 |
| 6000 (2722) | 10.5 (3.2) • 12.5 (3.8) | 260 • 140 |
| 8000 (3629) | 7.5 (2.3) • 9.8 (3.0) | 320 • 175 |
| 10000 (4536) | 5.2 (1.6) • 7.5 (2.3) | 380 • 210 |
Manual
What Our Experts Think
- Heavy Duty Performance: The DK2 T1000 delivers impressive 10,000 LB towing capacity, ideal for serious hauling needs.
- Durability: Built with Armortek Extreme technology, offering superior protection against wear and environmental damage.
- Powerful 12V System: Provides consistent, reliable power for demanding tasks.
- Efficient Design: Features a streamlined winch mechanism, reducing drag and improving load handling.
- Versatile Use: Perfect for ATVs, trucks, and trailers—ensuring versatility in various tough conditions.
- Easy Installation: Simple mounting and user-friendly setup for quick deployment.
Q&A
Q: What is the DK2 T1000 - 10,000 LB 12V Winch?
A: The DK2 T1000 is a 12V winch with a 10,000 LB capacity, designed for heavy-duty pulling tasks. It features Armortek Extreme for enhanced durability and performance in challenging conditions.
Q: What is Armortek Extreme?
A: Armortek Extreme is a high-performance protective coating that increases the winch's resistance to wear, corrosion, and extreme weather conditions.
Q: What vehicles can the DK2 T1000 winch be used on?
A: The DK2 T1000 winch is ideal for trucks, SUVs, and other off-road vehicles, providing reliable pulling power in tough environments.
Q: How much weight can the DK2 T1000 winch pull?
A: The DK2 T1000 winch has a 10,000 LB weight capacity, making it suitable for large, heavy-duty loads.
Q: Is the DK2 T1000 winch waterproof?
A: Yes, the DK2 T1000 features waterproof components, ensuring reliable operation even in wet and muddy conditions.
Maintenance Tips
-
Regular Cleaning: Clean the winch after each use to remove dirt and debris. Use a soft cloth and mild detergent to prevent buildup.
-
Lubrication: Apply lubricant to the cable and moving parts every 6 months to ensure smooth operation and prevent rust.
-
Inspect Cable: Regularly check for wear or fraying on the steel cable. Replace if necessary to maintain safety.
-
Battery Care: Keep the 12V battery charged and store it in a dry, cool place to prevent degradation.
-
Check Mounting: Ensure the winch is securely mounted, and tighten any loose bolts or hardware to maintain stability.
-
Test Operation: Perform routine operational tests to verify the winch functions properly and is ready for use.
