Brand: ECO-WORTHY
SKU: L03TGSF12-SCB-1
$449.00
$769.99
$449.00
Subtotal: $449.00
clearance sale ends in
00 Hours
00 Minutes
00 Seconds
authorized dealer, shop your favorite brand.
Expert Support,

Dial +1 (888) 575-2099

Limited Supply,

grab it before it's gone.

Lowest prices,

As low as possible.

All Items are brand New,

Never used.

Eco-Worthy Dual Axis Solar Tracker System

Eco-Worthy Dual Axis Solar Tracker System

$769.99 $449.00

Eco-Worthy Dual Axis Solar Tracker System

$769.99 $449.00
Style: Only Tracker System

Recently Viewed Products

Eco-Worthy Dual Axis Solar Tracker System

Specification
Package 1 Weight: 19.7kg/43.4lbs Package 1 Dimension: 72.5*28.5*19.0cm/28.5*11.2*7.5inch
Package 2 Weight: 23.6kg/52.0lbs Package 2 Dimension: 155.0*25.8*26.2cm/61.0*10.1*10.3inch

6' 150mm Linear Actuator

Input Voltage: 12V DC Max. Load: 1500N/330lbs/150kg
Stroke Length: 6 inches (150mm) Duty Cycle: 25%
Protection Class: IP65 Material: Aluminum alloy
Low Noise: db<45 (A)

12' 300mm Linear Actuator

Input Voltage: 12V DC Max. Load: 1500N/330lbs/150kg
Stroke Length: 12 inches (300mm) Duty Cycle: 25%
Protection Class: IP65 Material: Aluminum alloy
Low Noise: db<45 (A)

Bifacial 195W Monocrystalline Solar Panel

Rated Power: 195W Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 19.8V Open Circuit Voltage(Voc): 23.7V
Short circuit current: 10.5A Maximum current: 9.85A
Output Tolerance: ±3% Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ Temperature range: -40℃~ +85℃
Frame: Aluminum alloy frame Weight: 20.48 lbs(9.29 kg)
Size: 52.6x26.38x1.38in (1335*670*35mm)

Bifacial 100W Monocrystalline Solar Panel

Rated Power: 100W Solar Cell: Monocrystalline
Maximum/Peak Voltage(Vmp): 20.2V Open Circuit Voltage(Voc): 24.5V
Short circuit current: 4.95A Maximum current: 5.20A
Output Tolerance: ±3% Temperate coefficient of Isc: (010+/-0.01)%/℃
Temperate coefficient of Voc: -(0.38+/-0.01)%/℃ Temperature range: -40℃~ +85℃
Frame: Aluminum alloy frame Weight: 11.46 lbs(5.20 kg)
Size: 39.8x18.1x1.4in (1010*460*35mm)
What Our Experts Think

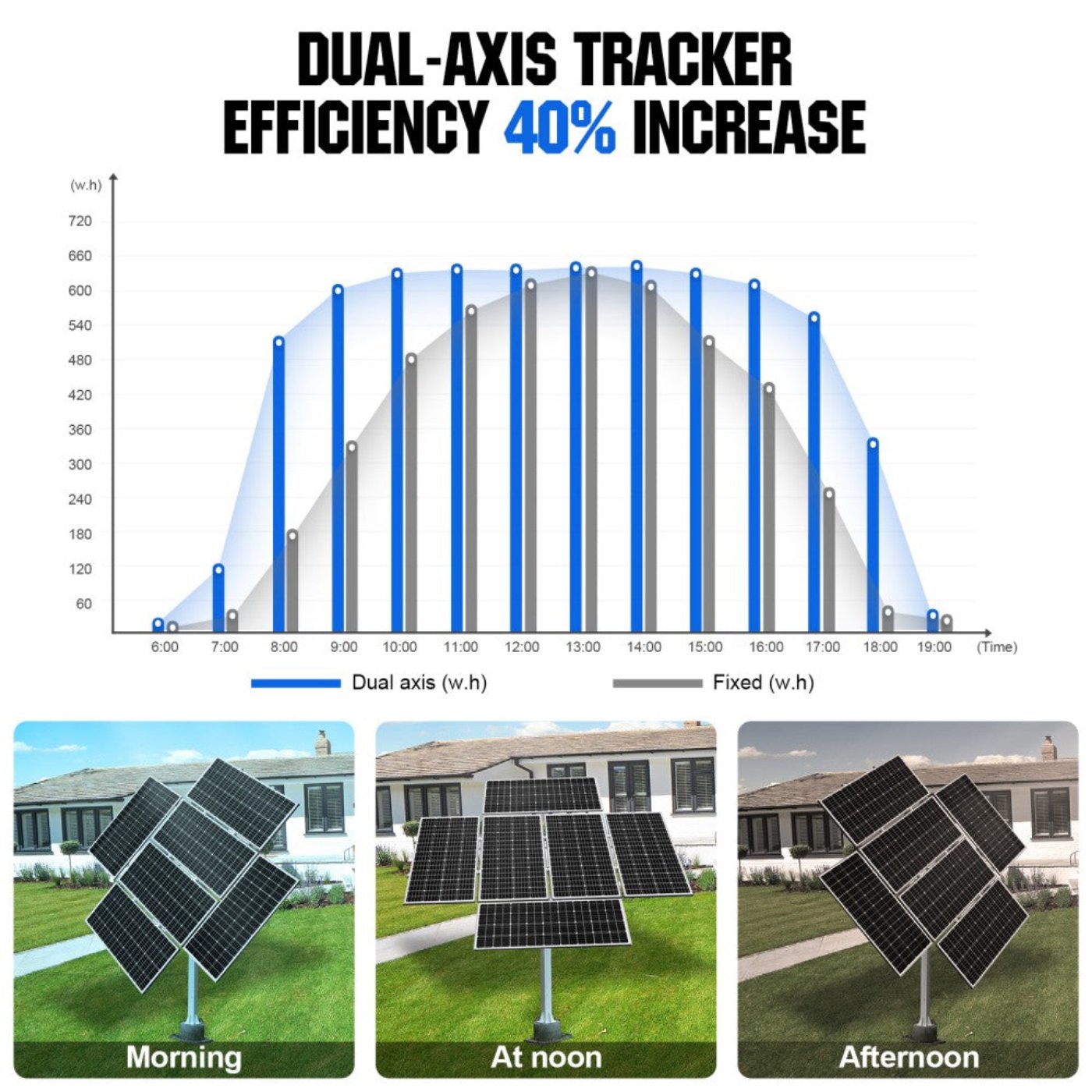

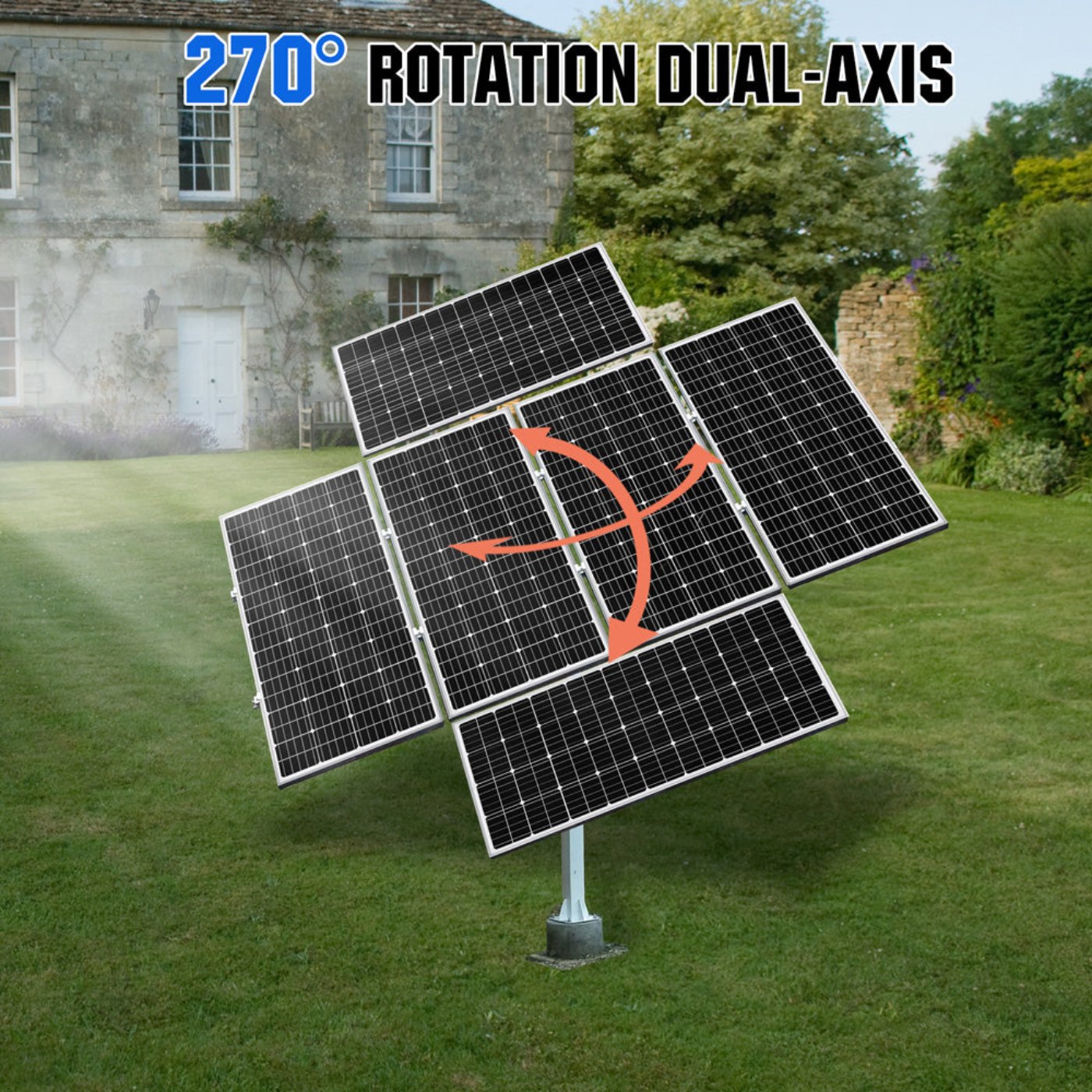

  • Maximized Efficiency: The dual-axis solar tracker adjusts to both horizontal and vertical angles, capturing optimal sunlight throughout the day for up to 40% more energy than fixed systems.
  • Automated Movement: Automatically tracks the sun’s path, ensuring maximum exposure to solar energy without manual adjustments.
  • Ideal for Larger Systems: Perfect for off-grid or commercial solar setups that require higher energy output.
  • Durable Construction: Built with strong, weather-resistant materials for long-lasting performance in diverse environments.
  • Energy Boost: Increases the overall efficiency and energy yield of your solar panels, making it an excellent investment for high-demand applications.
Q&A

Q: What is the Eco-Worthy Dual Axis Solar Tracker System?
A: The Eco-Worthy Dual Axis Solar Tracker System automatically adjusts solar panels' position to track the sun’s movement, maximizing energy capture and improving system efficiency.

Q: What are its key features?

  • Dual Axis Tracking: Allows the solar panels to adjust both horizontally and vertically, following the sun for optimal energy absorption.
  • Increased Efficiency: Maximizes energy generation by keeping panels aligned with the sun throughout the day.
  • Durability: Built with high-quality materials for long-term, reliable outdoor use.
  • Compatibility: Works with most off-grid solar systems to increase power output.
  • Energy Savings: Boosts solar energy production by up to 40% compared to fixed-panel setups.

Q: Who is this solar tracker ideal for?
A: Ideal for users looking to maximize the efficiency of their solar systems, especially in areas with variable sun angles and for those seeking the highest energy yield.

Q: Why choose the Eco-Worthy Dual Axis Solar Tracker System?
A: The dual-axis tracking system optimizes solar panel output, ensuring the most efficient energy production by continually aligning with the sun, making it perfect for maximizing your off-grid power system

Maintenance Tips
  • Clean Solar Panels: Regularly clean the panels to remove dirt, dust, and debris, maximizing energy capture.
  • Check Tracker Motors and Sensors: Inspect the motors, actuators, and sensors for any signs of wear or malfunction, ensuring smooth tracking movement.
  • Lubricate Moving Parts: Apply grease or lubricant to the moving components of the tracker to reduce friction and maintain efficient operation.
  • Monitor System Performance: Use the monitoring system to track the tracker’s alignment and efficiency, making adjustments if necessary.
  • Inspect Wiring and Connections: Check electrical connections for corrosion, loose wires, or damage to ensure proper functionality.
  • Ensure Proper Grounding: Verify that the system is correctly grounded to prevent electrical hazards.
  • Adjust for Seasonal Changes: Periodically adjust the tracker to optimize the angle for different seasons, ensuring maximum sunlight exposure
