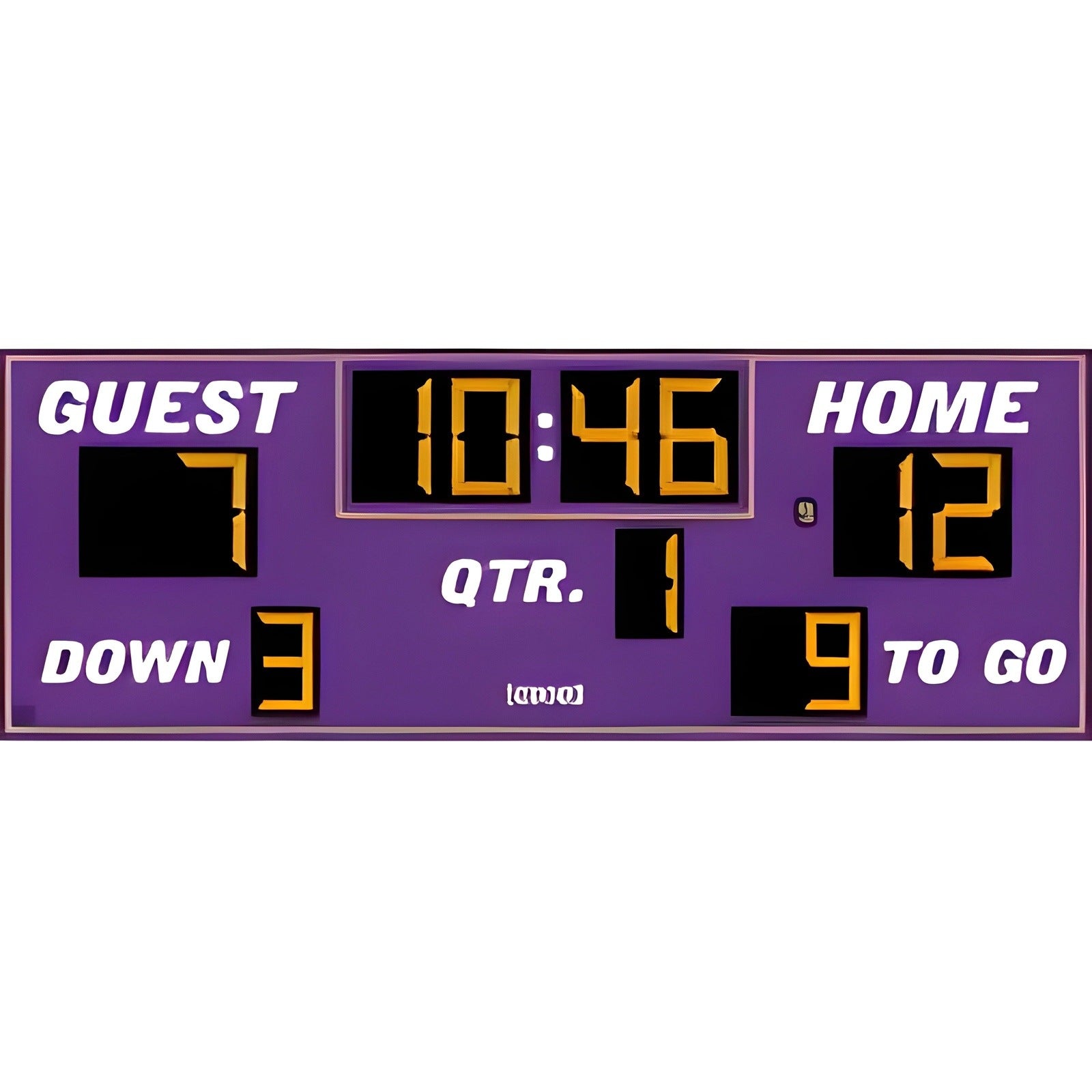

Electro-Mech Football Scoreboard (14'x5') - LX3230
The LX3230 is a compact, single-cabinet Football scoreboard with the important data on display. The LED digits for Time and Points are 18 inches tall. Down, To Go, and Quarter are 15 inches tall. Using the same control console offered with our larger Football scoreboards, Model LX3230 benefits from all of the versatile Electro-Mech Clock features -- including our robust Practice Segment Timer mode. You can even add Electronic Team Names to this small, but powerful scoreboard.
Features
-
Single cabinet design with heavy-duty extruded aluminum framing
-
Lightweight, rust free, all-aluminum construction
-
Mounting hardware for permanent installation on posts without the need for on site fabrication
-
Automotive-grade baked on enamel based paint applied to the scoreboard face
-
Choice of 18 standard paint colors
-
Choice of amber or red LED displays
-
LED display circuit boards conformal coated for outdoor use
-
Internally mounted horn
-
Simplified 15-key control console
-
Junction box and patch cable for hardwired installations
-
Five-year limited warranty
-
Six selectable brightness levels
-
Toll-free technical support via phone and online for the life of the product
Specifications
| Dimensions: | 14 ft x 5 ft |
|---|---|
| Weight: | 245 lb |
| Digit Height: | 18 in, 15 in |
| Electrical: | 120 VAC, 2.1 amps |
Product Manual
What Our Experts Think
- Optimized for Football: The LX3230 Football Scoreboard features dedicated sections for Time, Scores, Down, and Quarter for precise game tracking.
- High Visibility: Large, bright LED digits ensure excellent readability from long distances and in various lighting conditions.
- Durable Construction: Designed with robust, weather-resistant materials to withstand outdoor conditions throughout the season.
- Customizable Options: Offers optional team name panels or sponsor spaces for personalization.
- Easy Operation: Includes an intuitive control panel for seamless updates during fast-paced games.
Q&A
Q: What are the dimensions of this scoreboard?
A: The LX3230 measures 14 feet wide by 5 feet tall, providing an impressive display for any football field.
Q: Is it suitable for night games?
A: Yes, the bright LED digits ensure excellent visibility even during nighttime events.
Q: Can the team names be displayed?
A: Optional team name panels are available for this model, allowing custom displays.
Q: How is the scoreboard powered?
A: It operates on standard electrical power and can be adapted for solar or battery backup systems if needed.
Q: Is wireless control included?
A: The LX3230 offers an optional wireless control system for easier operation.
Maintenance Tips
- Routine Cleaning: Gently clean the LED panels with a soft cloth to maintain brightness and clarity.
- Inspect Mounts: Regularly check mounting brackets for security and stability.
- Protect From Debris: Use a protective cover when the scoreboard is not in use to shield it from dirt and debris.
- Check Connections: Test and secure all wiring connections periodically to prevent malfunctions.
- Test Before Games: Power on the scoreboard before each game to ensure all digits and displays function properly.
