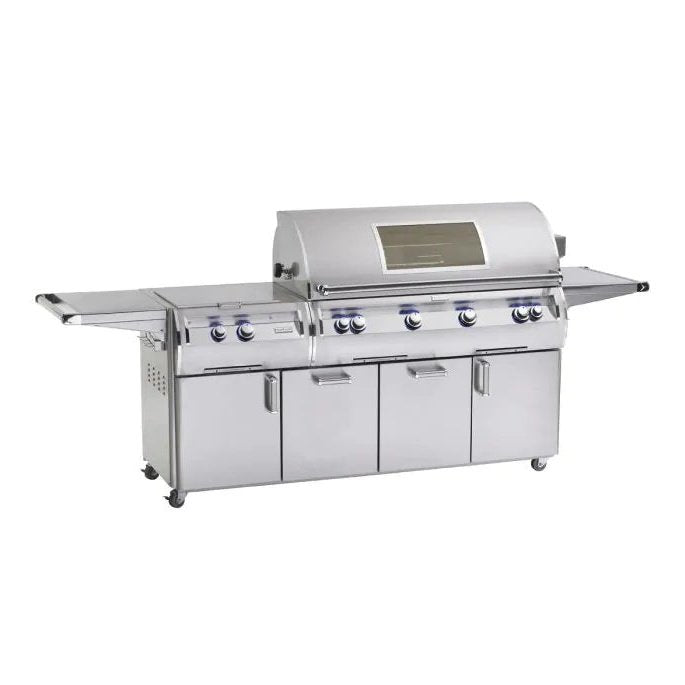

Fire Magic Echelon Diamond E1060s 48" A Series Freestanding Gas Grill With Rotisserie, Infrared Burner, Power Burner, Analog Thermometer Magic View Window, Propane - E1060S-8LAP-51-W
The Fire Magic Echelon Diamond Series combines the ultimate in performance, beauty, and innovation, featuring a hot surface ignition, blue back-lit knobs, heat zone separators, and infrared sear burner options.
When only the best will do, Fire Magic's top-of-the-line Echelon Diamond combines the ultimate in performance, beauty, and innovation. With sleek lines, a unique contoured face, and state-of-the-art features such as hot surface ignition, blue back-lit knobs, and an optional Magic View Window, Echelon Diamond defines luxury in grilling.
See available features:
-
Digital Thermometer Option: Illuminated chromed digital thermometer with meat probe, timer, and alarm settings for precise grilling.
-

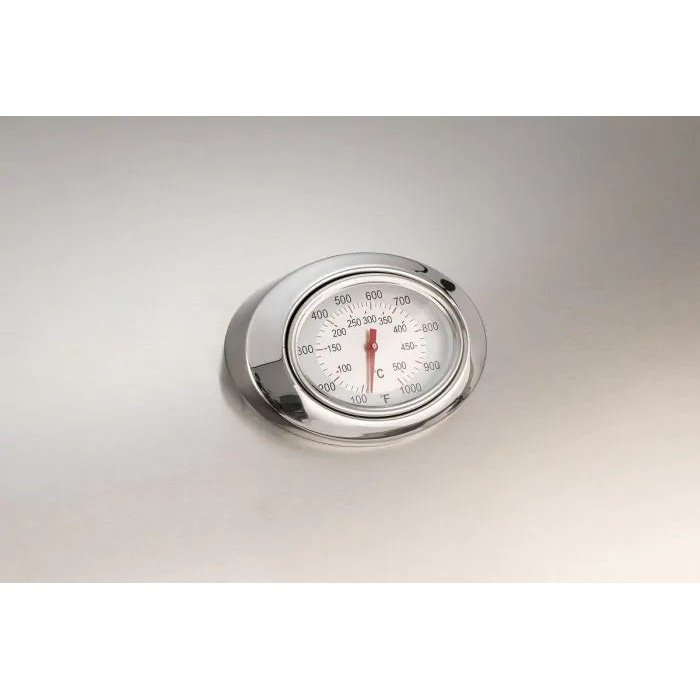

Analog Thermometer Option: Analog thermometer with polished stainless steel bezel in hood measures up to 1000 °F.
-
Power Burner: The Echelon Power Burner is the largest, most powerful side cooker available and provides the high heat that's perfect for wok cooking or frying a turkey! Offering a range of 3,000 to 60,000 BTUs. Removable stainless steel cover included.
-
Flush Mounted Single Side Burner: Features of this single side burner include a 15,000 BTUs burner and a precise flame control valve. Includes stainless steel grid.
-

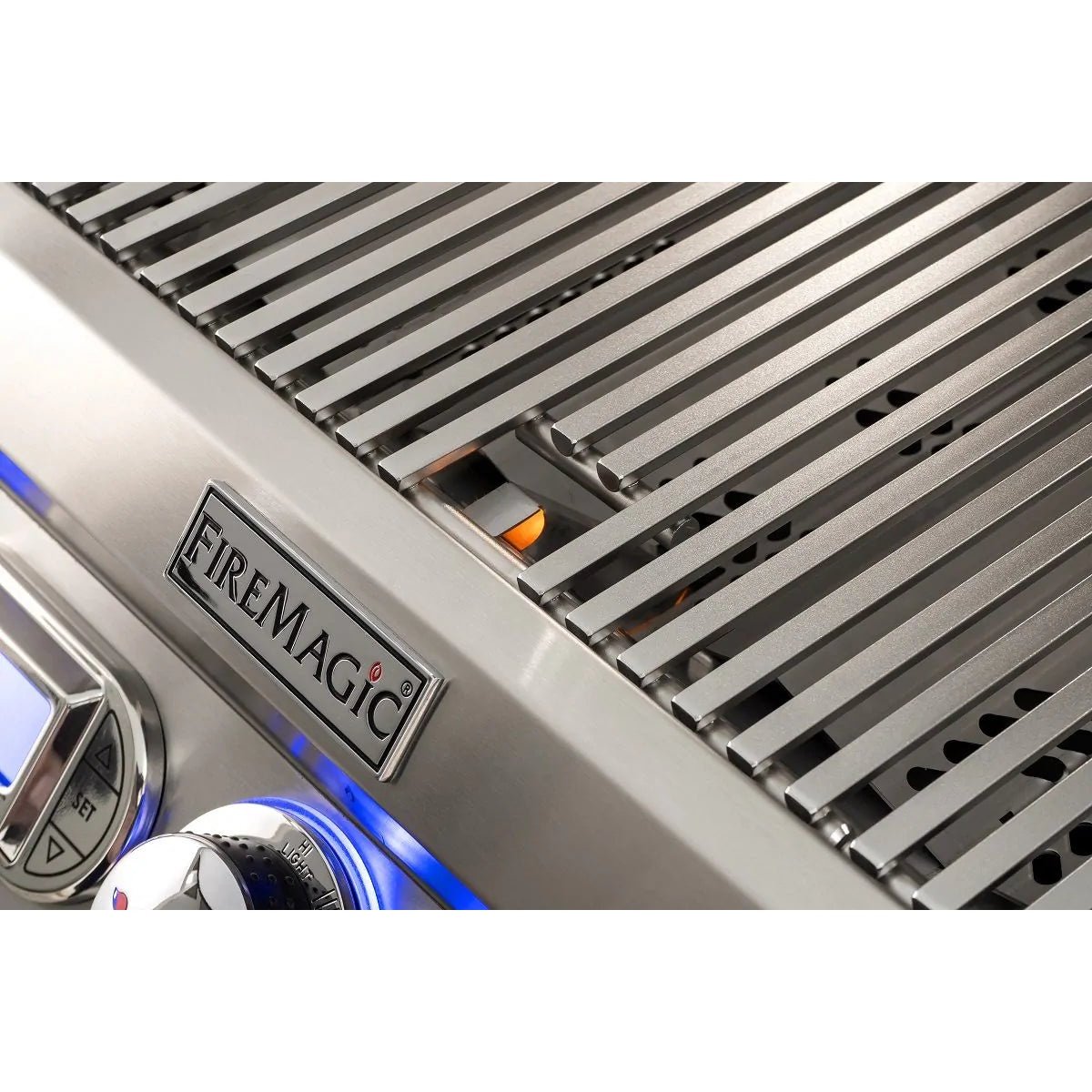

Diamond Sear Cooking Grids: All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.
-
Flavor Grids: 16-gauge stainless steel, flavor grids are engineered for durability, even heat distribution, and reduced flare-ups.
-

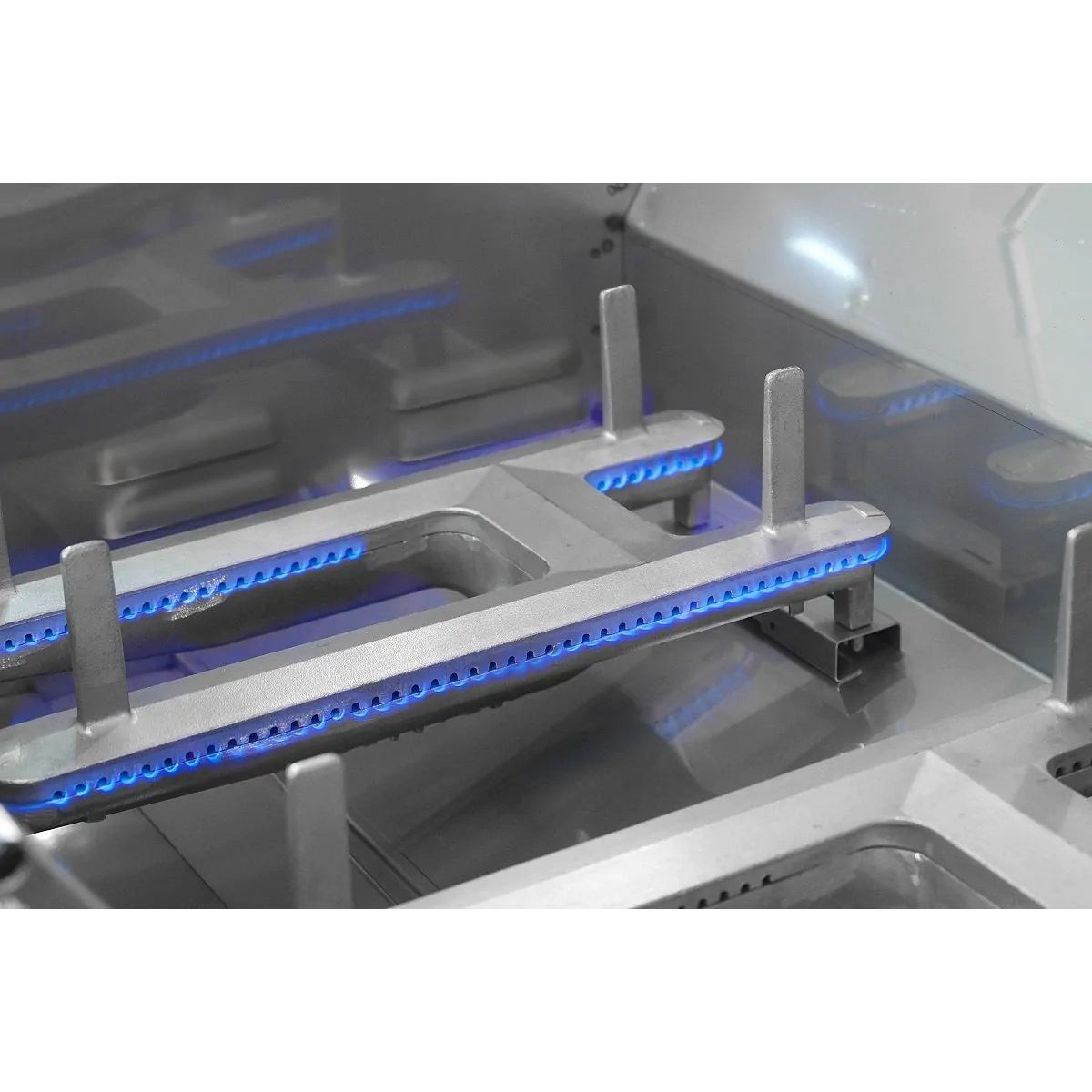

Heat Zone Separators: Heat zone separators between each burner, flavor grid, and cooking grid allow cooking an assortment of foods at different temperatures simultaneously, and to provide better indirect cooking.
-
Hot Surface Ignition: Hot surface electronic ignition provides reliable lighting for every meal. Requires 120V AC power supply.
-
Charcoal/Smoker Basket: Included with all Echelon Diamond grills at no additional charge. Great tool for charcoal grilling and smoking.
-

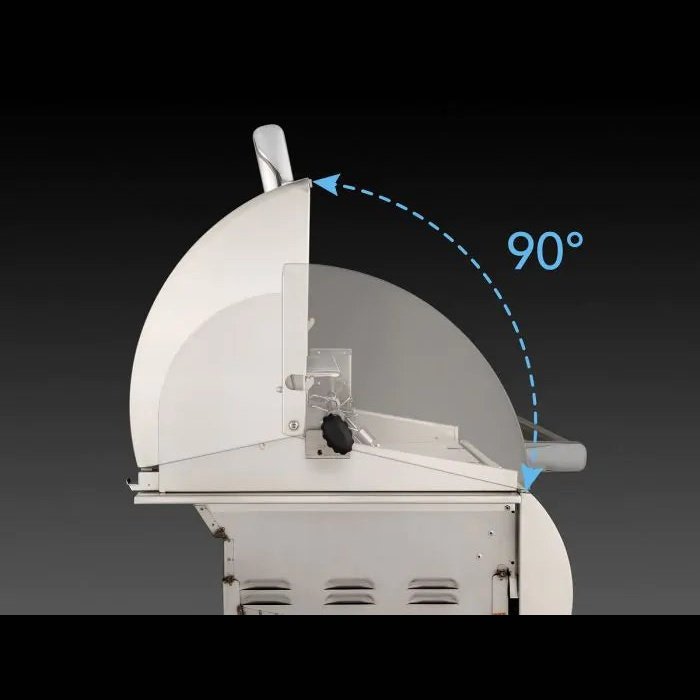

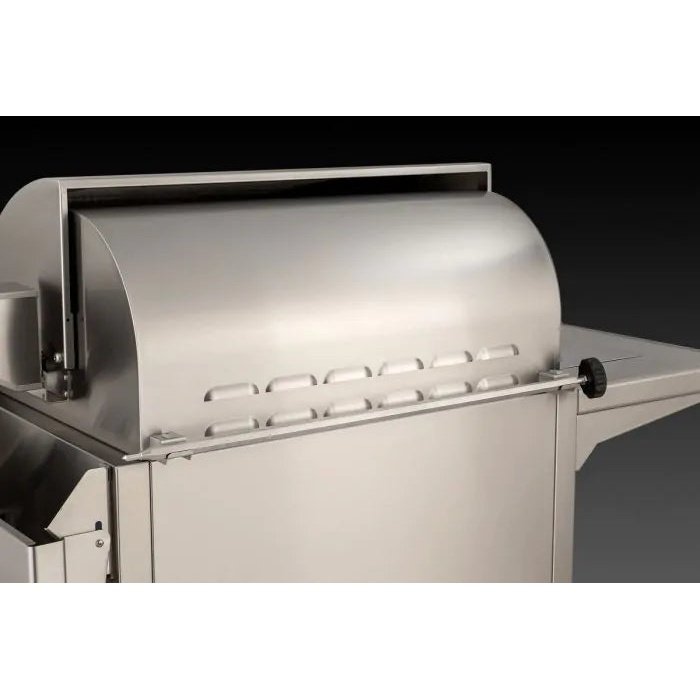

Rounded Oven Hood: Double well, seamless oven hood with featherlight easy lift, rounded for best convection cooking.
-

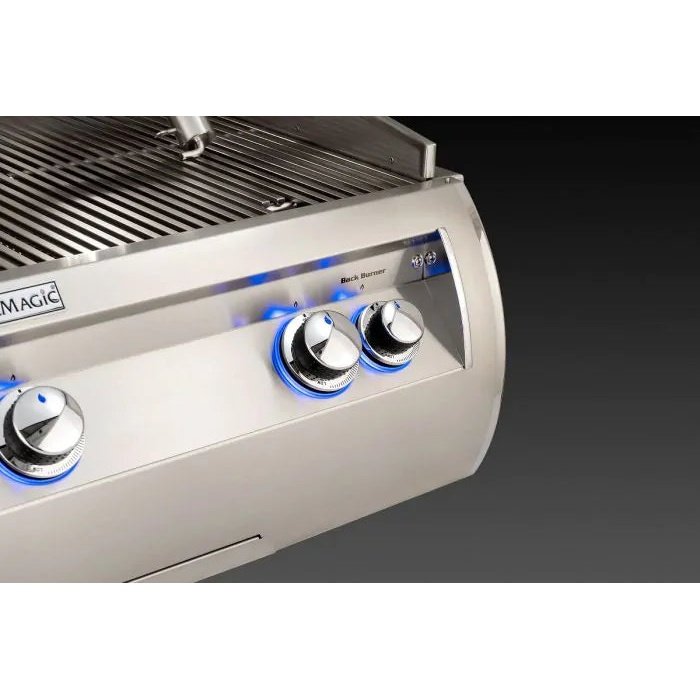

Contoured Face with Back-Lit Knobs: Smooth, seamless lines with polished highlights that feature fully illuminated, comfort touch safety control knobs (flame turns red when on).
-

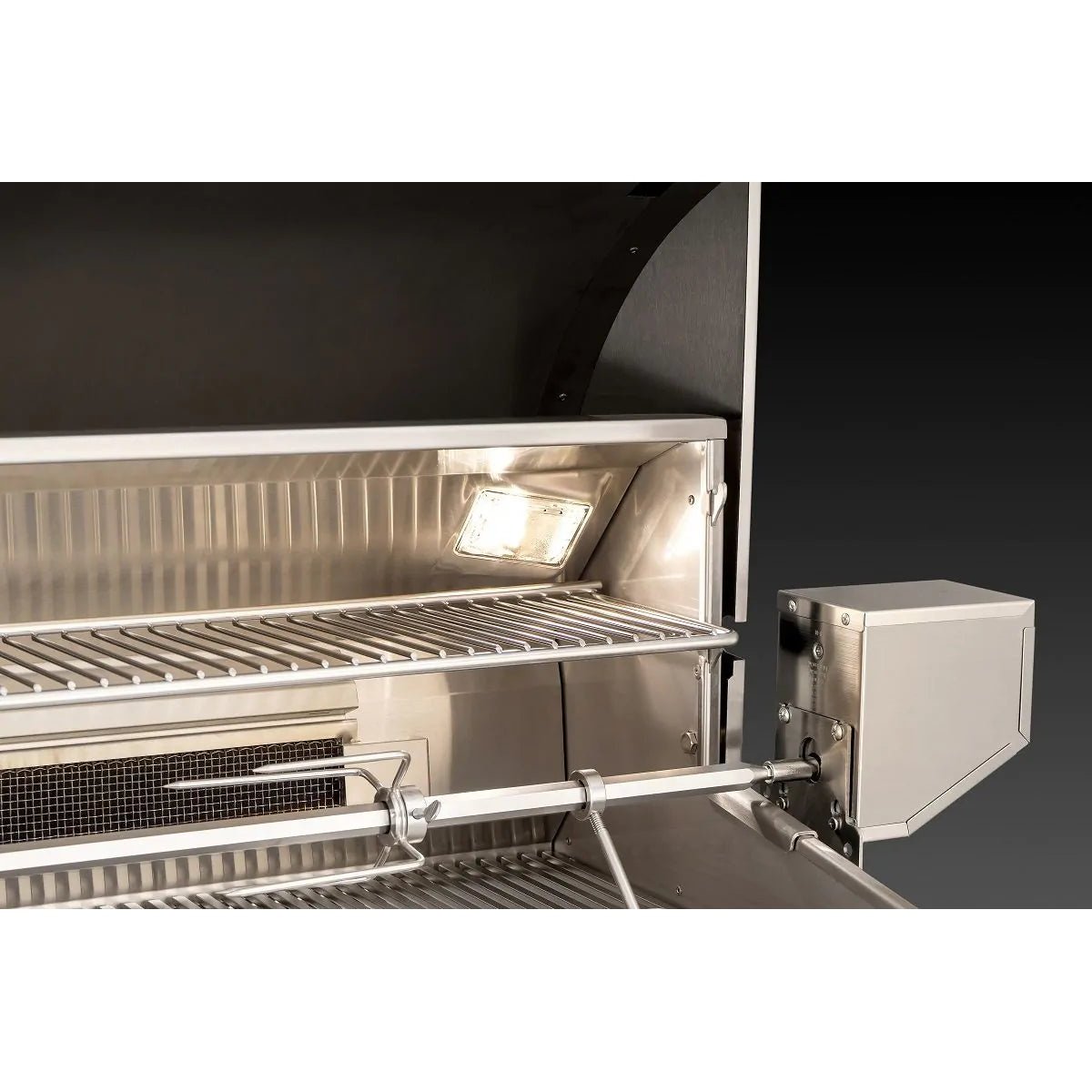

Halogen Interior Lights: Angled interior halogen lights make evening grilling a breeze.
-

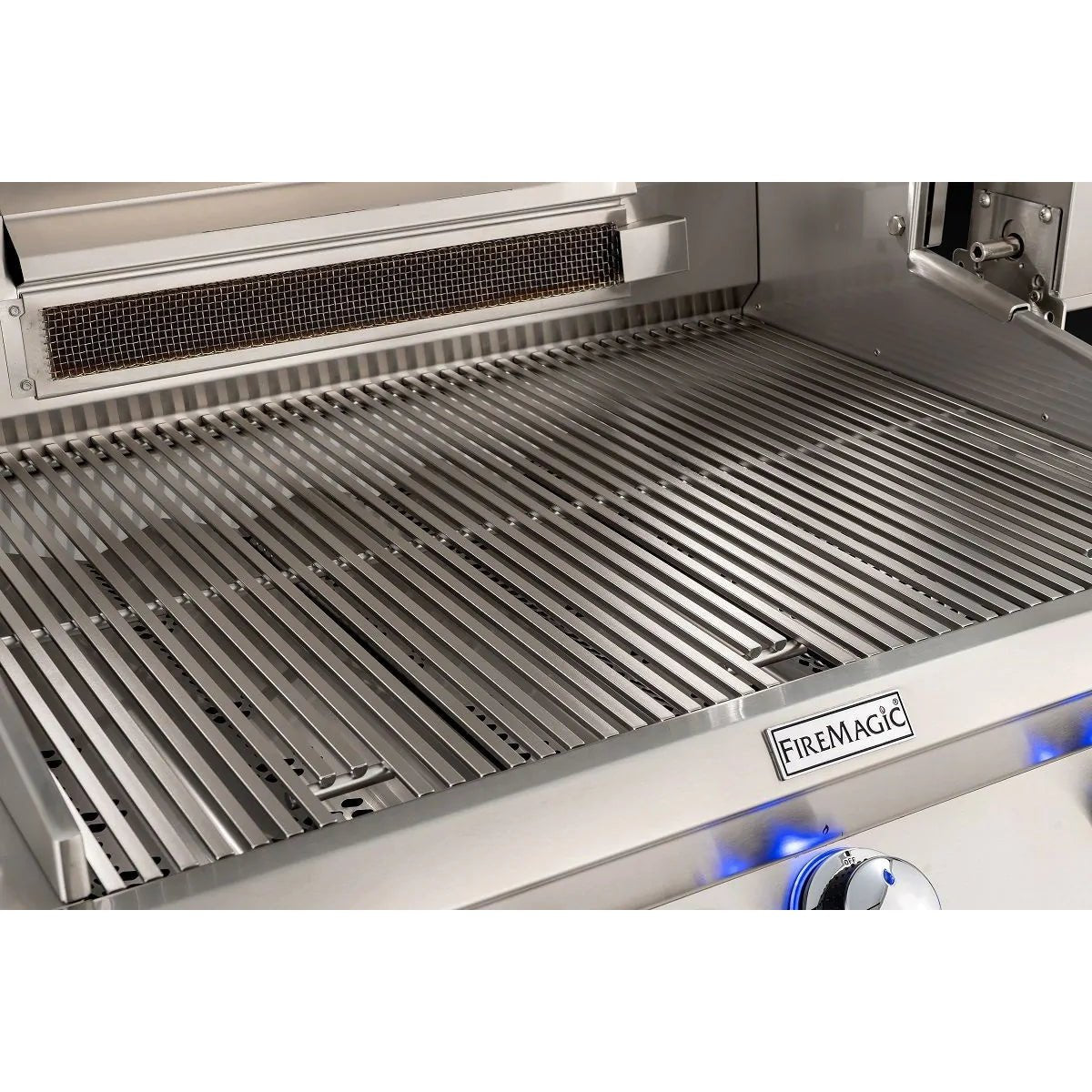

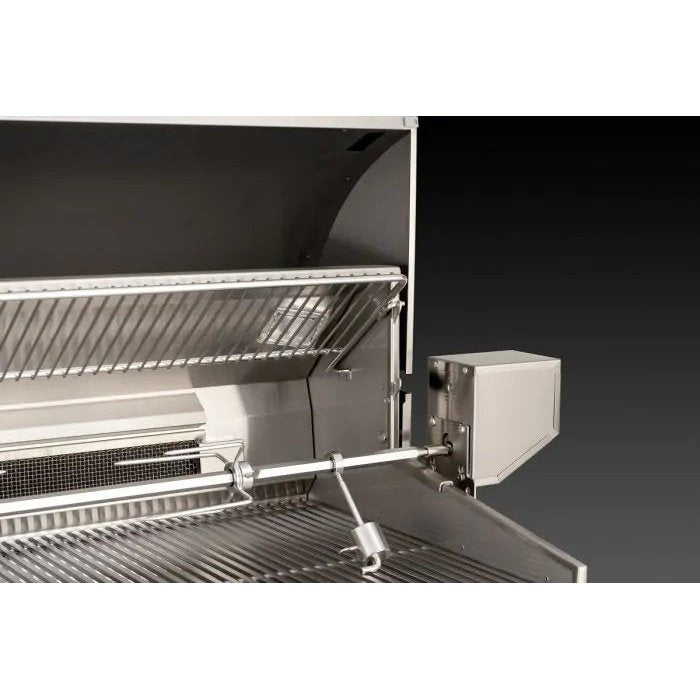

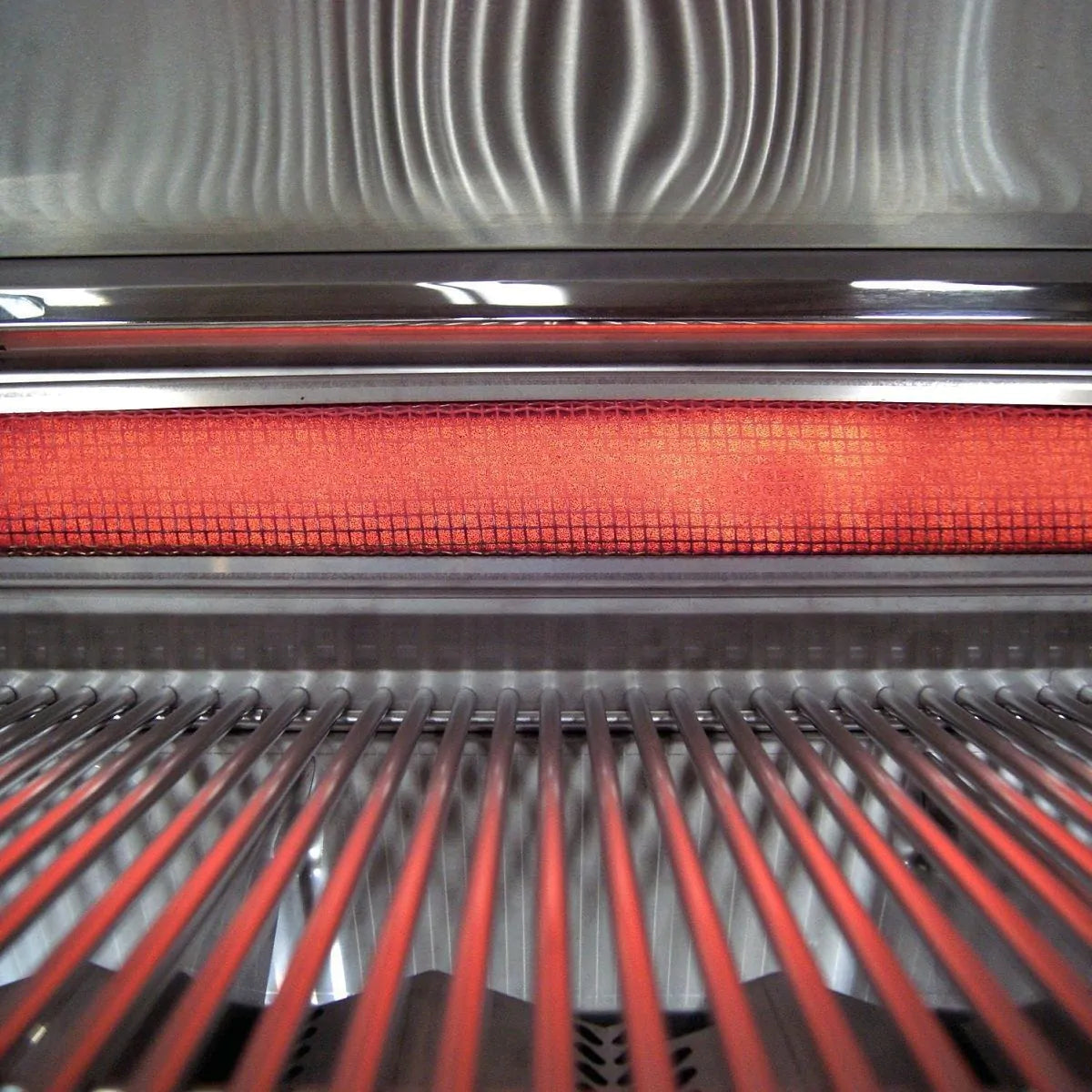

Quantum Backburner: Recessed Quantum backburner made of stainless steel foam uses less BTUs to generate efficient high heat for rotisserie cooking. Polished stainless steel cover included for protection.
-
Diamond Sear Cooking Grids: All 304 stainless steel trapezoid cooking grids provide more optimal cooking surface for even heat and great searing.
-
Extended Side Shelves: Capped with matching polished handles, the expansive side shelves offer the most preparation space of any portable grill. When not in use, they fold down neatly to save space.
Specifications
| Class |
Luxury |
| Fuel Type |
Propane |
| Model |
Echelon |
| Width |
117" |
| Depth |
30.5" |
| Height |
52" |
| Configuration |
Freestanding |
| Exterior Material |
Stainless Steel |
| Exterior Stainless Grade |
304 Stainless Steel |
| Color |
Stainless Steel |
| Main Burners |
4 |
| Grilling Surface BTUs |
112,000 |
| Infrared Main Burner |
1 Infrared |
| Main Burner Material |
304-Stainless Steel |
| Flame Tamer Material |
Stainless Steel |
| Cooking Grate Dimensions |
48 X 22" |
| Main Grilling Area (Sq Inches) |
1,056 |
| Secondary Grilling Area (Sq Inches) |
384 |
| Total Grilling Area (Sq Inches) |
1,440 |
| Total BTUs |
194,000 |
| Side Burner BTUs |
60,000 |
| Rear Rotisserie Burner BTUs |
22,000 |

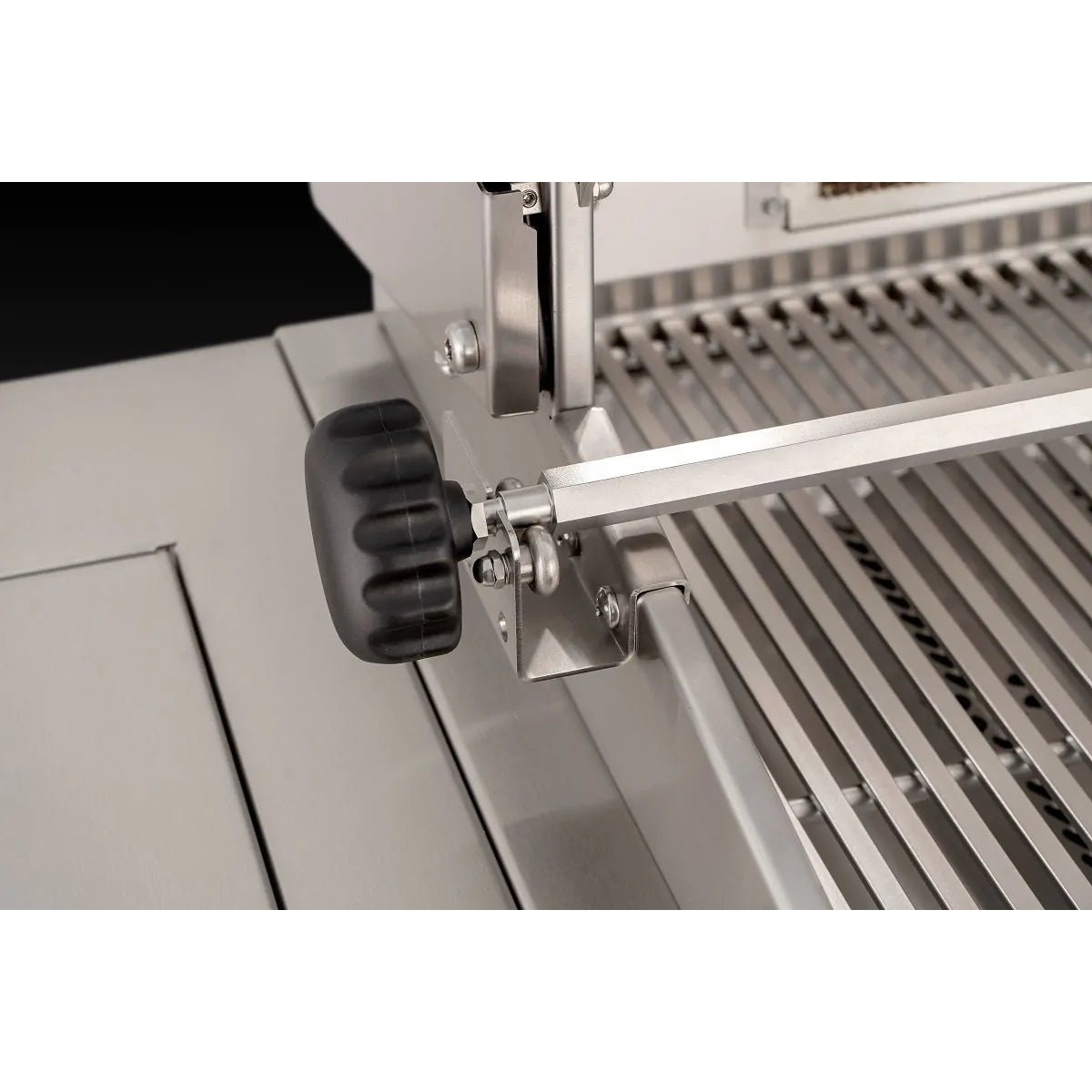

| Rotisserie Kit |
Included |
| Burger Count |
40 |
| Wifi/Bluetooth Enabled |
None |
| Heat Zone Separators |
Yes |
| Ignition Type |
Hot Surface |
| Flash Tubes |
Yes |
| Lights |
Yes |
| Grill Lights |
Internal / External |
| Spring Assisted Hood |
Yes |
| Temperature Gauge |
Analog |
| On Wheels |
Yes |
| Cart Assembly |
Assembled |
| Includes Smoker Box |
Yes |
| Side Shelves |
Yes |
| Side Shelf Material |
Stainless Steel |
| Side Burner Type |
Power Burner |
| Made In USA |
Yes |
| Commercial-Grade Multi-User |
No |
| Hose / Regulator Included |
Yes |
| Grill Size |
48" |
| Magic View Window Option |
Yes |
