Jabsco 17820 Oil Changer System - 17820-0012

Jabsco 17820 Oil Changer System - 17820-0012

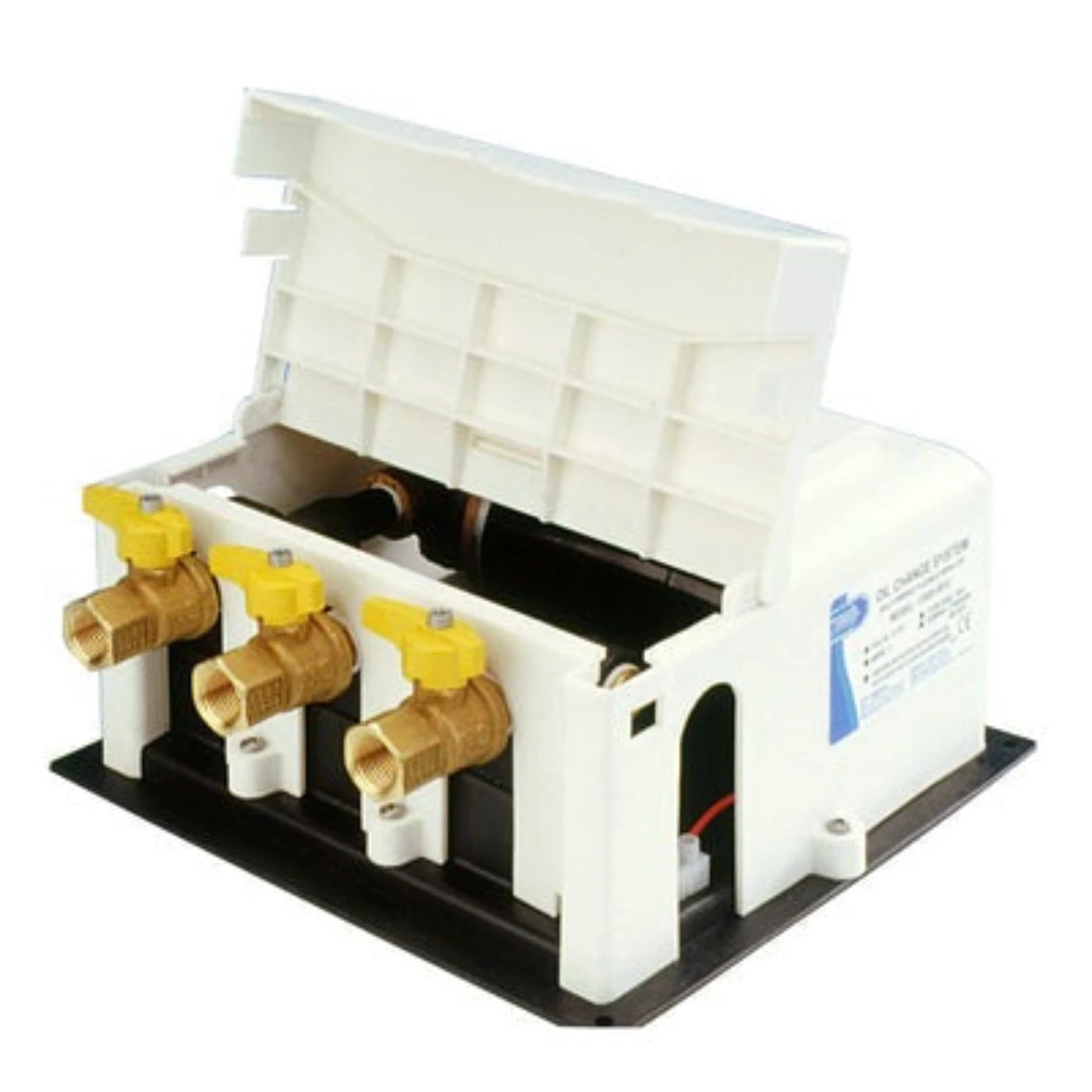

The Jabsco Oil Change System is designed to be installed in a vessel's engine room with its manifold and valves permanently plumbed to the vessel's engines' oil pans or transmissions' oil sumps. The manifold is factory fitted with three ball valves to serve three different oil reservoirs and may be fitted with two additional ball valves to drain up to five oil reservoirs. The system can be used to remove old oil from an engine or transmission then reversed, with the integral reversing switch, to pump a measured amount of new oil back into the engine or transmission. Each connection to an engine is controlled by a dedicated full flow ball valve. The system's cover provides an attractive appearance, fully shrouding the entire pump and manifold system. It also provides added protection against accidental draining of an engine's oil supply because the valve cover protects the factory supplied valves from being accidentally bumped open. Additionally, at the end of an oil change, the cover will not close unless the factory supplied valves are in the fully closed position.

Features

• Permanent Installation: Designed for permanent installation in the vessel's engine room.

• Multi-Reservoir Service: Comes with three ball valves, expandable to five.

• Reversing Switch: Allows for pumping new oil back into the engine or transmission.

• Full-Flow Ball Valves: Each connection is controlled by a dedicated valve.

• Protective Cover: Enhances appearance and prevents accidental valve operation.

• Safety Cover: Ensures the cover cannot close unless all valves are fully closed.

Specifications

What Our Experts Think

• Effortless Oil Changes: Allows quick, clean extraction and replacement of oil, minimizing mess and hassle.
• Powerful Pump: Equipped with a self-priming 12V pump for efficient and reliable operation.
• Versatile Use: Ideal for engines, transmissions, and other oil-based systems in marine and automotive applications.
• Compact and Portable: Lightweight design ensures easy handling and storage.
• Durable Components: Built with corrosion-resistant materials for long-lasting performance in tough environments.

Q&

Q: What is the Jabsco 17820 Oil Changer System?
A: A 12V electric oil changing system designed to simplify engine oil changes for marine, RV, and automotive applications.

Q: What are its key features?

• Convenience: Fully self-contained system for clean and easy oil changes.
• Pump Power: 12V electric pump for quick extraction and transfer.
• Capacity: Integrated reservoir holds up to 14 quarts of used oil.
• Durable Design: Built with corrosion-resistant materials for long-lasting use.
• Portability: Compact and easy to store when not in use.

Q: Why is it ideal for marine and RV use?
A: Makes routine oil changes quick and hassle-free, even in tight spaces, without spills or mess.

Q: Why choose Jabsco?
A: Jabsco is a leader in fluid handling systems, known for reliability and efficiency in demanding environments

Maintenance Tips

• Clean Hoses: Flush hoses with fresh oil or cleaning solution after each use to prevent clogs.
• Inspect Connections: Check all fittings and connections for leaks or wear before operation.
• Monitor Pump: Test the 12V pump regularly for consistent performance.
• Check Power Supply: Ensure battery or power source delivers steady voltage to avoid motor strain.
• Replace Worn Parts: Periodically replace worn hoses or fittings to maintain efficiency.
• Store Properly: Keep in a clean, dry area to protect from dirt and moisture.
• Avoid Overheating: Allow the pump to cool between extended uses.
