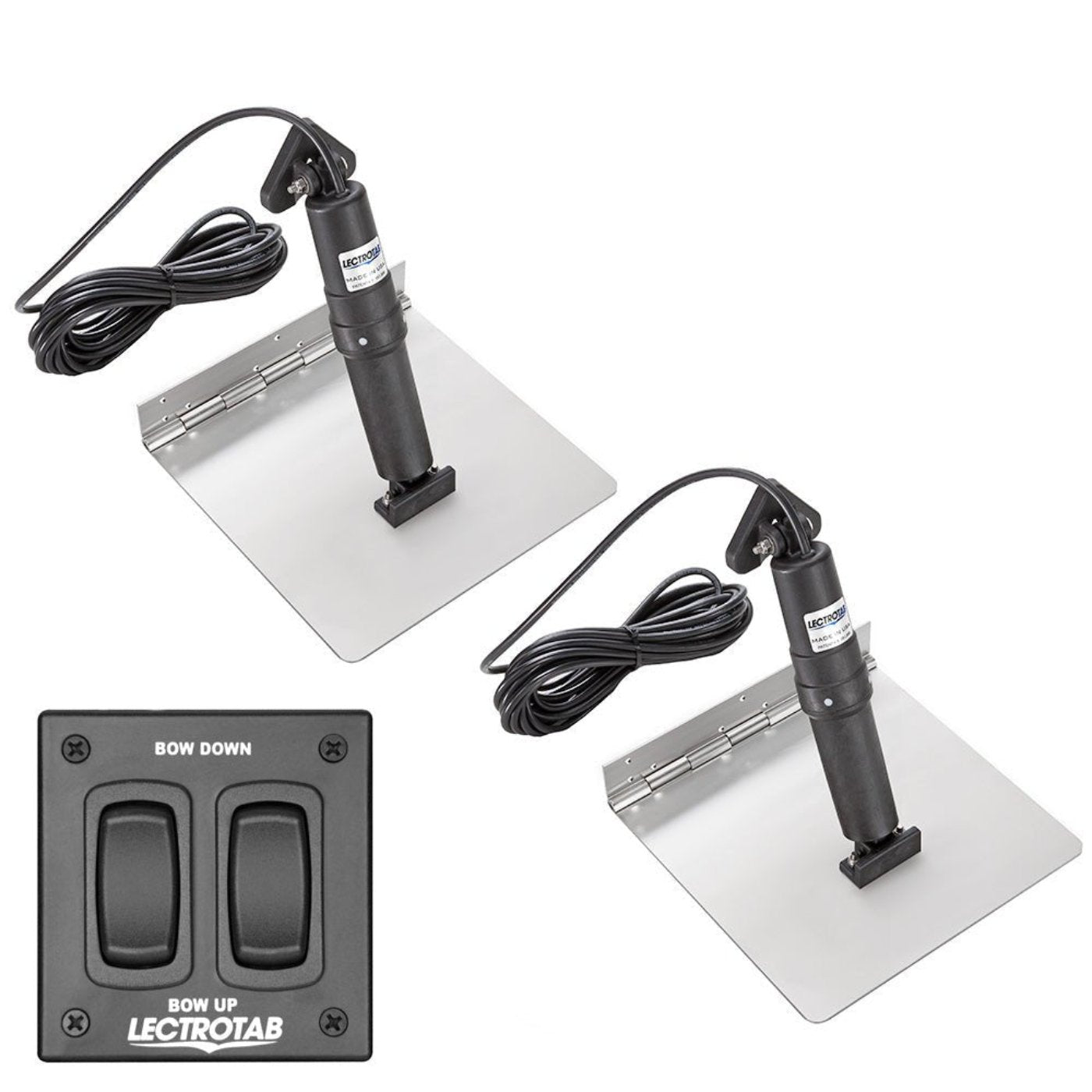

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 9 - XKAF9X9 - CW96262

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 9 - XKAF9X9 - CW96262

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

In the Box

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 9 (Model: XKAF9X9 - CW96262) is a compact yet powerful solution for enhancing your boat's handling and efficiency. Here's why it's a great choice:

• Compact Design: The 9" x 9" size is perfect for smaller vessels or precise trim adjustments.
• Stainless Steel Durability: Corrosion-resistant construction ensures long-lasting performance in marine environments.
• Rocker Switch Control: Intuitive and reliable controls make trim adjustments quick and effortless.
• Enhanced Performance: Improves boat stability, reduces drag, and optimizes fuel consumption.
• Easy Installation: Designed for straightforward setup with minimal effort and downtime.
• Quiet & Smooth Operation: Ensures seamless adjustments with minimal noise, ideal for a more enjoyable boating experience.

Q&A

Q: What are the features of the Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch?
A: This 9" x 9" trim tab kit features durable stainless steel construction, a reliable rocker switch for easy control, and quiet, efficient operation.

Q: Is this trim tab kit corrosion-resistant?
A: Yes, it is built with marine-grade stainless steel to withstand harsh marine environments.

Q: What type of boats is this trim tab kit suitable for?
A: The compact 9" x 9" design is ideal for smaller to medium-sized boats, enhancing stability and performance.

Q: How does the rocker switch improve usability?
A: The rocker switch offers intuitive, precise control for quick adjustments to boat trim.

Maintenance Tips

• Rinse After Use: Wash trim tabs with fresh water after saltwater exposure to prevent corrosion.
• Inspect for Wear: Regularly check the trim tabs, actuators, and fasteners for any signs of wear or damage.
• Clean Moving Parts: Remove debris from actuators to ensure smooth and reliable operation.
• Test Rocker Switch: Verify the switch's functionality and responsiveness before each outing.
• Tighten Fasteners: Periodically inspect and secure all mounting screws and bolts.
• Protect with Lubricant: Apply marine-grade lubricant to moving components to reduce friction and shield against moisture.
• Check Electrical Connections: Inspect connectors for corrosion; clean and secure them as needed.
