Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 9 x 24 - XKASL9X24A - CW96307

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control - 9 x 24 - XKASL9X24A - CW96307

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.

Features

• All Tabs sealed with a corrosive resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

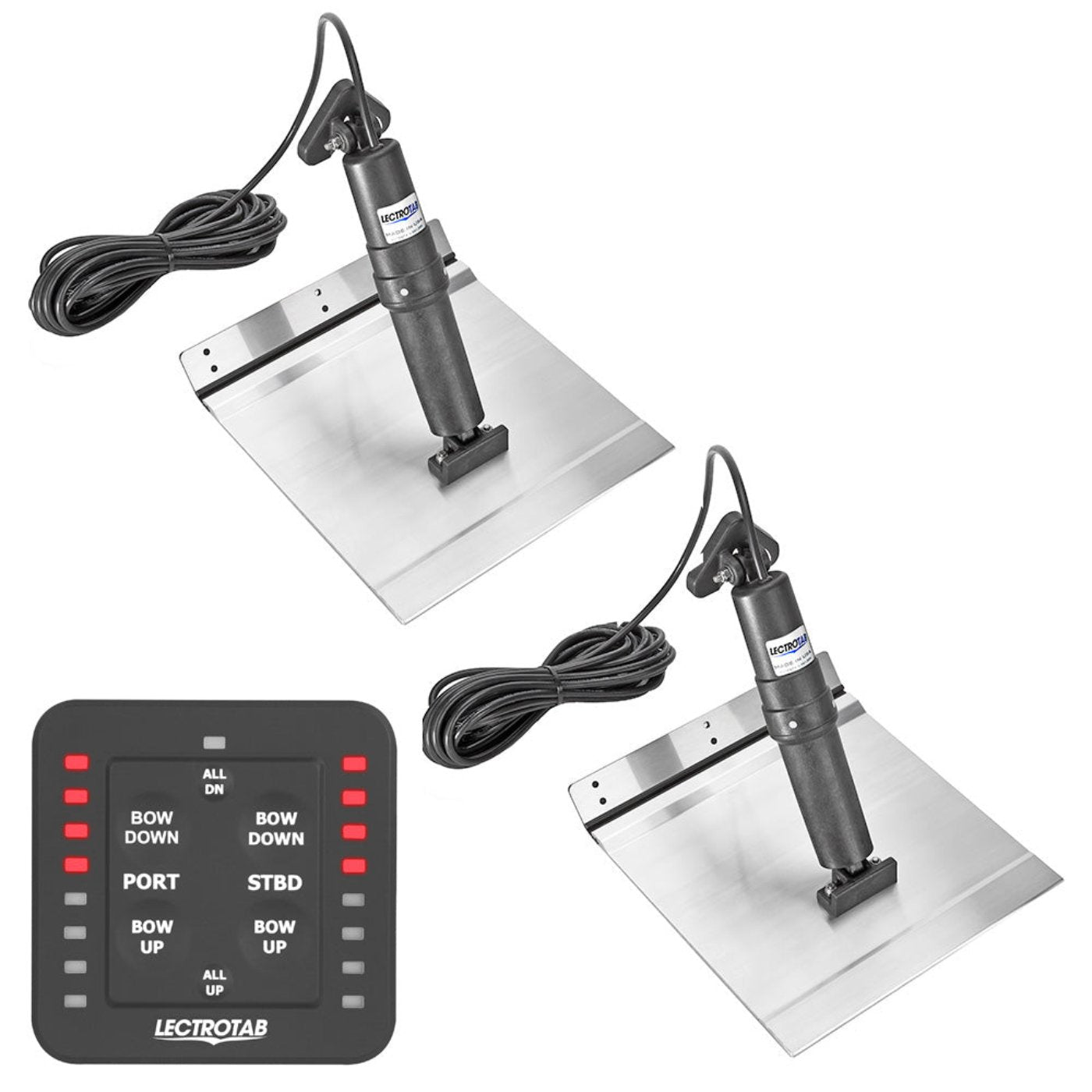

In the Box

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control (9 x 24, XKASL9X24A) is an advanced option for boaters looking for effortless performance enhancement. Here’s why it stands out:

• Aluminum Alloy Construction: Lightweight and corrosion-resistant, designed for long-lasting durability in marine conditions.
• One-Touch Control: The easy-to-use control system allows for quick, responsive adjustments with a single touch, improving handling and stability.
• Perfect for Larger Boats: The 9 x 24-inch size offers increased lift, making it ideal for larger vessels or boats that need enhanced stability in various conditions.
• Improved Fuel Efficiency: Reduces drag, contributing to better fuel economy and a more efficient boating experience.
• Reliable Actuators: High-torque actuators provide consistent, smooth operation, even in rough waters.
• Simple Installation: Pre-assembled kit allows for easy and efficient installation, saving time.

Q&A

Q: What is the Lectrotab XKA Aluminum Alloy Trim Tab Kit w/One-Touch Control (XKASL9X24A)?
A: A 9 x 24-inch trim tab kit designed for boats, featuring corrosion-resistant aluminum alloy tabs and the One-Touch control system for easy and precise tab adjustments.

Q: What are the key features?
A: Includes durable aluminum alloy trim tabs, stainless steel actuators, and the One-Touch control system for quick and easy adjustment, optimizing boat performance and stability.

Q: Who is it ideal for?
A: Perfect for boat owners who want an easy-to-use system that improves fuel efficiency, handling, and overall ride quality, particularly for medium to large boats.

Q: What makes it unique?
A: The One-Touch control system allows for effortless operation, while the 9 x 24 size provides excellent stability and performance for larger boats.

Q: Is installation easy?
A: Yes, the kit comes with all necessary components for installation; professional installation is recommended for optimal performance.

Maintenance Tips

• Rinse After Use:

  • Rinse the trim tabs with fresh water after each use, especially after operating in saltwater, to remove salt, dirt, and other debris that can cause corrosion.

• Inspect for Damage:

  • Regularly inspect the trim tabs, actuators, hinges, mounting hardware, and One-Touch Control system for signs of damage, corrosion, or wear. Replace any damaged or worn parts to ensure proper function.

• Lubricate Moving Parts:

  • Apply a marine-grade lubricant to the trim tab hinges and other moving components periodically. This ensures smooth operation and prevents rust or corrosion in moving parts.

• Check Electrical Connections:

  • Inspect the wiring and connections of the One-Touch Control system for signs of wear, corrosion, or loose connections. Ensure all electrical components are sealed from moisture to prevent malfunctions.

• Test Trim Tabs:

  • Before each use, test the trim tabs using the One-Touch Control to ensure they adjust smoothly and respond correctly. If they do not function as expected, check for obstructions or issues with the control system.

• Prevent Electrolysis:

  • Install and maintain a sacrificial anode to protect the aluminum trim tabs from electrolysis damage. Regularly check the anode and replace it when it becomes worn or corroded.

• Annual Maintenance:

  • Conduct a full inspection annually, checking the actuators, seals, wiring, and mechanical components. Replace any worn or damaged parts, clean all parts, and ensure the system is operating at peak performance.
