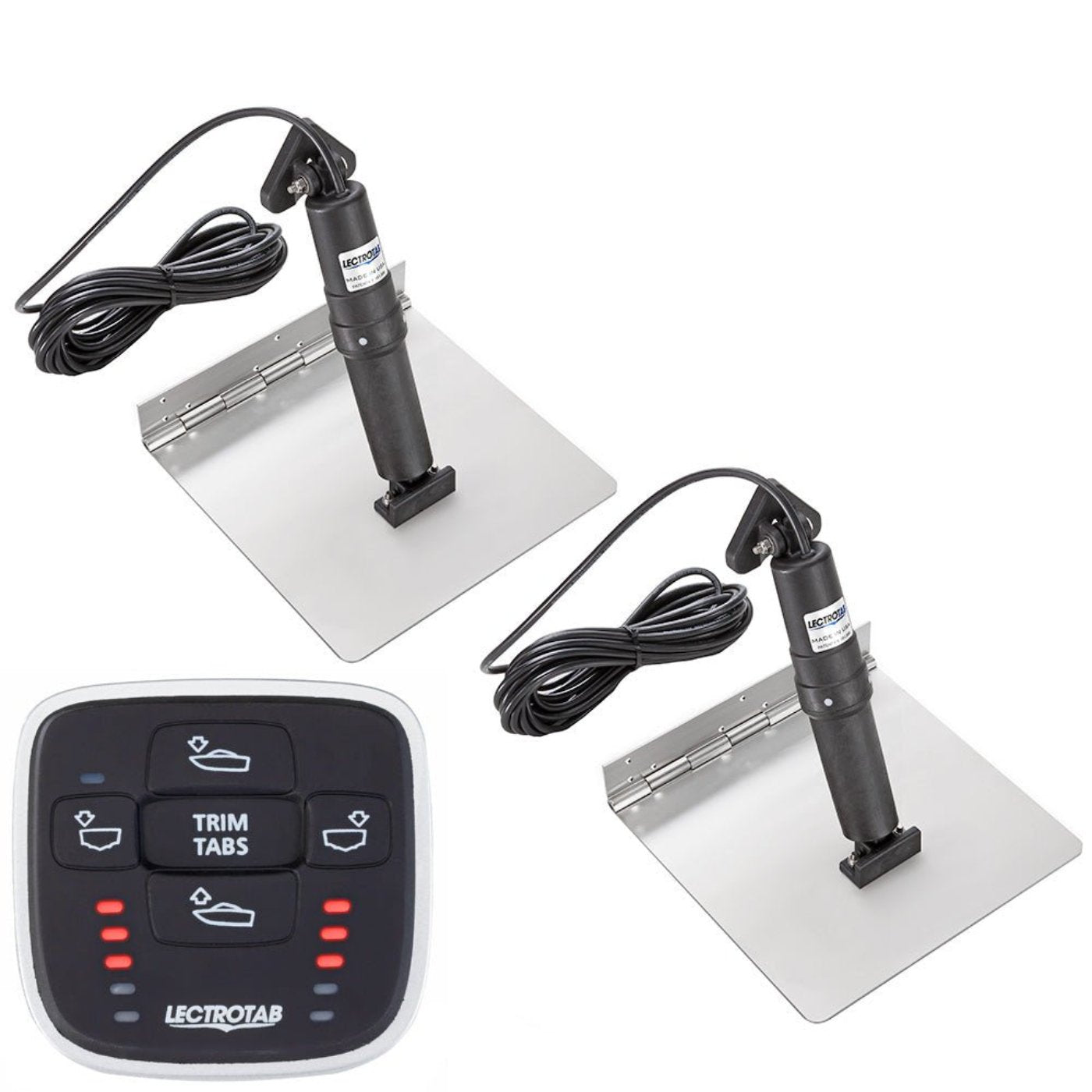

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 24 - XKASML9X24 - CW96281

Lectrotab XKA Stainless Steel Trim Tab Kit w/MLC-1 Control - 9 x 24 - XKASML9X24 - CW96281

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

In the Box

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

Q&A

Q: What are the key features of the Lectrotab XKA Stainless Steel Trim Tab Kit (XKASML9X24)?
A: The XKASML9X24 kit includes 9" x 24" stainless steel trim tabs, a corrosion-resistant design, and an MLC-1 manual control system for precise and efficient trim adjustments.

Q: What does the MLC-1 control system offer?
A: The MLC-1 provides smooth and precise manual control of the trim tabs, allowing users to optimize boat stability, handling, and performance easily.

Q: Can this kit be used in saltwater conditions?
A: Yes, the stainless steel construction ensures excellent corrosion resistance, making it suitable for both saltwater and freshwater environments.

Q: How easy is the installation process?
A: The kit includes pre-drilled trim tabs and all necessary components for straightforward and secure installation.

Q: What types of boats is this kit designed for?
A: This kit is ideal for medium to large recreational and commercial boats needing durable and reliable trim control.

Maintenance Tips

• Rinse After Use: Wash thoroughly with fresh water after saltwater use to prevent corrosion.
• Inspect Hardware: Check screws, hinges, and brackets regularly for tightness and signs of wear.
• Lubricate Moving Parts: Apply marine-grade lubricant to hinges and actuators for smooth operation.
• Monitor Hydraulic & Electrical Systems: Ensure hydraulic fluid levels are adequate, inspect for leaks, and keep electrical connections dry and secure.
• Clean Stainless Steel: Use a stainless steel cleaner to maintain shine and protect against rust.
• Test MLC-1 Control: Regularly test the control system for responsiveness and recalibrate if necessary.
• Protect Wiring: Inspect wiring for damage and secure connections to prevent water exposure or corrosion.
