Lectrotab XKA Aluminum Alloy Trim Tab Kit w/MLC-1 Control - 9 x 12 - XKASML9X12A - CW96332

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/MLC-1 Control - 9 x 12 - XKASML9X12A - CW96332

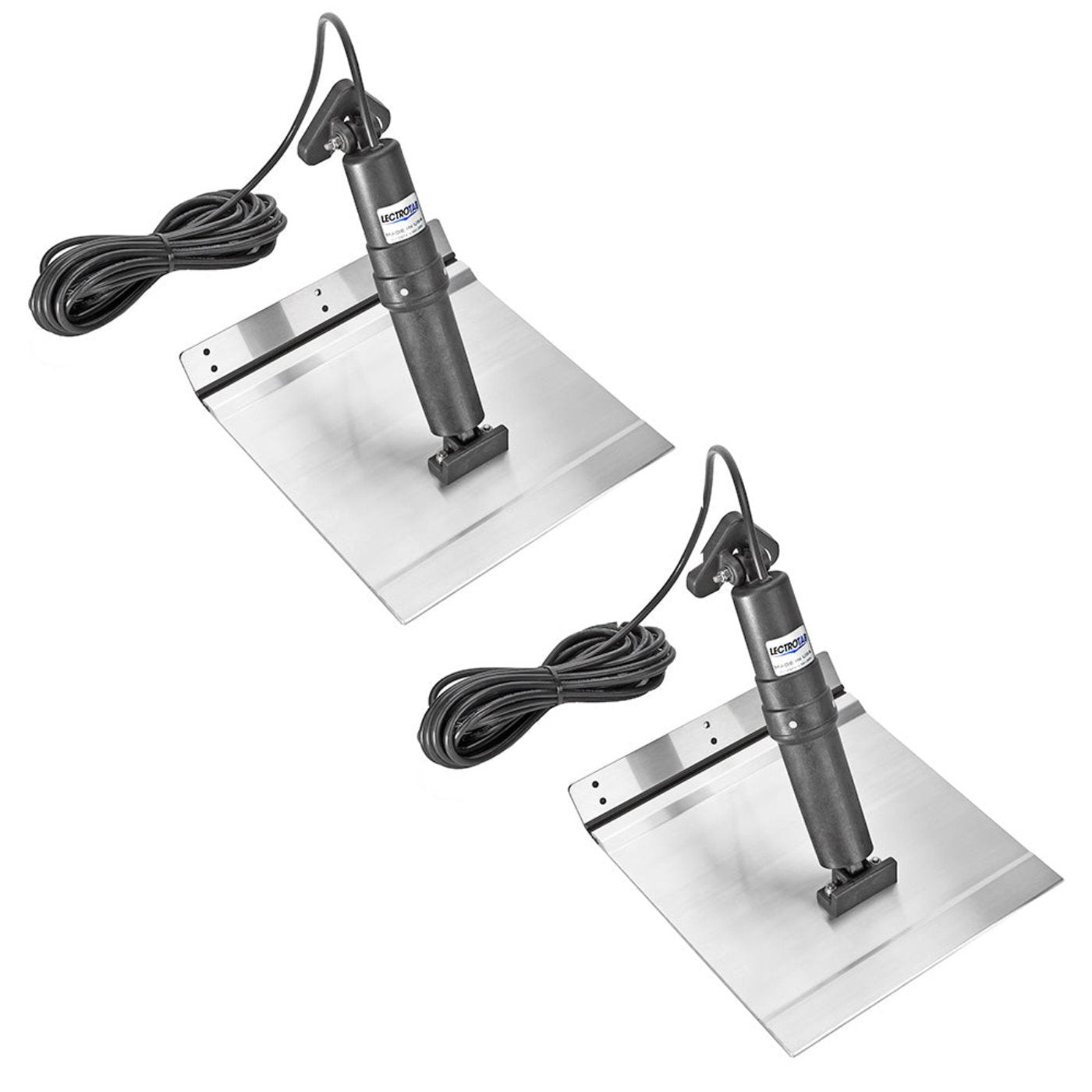

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

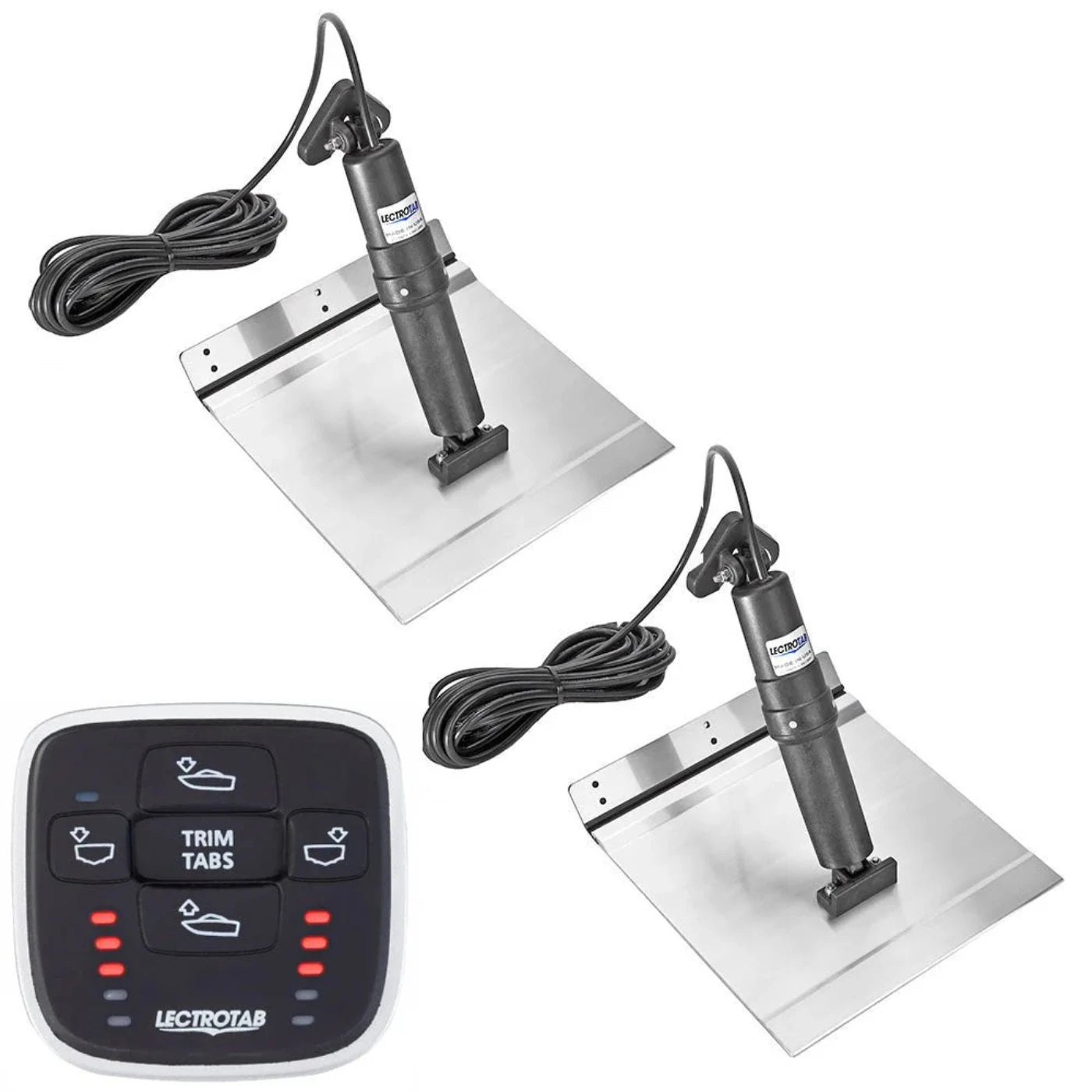

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features

• All Tabs sealed with a corrosive resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

In the Box

• One (1) Flat Rocker Switch

• Two (2) Stainless Steel tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control (9 x 12, XKASML9X12A) is an ideal choice for boaters seeking a reliable and efficient solution for their smaller to mid-sized boats. Here’s why it’s recommended:

• Corrosion-Resistant Aluminum Alloy: Lightweight, durable, and designed to withstand the toughest marine conditions for long-lasting performance.
• MLC-1 Control: Provides precise, easy-to-use trim adjustments, improving boat handling, stability, and overall performance.
• Perfect for Smaller to Mid-Sized Boats: The 9 x 12-inch tabs provide enhanced lift and stability without overwhelming smaller vessels.
• Fuel Efficiency: Reduces drag and improves fuel economy, making your boating experience more cost-effective.
• Smooth and Reliable Operation: High-torque actuators ensure consistent and smooth performance, even in challenging conditions.
• Simple Installation: Pre-assembled kit allows for a quick and easy installation, saving time and effort.

Q&A

Q: What is the Lectrotab XKA Aluminum Alloy Trim Tab Kit w/MLC-1 Control (XKASML9X12A)?
A: A 9 x 12-inch trim tab kit for boats, featuring durable aluminum alloy tabs and the MLC-1 control system, designed to optimize performance, stability, and ride quality with easy, precise adjustments.

Q: What are the key features?
A: Includes corrosion-resistant aluminum alloy trim tabs, stainless steel actuators, and the MLC-1 control system for smooth, reliable adjustments to improve boat handling and fuel efficiency.

Q: Who is it ideal for?
A: Ideal for boat owners of smaller to medium-sized boats looking to enhance stability, fuel efficiency, and overall performance.

Q: What makes it unique?
A: The aluminum alloy trim tabs offer corrosion resistance, and the MLC-1 control system allows for smooth, precise adjustments to improve ride quality.

Q: Is installation straightforward?
A: Yes, the kit comes with all necessary components for installation; professional installation is recommended for the best results and optimal performance.

Maintenance Tips

• Rinse After Use:

  • Always rinse the trim tabs with fresh water after use, especially if operating in saltwater. This removes salt, dirt, and debris that can cause corrosion, helping maintain the trim tab’s performance and lifespan.

• Inspect for Wear and Damage:

  • Regularly inspect the trim tabs, actuators, MLC-1 Control, and mounting hardware for any signs of wear, corrosion, or damage. Replace any damaged or worn components to ensure the system operates safely and effectively.

• Lubricate Moving Parts:

  • Periodically apply marine-grade lubricant to the trim tab hinges and actuators. This helps to reduce friction, prevent rust, and ensure smooth and efficient operation.

• Check Electrical Connections:

  • Inspect the wiring and electrical connections of the MLC-1 Control for signs of wear, corrosion, or loose connections. Ensure all electrical components are sealed properly to prevent moisture from causing electrical issues.

• Test Trim Tab Functionality:

  • Before each use, test the trim tabs with the MLC-1 Control system to ensure they are responding correctly. Address any resistance or malfunction immediately to prevent performance issues.

• Prevent Electrolysis:

  • Install a sacrificial anode to protect the aluminum trim tabs from electrolysis damage. Regularly check the anode and replace it when it is worn down or corroded.

• Annual Maintenance:

  • Perform a comprehensive inspection of the trim tab system once a year. Check the actuators, seals, wiring, and moving parts for any signs of damage or wear. Clean all components, replace any damaged parts, and ensure everything is working properly.
