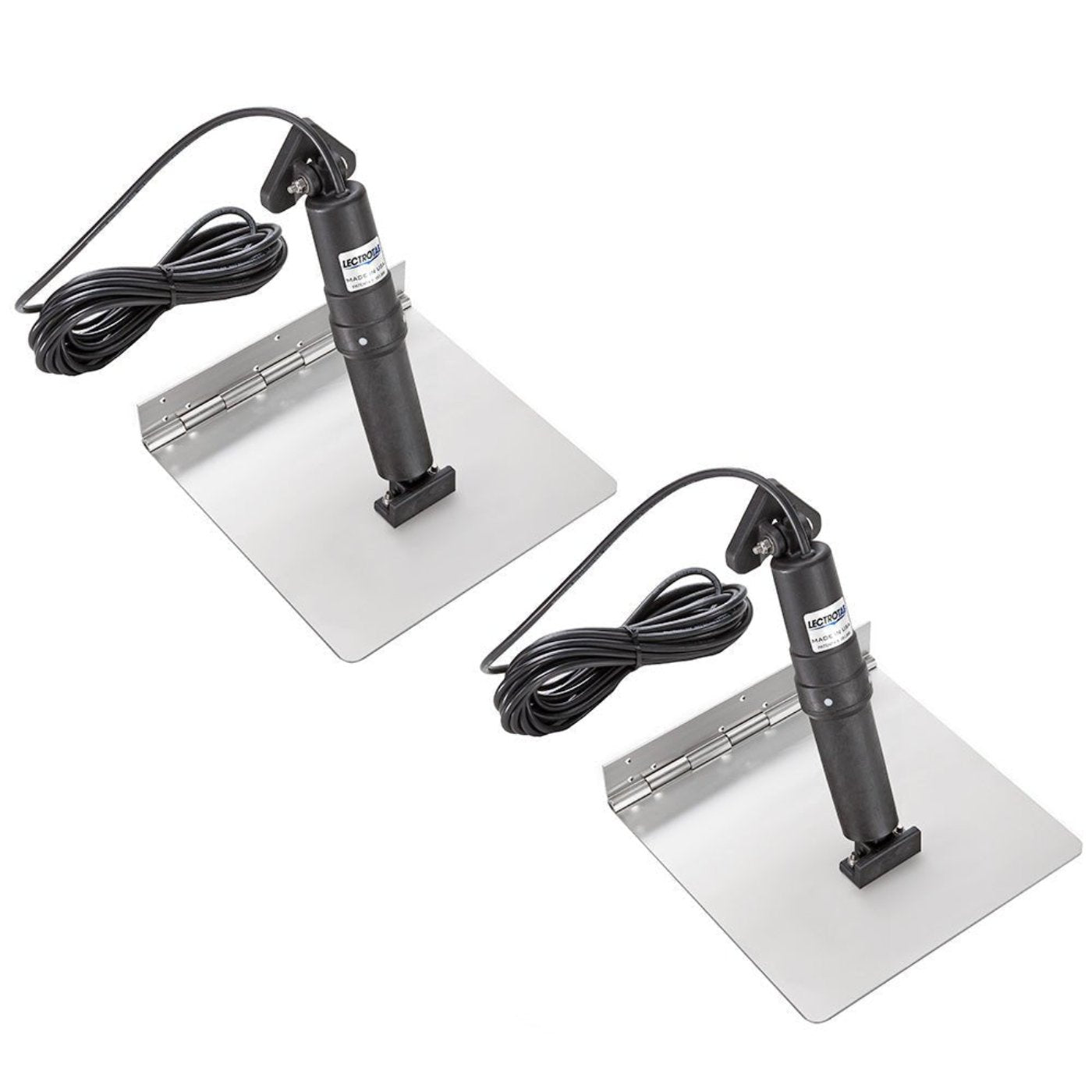

Lectrotab XKA Stainless Steel Trim Tab - 9 x 24 - XKA9X24 - CW96032

Lectrotab XKA Stainless Steel Trim Tab - 9 x 24 - XKA9X24 - CW96032

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

*Control switch not included

Features

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

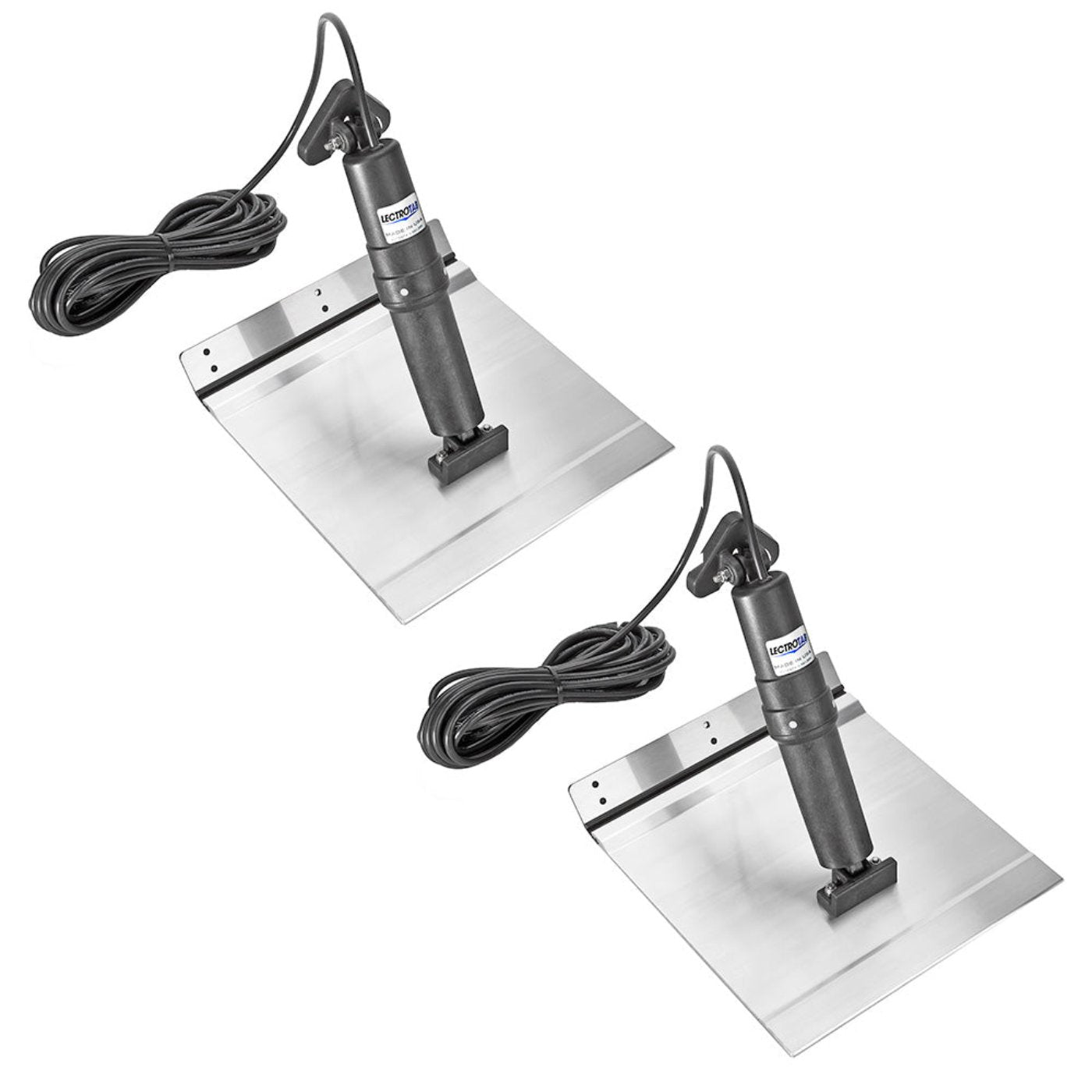

In the Box

• One (1) Flat Rocker Switch

• Two (2) Stainless Steel tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Stainless Steel Trim Tab (9" x 24") - XKA9X24 is a reliable choice for enhancing boat performance. Here’s why it excels:

• Durable Construction: Made from marine-grade stainless steel, ensuring resistance to corrosion in harsh saltwater environments.
• Improved Stability: Enhances boat balance, reduces porpoising, and improves ride comfort in varying water conditions.
• Efficient Design: The 9" x 24" size offers optimal lift for boats requiring precise trim control.
• Smooth Operation: Compatible with Lectrotab actuators for quiet, reliable, and responsive adjustments.
• Easy Installation: Pre-drilled holes and straightforward setup make it user-friendly for both DIY and professional installations.
• Trusted Performance: Backed by Lectrotab’s reputation for quality and innovation in marine technology.

Q&A

Q: What are the key features of the Lectrotab XKA Stainless Steel Trim Tab (XKA9X24)?
A: The Lectrotab XKA 9" x 24" trim tab features durable 12-gauge stainless steel construction, a corrosion-resistant finish, and a streamlined design for superior performance and longevity.

Q: What is the primary use of this trim tab?
A: It enhances boat stability, improves fuel efficiency, and optimizes performance in various water conditions.

Q: Is it resistant to corrosion?
A: Yes, the stainless steel construction ensures excellent resistance to corrosion, even in saltwater environments.

Q: Is this trim tab easy to install?
A: Yes, it is designed for straightforward installation with pre-drilled mounting holes for convenience.

Q: What applications is it ideal for?
A: It is perfect for recreational and commercial boats requiring precise trim control and durable performance.

Maintenance Tips

• Rinse After Use: Wash with fresh water after saltwater exposure to prevent corrosion.
• Inspect Hinges and Screws: Regularly check for loose or damaged hardware and tighten if needed.
• Lubricate Moving Parts: Use marine-grade lubricant to maintain smooth operation.
• Check Hydraulic Fluid: Ensure proper levels in the actuator for optimal performance.
• Clean Stainless Steel: Use a stainless steel cleaner to maintain shine and prevent pitting.
• Test System Regularly: Activate the trim tabs periodically to confirm they are functioning properly.
