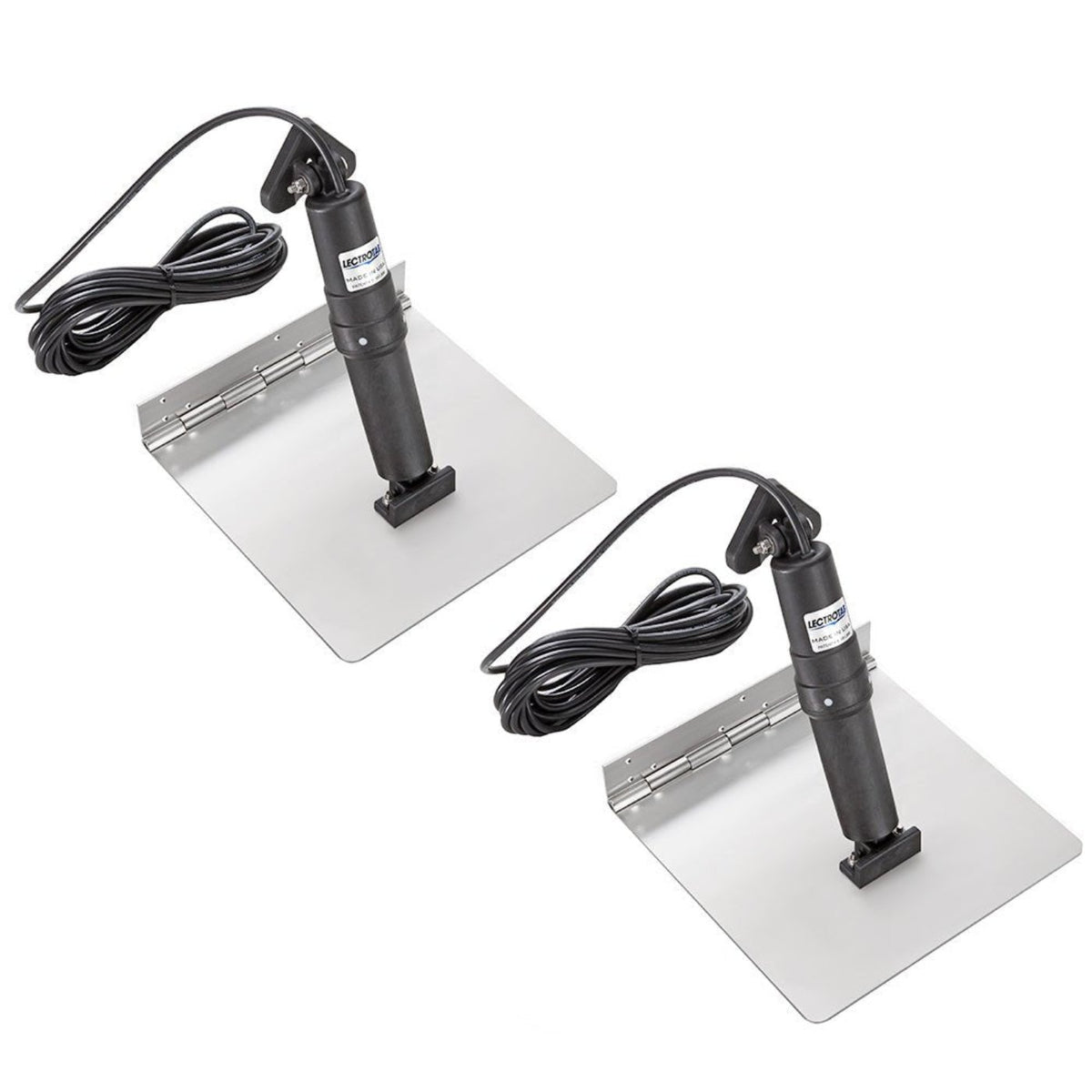

Lectrotab XKA Stainless Steel Trim Tab - 12 x 9 - XKA12X9 - CW96036

Lectrotab XKA Stainless Steel Trim Tab - 12 x 9 - XKA12X9 - CW96036

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Features

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

In the Box

• One (1) Flat Rocker Switch

• Two (2) Stainless Steel tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Stainless Steel Trim Tab (12" x 9") - XKA12X9 is a reliable choice for enhancing your boat’s performance. Here’s why it stands out:

• Marine-Grade Durability: Constructed from premium stainless steel for exceptional corrosion resistance and longevity in saltwater conditions.
• Performance Upgrade: Improves stability, reduces bow rise, and enhances fuel efficiency for a smoother and more controlled ride.
• Versatile Design: The 12" x 9" size is ideal for boats requiring compact yet effective trim adjustments.
• Smooth Operation: Compatible with Lectrotab actuators for quiet and precise trimming, even in demanding conditions.
• Simple Installation: Comes with pre-drilled holes for quick and easy setup, suitable for both DIY and professional installs.
• Trusted Brand: Designed and manufactured by Lectrotab, a leader in reliable marine trim systems.

Q&A

Q: What are the key features of the Lectrotab XKA Stainless Steel Trim Tab (XKA12X9)?
A: The Lectrotab XKA 12" x 9" trim tab is constructed from durable 12-gauge stainless steel, offering corrosion resistance, a sleek design, and reliable performance.

Q: What is the primary function of this trim tab?
A: It enhances boat stability, reduces bow rise, improves fuel efficiency, and ensures smoother handling in various water conditions.

Q: Can it withstand saltwater environments?
A: Yes, the stainless steel construction is corrosion-resistant, making it ideal for both freshwater and saltwater applications.

Q: Is the installation process straightforward?
A: Yes, it features pre-drilled mounting holes for easy and secure installation.

Q: What types of boats are compatible?
A: This trim tab is suitable for recreational and commercial boats requiring efficient and precise trim control.

Maintenance Tips

• Rinse After Use: Wash thoroughly with fresh water after saltwater exposure to prevent corrosion.
• Inspect Hardware: Regularly check screws, hinges, and brackets for tightness and any signs of wear.
• Lubricate Hinges: Apply marine-grade lubricant to ensure smooth movement and reduce wear.
• Check Hydraulic System: Monitor fluid levels and inspect lines for leaks or damage.
• Clean Stainless Steel: Use a non-abrasive stainless steel cleaner to prevent rust and maintain appearance.
• Test Operation: Periodically activate trim tabs to ensure proper functionality and alignment.
