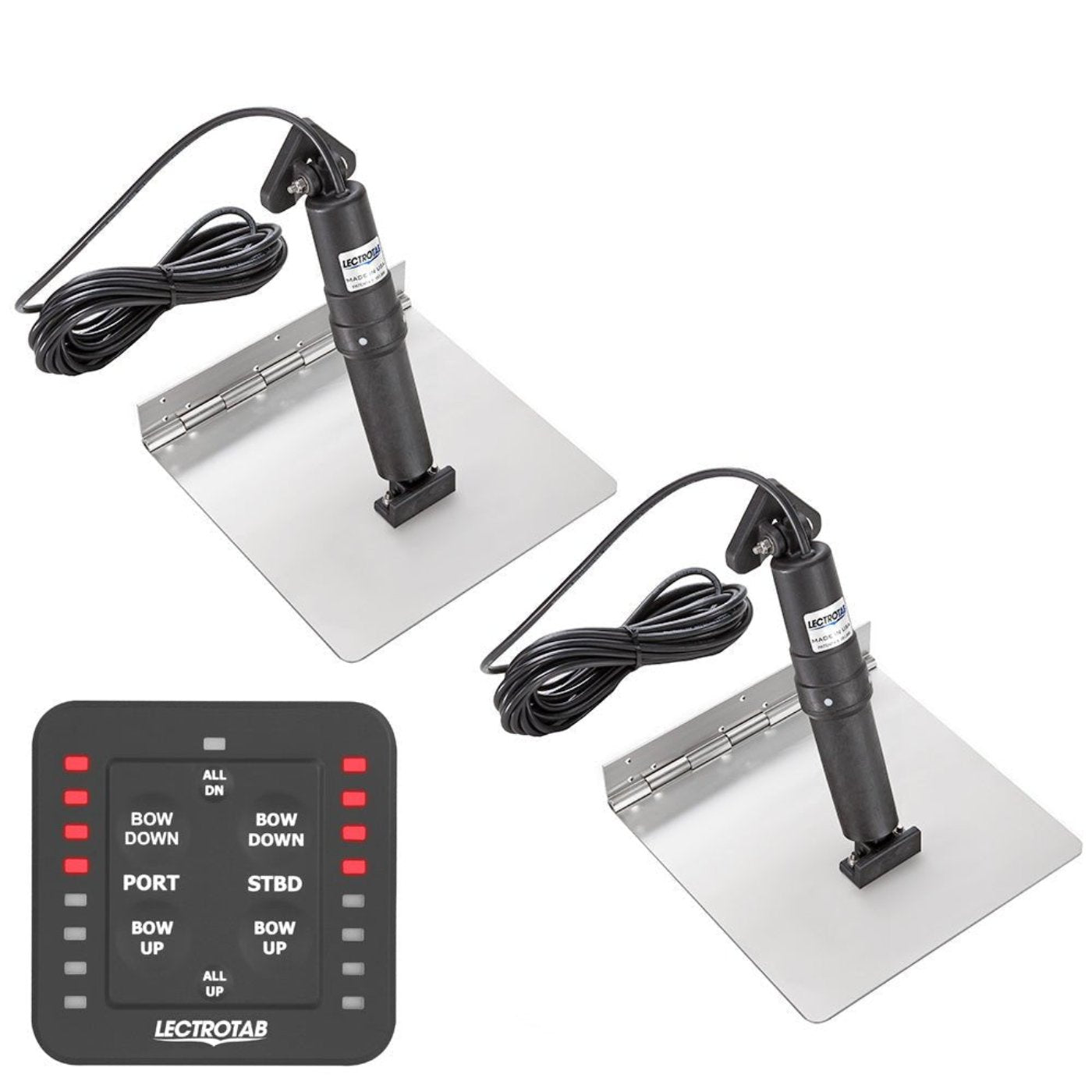

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 9 x 9 - XKASL9X9 - CW96270

Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 9 x 9 - XKASL9X9 - CW96270

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Features

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

In the Box

• One (1) Flat Rocker Switch

• Two (2) Stainless Steel tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control - 9 x 9 (Model: XKASL9X9 - CW96270) is a top choice for boaters looking for simplicity, performance, and durability in a compact trim solution. Here’s why it stands out:

• Compact 9" x 9" Size: Ideal for smaller boats, offering precise trim adjustments and improved stability without taking up valuable space.
• Premium Stainless Steel: Made with corrosion-resistant stainless steel for long-lasting performance, even in harsh marine conditions.
• One-Touch Control: The user-friendly one-touch control makes it easy to adjust trim settings with a single press, simplifying boat operation.
• Enhanced Performance: Reduces drag and enhances boat efficiency, improving overall stability and fuel economy.
• Quiet Operation: The system operates smoothly and quietly, providing a more pleasant boating experience.
• Quick Installation: Designed for easy setup, so you can quickly start enjoying better boat performance.

Q&A

Q: What are the features of the Lectrotab XKA Stainless Steel Trim Tab Kit w/One-Touch Control (9" x 9")?
A: This 9" x 9" trim tab kit features durable stainless steel construction, a One-Touch control system for effortless trim adjustments, and improved boat performance with enhanced stability and fuel efficiency.

Q: Is the trim tab kit resistant to corrosion?
A: Yes, it is made from marine-grade stainless steel, ensuring excellent corrosion resistance in saltwater and harsh marine environments.

Q: What type of boats is this trim tab kit suitable for?
A: The 9" x 9" size is ideal for smaller to medium-sized boats, offering precise trim control for smoother handling and better performance.

Q: How does the One-Touch control system improve usability?
A: The One-Touch control system provides easy, single-touch operation for quick and precise trim adjustments, optimizing boat stability and efficiency.

Maintenance Tips

• Rinse After Use: Always rinse the trim tabs with fresh water after saltwater use to prevent salt and mineral build-up.
• Inspect Components: Check the trim tabs, actuators, and the One-Touch Control system for signs of wear or damage.
• Clean Actuators: Keep actuators free from debris and ensure they are operating smoothly.
• Test One-Touch Control: Regularly test the One-Touch Control system to ensure it functions properly and responds accurately.
• Tighten Fasteners: Periodically check and tighten all screws, bolts, and fasteners to keep the system secure.
• Lubricate Moving Parts: Apply marine-grade lubricant to moving parts, such as the actuators, to reduce friction and protect against rust.
• Check Electrical Connections: Inspect all electrical connections for corrosion and ensure they are securely attached for safe operation.
