Lectrotab XKA Aluminum Alloy Trim Tab Kit w/MLC-1 Control - 12 x 18 - XKASML12X18A -  CW96337

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.

Features

• All Tabs sealed with a corrosive resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

In the Box

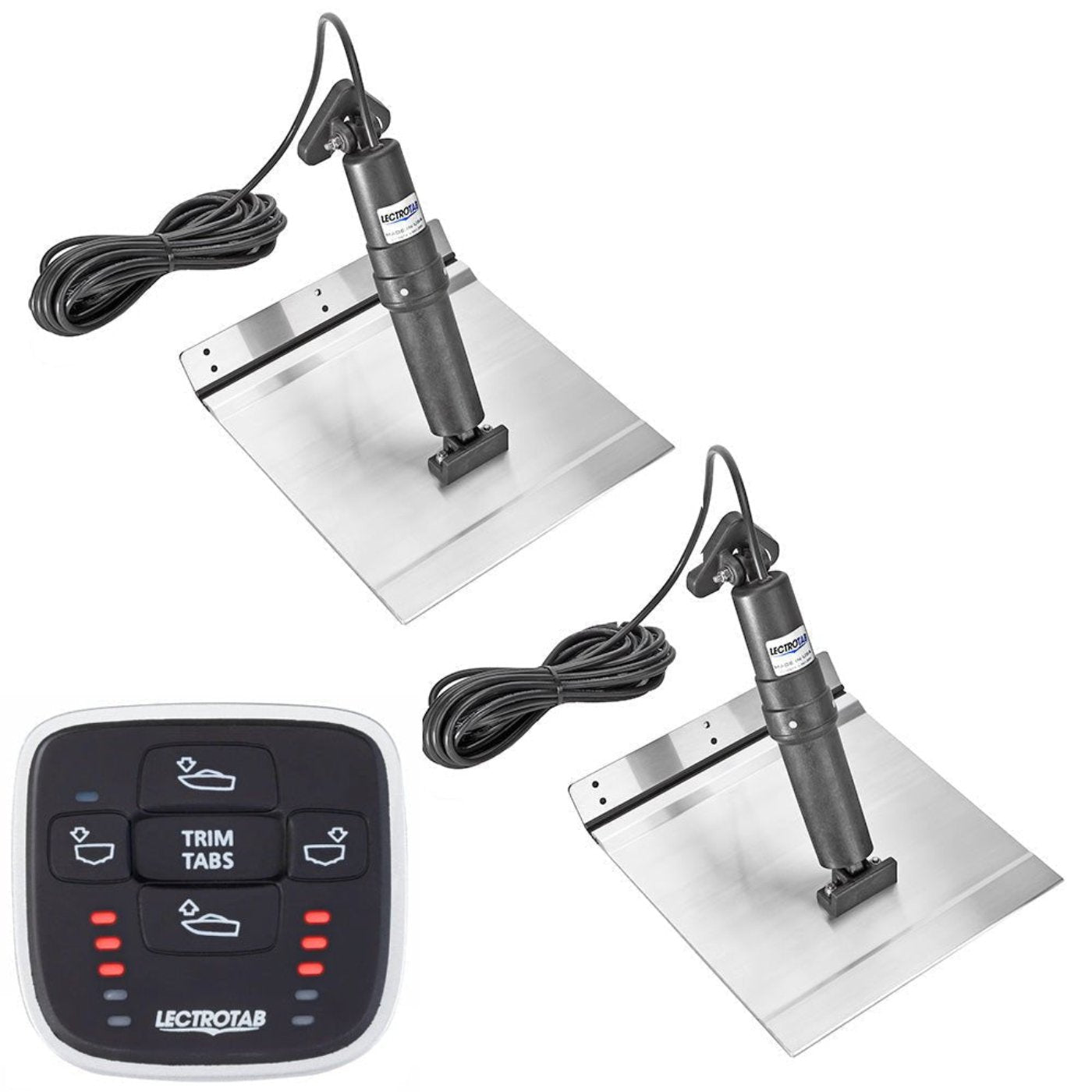

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with MLC-1 Control (12 x 18, XKASML12X18A) is a high-quality solution for enhancing your boat's performance and stability. Here's why it's a top choice:

• Robust Aluminum Alloy Construction: Lightweight yet durable, offering excellent corrosion resistance in marine environments.
• Precise MLC-1 Control: Provides accurate and responsive trim adjustments for smoother rides and improved efficiency.
• Performance Boost: Reduces drag, increases lift, and enhances fuel economy for a more comfortable and economical boating experience.
• Compact Design: 12 x 18-inch tabs are ideal for medium-sized boats, offering optimal balance and maneuverability.
• Efficient Actuators: High-torque actuators ensure consistent and reliable operation, even in rough waters.
• Easy Installation: Pre-assembled kit simplifies the setup process, saving time and effort.

Q&A

Q: What is the Lectrotab XKA Aluminum Alloy Trim Tab Kit w/MLC-1 Control (XKASML12X18A)?
A: A 12 x 18-inch trim tab kit designed for boats, featuring aluminum alloy tabs and an MLC-1 control system to enhance stability, performance, and efficiency on the water.

Q: What are the key features?
A: Includes lightweight, corrosion-resistant aluminum alloy trim tabs, durable stainless steel actuators, and the MLC-1 control system for precise and reliable adjustments.

Q: Who is it ideal for?
A: Ideal for boat owners looking to improve handling, optimize fuel efficiency, and achieve smoother rides in various water conditions.

Q: What makes it stand out?
A: The aluminum alloy construction ensures durability and resistance to marine environments, while the MLC-1 system offers user-friendly operation and control.

Q: Is it easy to install?
A: Yes, the kit includes all necessary components for installation; professional setup is recommended for optimal performance.

Maintenance Tips

• Rinse After Use:

  • Wash the trim tabs with fresh water after each use, especially in saltwater, to remove salt, sand, and debris that can cause corrosion.

• Inspect Components:

  • Regularly examine the tabs, mounting hardware, and hinges for any signs of wear, damage, or corrosion. Replace damaged parts promptly.

• Lubricate Moving Parts:

  • Apply a marine-grade lubricant to the hinges and pivot points to maintain smooth movement and prevent rust.

• Check the Control System:

  • Inspect the MLC-1 control wiring and connections for corrosion, damage, or looseness. Ensure all connections are secure and water-resistant.

• Test Regularly:

  • Before heading out, test the system to confirm the trim tabs respond correctly to adjustments from the MLC-1 control.

• Prevent Electrolysis:

  • Install and maintain a sacrificial anode to protect the aluminum from electrolysis damage, especially in saltwater. Replace the anode when it shows significant wear.

• Annual Maintenance:

  • Perform a detailed inspection of actuators, seals, wiring, and all mechanical components. Replace or repair any worn parts.
  • Apply a protective anti-corrosion spray to the aluminum surfaces if used in harsh marine environments.
