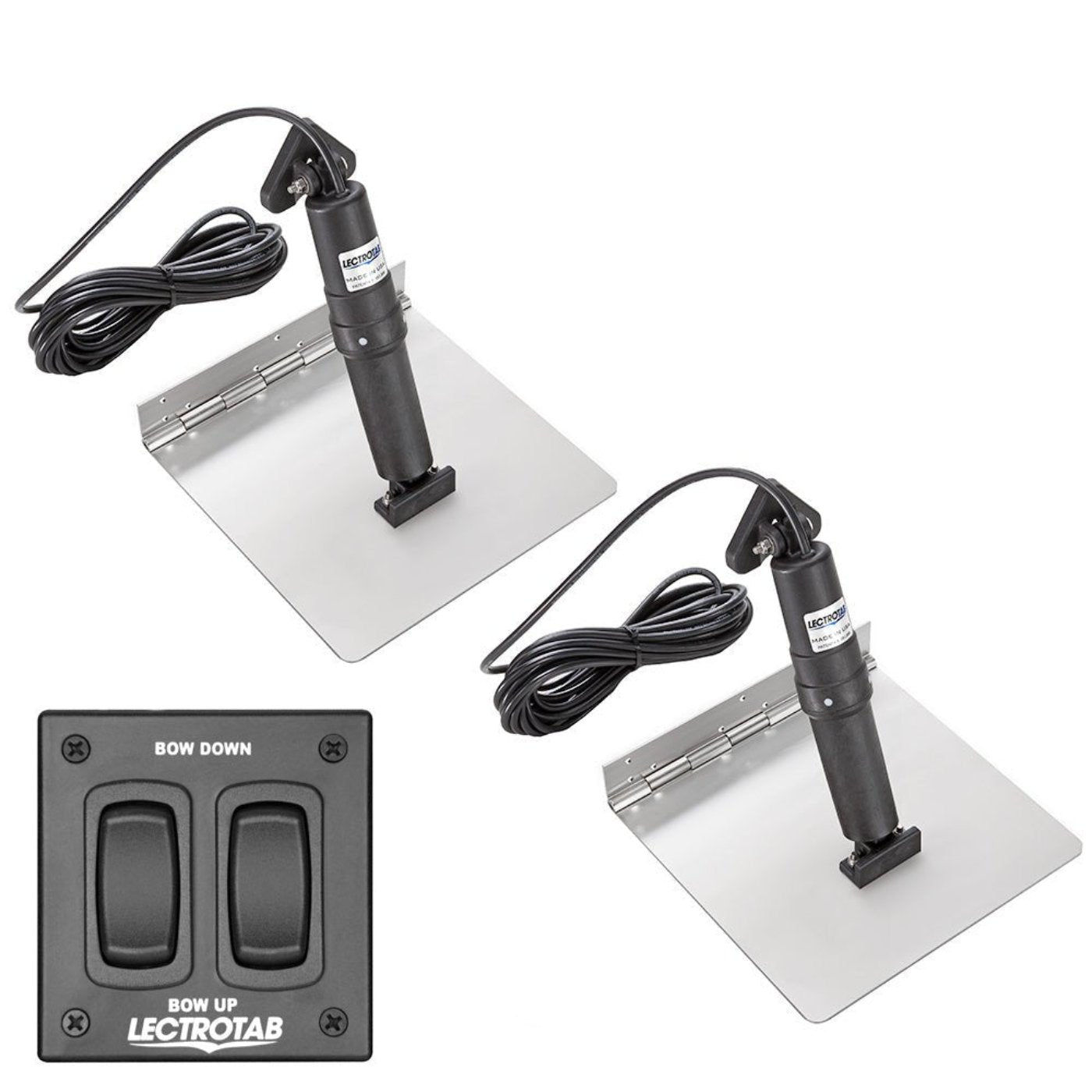

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 24 - XKAF9X24 - CW96265

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 24 - XKAF9X24 - CW96265

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

In the Box

• One (1) Manual Leveling Control

• Two (2) Aluminum Alloy tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 24 (Model: XKAF9X24 - CW96265) is an excellent choice for boat owners seeking enhanced control and performance. Here’s why it stands out:

• Larger Surface Area: The 9" x 24" size provides more lift, improving handling and stability for mid-sized to larger boats.
• Stainless Steel Construction: Built to last with corrosion-resistant materials, offering durability in saltwater conditions.
• Rocker Switch Control: The intuitive rocker switch allows easy, precise adjustments while underway.
• Improved Performance: Reduces drag, enhances fuel efficiency, and boosts overall ride quality.
• Quiet & Efficient Operation: Designed for smooth, silent adjustments to reduce noise during use.
• Simple Installation: Quick setup with minimal tools required, so you can get back on the water faster.

Q&A

Q: What are the features of the Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch (9" x 24")?
A: This 9" x 24" trim tab kit features durable stainless steel construction, a user-friendly rocker switch for easy operation, and efficient trim control for enhanced boat performance.

Q: Is this trim tab kit resistant to corrosion?
A: Yes, it is made from marine-grade stainless steel, ensuring long-lasting corrosion resistance in saltwater environments.

Q: What type of boats is this trim tab kit designed for?
A: The 9" x 24" size is perfect for medium to large boats, offering improved stability, fuel efficiency, and comfort.

Q: How does the rocker switch benefit the user?
A: The rocker switch allows for simple, precise control over the trim tabs, making adjustments quick and effortless for optimal performance.

Maintenance Tips

• Rinse After Use: Always rinse the trim tabs with fresh water after using them in saltwater to prevent rust and corrosion.
• Inspect Components: Regularly inspect trim tabs, actuators, and hardware for any damage or signs of wear, replacing parts as needed.
• Clean Actuators: Ensure actuators are free from debris and moving smoothly by cleaning them regularly.
• Test Rocker Switch: Check the rocker switch functionality before each trip to ensure smooth control over the trim tabs.
• Tighten Fasteners: Periodically check and tighten all mounting bolts, screws, and fasteners to maintain secure attachments.
• Apply Lubricant: Use a marine-grade lubricant on moving parts to protect them from wear and corrosion.
• Check Electrical Connections: Inspect all wiring and connectors for corrosion or loose connections, ensuring proper function.
