Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 12 x 12 - XKAF12X12 - CW96267

Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 12 x 12 - XKAF12X12 - CW96267

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

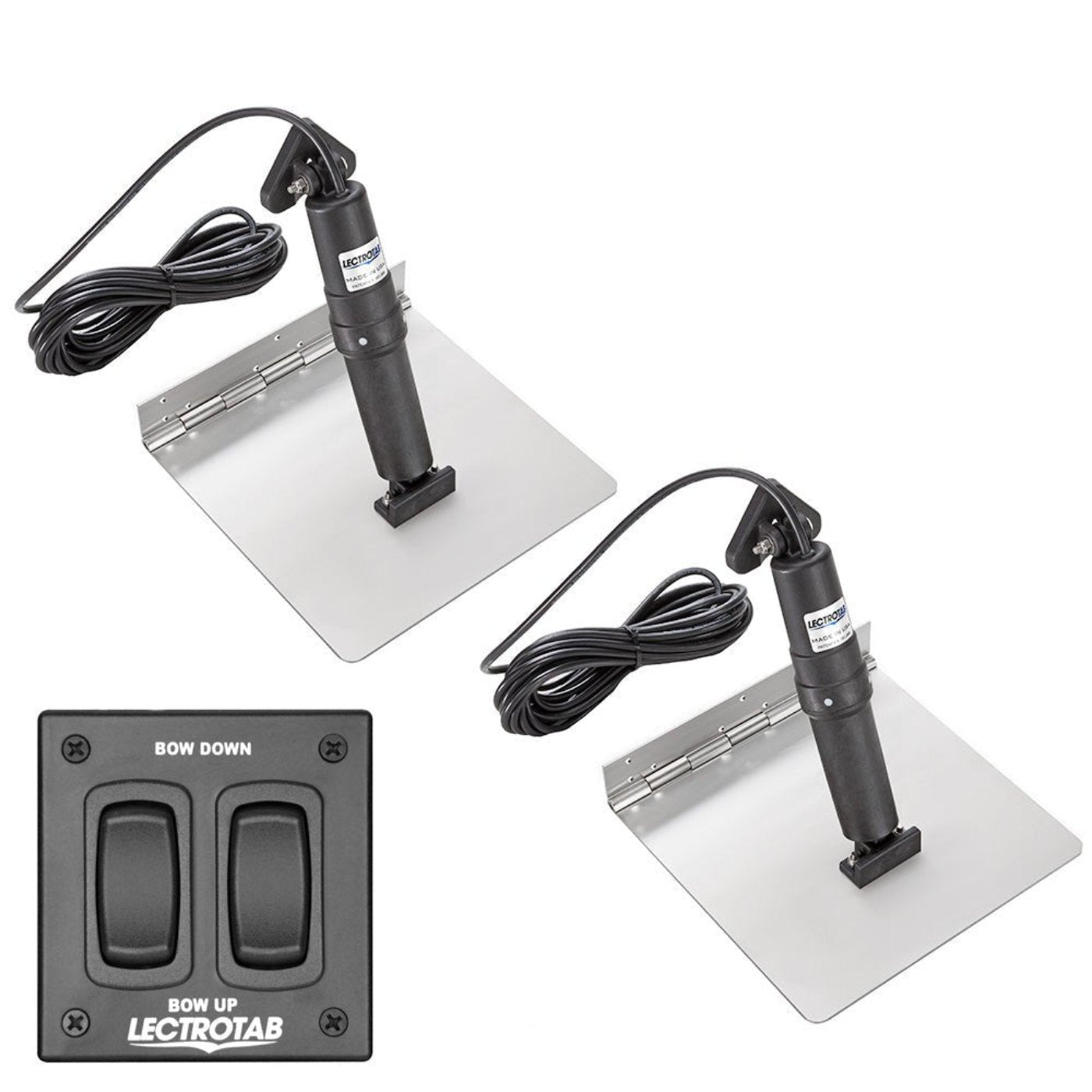

In the Box

• One (1) Flat Rocker Switch

• Two (2) Stainless Steel tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 12 x 12 (Model: XKAF12X12 - CW96267) is an ideal solution for boaters looking to enhance performance with a durable and reliable trim system. Here's why it's a top choice:

• 12" x 12" Size: Perfect for medium to large boats, providing a balanced lift and trim control for better stability and maneuverability.
• Durable Stainless Steel: Corrosion-resistant, ensuring longevity and reliability in harsh marine environments.
• Rocker Switch Control: Easy-to-operate rocker switch allows for smooth, quick adjustments to optimize your boat’s performance on the water.
• Boosted Efficiency: Reduces drag, improves fuel efficiency, and enhances overall boat handling for a more enjoyable ride.
• Quiet & Smooth Operation: Delivers silent, smooth adjustments, reducing operational noise for a more peaceful boating experience.
• Simple Installation: Designed for easy installation, allowing you to enjoy enhanced performance with minimal downtime.

Q&A

Q: What are the features of the Lectrotab XKA Stainless Steel Trim Tab Kit w/Rocker Switch (12" x 12")?
A: This 12" x 12" trim tab kit features durable stainless steel construction, a reliable rocker switch for precise control, and effective trim adjustments for improved boat stability and performance.

Q: Is the trim tab kit resistant to corrosion?
A: Yes, it is made from marine-grade stainless steel, offering superior corrosion resistance in saltwater conditions.

Q: Which boats are compatible with this trim tab kit?
A: The 12" x 12" size is ideal for medium-sized boats, enhancing fuel efficiency, stability, and handling.

Q: How does the rocker switch benefit the user?
A: The rocker switch enables easy, precise control of the trim tabs, allowing for quick adjustments to optimize boat performance and comfort.

Maintenance Tips

• Rinse After Use: Always rinse trim tabs with fresh water after exposure to saltwater to reduce corrosion and salt residue.
• Inspect for Damage: Regularly inspect trim tabs, actuators, and hardware for signs of wear, cracks, or damage.
• Clean Actuators: Remove debris from actuators and ensure they operate smoothly without obstruction.
• Test Rocker Switch: Test the rocker switch functionality before every use to ensure proper control of the trim tabs.
• Tighten Fasteners: Periodically check and tighten all screws and bolts to prevent them from loosening over time.
• Lubricate Moving Parts: Use a marine-grade lubricant on moving components to minimize friction and protect against rust.
• Check Electrical Connections: Inspect all electrical wiring and connectors for corrosion or loose connections to ensure safe operation.
