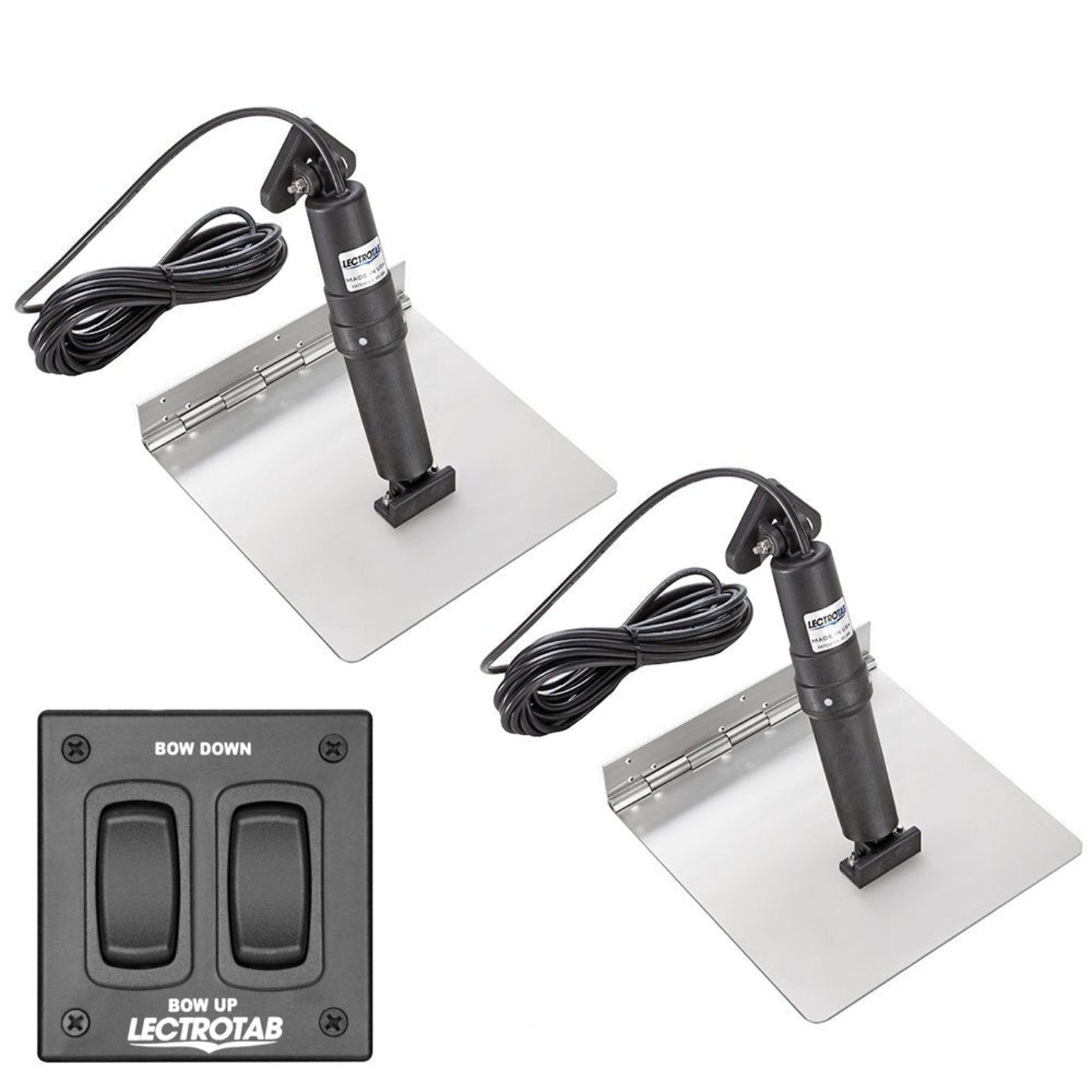

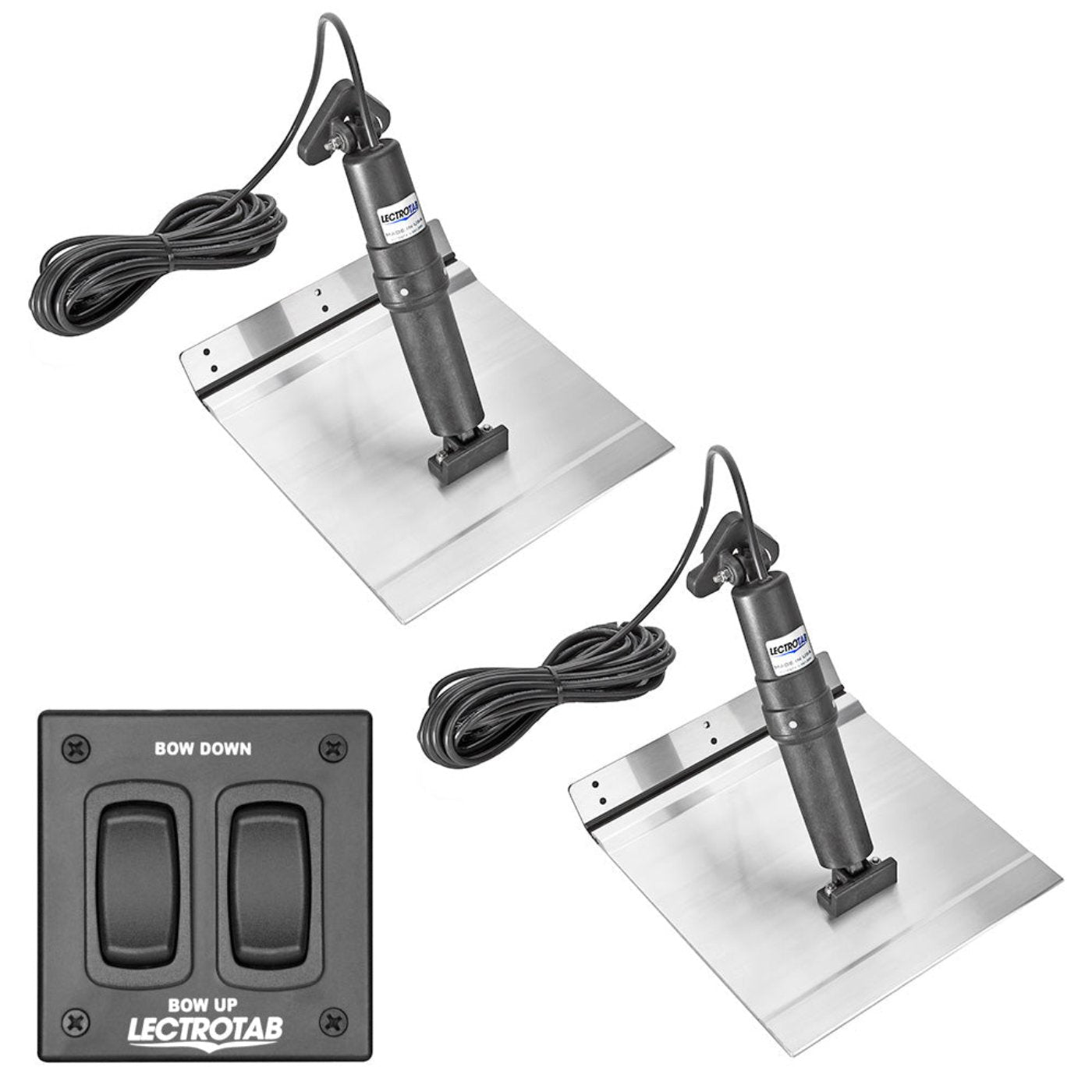

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/Rocker Switch - 12 x 12 - XKAF12X12A - CW96300

Lectrotab XKA Aluminum Alloy Trim Tab Kit w/Rocker Switch - 12 x 12 - XKAF12X12A - CW96300

The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features

• All Tabs sealed with a corrosive resistant epoxy coating

• Equivalent strength to 10 gauge stainless steel

• "No Break" polypropylene hinge tested over 300,000 cycles to a 90° bend without failure

• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth

• Utilizes internal pressure equalization system

• Internal brake system prevents unwanted tab movement when under way or backing down

• Quiet operation

• Actuators are fully load tested to push 1000 lbs of force

• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Specification

In the Box

• One (1) Flat Rocker Switch

• Two (2) Stainless Steel tabs

• Two (2) actuators w/23' (7 M) cables

• Instruction Manual

Product Manual

Owners Manual

Product Brochure

What Our Experts Think

The Lectrotab XKA Aluminum Alloy Trim Tab Kit (12" x 12") with Rocker Switch is a versatile and durable option for improved boat handling. Here’s why it’s a smart choice:

• Balanced Dimensions: 12" x 12" size offers precise control and stability, ideal for medium-sized boats.
• Durable Aluminum Alloy: Lightweight and corrosion-resistant, perfect for long-term use in saltwater or freshwater.
• Complete Kit: Includes an intuitive rocker switch for smooth and accurate trim adjustments.
• Performance Enhancer: Reduces drag, improves fuel efficiency, and delivers a smoother ride in various conditions.
• Effortless Installation: Pre-drilled tabs allow for quick and straightforward setup.
• Versatile Functionality: Designed to optimize boat handling and balance across a range of water conditions.

Q&A

Q: What are the features of the Lectrotab XKA Aluminum Alloy Trim Tab Kit with Rocker Switch (12 x 12)?
A: The Lectrotab XKAF12X12A trim tab kit includes 12″ x 12″ aluminum alloy trim tabs, providing excellent corrosion resistance, durability, and enhanced boat performance. The included rocker switch offers precise control to optimize stability and fuel efficiency.

Q: What is included in the kit?
A: The kit comes with two 12″ x 12″ aluminum alloy trim tabs, a rocker switch for control, and all necessary mounting hardware for easy installation.

Q: What material are the trim tabs made of?
A: The trim tabs are made of high-quality aluminum alloy, ensuring lightweight strength and resistance to marine corrosion.

Q: What is the purpose of this trim tab kit?
A: It improves boat stability, reduces bow rise, enhances fuel efficiency, and provides smoother performance in diverse water conditions.

Q: Does the kit include a control switch?
A: Yes, the kit includes a rocker switch for simple and accurate adjustment of the trim tabs.

Q: Is installation straightforward?
A: Yes, the kit is designed for an easy installation process and includes all required hardware.

Q: What are the dimensions of the trim tabs?
A: Each trim tab measures 12″ x 12″, making them suitable for a variety of boat sizes, especially small to medium-sized vessels.

Maintenance Tips

• Freshwater Rinse: After each outing, rinse the trim tabs with fresh water to remove salt, debris, and prevent corrosion.
• Regular Inspections: Check tabs, brackets, and fasteners for damage, bending, or rust. Tighten any loose fittings.
• Anti-Fouling Protection: Apply marine-grade anti-fouling paint to the tabs to prevent algae and barnacle buildup.
• Rocker Switch Check: Test the rocker switch frequently for responsiveness, and inspect wiring for wear or corrosion.
• Actuator Lubrication: Periodically apply marine-grade lubricant to the actuators to maintain smooth movement.
• Proper Alignment: Ensure tabs are aligned correctly and fully retract when not in use to reduce drag and protect durability.
