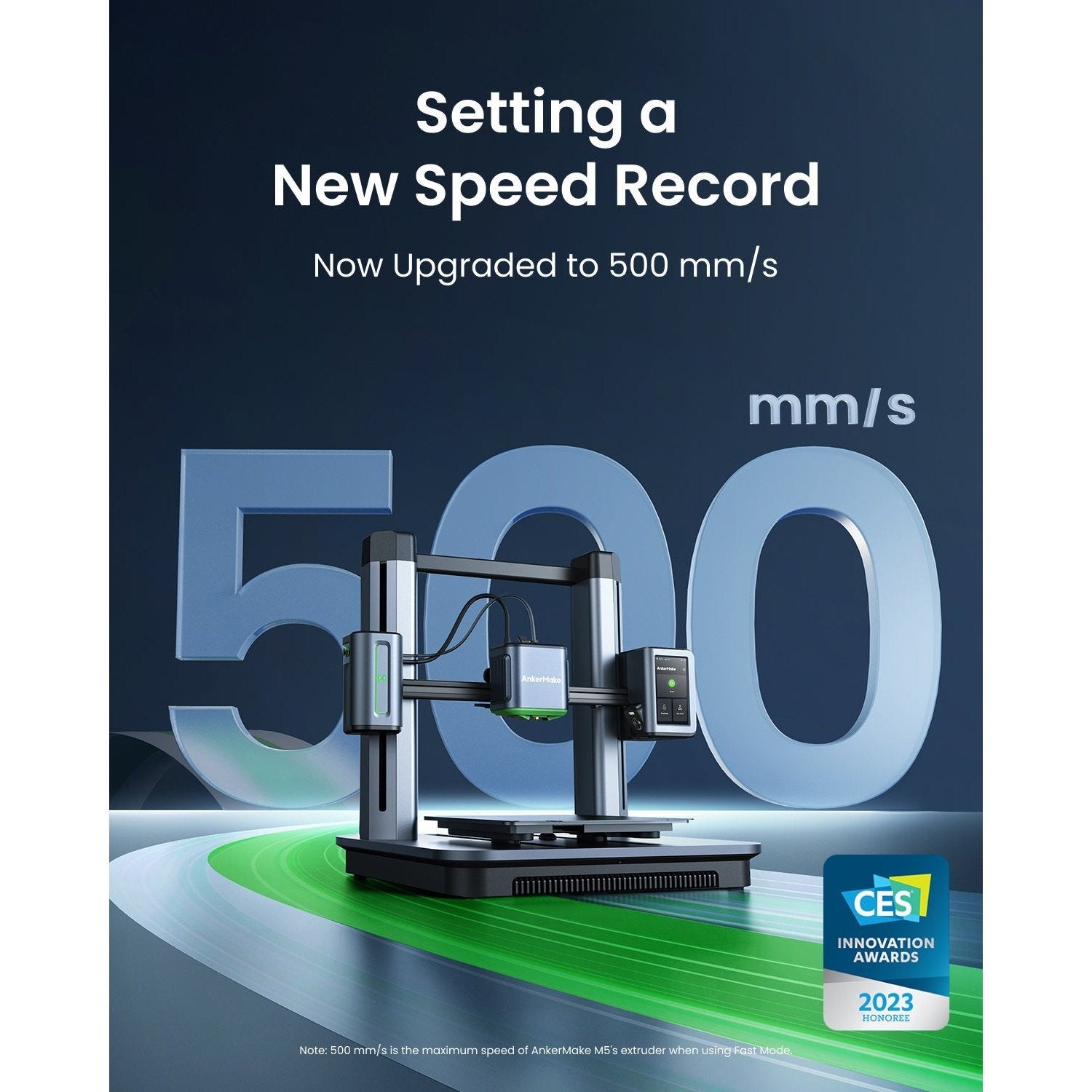

Achieves smooth power output and increases power release by 30% compared to Power-boost™ 1.0, allowing for double the printing speed and acceleration of M5, without sacrificing printing quality.
| Print Volume (L×W×H) | 235×235×250 mm³ |
|---|---|
| Fast Mode Speed | 500 mm/s |
| Fast Mode Acceleration | 5,000 mm/s² |
| Normal Mode Speed | 250 mm/s |
| Normal Mode Acceleration | 2,500 mm/s² |
| Max Extruder Speed | 100mm/s |

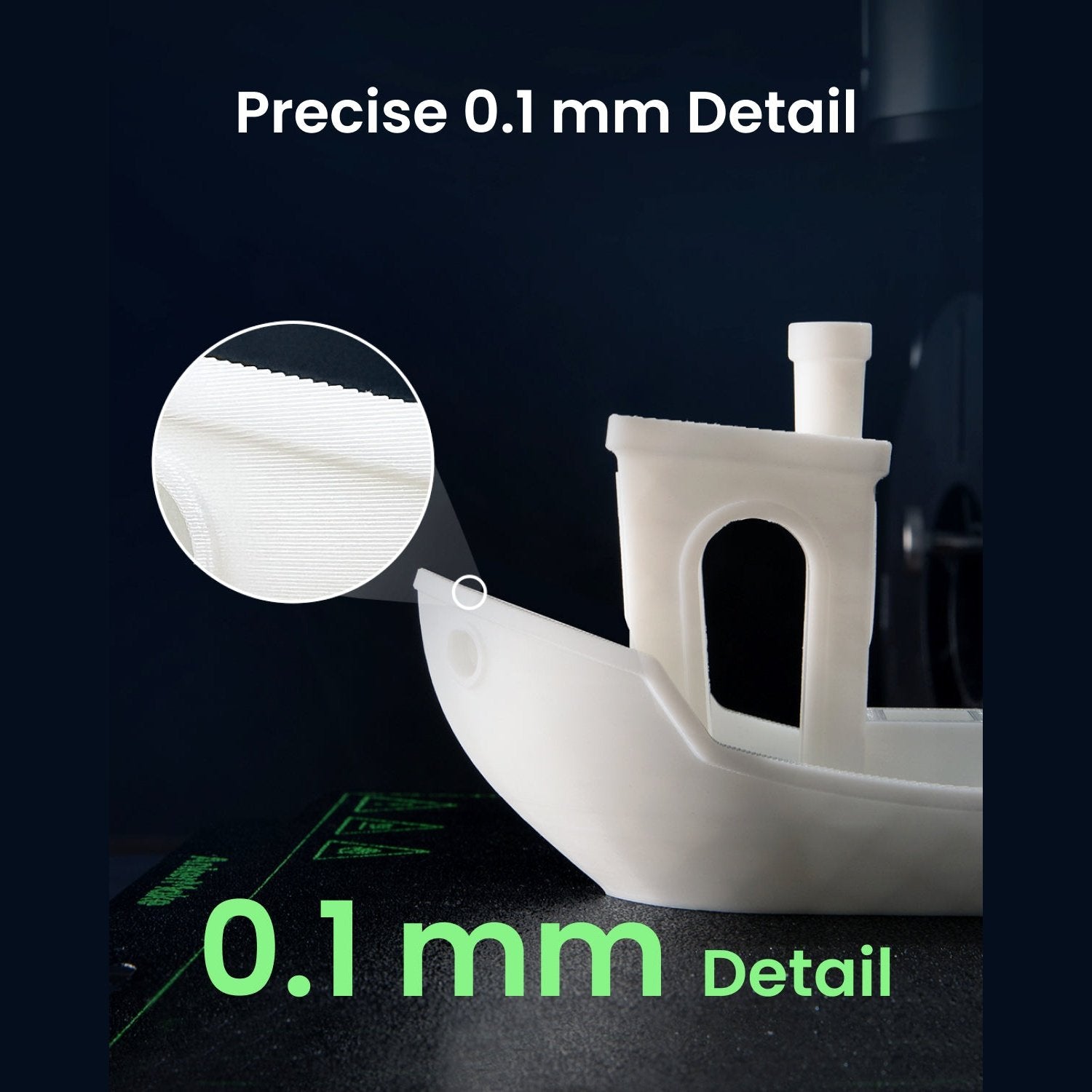

| Print Precision[5] | ±0.1 mm |
| Nozzle Diameter | 0.4 mm (Compatible with 0.2/0.6/0.8 mm) |
| Filament Diameter | 1.75 mm |
| Print Materials | PLA/PETG/TPU/ABS |
| Extrude | Ultra Direct Extrude |
| Part Cooling | Double Cooling Fan |
| Extruding Gear | Double Hardened Steel |
| Heated Plate | PEI Soft Magnetic Steel |
| Auto-Levelling | Auto 49 (7×7) Points |
| Filament Sensor | Broken Material Detection |
| CPU | Dual XBurst®(1.2GHz) + XBurst®0(240MHz) |
| Operation System | Linux |
| EMMC | 8 GB |
| Connection | Wi-Fi (App, AnkerMake Studio), USB-C Flash Drive, OTA Upgrade |
| Display | 4.3-inch Touch Screen |
| Remote Control | AnkerMake App, AnkerMake Studio |
| Voice Assistant | Amazon Alexa (Printing Status Check) |
| File Input Format | STL, OBJ |
| Supported OS | macOS, Windows |
| Machine Size | 502×438×470 mm (Without Filament Holder) |
| Net Weight[6] | 27.8 lb / 12.6 kg |
| Gross Weight[7] | 34.6 lb / 15.7 kg |
