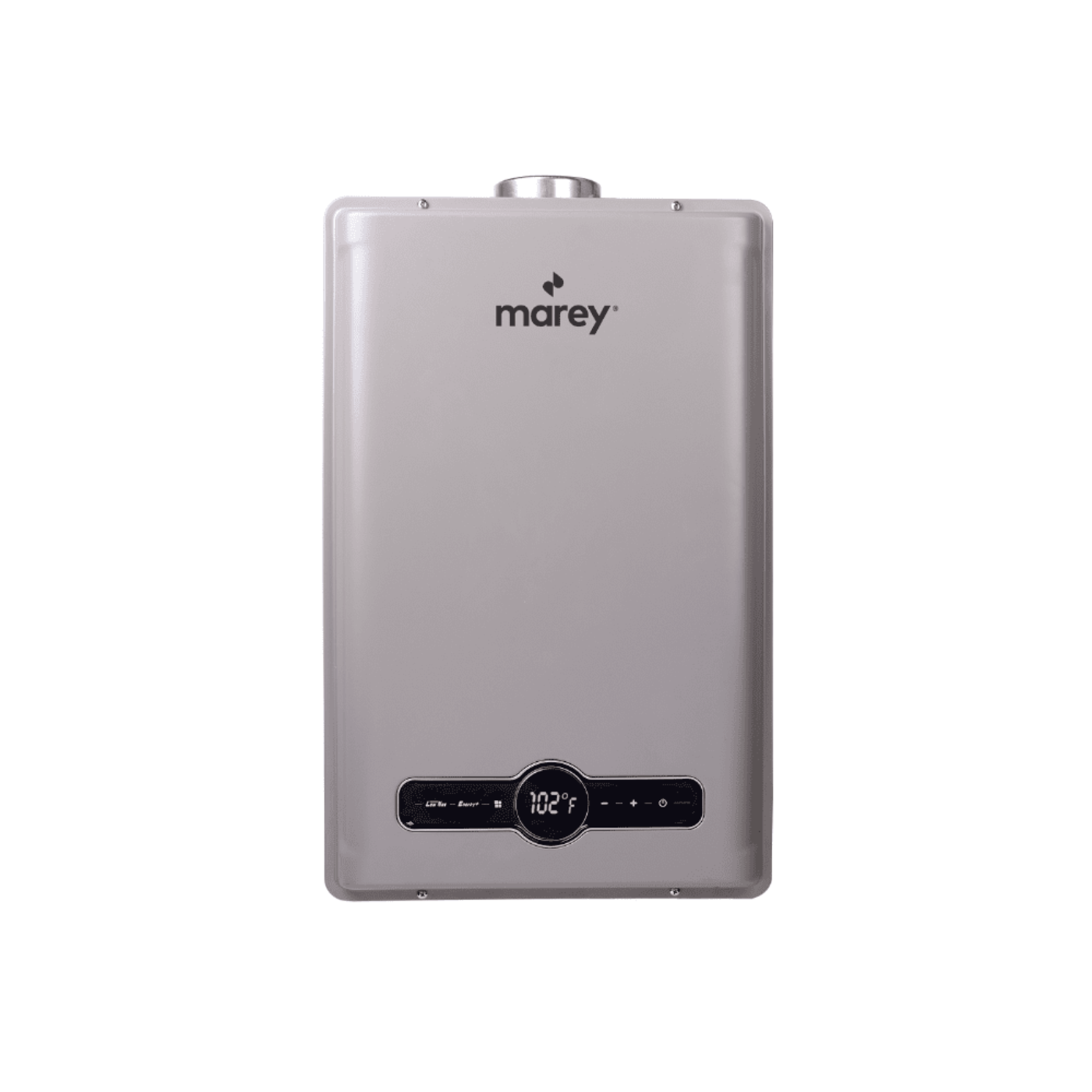

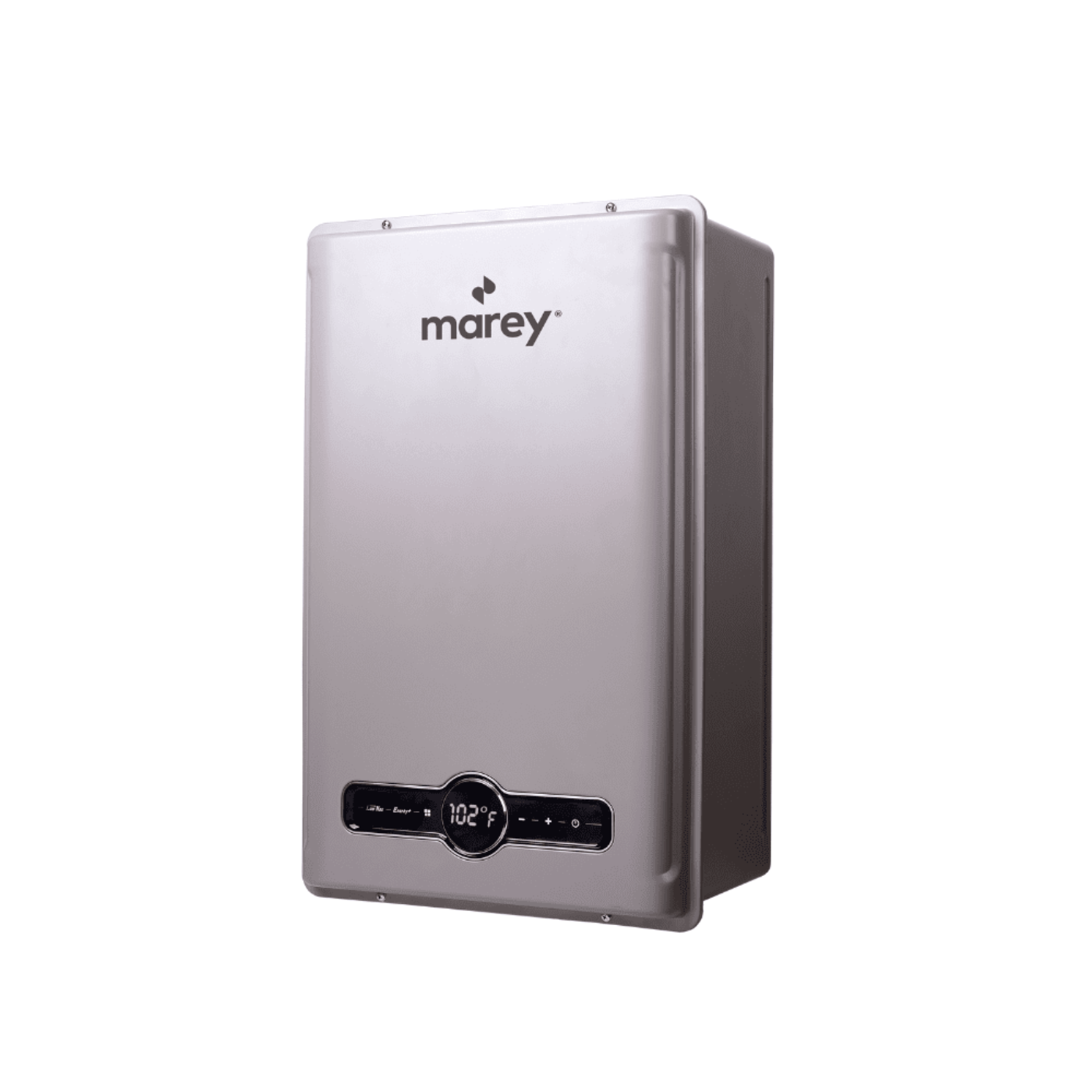

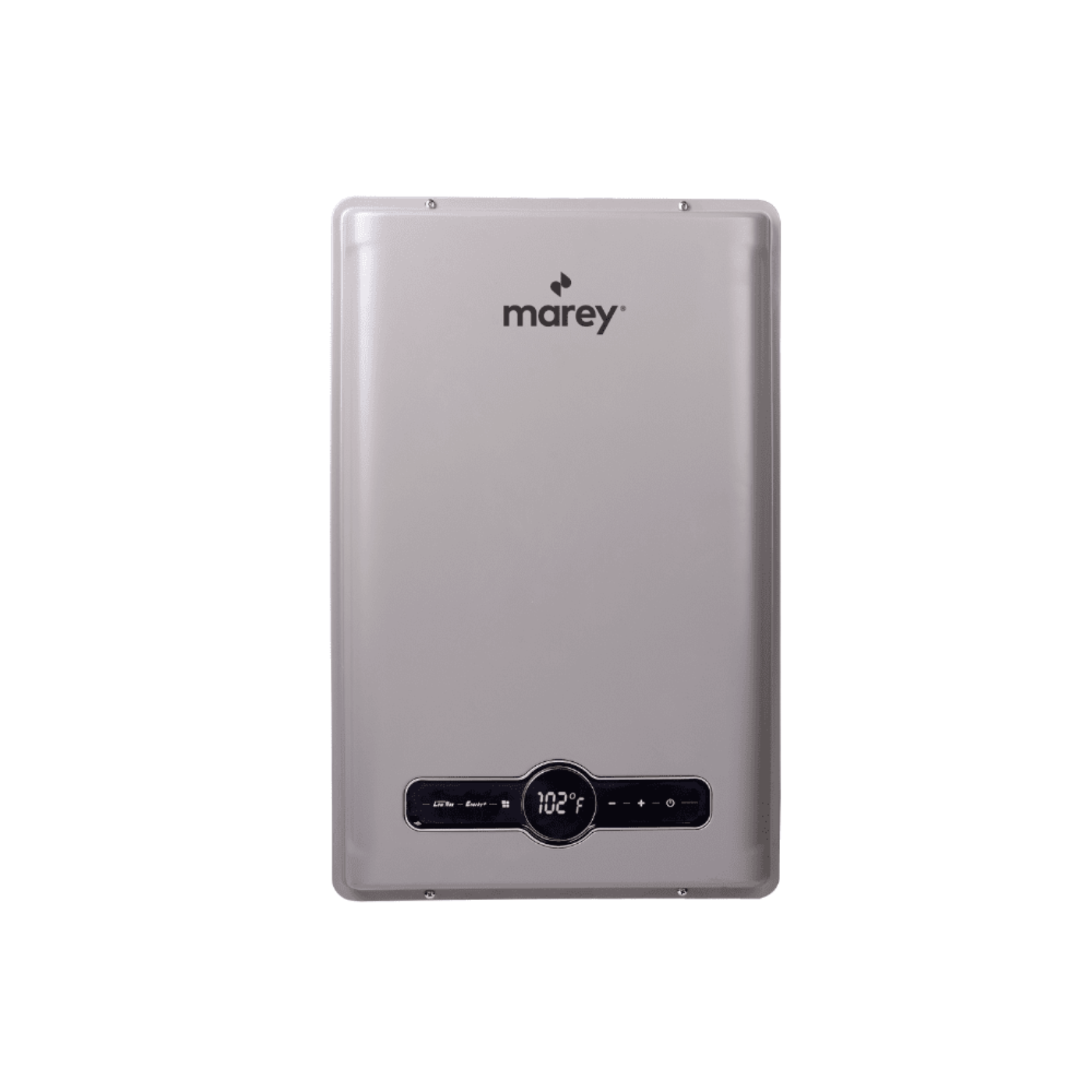

Marey Indoor Tankless Water Heater 8 GPM 30L 199,000 BTU New - GA30LP
Whole house indoor solution for up to 5 or more multiple points of use. When sized appropriately, Marey’s unit has a maximum input rating of 199,000 BTU/hr and will provide a flow rate of up to 8. GPM output at a 45F temperature rise. This model is ideal for larger homes, multi-family units as well as light commercial usage. In addition to state-of-the-art design including Low Nox emissions standard compliance, the unit comes with multiple safety features such as built-in freeze protection, manual reset hi limit, an overheat cutoff fuse, inlet and outlet thermistors to monitor temperatures, and a built-in flame sensor. The unit comes with a LED digital display that shows the output temperature reading. This model is CSA certified for the US and Canada markets.
Features
-
Low-NOx Emissions-compliant with SCAQMD
-
Provides continuous hot water for up to 3 showers and 2 sinks running at once.
-
Maximum flow rate of 8 GPM at 45°F temperature rise (4.6 GPM at 70°F rise)
-
Whole house solution ideal for larger homes, multi-family units and light commercial use
-
5 year limited warranty
-
Compact, indoor wall-mounted design frees up storage space. The unit comes with a LED digital display that shows the output.
-
Energy and Space Efficient: Space-saving design conserves energy as it heats only when needed.
-
Multiple Safety Features: built-in freeze protection, manual reset high limit, overheat cutoff fuse, inlet and outlet thermistors to monitor temperatures, and a built-in flame sensor.
-
Safe electronic ignition system; plugs into standard 120v electrical outlet with UL-listed cord.
-
Unit performance is affected if installed above 2000 ft elevation from sea level.
-
Must be installed by a professional plumber or electrician to ensure safety and quality.
-
Find the correct tankless water heater for you: refer to your region ground water temperature map to ensure that this is the correct heater for you.
Specifications
| Minimum Operation Pressure | 1.5 PSI |
|---|---|
| Max. water pressure | 150 PSI |
| Power Supply | 120 Vac/60Hz/1A, one phase |
| Electrical Consumption (Normal) | 52 w |
| Minimum Activation Rate | 0.75 GPM |
| Minimum Temperature | 95 °F – 140°F MAX. |
| Water Connection Location | RIGHT-WATER IN, LEFT-WATER OUT |
| Water Connection Size | 3/4” NPT |
| Flow Rate @ 35°F Rise | 10.1 GPM |
| Flow Rate @ 45°F Rise | 7.9 GPM |
| Flow Rate @ 55°F Rise | 6.5 GPM |
| Flow Rate @ 65°F Rise | 5.5 GPM |
| Flow Rate @ 77°F Rise | 4.6 GPM |
| Model No | GA30LP / GA30NG |
| Type of Appliance | Gas-fired instantaneous tankless water heaters |
| Operation | Mounted in Kitchen, bathroom, etc. |
| Flue System | Forced Draught Flue |
| Available default Temperatures | Factory setting 107℉ |
| Temperature Range | Within 35℃～ 60℃（95℉～140℉） |
| Width | 390 mm |
| Height | 615 mm |
| Depth | 240 mm |
| Net Weight | 22 kg |
| Connections | Gas NPT 3/4 |
| Cold Water Supply | NPT 3/4 |
| Hot Water Supply | NPT 3/4 |
| Ignition System | PULSE IGNITION |
| Hot Water Delivery Capacity | Max. 45°F RISE-30L/MIN |
| Noise level | 58 dB |
| DOE. | 0.81 |
| Minimum Operation Water Flow | 0.5 GPM |
