Standard Token Change Machine -MC535RL-CC

Standard Token Change Machine -MC535RL-CC

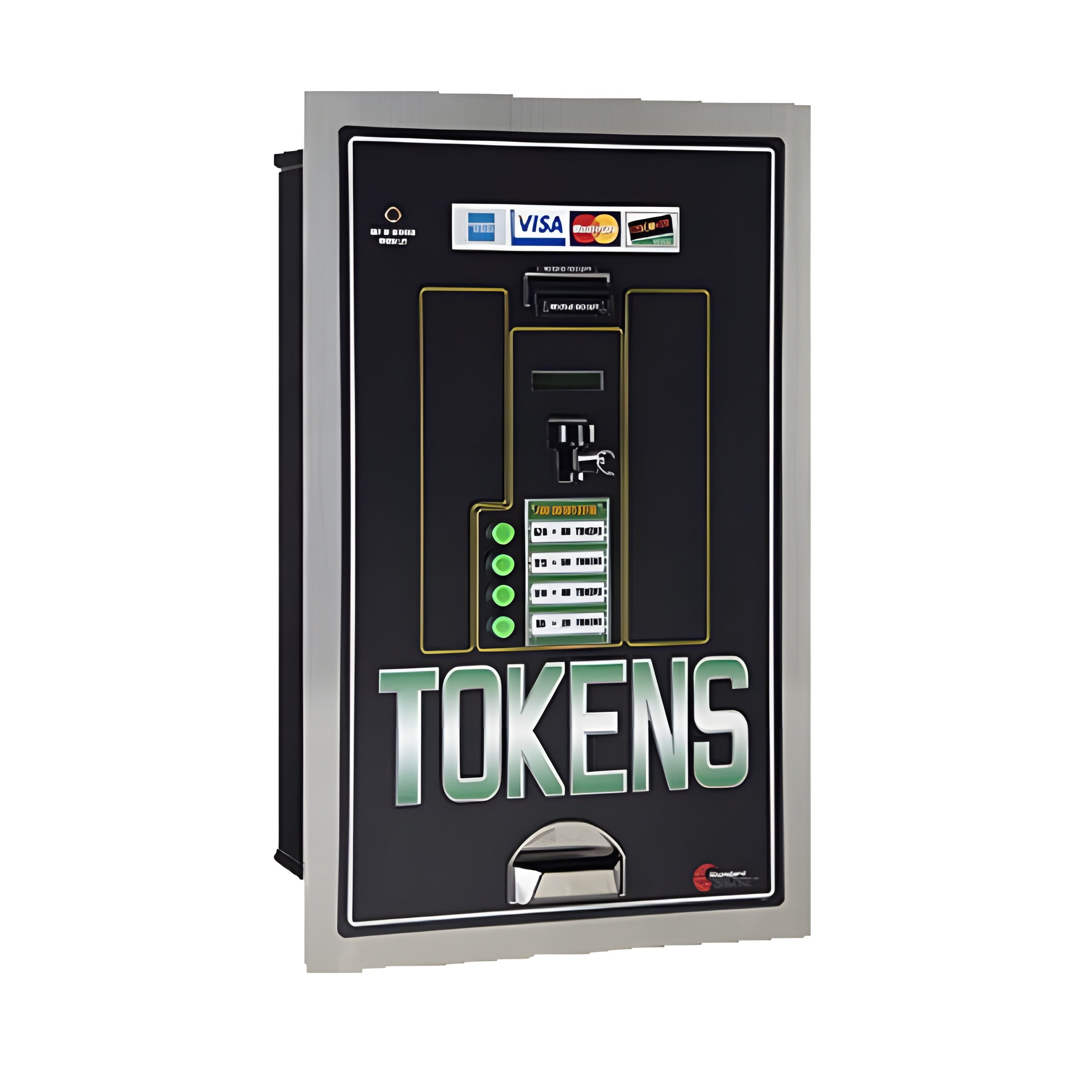

MC535RL-CCNX Standard Change Machine - The MC535 RL CC NX is a rear load change machine that accepts credit cards & cash and dispenses tokens.The model is equipped with a high security, heavy gauge steel cabinet which has a stainless steel faceplate and is secured with one t-handle lock.The unit features one bill acceptor and two steel, modular series coin hoppers which each hold up to 5,200 tokens. That is a total of 10,400 tokens!Credit card transactions are processed through high speed internet communication only(Cable Modem, DSL, Cellular, etc.) by using the IPTran - Ver 3.80 system and several different certified card processors. By default, this machine will come equipped with the Nayax VPOS/AMIT system which has a Weatherproof mag-stripe card reader. Alternate credit card systems are available, including those with EMV (chip card) processing compatibility. For more information, please view our recommended ordering instructions located in the product specifications section below. The front design of this machine features an LCD display that offers instructions and feedback to the customer and your choice of 4-Button Package payouts, or 3-Button Pulse payouts in which the owner can customize the price and number of tokens dispensed. As an added bonus, the machine also comes with the Expanded Function (EF) Module - used for remote notification, programming, diagnostic and audit reporting. The MC535RL CCNX is excellent for use in arcades, game rooms,FEC's, zoos, museums, and aquariums or any location where high token volume is required.

Features

• Rear load machine with configuration for credit card acceptance and token dispense
• Heavy gauge steel cabinet with a stainless steel faceplace
• Weatherproof mag-stripe card reader with dial-up POS device

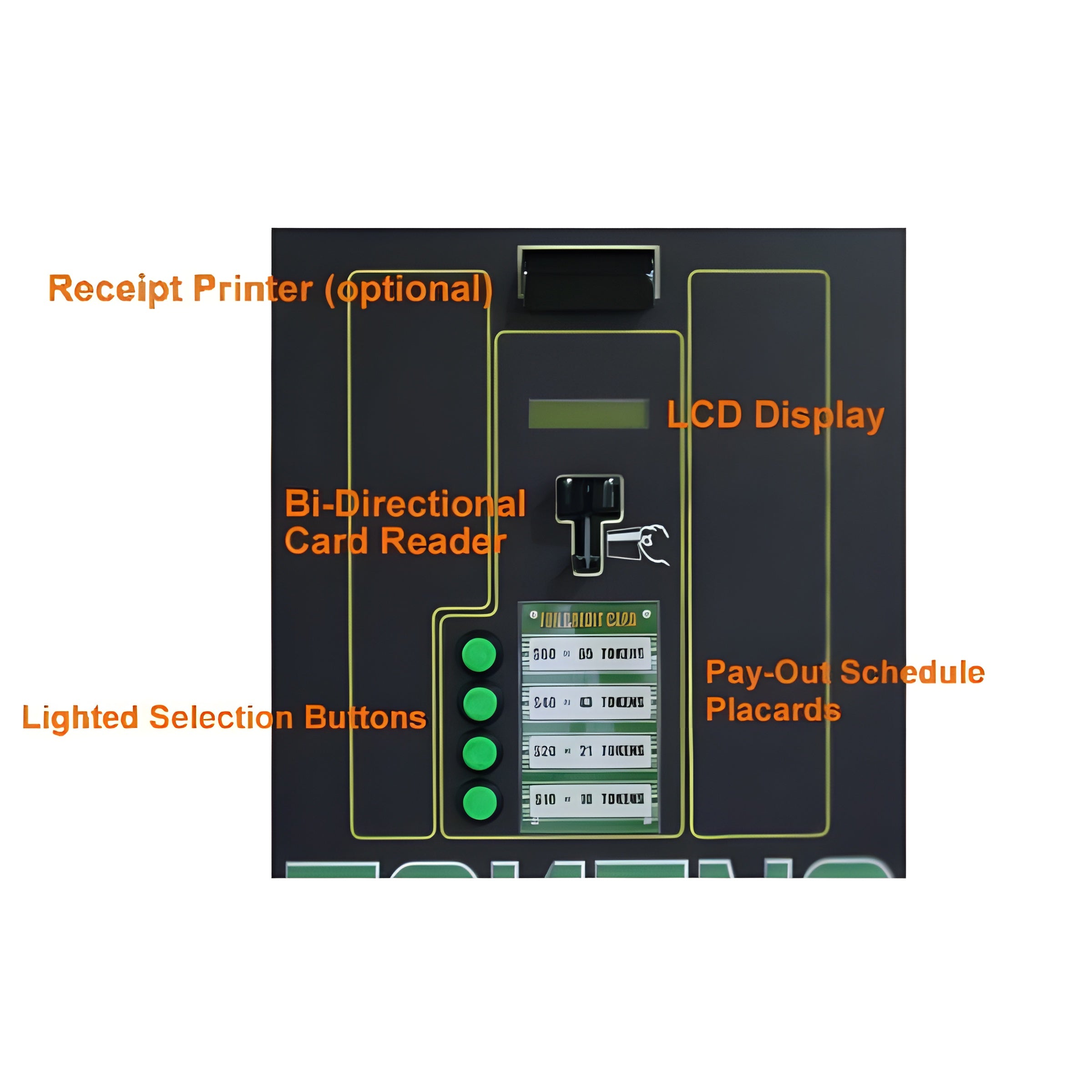

• LCD display and choice of: 4-Button "Package" Select or 3-Button "Pulse" Select kit
• (1) Coinco Vantage bill validator which accepts: $1, $5, $10, and $20 bills
• (1) bill stacker which can hold up to 500 bills
• (2) Standard Modular steel Smart Hoppers - holds up to 10,400 Tokens
• (1) T-handle lock with Ace plug
• (1) Stainless Steel Coin Cup
• EF+ Module- with remote notification feature
• High gloss, powder-coat enamel paint finish with applied Lexan graphics decal
• ETL certified in accordance with UL and CSA standards
• Made in USA
• Two Year Manufacturer's Limited Warranty
• Optional 2-year or 4-year extended warranty

Specifications

Optional Upgrades

Click each option below for more details:

• Mars AE2602Bill Acceptor
• Mars 700 Bill Capacity Stacker Upgrade
• Mars 1,000 Bill Capacity Stacker Upgrade.
• Pyramid Apex-5600 Bill Acceptor
• Pyramid 1,000 Bill Capacity Stacker Upgrade
• Crank Locks With Medeco Plugs

• Electronic Coin Acceptor.
• 180-Watt Heater Strip With Thermostat
• Locking Hopper Lids
• MC Series Relay Kit
• Medeco Lock Cylinder
• Non-Resettable Counter Package
• Pedestal Stand
• Portable Audit Printer
• Resettable Counter Package
• Stainless Steel Pedestal Stand
• Transient Surge Suppressor
• Vending Base
• Vending Header

What Our Experts Think

The Standard Token Change Machine - MC535RL-CC is a compact yet powerful solution for businesses requiring efficient token dispensing. Here's why it's an excellent choice:

• Compact & Space-Saving – Ideal for businesses with limited space without compromising on performance.
• Secure & Durable – Built with high-quality materials to resist wear and tear.
• High-Capacity Operation – Handles large volumes of tokens with ease.
• User-Friendly Interface – Easy to operate for both customers and staff.
• Perfect for Small to Medium Businesses – Great for laundromats, arcades, and smaller entertainment centers.

Q&A

Q: What is the Standard Token Change Machine MC535RL-CC?
A: The MC535RL-CC is a reliable token change machine that accepts cash and credit card payments, dispensing tokens for various commercial settings.

Q: What payment methods does it support?
A: It supports both cash and credit card transactions for easy customer payments.

Q: How many tokens can it hold?
A: The MC535RL-CC features a token capacity designed to handle medium-volume locations, ensuring efficient dispensing throughout the day.

Q: Is it secure?
A: Yes, it is equipped with a sturdy steel cabinet, high-security locks, and anti-theft features to safeguard against tampering.

Q: Where is this machine commonly used?
A: It is perfect for arcades, laundromats, amusement centers, and car washes that require secure token dispensing solutions.

Maintenance Tips

• Regular Cleaning – Wipe the exterior and clean the bill acceptor and coin mechanisms.
• Inspect Bill & Coin Pathways – Check for blockages or jams and clean sensors for smooth operation.
• Test Dispensing – Run periodic test transactions to ensure correct token dispensing.
• Monitor Token and Bill Levels – Refill tokens and paper rolls regularly to prevent downtime.
• Update Software & Firmware – Keep the machine updated for better security and functionality.
• Check Power & Wiring – Inspect the power supply and connections to ensure stability.
• Secure Placement – Ensure the machine is stable and shielded from extreme conditions and tampering.
