New Rockford Fosgate P600X4 600 Watt 4-Channel Class AB Car Audio Amp (2 Pack) - 194254

Features

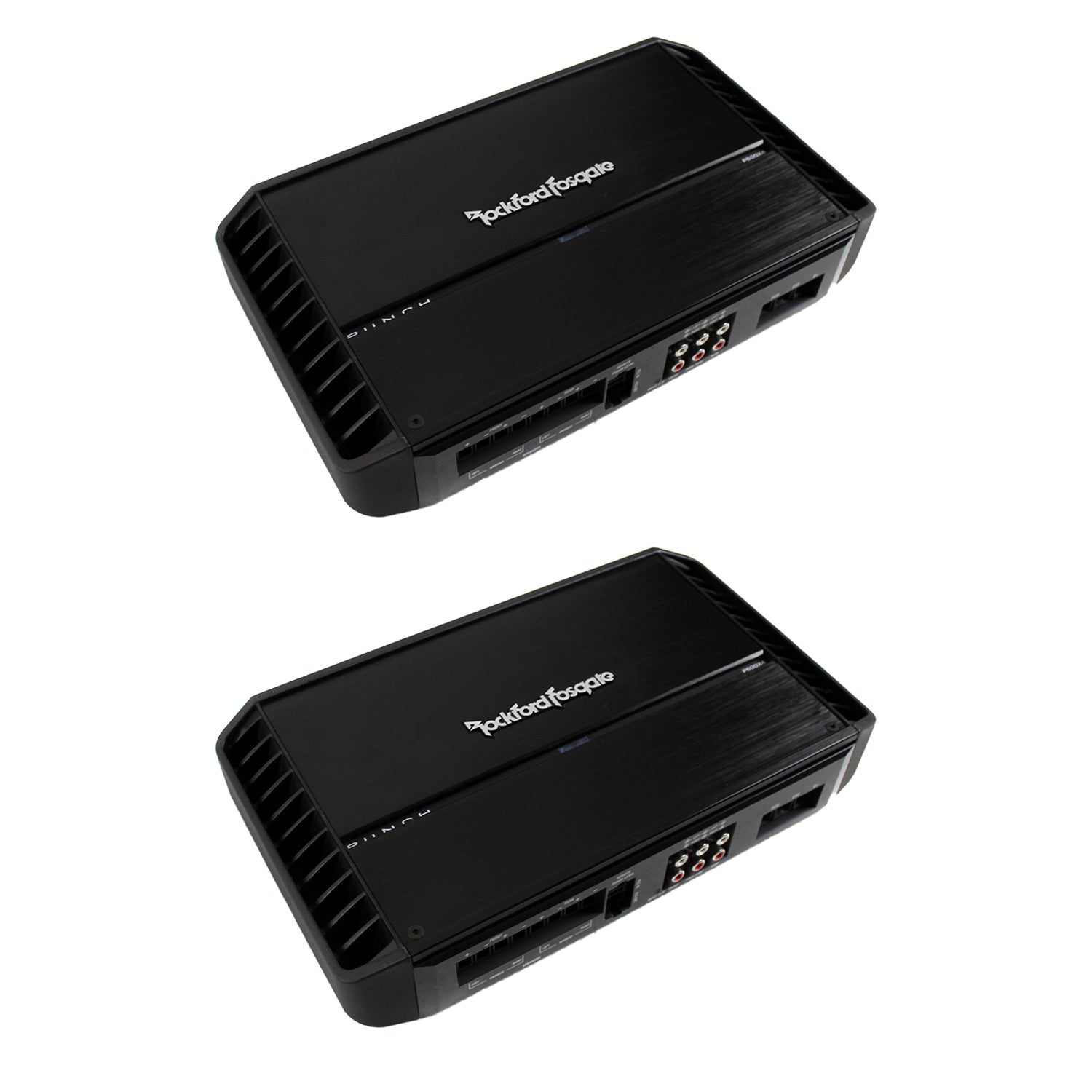

• Includes 2 New Rockford Fosgate P600X4 600 Watt 4 Channel Class AB Car Audio Amplifier Amps

• RMS Power:

• 75 Watts x 4 @ 4 Ohm

• 150 Watts x 4 @ 2 Ohm

• 300 Watts x 2 @ 4 Ohm Bridged

• Total Power: 600 Watts

• Circuit Topology Class: Class A/B

• Bridgeable: Yes

• High level input capable with Auto Turn On circuit

• RCA pass thru outputs

• Features C.L.E.A.N. Set up

• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)

• 12dB/octave Butterworth crossover

• On board Punch EQ with +18dB boost @ 45Hz.

• Muted turn on

• Stealth top mounted control panel

• Cast aluminum heatsink

• Short circuit protection

• Over current protection

• Frequency Response: 20Hz to 20kHz +/ 1.0dB

• Efficiency (average): 68% @ 4 Ohm

• Input Sensitivity: 150 mV 12 V

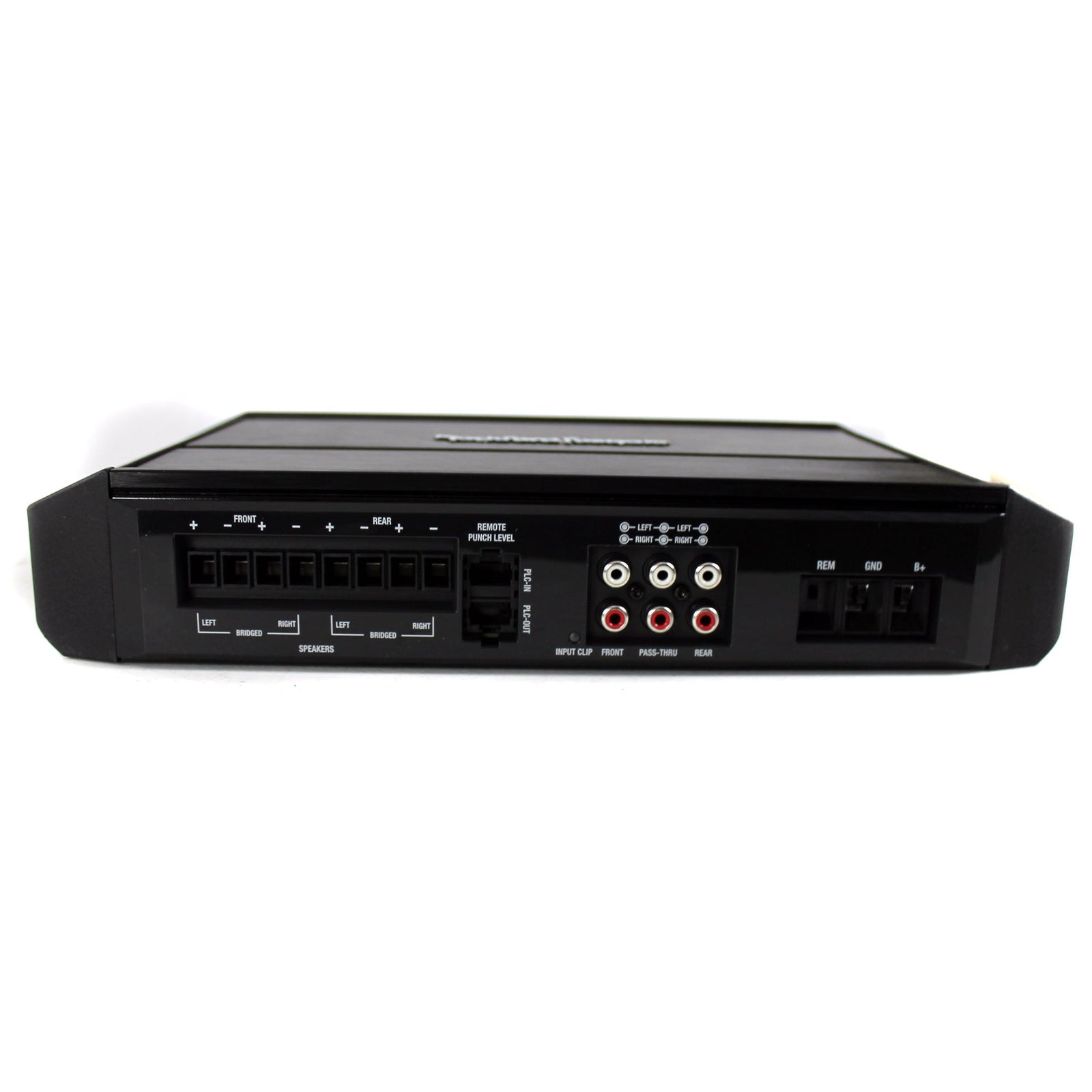

• Signal Input: Hi/Low level: 2 RCA pair

• Signal Output: Low level: 1 RCA pair

• Power Input Connector: Captive C Clamp

• Power Wire Gauge: 4 AWG

• Speaker Output Connector: Captive C Clamp

• Speaker Wire Gauge: 8 AWG to 18 AWG

• Cooling: Convection

• Remote Controls (not included): Optional Punch Level Control (PLC2) Ready

• Visual Indicators: Power/Protect/Thermal LED

• Power/Protect/Thermal LED

• Input Clip LED

• Operating Voltage: 9 16 VDC

• Recommended Fuse (not included): 100 A

• Max. Current Draw (13.8V Sinewave): 90 A

• Average Current Draw (13.8V Music): 45 A

• Suggested Alternator: 75 A

• Dimensions (HxWxL): 2.38 x 7.76 x 13.28 (in)

• Condition: Brand New!

• Item Weight: 12 lbs.

• Part Number: **P600X4**

• 1 Year Manufacturer Warranty

• Quantity: 2

What Our Experts Think

• High-Powered Performance: Each amplifier delivers up to 600 watts of power, ensuring dynamic and distortion-free audio across all channels.
• 4-Channel Versatility: Perfect for powering multiple speakers, or bridging channels to drive subwoofers for enhanced system customization.
• Class AB Technology: Combines efficient operation with superior sound quality for crisp, clean audio reproduction.
• Built for Reliability: Durable construction with advanced thermal management ensures consistent performance even during extended use.
• 2-Pack Convenience: Ideal for upgrading multiple vehicles or creating a high-power multi-amp setup for a custom audio system.

Q&A

Q: What is included in this package?
A: The package includes two Rockford Fosgate P600X4 4-channel Class AB car audio amplifiers, each with a total power output of 600 watts.

Q: What is the power handling capability?
A: Each amplifier provides 75 watts RMS per channel at 4 ohms, 150 watts RMS per channel at 2 ohms, or 300 watts bridged at 4 ohms.

Q: What type of amplifier is this?
A: The P600X4 is a Class AB amplifier designed for high-quality audio performance and flexibility in powering multiple speakers or subwoofers.

Q: How can these amps be used in a car audio setup?
A: They are ideal for powering a full-range speaker system, a mix of speakers and subwoofers, or for bridging channels to power high-output subwoofers.

Q: What built-in features enhance sound quality?
A: The amplifiers include variable high-pass and low-pass crossovers, Punch EQ for bass enhancement, and a built-in C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) setup feature for optimal tuning.

Q: Are they easy to install?
A: Yes, the compact design and versatile connectivity options make installation straightforward for most vehicles.

Maintenance Tips

• Clean the Casing: Wipe the amplifier exterior with a soft, dry cloth to remove dust and debris. Avoid using liquids or abrasive materials.
• Inspect Connections: Regularly check all power, ground, and speaker terminals for tightness and signs of corrosion or damage.
• Ensure Proper Ventilation: Install the amplifier in a well-ventilated area to prevent overheating, especially during extended use.
• Monitor Power Output: Stay within the 600W rating to prevent overloading or damage to the amplifier and connected components.
• Secure Mounting: Confirm the amp is firmly mounted to avoid vibrations or movement that could disrupt performance.
• Check Fuses: Inspect the fuses periodically and replace them with manufacturer-approved types if necessary.
• Adjust Gain and Crossovers: Set gain and crossover controls according to your audio system’s requirements to optimize performance and protect speakers.
• Protect from Moisture: Keep the amplifier in a dry environment to avoid electrical damage or rust.
