Powermatic PM1300TX-BK Dust Collector- PM9-1791078K

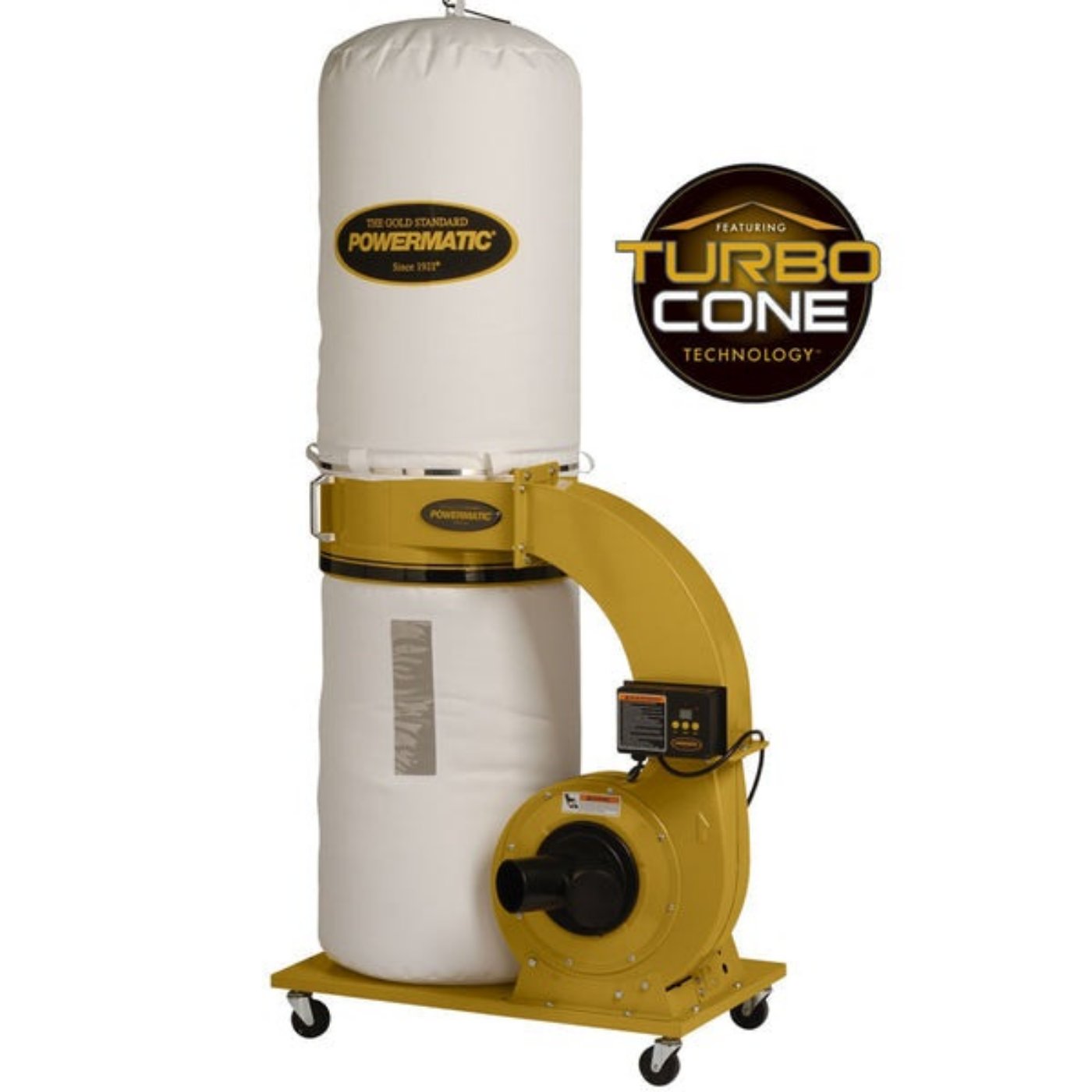

Powermatic PM1300TX-BK Dust Collector

The PM1300TX Dust Collector features the exclusive TurboCone™ which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The cloth filter bag is made of a 30 micron material which aids in the filtration of all but the finest dust particles, and the large capacity collection bag reduces the number of bag changes.

A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Four swivel casters and conveniently located handles allow for easy mobility.

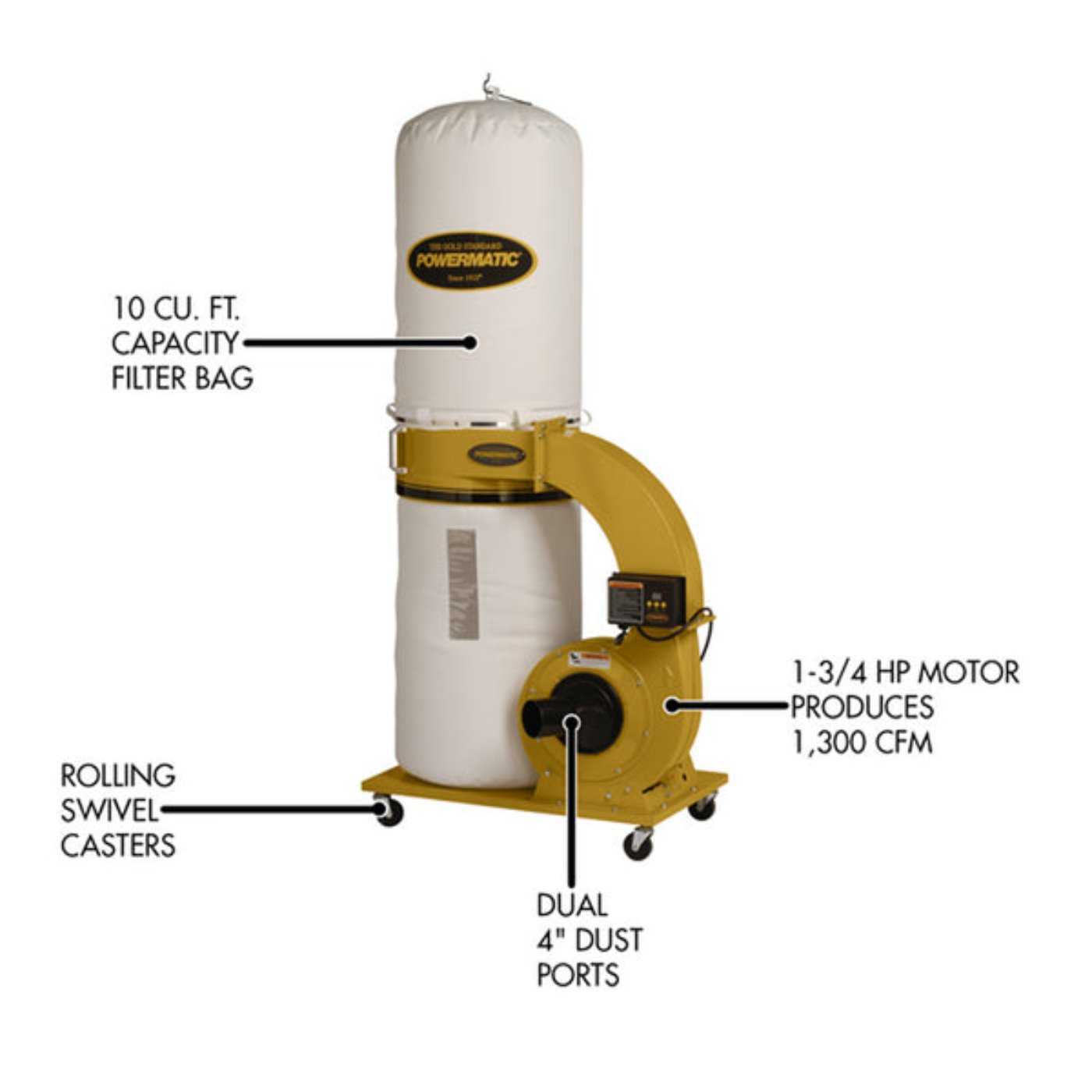

Features

• 10 Cubic feet capacity collection bag reduces number of bag changes
• All-metal duct construction for rigidity and improved air flow
• Cloth collection bag with view window uses snap ring for rapid installation/removal
• Dual 4" dust ports for simultaneous collection from two machines
• Eliminates premature filter clogging for sustained performance
• Four swivel casters for easy maneuverability
• Remote-controlled digital timer can be programmed for up to 99 minutes
• The large steel impeller is powered by a 1-3/4HP motor for peak performance.
• TurboCone™ improves chip separation and collector bag packing efficiency

Specifications

What Our Experts Think

• High Efficiency: Equipped with a 1.5hp motor and a 1,300 CFM airflow capacity, it efficiently captures large volumes of dust and debris.
• Tornado-TX Technology: Features innovative technology that enhances suction power, providing more effective dust collection.
• Extra-Large Bag Capacity: 30-gallon bags reduce the need for frequent bag changes, making it ideal for high-volume use.
• Quiet Operation: Designed with sound-dampening features, ensuring minimal noise disruption while maintaining powerful suction.
• Flexible Hose Connections: Multiple hose ports for convenient attachment to various machines in your workshop.
• Durable Construction: Built with high-quality materials for long-lasting reliability and performance.

Q&A

Q: What are the key features of the Powermatic PM1300TX-BK Dust Collector PM9-1791078K?
A: The Powermatic PM1300TX-BK Dust Collector features a 1.5hp motor with a 1,300 CFM airflow capacity, providing efficient dust extraction. It is designed for use in woodworking shops, helping to maintain a cleaner, safer environment by collecting wood dust and debris.

Q: What is the airflow capacity of the Powermatic PM1300TX-BK?
A: The PM1300TX-BK offers an airflow capacity of 1,300 CFM, ensuring effective dust collection for medium to large woodworking shops.

Q: What motor does the Powermatic PM1300TX-BK use?
A: The dust collector is powered by a 1.5hp motor, delivering the necessary power for optimal dust extraction performance.

Q: Is the Powermatic PM1300TX-BK suitable for professional use?
A: Yes, the PM1300TX-BK is designed for professional woodworking environments, offering high efficiency and reliability for demanding dust collection tasks.

Q: What is the benefit of the Powermatic PM1300TX-BK Dust Collector?
A: The PM1300TX-BK helps improve air quality and cleanliness in the workshop by efficiently collecting dust and debris, reducing health risks and maintaining a tidy workspace.

Q: What electrical requirements does the Powermatic PM1300TX-BK need?
A: The dust collector operates on a 1-phase electrical system, offering flexibility for most workshop setups.

Maintenance Tips

• Clean the filters regularly: Check and clean the filters (including the canister filter and bag filter) to maintain maximum efficiency. Replace filters when they show signs of wear or excessive buildup.
• Inspect the impeller: Ensure the impeller is free of debris and dust. Clean it carefully to prevent clogging or damage that can affect performance.
• Check the hose connections: Ensure all hoses are securely connected to prevent leaks and maintain proper airflow.
• Lubricate the motor bearings: Apply oil or lubrication to the motor bearings as recommended by the manufacturer to reduce friction and prevent wear.
• Check the bag and collection drum: Empty the dust collection bag or drum when it is about 2/3 full to ensure optimal airflow and efficiency.
• Inspect the motor and electrical components: Periodically check the motor and wiring for any signs of wear or damage to ensure safe operation.
• Tighten fasteners: Regularly inspect all screws, bolts, and other fasteners to ensure they are secure, preventing vibrations and ensuring the unit operates smoothly.
