Quatro SolderPure 220V-Solder/Waxing/Smoke Fume Extractor - SPB-560-26I-1BM

The Quatro SolderPure line of Fume extractors are specially designed to source capture solder smoke & fumes before they migrate throughout your workshop.

147.628 SPB-560-26I-1BM  220V for removing soldering, waxing smoke and odors. This is the Quatro SolderPure SWS (Solder/Waxing/Smoke) Fume Extractor.

SolderPures have a 3 stage filtering system with the final stage containing a special 2" thick charcoal filter. This Solder/Waxing/Smoke fume Extractor contains the standard charcoal filter.

SolderPures do not need to be vented, as they are 99.9% efficient in removing harmful smoke and odors from the workplace. SolderPures are mounted on casters for shop mobility. Noise is not a problem as the whisper quite SolderPure operates at only 52 dba. This SolderPure is rated at 170 CFM.

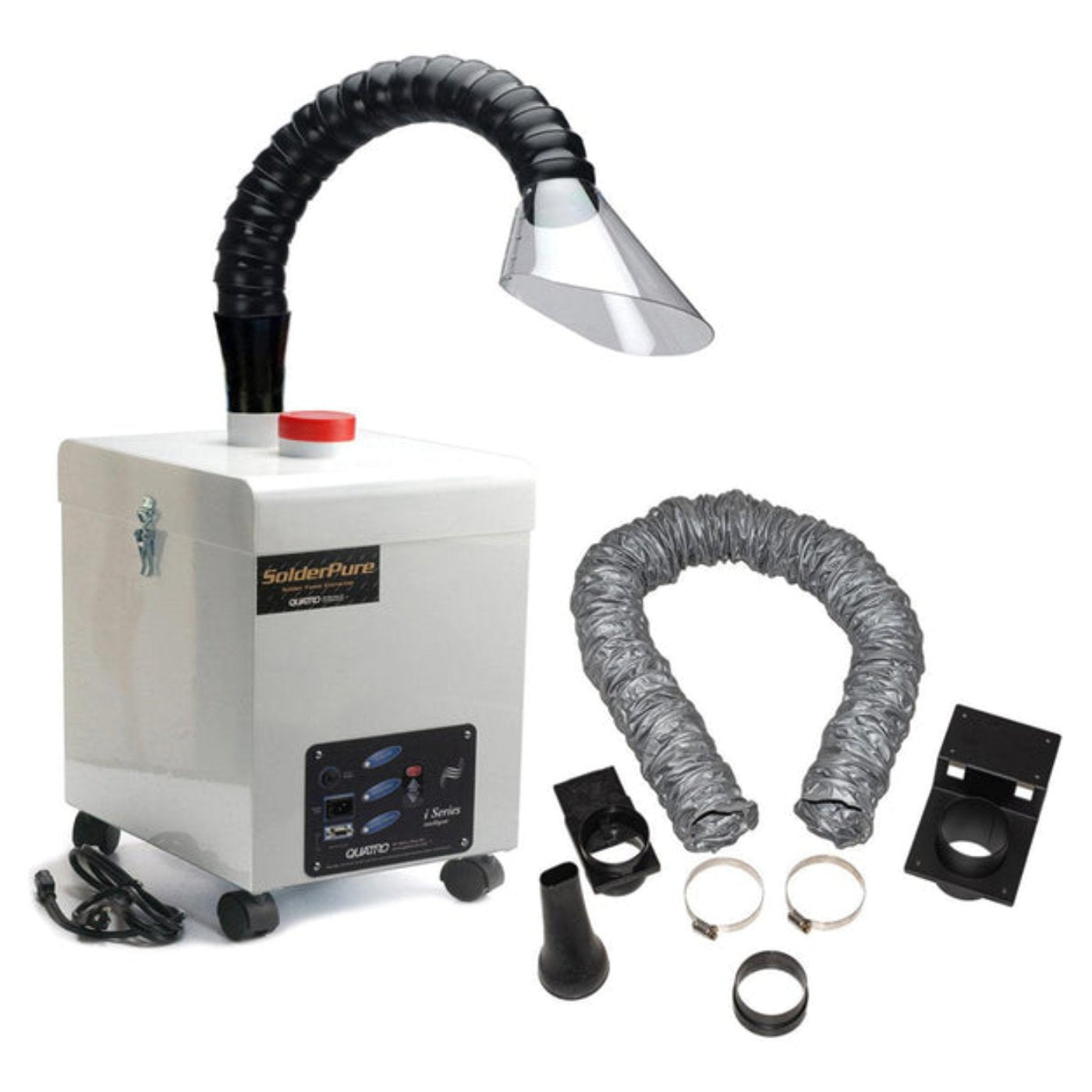

SolderPures have 2 ports on top (photo shows one with a red cover cap, the other with the included Quatro AA006 Flex Extraction Arm with Slide Valve) so you can set up a two different fume collection stations.

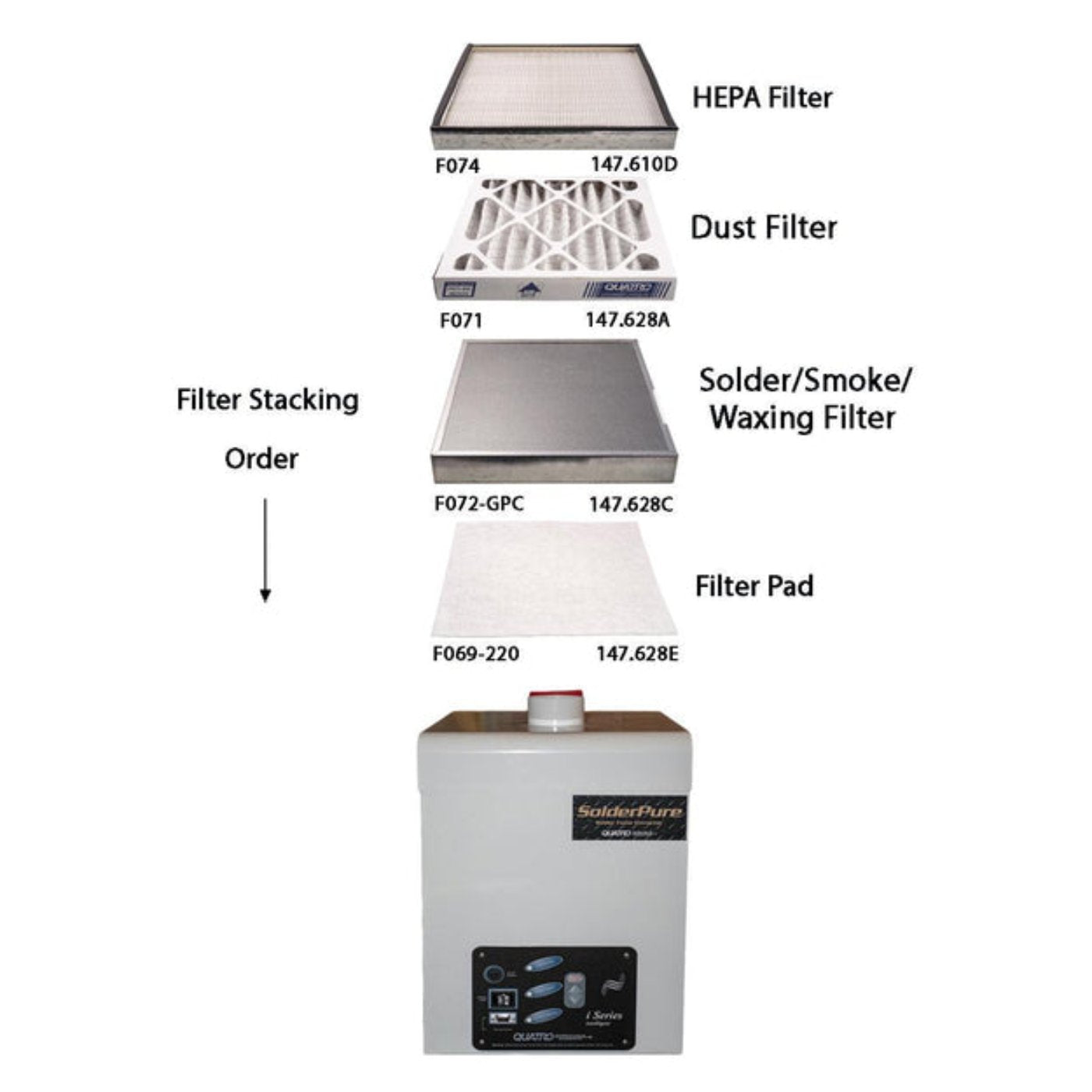

SolderPures have a 1st stage dust filter, a 2nd stage HEPA filter and a 3rd stage high density charcoal fume filter. The final 3rd stage filters are refillable with fresh filtering material as needed. These special filters are found in the SolderPure series, the Ductless Fume Hood series and the CollectALL.

SolderPures can be attached to an optional foot pedal,#AA175 , for turning off and on, or the mc2 automatic control box, that can make your flex shaft foot control (or other piece of equipment like a foot controled wax pen) an on/off switch for the SolderPure. The SolderPure measures 20" high by 12-3/4" wide by 15-3/4" deep and has a shipping weight of 56 lbs and is standard 115V/60C.

Features

• Height 26" (661m)

• Width 17" (432mm)

• Depth 14" (356mm)

• Motor: Brushless-Whisper Quiet-Draws 10 Amps 120V

• Suction Rating: CFM 450 (Cubic Feet per Minute) 240m3/h (Cubic Meter per Hour)

Replacement Filters/Media

• 147.610C (AG149) Pack of 6 First Stage Filter Bags

• 147.629C (F-072-BPC) Plating Fumes Filter Complete

• 147.629D (NC-BPC) Charcoal Refill-Plating Fumes (for 5 refills)*

• 147.628C (F-072-GPC) Solder/Waxing/Smoke Filter Complete

• 147.628D (NC-GPC) Charcoal Refill-Solder Fumes (for 5 refills)*

• 147.610D (F074) HEPA Filter

What Our Experts Think

The Quatro SolderPure 220V Solder/Waxing/Smoke Fume Extractor - SPB-560-26I-1BM is a professional-grade solution designed for effective and safe fume extraction. Here’s why it stands out:

• Efficient Fume Extraction: Designed to effectively remove soldering, waxing, and smoke fumes, ensuring a clean and safe work environment for professionals.
• Powerful 220V Operation: The high-performance motor delivers reliable suction power for continuous and efficient operation in demanding settings.
• Compact and Portable Design: The extractor is easy to position and move within your workspace, making it versatile for various applications.
• Advanced Filtration System: Equipped with high-quality filters to capture harmful particles, ensuring cleaner air and protecting user health.
• Durable Build: Constructed with industrial-grade materials for long-lasting performance, even with frequent use.

Ideal for jewelers, electronics technicians, and other precision professionals, the SolderPure extractor combines power, reliability, and efficiency to maintain a healthier workspace.

Q&A

Q: What is the purpose of the Quatro SolderPure Fume Extractor?
A: The SolderPure is designed to effectively capture and filter fumes generated during soldering, waxing, or other processes that produce smoke or airborne contaminants, ensuring a safer and cleaner work environment.

Q: What industries benefit from using this fume extractor?
A: The SolderPure is ideal for industries such as electronics manufacturing, jewelry making, dental labs, and any workspace requiring fume extraction during soldering or waxing tasks.

Q: How does the Quatro SolderPure improve air quality?
A: It uses advanced filtration technology to remove harmful fumes and particles from the air, promoting a healthier workspace and reducing the risk of inhaling toxic substances.

Q: What power supply does the unit require?
A: This model operates on 220V power, ensuring compatibility with standard electrical setups in many industrial and professional environments.

Q: Is the SolderPure easy to install and use?
A: Yes, the unit is designed for straightforward installation and features intuitive controls, making it easy to set up and operate.

Q: What type of filtration system does it use?
A: The SolderPure features a multi-stage filtration system, including pre-filters and HEPA filters, to effectively capture both large particles and microscopic contaminants.

Q: How portable is the SolderPure?
A: The compact and lightweight design allows for easy placement and portability, enabling users to move it between workstations as needed.

Q: Is maintenance required for this fume extractor?
A: Regular maintenance, such as cleaning or replacing filters, is essential to ensure optimal performance and extend the life of the unit.

Q: How does it handle continuous use in a professional environment?
A: The SolderPure is built with durable materials and a reliable motor to withstand extended use in demanding professional and industrial settings.

Q: Does it produce much noise during operation?
A: The unit is engineered to operate quietly, ensuring minimal disruption in the workplace while effectively removing fumes.

Q: Can it handle both soldering and waxing fumes simultaneously?
A: Yes, the SolderPure is versatile and capable of handling fumes from soldering, waxing, and other similar processes simultaneously.

Q: Does the SolderPure include a warranty?
A: Most Quatro products come with a warranty for manufacturer defects. It is recommended to check with the retailer or manufacturer for specific warranty details on this model.

Maintenance tips

• Regular Filter Replacement: Replace pre-filters, HEPA filters, and carbon filters according to the manufacturer’s recommended schedule or when airflow decreases noticeably. Proper filtration ensures optimal fume extraction and air quality.
• Clean the Unit Exterior: Wipe down the extractor’s exterior with a soft, damp cloth to remove dust and debris. Avoid using harsh chemicals that could damage the surface.
• Inspect Airflow System: Periodically check the airflow and ensure there are no blockages in the hoses or ducts. Clean or clear any obstructions to maintain efficiency.
• Monitor the Motor: Ensure the motor operates smoothly without unusual noises or vibrations. If issues arise, consult the user manual or contact support for troubleshooting.
• Check Power Connections: Regularly inspect the power cord and connections for signs of wear or damage. Ensure the unit is plugged into the correct 220V power source.
• Adjust Suction Settings: Use the correct suction setting for your application (soldering, waxing, or smoke extraction) to maximize performance while avoiding excessive strain on the motor.
• Avoid Overloading the System: Do not use the extractor for tasks beyond its capacity. This could reduce filter life and strain the motor.
• Store Safely: If the unit will not be in use for an extended period, store it in a clean, dry location to protect it from dust and moisture.
• Ventilation Maintenance: Keep the unit in a well-ventilated area and ensure the exhaust outlet is not obstructed to maintain efficient operation.
• Schedule Routine Maintenance: Create a maintenance log to track filter changes, inspections, and other servicing needs to ensure consistent performance.
