Rockford Fosgate P1000X5 Punch 1,000 W Class BD 5 Channel Car Amplifier (4 Pack) - 194056

Features

• Boost your car's sound with this 5-channel amplifier

• Bridgeable front and rear channels lets you run dash speakers, rear speakers, and, on the 5th channel, subwoofers

• Class BD amplifier that uses 1,000 watts of total rated power

• Handles high-level inputs with an auto turn-on circuit

• Protects against thermal, over-current, and short circuit failures so you can trust on your sound coming reliably and safely

• Get going quickly and easily with C.L.E.A.N. set-up circuit with in/out clip LEDs that help you match sources to their amp

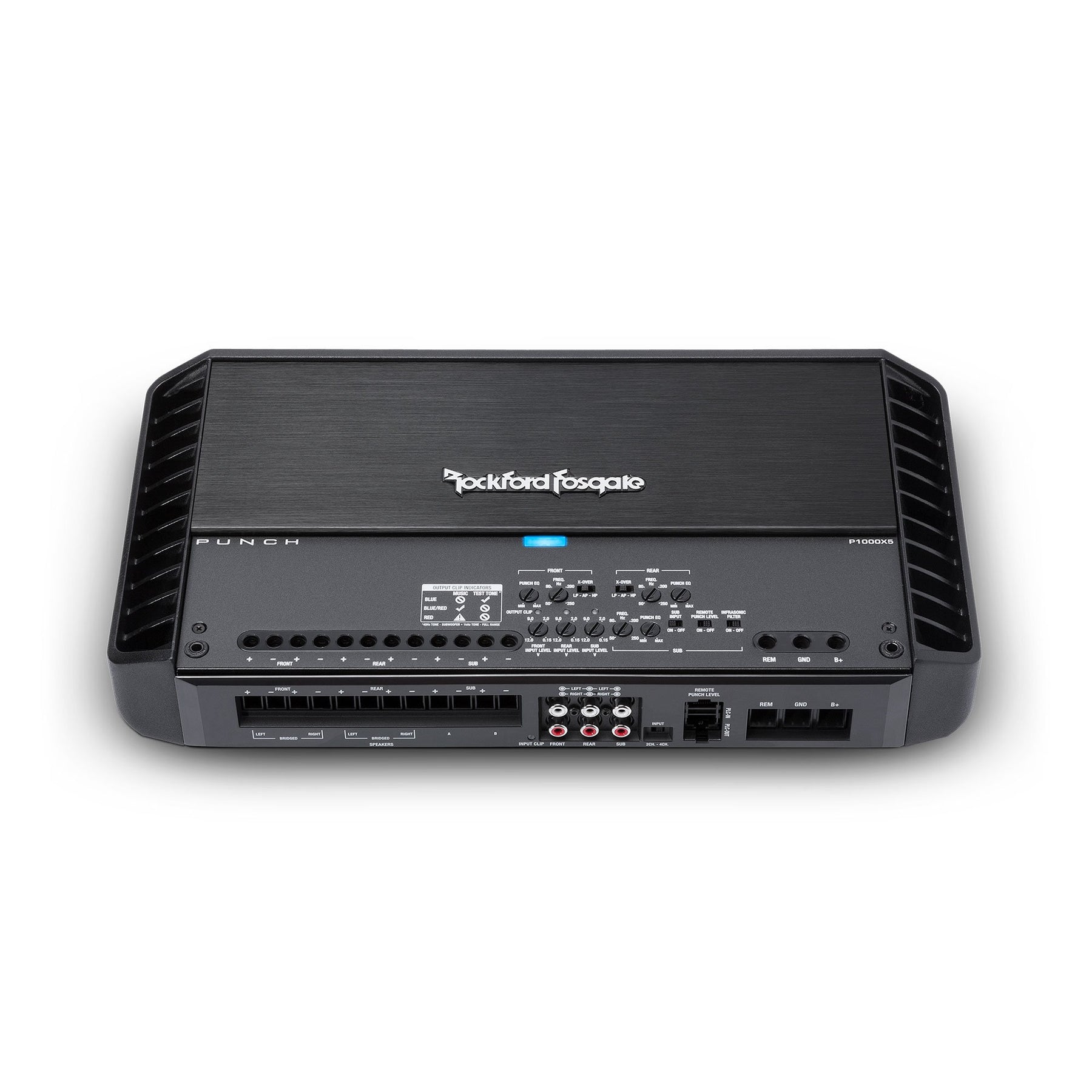

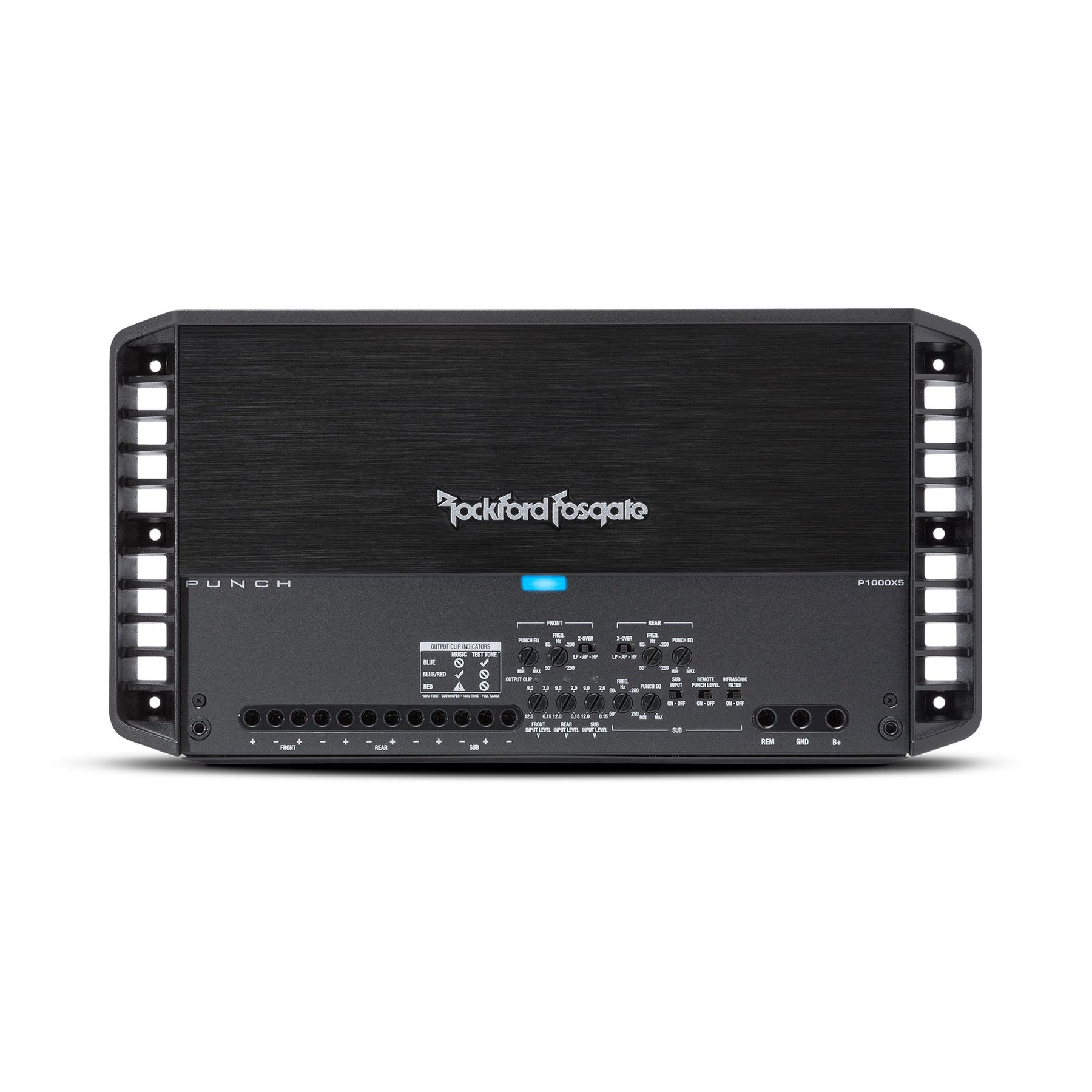

• Control your sound without the bulk with its stealth, top-mounted control panel

• Includes a cast aluminum heatsink that looks sleek and handles heat and power efficiently

• CEA-2006 and CE compliant

• Rated power:

• 75 watts x 4 + 150 watts x 1 @ 4-Ohm

• 125 watts x 4 + 300 watts x 1 @ 2-Ohm

• 500 watts @ 1-Ohm

• Dynamic power:

• 115 watts x 4 + 299 watts x 1 @ 4-Ohm

• 190 watts x 4 + 540 watts x 1 @ 2-Ohm

• 863 watts x 1 @ 1-Ohm

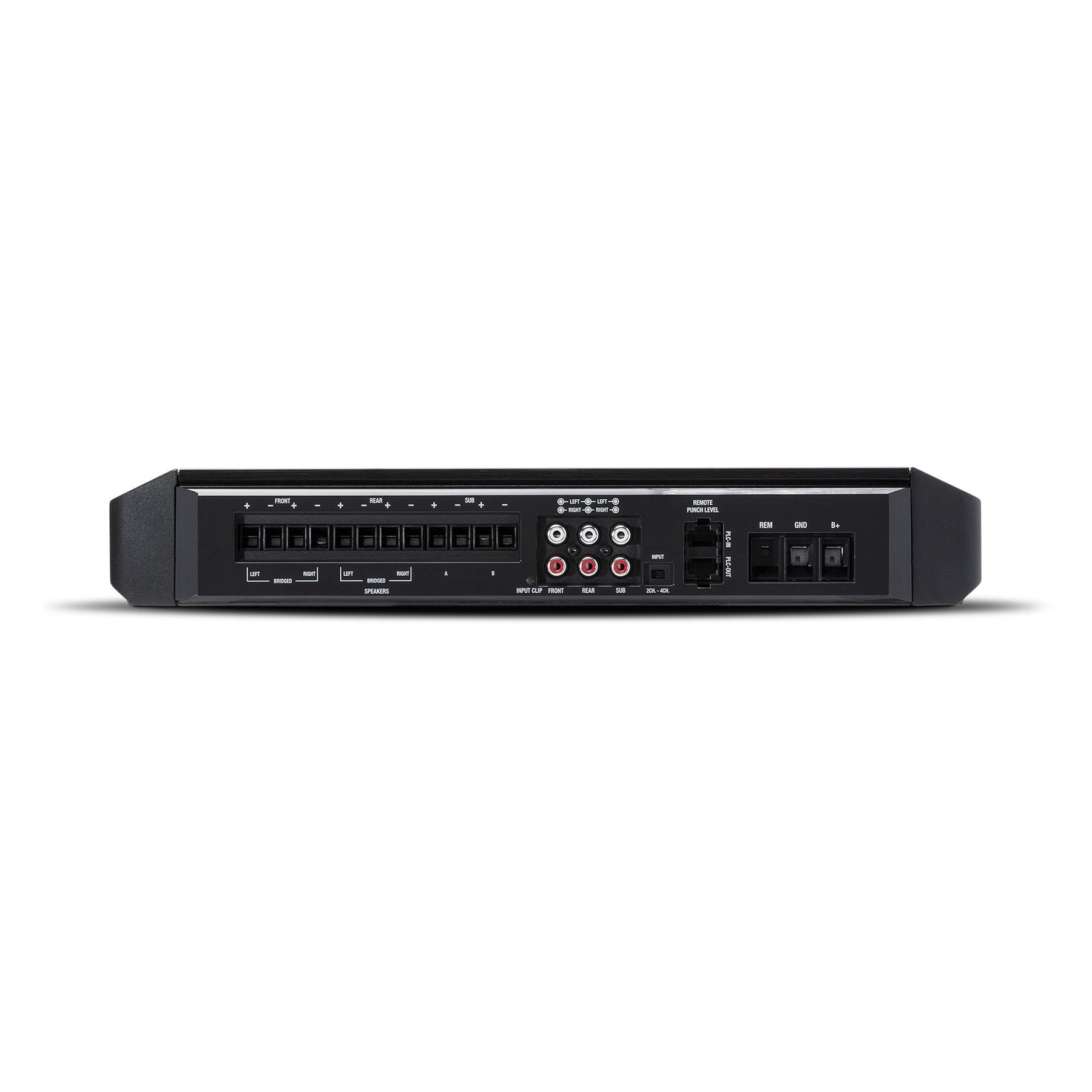

• Signal inputs:

• Input switch: Hi/low level input

• Input switch: 2/4 channel input

• Hi/Low level: 3 RCA pair

• Sub: Front/sub input switch

• Controls:

• Sub tone: 0dB to +18dB @45 Hz

• Front crossover: 50 Hz to 250 Hz high-pass @12dB/Octave

• Rear crossover: 50 Hz to 250 Hz high-pass @12dB/Octave

• Sub crossover: 50 Hz to 250 Hz low-pass

• Sub crossover: 28 Hz infrasonic filter @12dB/Octave

• Specifications:

• Front/Rear frequency response: 20 Hz to 20 kHz +/

• 3dB

• Sub frequency response: 20 Hz to 500 Hz +/

• 3dB

• Input sensitivity: 150 megavolts to 12 volts

• Circuit topology class: Class A/B + Class BD (sub)

• Front/Rear average efficiency: 66% @ 4-Ohm

• Sub channel average efficiency: 80% @ 4-Ohm

• Total harmonic distortion: <1.0%

• Channels: 5

• Power wire gauge: 4 AWG

• Speaker wire gauge: 12 AWG

• Power input/Speaker output connector: Block

• Cooling: Convection

• Average current draw: 75 amps

• Maximum current draw: 150 amps

• Operating voltage: 9 to 16 vehicle dynamic control (VDC)

• Part number: P1000X5

• Color: Black

• Dimensions (L x W x H): 15.03 x 7.76 x 2.38 inches

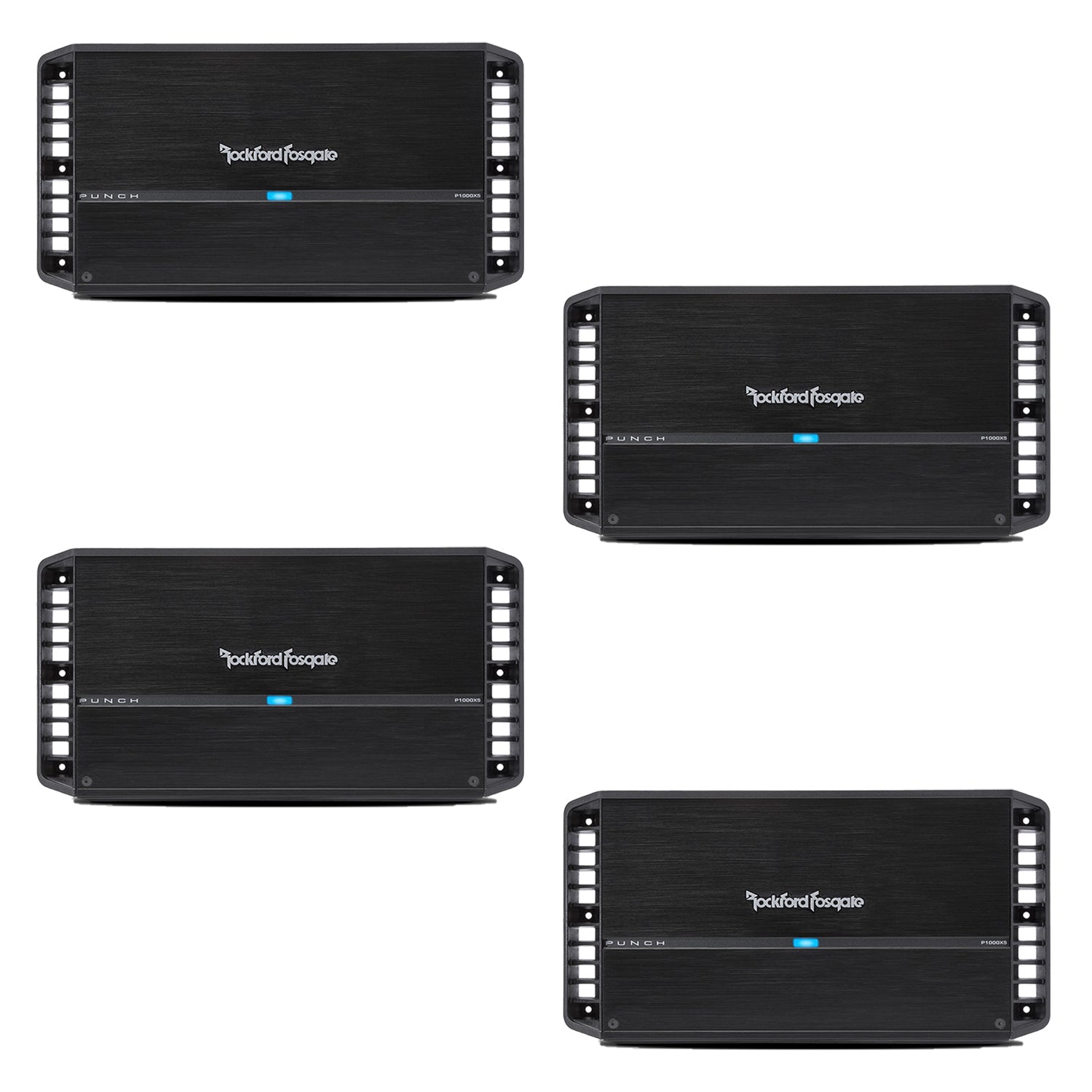

• Quantity: 4

What Our Experts Think

The Rockford Fosgate P1000X5 Punch 1,000W Class BD 5-Channel Car Amplifier (4 Pack) is the ultimate solution for building a high-powered, all-in-one car audio system. Here's why it stands out:

• Comprehensive Power: Each amplifier delivers 1,000 watts across five channels, combining full-range performance with dedicated subwoofer power.
• Class BD Efficiency: Advanced technology ensures high output with reduced heat and power consumption.
• Versatile Audio Setup: Supports a complete system, powering four speakers and a subwoofer with precision and clarity.
• Compact and Durable: Space-saving design with rugged construction, built to handle demanding installations.
• User-Friendly Features: Includes crossover controls, variable bass boost, and flexible input options for seamless integration.

Q&A

Q: What is included in this package?
A: This package contains four Rockford Fosgate P1000X5 Punch 1,000W Class BD 5-channel car amplifiers.

Q: What is the power output of each amplifier?
A: Each amplifier delivers up to 1,000 watts, with dedicated channels for front, rear, and subwoofer speakers.

Q: What makes this amplifier versatile?
A: With five channels, it powers a complete audio system, including four speakers and a subwoofer, in a single compact unit.

Q: Does it include protection features?
A: Yes, the amplifiers feature thermal management, over-current protection, and short-circuit safeguards for durability.

Q: What audio enhancements does it offer?
A: Each amplifier is equipped with Punch EQ for customizable sound and high-efficiency Class BD technology for superior audio quality.

Q: Is installation easy?
A: Absolutely, these amplifiers include RCA inputs and built-in crossovers, making them simple to integrate into various setups.

Q: Why choose this 4-pack?
A: Ideal for large-scale car audio systems, this 4-pack offers powerful, high-quality sound with the reliability Rockford Fosgate is known for.

Maintenance Tips

• Secure Installation: Mount amplifiers firmly to minimize vibration and ensure safety during operation.
• Keep Clean: Gently wipe the amplifiers with a dry, soft cloth to remove dust. Avoid contact with liquids or abrasive cleaners.
• Inspect Connections: Regularly check wiring, terminals, and connectors for secure fit and absence of corrosion or wear.
• Maintain Cooling: Ensure all amplifiers have adequate ventilation. Keep vents clear and avoid stacking units to prevent overheating.
• Protect from Moisture: Install amplifiers in dry locations and shield them from water and excessive humidity.
• Power Supply Monitoring: Use a reliable power source and compatible wiring to avoid voltage fluctuations that may harm the system.
• Fuse Replacement: Regularly inspect and replace fuses with correctly rated ones to safeguard the amplifiers.
• Adjust Settings Properly: Set gain, crossover, and other controls appropriately to match your audio system and avoid strain on the amplifiers.
