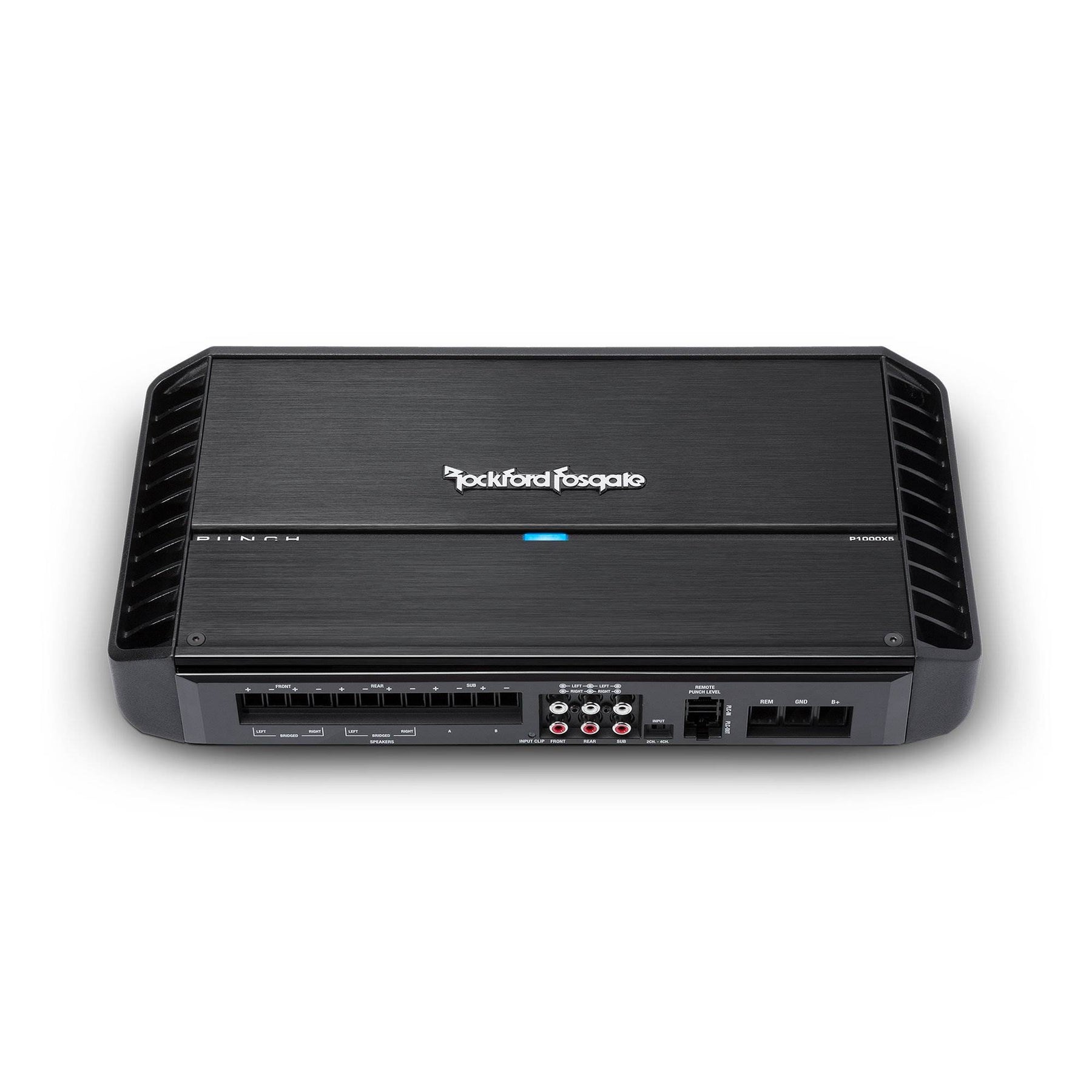

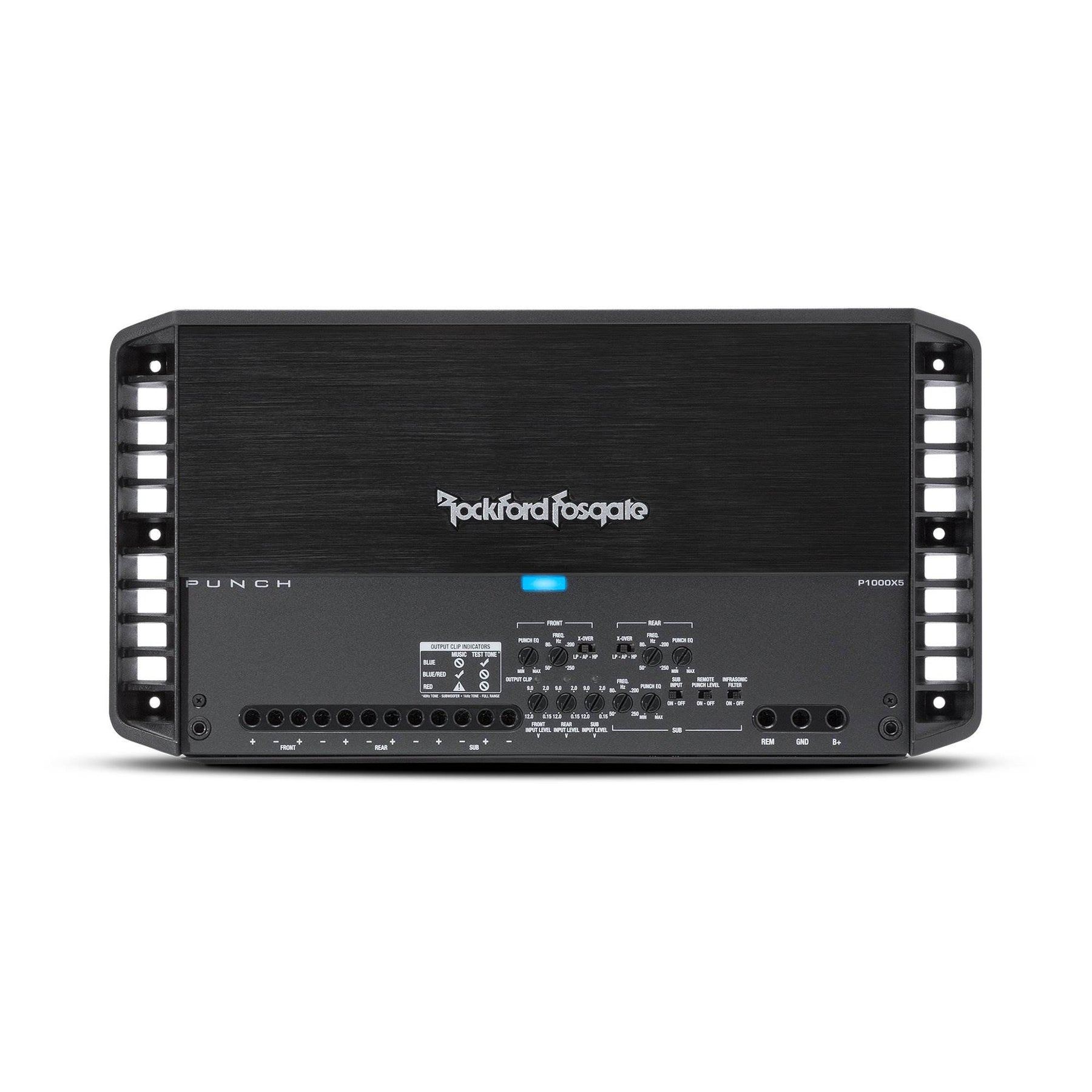

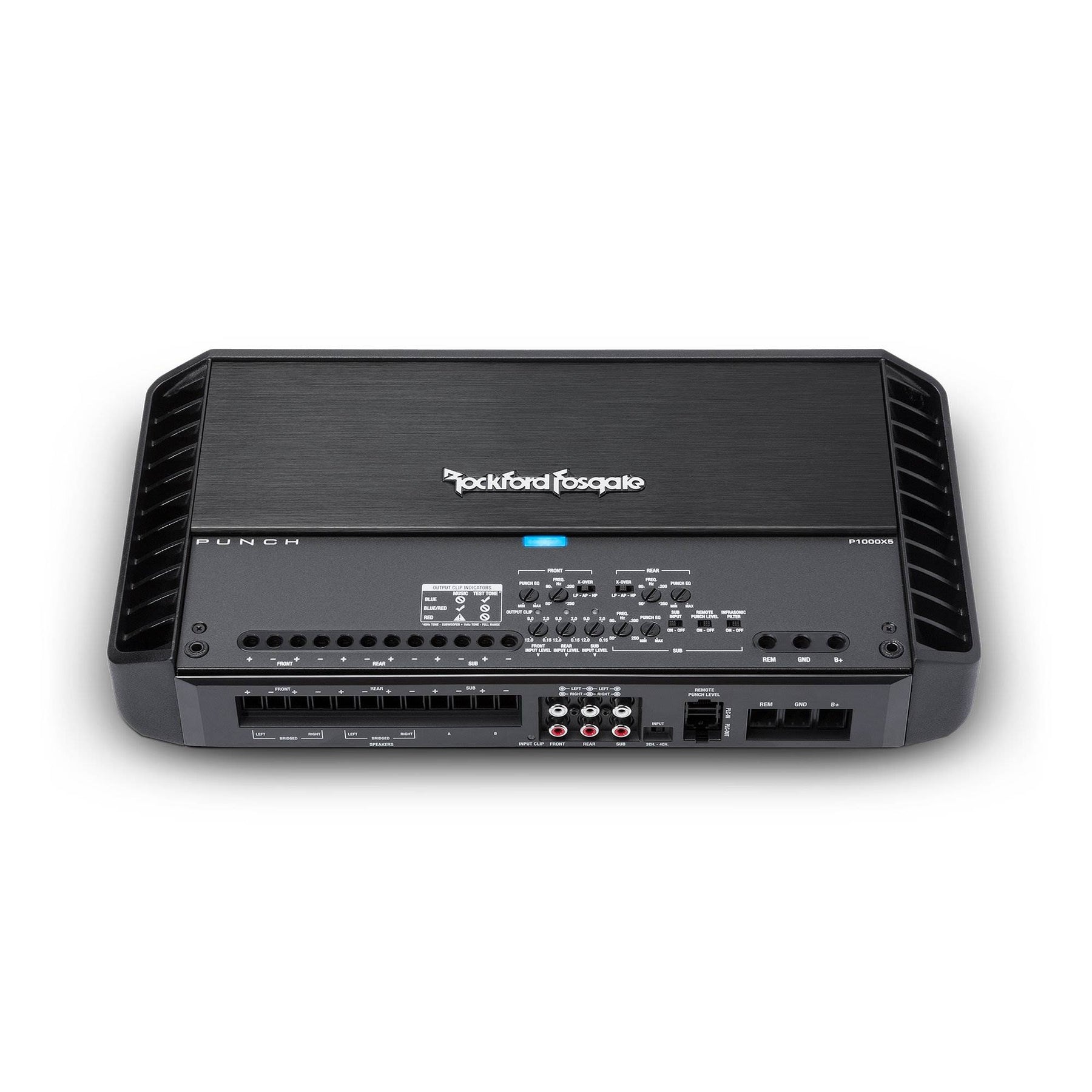

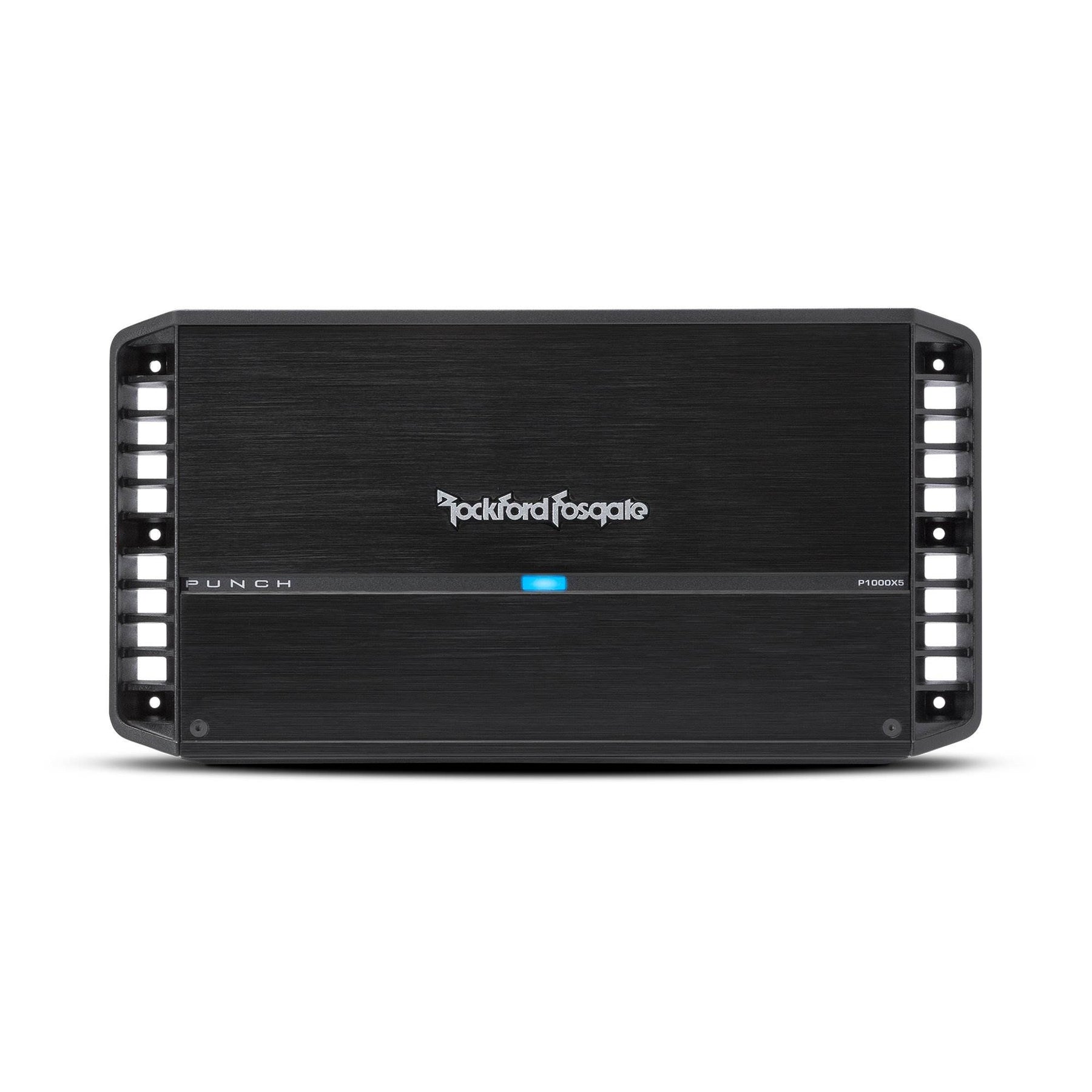

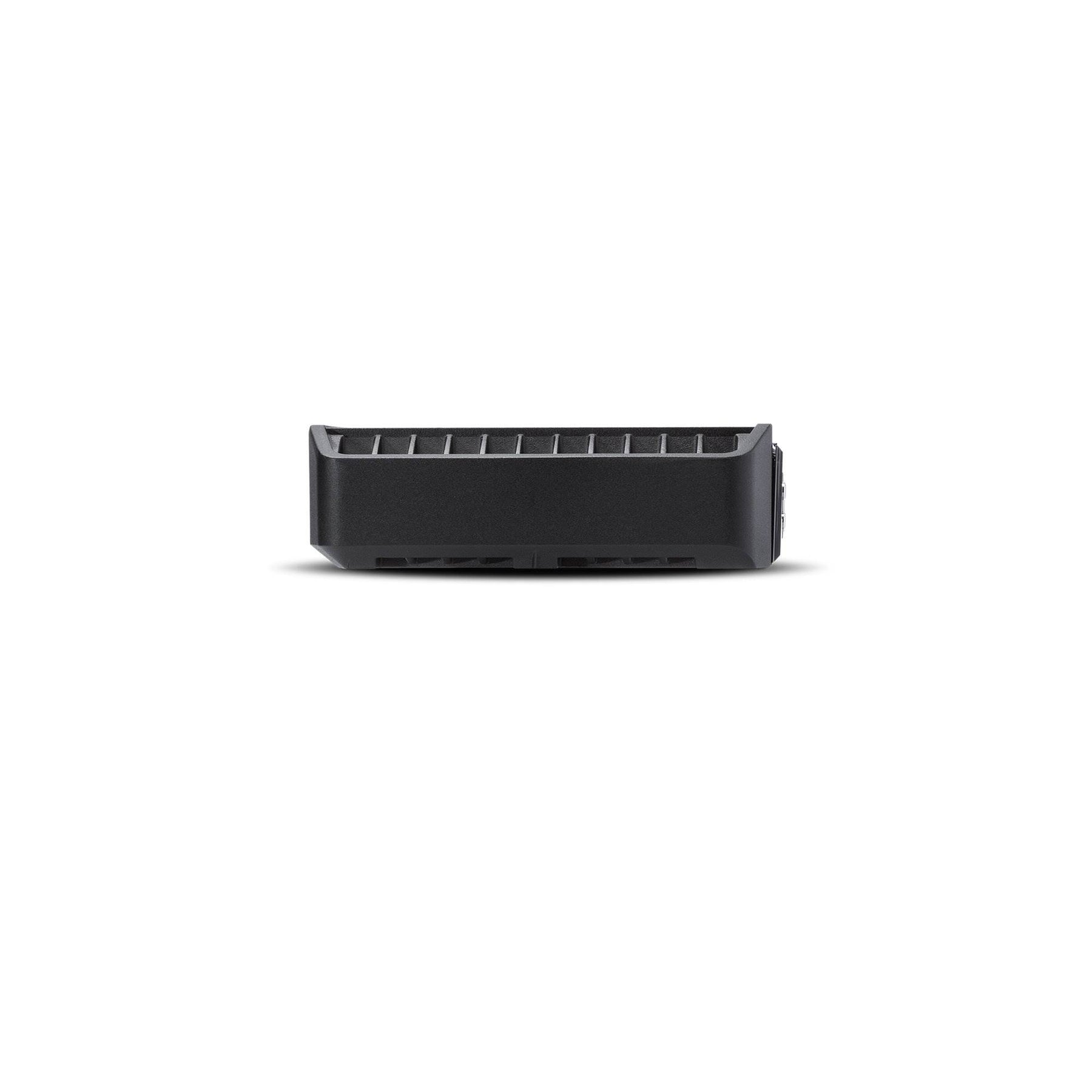

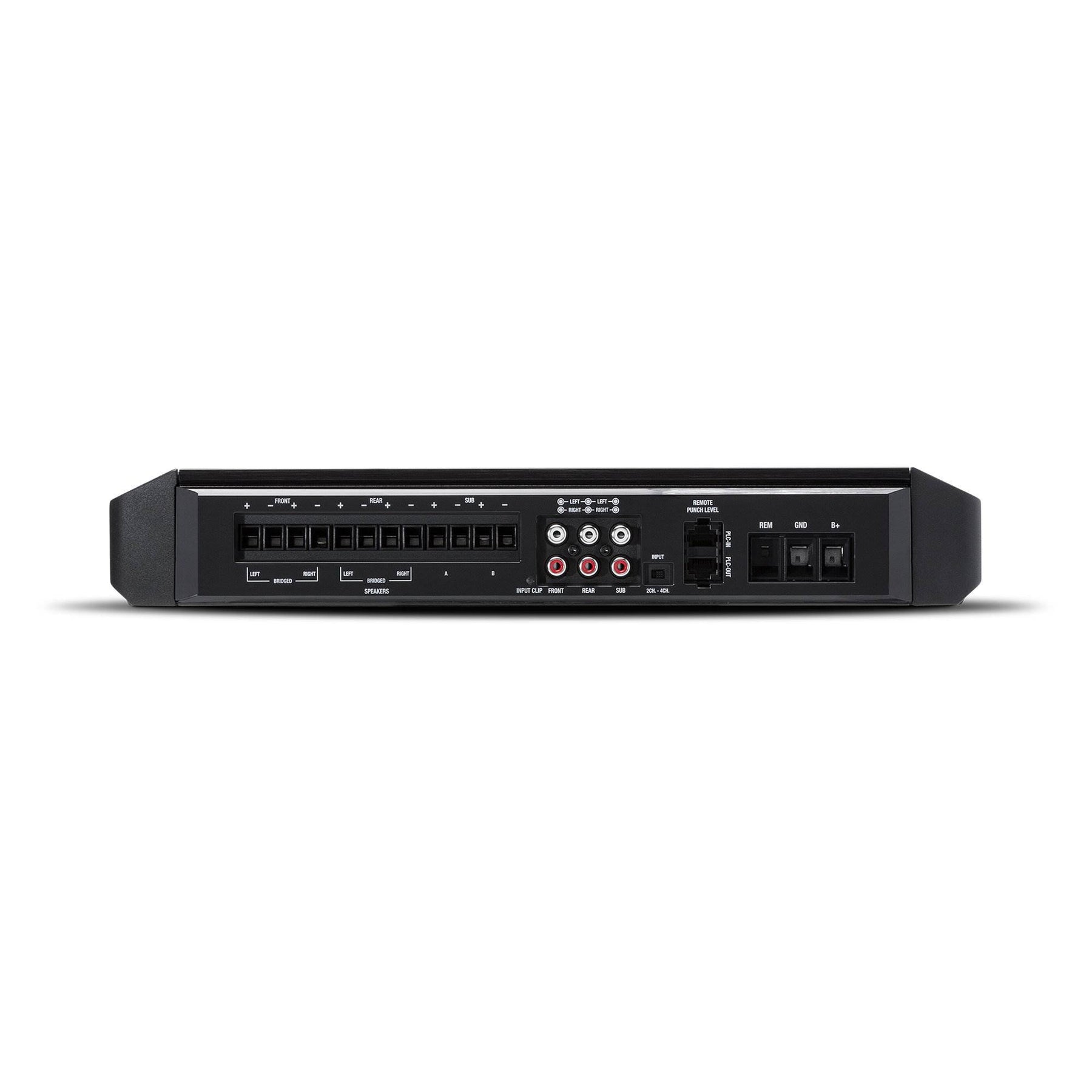

Rockford Fosgate P1000X5 Punch 1,000 Watt Class BD 5 Channel Car Amplifier Amp - 133741

Features

• Boost your car's sound with this 5-channel amplifier

• Bridgeable front and rear channels lets you run dash speakers, rear speakers, and, on the 5th channel, subwoofers

• Class BD amplifier that uses 1,000 watts of total rated power

• Handles high-level inputs with an auto turn-on circuit

• Protects against thermal, over-current, and short circuit failures so you can trust on your sound coming reliably and safely

• Get going quickly and easily with C.L.E.A.N. set-up circuit with in/out clip LEDs that help you match sources to their amp

• Control your sound without the bulk with its stealth, top-mounted control panel

• Includes a cast aluminum heatsink that looks sleek and handles heat and power efficiently

• CEA-2006 and CE compliant

• Rated power:

• 75 watts x 4 + 150 watts x 1 @ 4-Ohm

• 125 watts x 4 + 300 watts x 1 @ 2-Ohm

• 500 watts @ 1-Ohm

• Dynamic power:

• 115 watts x 4 + 299 watts x 1 @ 4-Ohm

• 190 watts x 4 + 540 watts x 1 @ 2-Ohm

• 863 watts x 1 @ 1-Ohm

• Signal inputs:

• Input switch: Hi/low level input

• Input switch: 2/4 channel input

• Hi/Low level: 3 RCA pair

• Sub: Front/sub input switch

• Controls:

• Sub tone: 0dB to +18dB @45 Hz

• Front crossover: 50 Hz to 250 Hz high-pass @12dB/Octave

• Rear crossover: 50 Hz to 250 Hz high-pass @12dB/Octave

• Sub crossover: 50 Hz to 250 Hz low-pass

• Sub crossover: 28 Hz infrasonic filter @12dB/Octave

• Specifications:

• Front/Rear frequency response: 20 Hz to 20 kHz +/

• 3dB

• Sub frequency response: 20 Hz to 500 Hz +/

• 3dB

• Input sensitivity: 150 megavolts to 12 volts

• Circuit topology class: Class A/B + Class BD (sub)

• Front/Rear average efficiency: 66% @ 4-Ohm

• Sub channel average efficiency: 80% @ 4-Ohm

• Total harmonic distortion: <1.0%

• Channels: 5

• Power wire gauge: 4 AWG

• Speaker wire gauge: 12 AWG

• Power input/Speaker output connector: Block

• Cooling: Convection

• Average current draw: 75 amps

• Maximum current draw: 150 amps

• Operating voltage: 9 to 16 vehicle dynamic control (VDC)

• Part number: P1000X5

• Color: Black

• Dimensions (L x W x H): 15.03 x 7.76 x 2.38 inches

What Our Experts Think

The Rockford Fosgate P1000X5 Punch 1,000 Watt Class BD 5-Channel Car Amplifier is a versatile powerhouse for car audio enthusiasts. Here's why it’s a standout:

• All-in-One Solution: Powers four full-range speakers and a subwoofer, simplifying your audio setup with a single amplifier.
• Class BD Efficiency: Combines high output with reduced power consumption and minimal heat generation for reliable performance.
• High-Quality Sound: Delivers crisp highs, balanced mids, and powerful bass for a full-spectrum listening experience.
• Compact Design: Fits easily in most vehicles without compromising on power or performance.
• Customizable Controls: Features adjustable crossovers, bass boost, and flexible inputs for fine-tuned audio.

Q&A

Q: What is the power output of this amplifier?
A: The P1000X5 delivers up to 1,000 watts of power, including dedicated channels for front, rear, and subwoofer speakers.

Q: What type of amplifier is this?
A: It’s a Class BD 5-channel amplifier, designed for high efficiency and exceptional audio performance.

Q: Can this amplifier power a complete car audio system?
A: Yes, it powers four speakers and a subwoofer, making it ideal for full-range sound setups.

Q: Does it include audio customization features?
A: Yes, it features Rockford’s Punch EQ for adjustable bass, midrange, and treble, ensuring optimal sound quality.

Q: Is it built for durability?
A: Absolutely, it includes thermal and over-current protection, along with Dynamic Thermal Management to maintain performance under load.

Q: Is installation user-friendly?
A: Yes, the amplifier includes RCA inputs, built-in crossovers, and a compact design for easy installation.

Q: Why choose this amplifier?
A: The P1000X5 combines powerful performance, flexibility, and reliability, making it a top choice for car audio enthusiasts.

Maintenance Tips

• Ensure Proper Installation: Mount the amplifier securely in a vibration-free location with adequate airflow.
• Keep It Clean: Wipe the amplifier with a soft, dry cloth to remove dust. Avoid liquid cleaners or abrasive materials.
• Check Connections: Regularly inspect all wiring, terminals, and connectors for tightness and signs of wear or corrosion.
• Prevent Overheating: Ensure sufficient ventilation around the amplifier. Keep cooling fins and vents unobstructed for optimal heat dissipation.
• Avoid Moisture: Install in a dry, well-protected area to prevent damage from water or high humidity.
• Monitor Power Supply: Use a stable, properly rated power source to prevent voltage fluctuations that could harm the amplifier.
• Fuse Maintenance: Check and replace fuses as needed with the correct rating to protect the amplifier and connected components.
• Set Gain and Controls Properly: Adjust settings like gain and crossovers to match your system, avoiding distortion or overloading.
