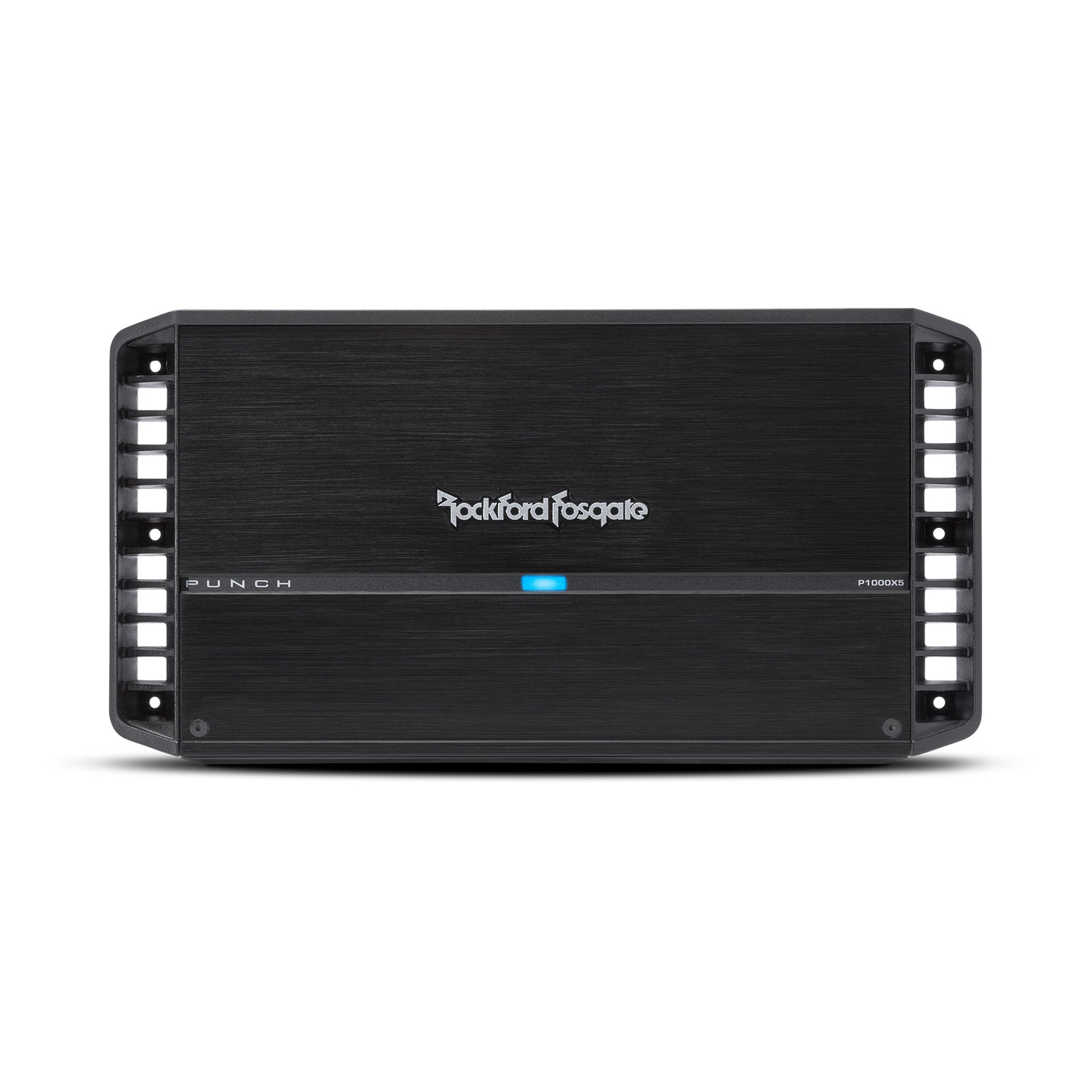

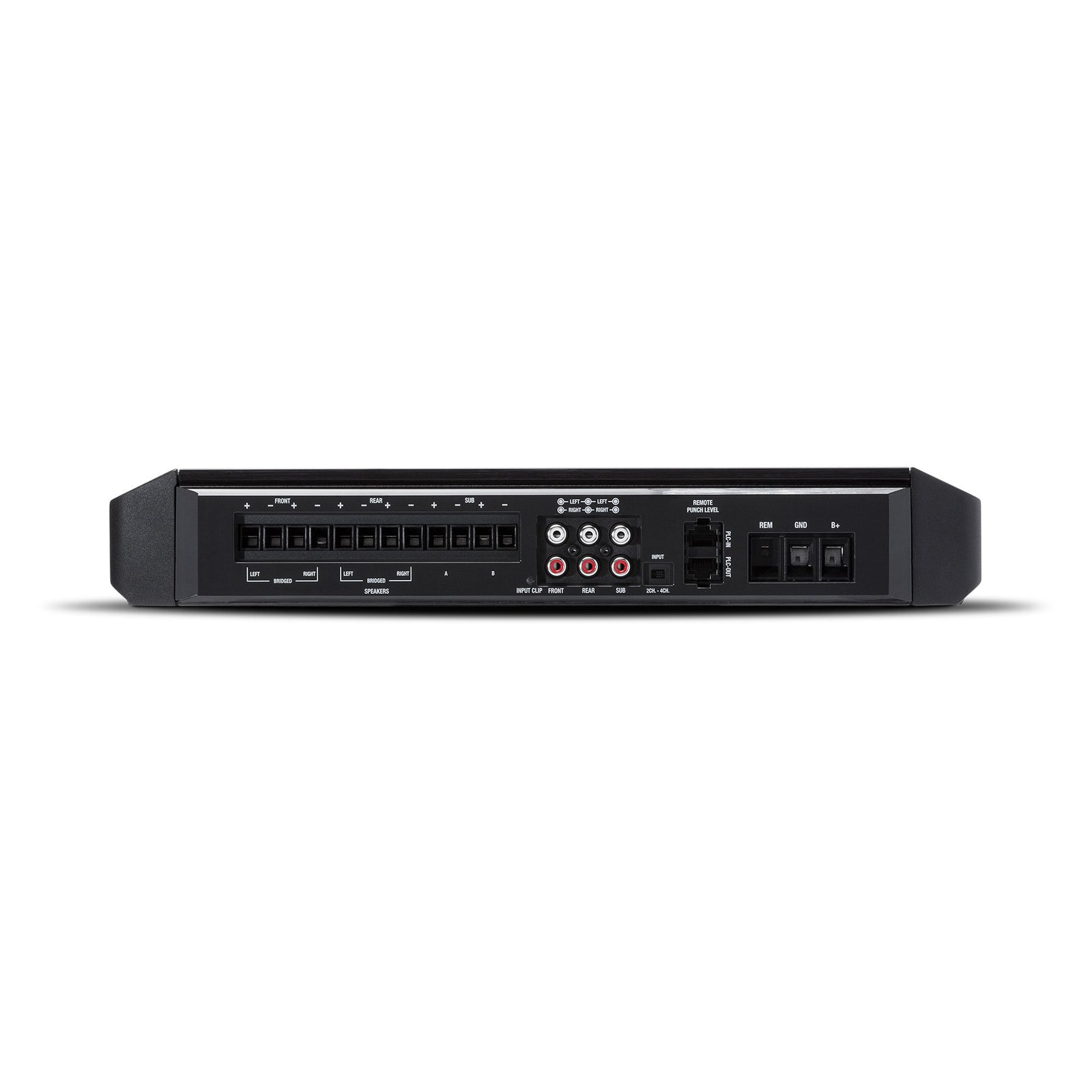

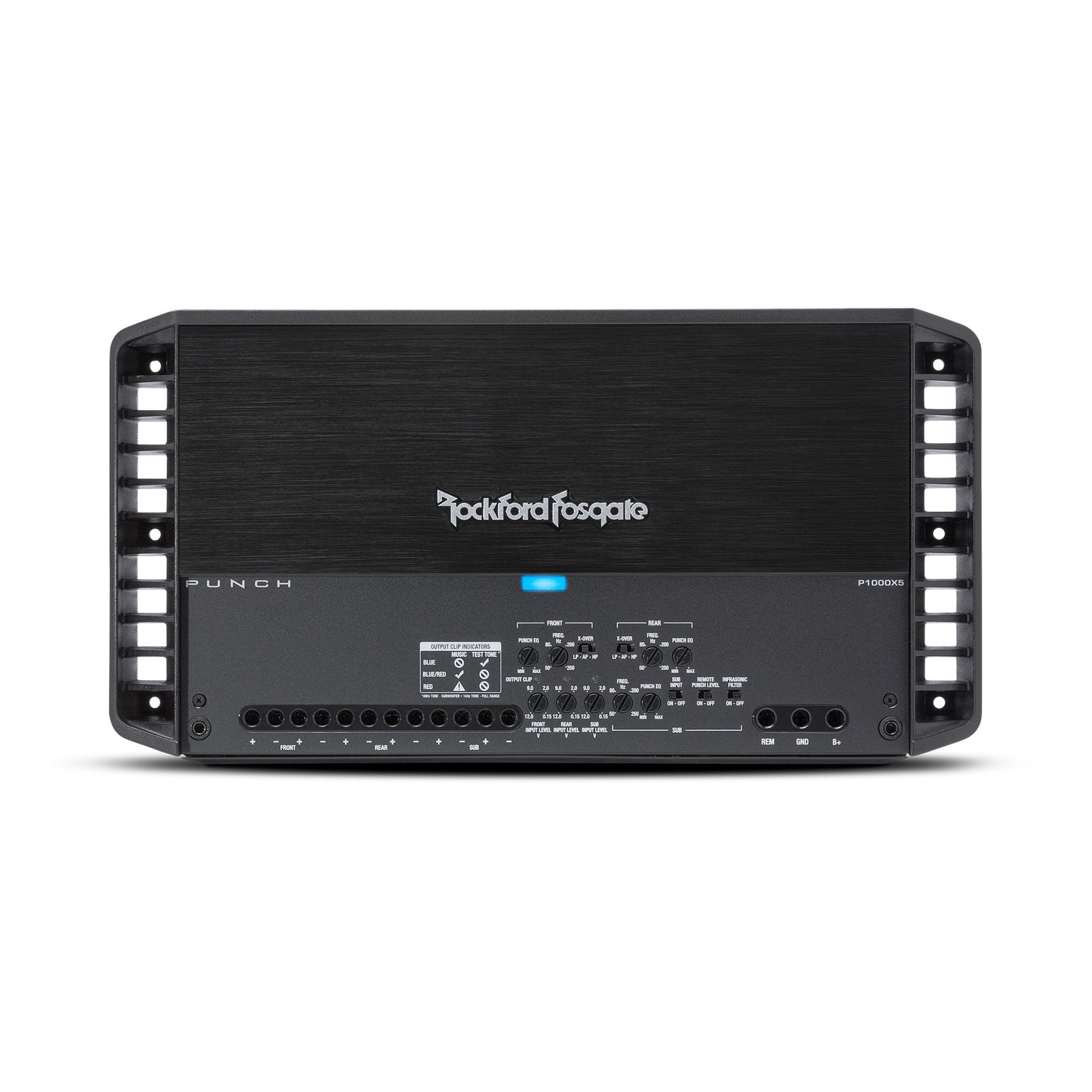

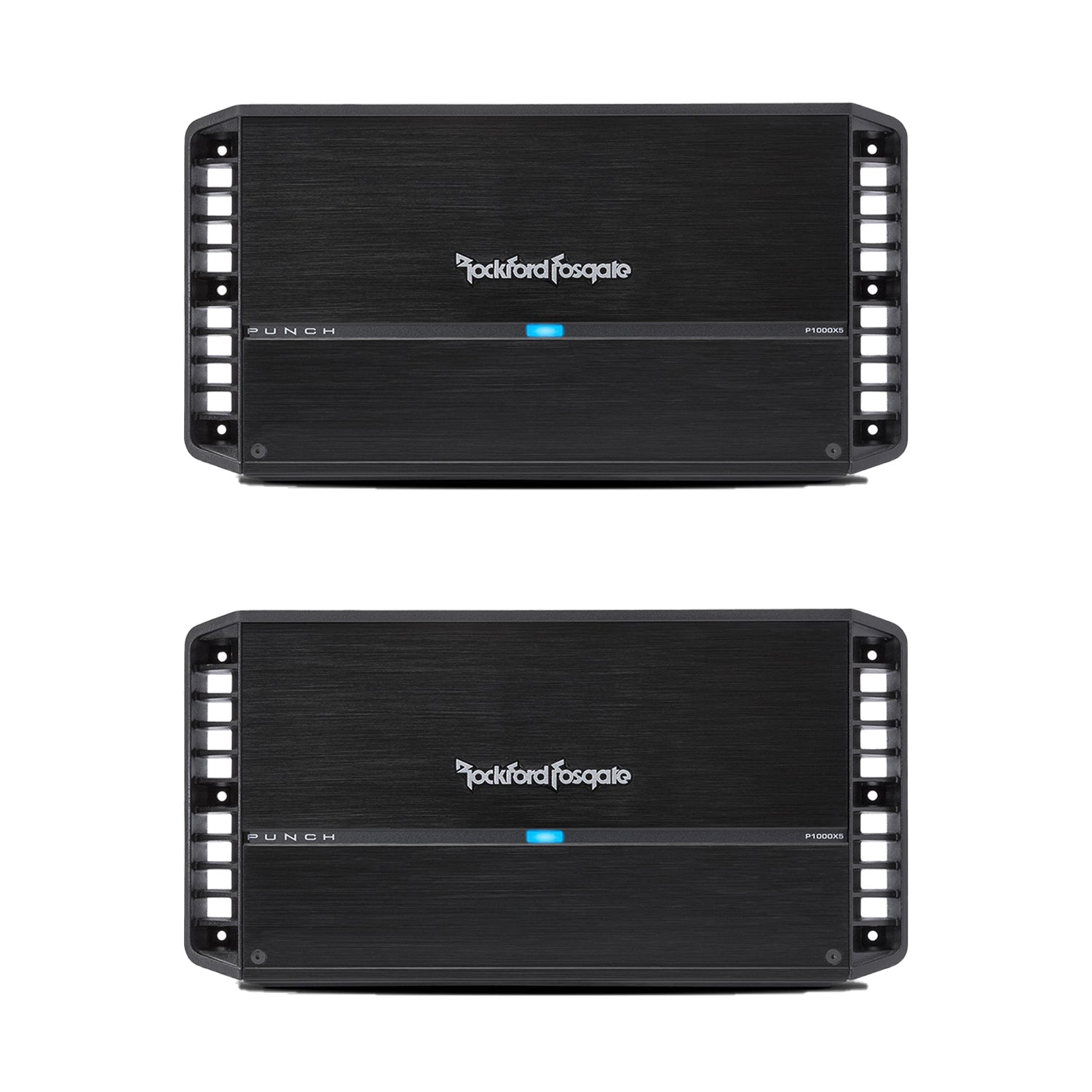

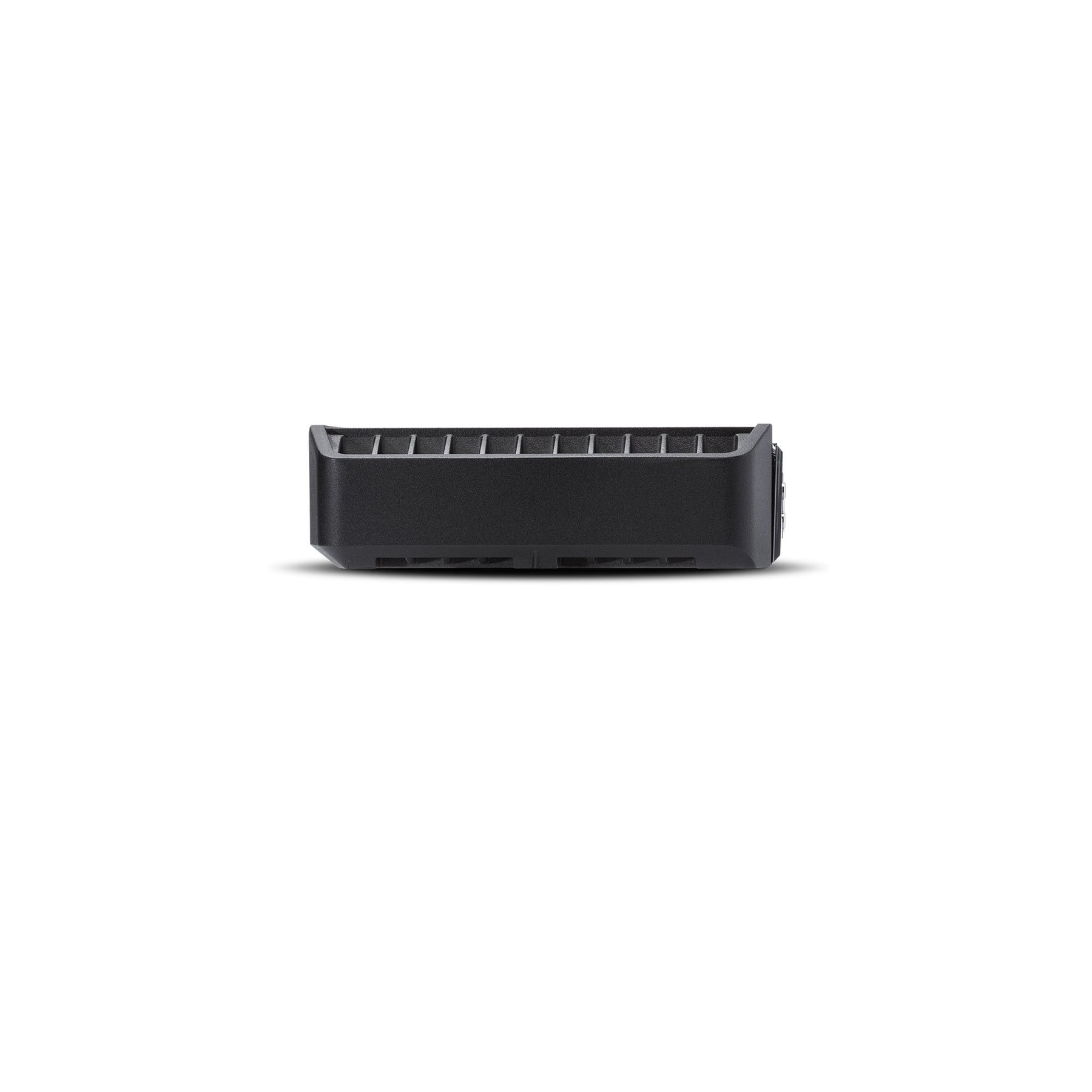

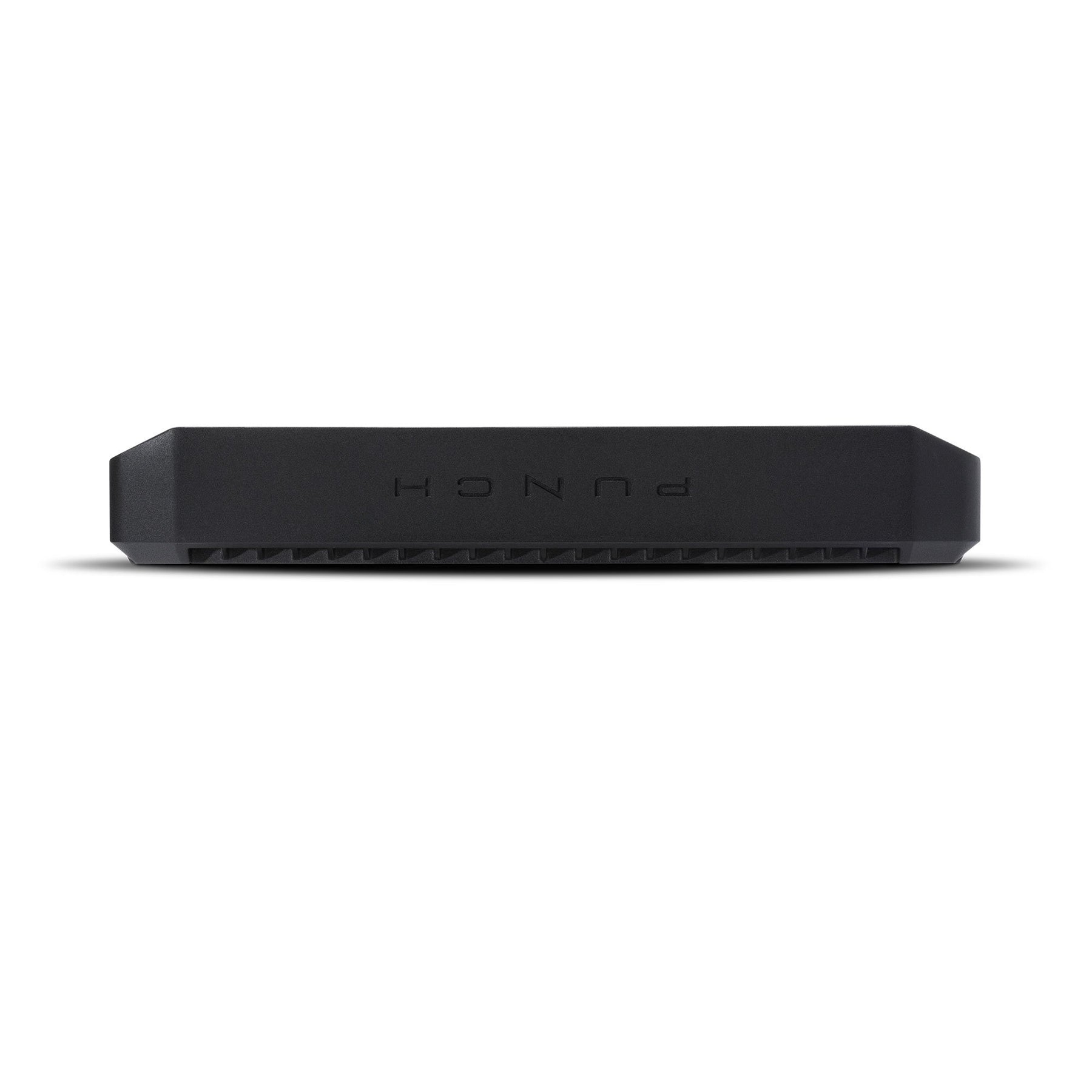

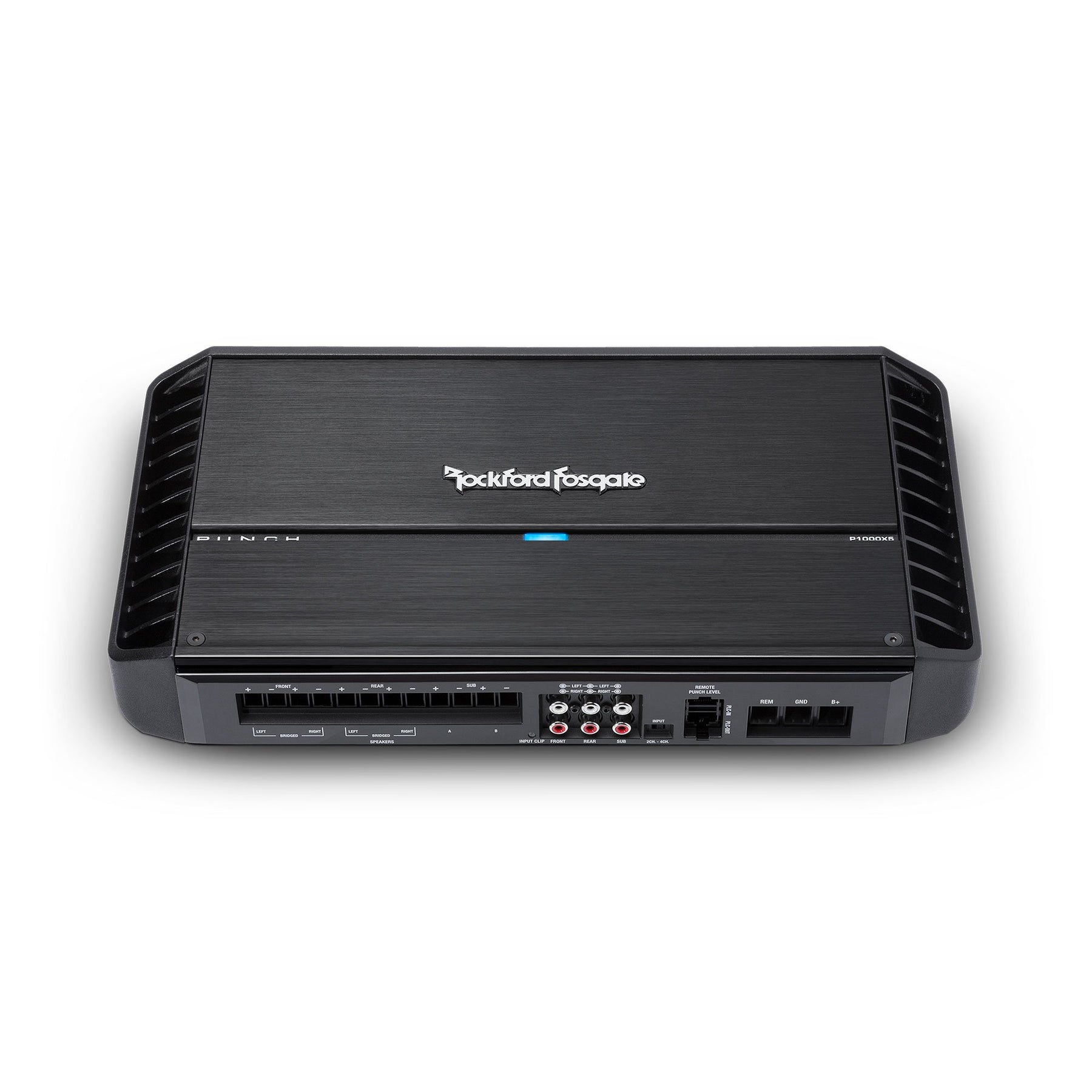

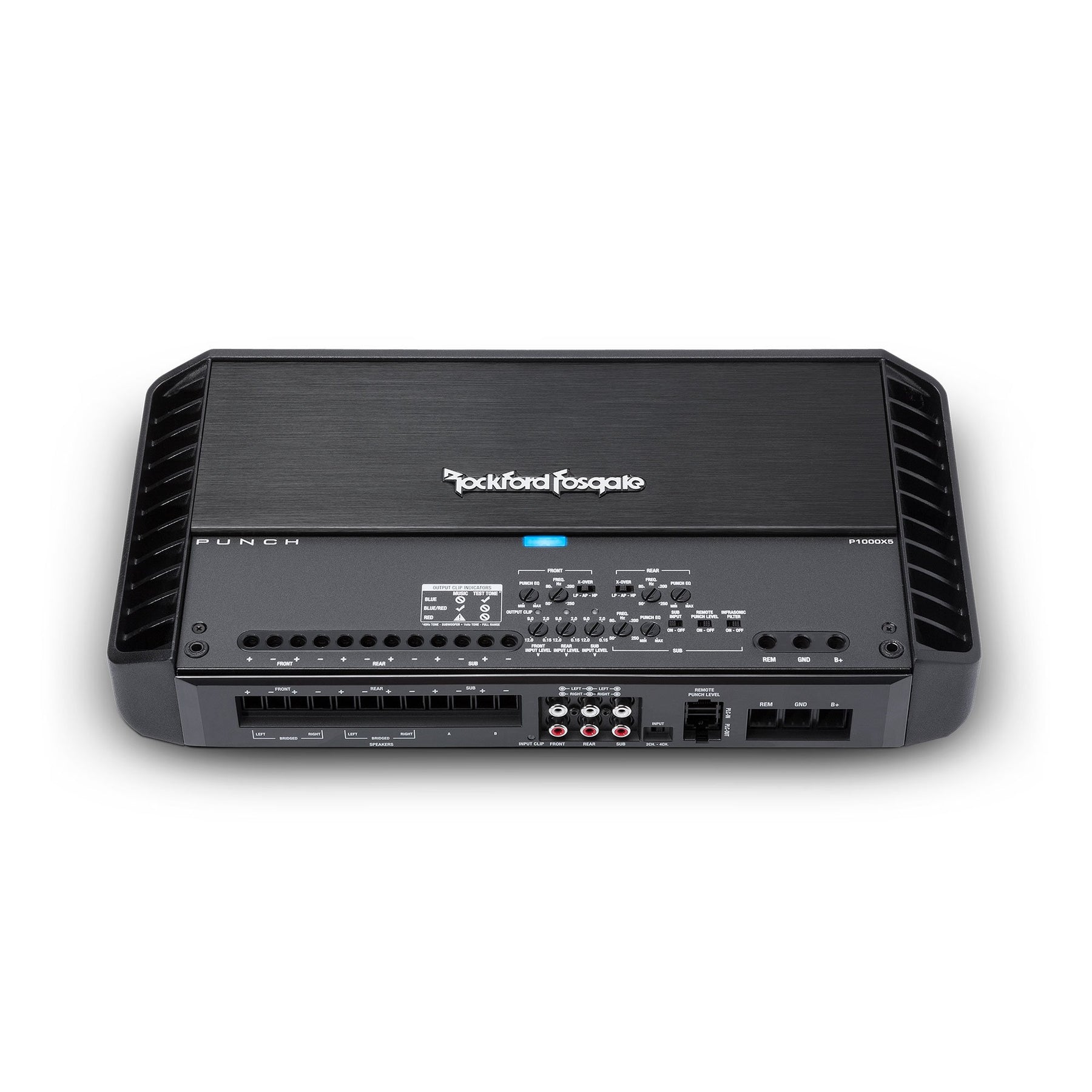

Rockford Fosgate P1000X5 Punch 1,000W Class BD 5 Channel Car Amplifier (2 Pack) - 194051

Features

• Boost your car's sound with this 5-channel amplifier

• Bridgeable front and rear channels lets you run dash speakers, rear speakers, and, on the 5th channel, subwoofers

• Class BD amplifier that uses 1,000 watts of total rated power

• Handles high-level inputs with an auto turn-on circuit

• Protects against thermal, over-current, and short circuit failures so you can trust on your sound coming reliably and safely

• Get going quickly and easily with C.L.E.A.N. set-up circuit with in/out clip LEDs that help you match sources to their amp

• Control your sound without the bulk with its stealth, top-mounted control panel

• Includes a cast aluminum heatsink that looks sleek and handles heat and power efficiently

• CEA-2006 and CE compliant

• Rated power:

• 75 watts x 4 + 150 watts x 1 @ 4-Ohm

• 125 watts x 4 + 300 watts x 1 @ 2-Ohm

• 500 watts @ 1-Ohm

• Dynamic power:

• 115 watts x 4 + 299 watts x 1 @ 4-Ohm

• 190 watts x 4 + 540 watts x 1 @ 2-Ohm

• 863 watts x 1 @ 1-Ohm

• Signal inputs:

• Input switch: Hi/low level input

• Input switch: 2/4 channel input

• Hi/Low level: 3 RCA pair

• Sub: Front/sub input switch

• Controls:

• Sub tone: 0dB to +18dB @45 Hz

• Front crossover: 50 Hz to 250 Hz high-pass @12dB/Octave

• Rear crossover: 50 Hz to 250 Hz high-pass @12dB/Octave

• Sub crossover: 50 Hz to 250 Hz low-pass

• Sub crossover: 28 Hz infrasonic filter @12dB/Octave

• Specifications:

• Front/Rear frequency response: 20 Hz to 20 kHz +/

• 3dB

• Sub frequency response: 20 Hz to 500 Hz +/

• 3dB

• Input sensitivity: 150 megavolts to 12 volts

• Circuit topology class: Class A/B + Class BD (sub)

• Front/Rear average efficiency: 66% @ 4-Ohm

• Sub channel average efficiency: 80% @ 4-Ohm

• Total harmonic distortion: <1.0%

• Channels: 5

• Power wire gauge: 4 AWG

• Speaker wire gauge: 12 AWG

• Power input/Speaker output connector: Block

• Cooling: Convection

• Average current draw: 75 amps

• Maximum current draw: 150 amps

• Operating voltage: 9 to 16 vehicle dynamic control (VDC)

• Part number: P1000X5

• Color: Black

• Dimensions (L x W x H): 15.03 x 7.76 x 2.38 inches

• Quantity: 2

What Our Experts Think

The Rockford Fosgate P1000X5 Punch 1,000W Class BD 5-Channel Car Amplifier (2 Pack) is a premium choice for building powerful and efficient car audio systems. Here's why it excels:

• Dual Amplifier Power: Each amp delivers 1,000 watts, supporting a total of four speakers and two subwoofers for incredible sound coverage.
• Class BD Technology: Ensures high power efficiency with minimal heat, maintaining consistent performance over long periods.
• All-in-One Design: Each amplifier supports a complete audio setup with dedicated channels for both full-range speakers and subwoofers.
• Built to Last: Rockford’s rugged construction ensures durability, even in demanding vehicle environments.
• User-Friendly Features: Includes adjustable crossovers, bass boost, and flexible input options for easy customization and installation.

Q&A

Q: What is included in this package?
A: This package includes two Rockford Fosgate P1000X5 Punch 1,000W Class BD 5-channel car amplifiers.

Q: What is the power output of each amplifier?
A: Each amplifier delivers up to 1,000 watts, with channels for front, rear, and subwoofer speakers, ideal for a full car audio system.

Q: What type of amplifier is it?
A: It’s a Class BD 5-channel amplifier, known for high efficiency and excellent audio clarity.

Q: Does it feature protection systems?
A: Yes, it includes thermal and over-current protection, along with Dynamic Thermal Management for reliable operation.

Q: What audio features are included?
A: Each amplifier offers Punch EQ for customizable bass, midrange, and treble, ensuring rich, dynamic sound.

Q: Is installation simple?
A: Yes, the amplifiers come with RCA inputs, built-in crossovers, and a user-friendly design for easy integration into various setups.

Q: Why choose this 2-pack?
A: Perfect for larger or dual-vehicle installations, this 2-pack provides powerful, versatile, and reliable audio performance for premium sound systems.

Maintenance Tips

• Secure Installation: Mount amplifiers in stable locations with proper ventilation to minimize vibrations and overheating risks.
• Clean Gently: Use a soft, dry cloth to remove dust from the amplifiers. Avoid using water or harsh cleaning agents.
• Inspect Wiring: Regularly check connections for tightness and inspect for signs of wear, corrosion, or fraying.
• Ensure Ventilation: Keep vents and cooling fins unobstructed to maintain efficient heat dissipation. Avoid stacking amplifiers.
• Protect from Moisture: Install in a dry, weather-protected area to prevent damage from water or high humidity.
• Monitor Power Source: Use correctly rated power supplies and fuses to avoid voltage fluctuations and ensure system safety.
• Adjust Settings Properly: Calibrate gain, crossover, and other controls to match your speakers and prevent distortion or overdriving.
• Regular Inspections: Periodically check for overheating or performance irregularities and address any issues promptly.
