Safety Speed 6400 Panel Saw

The 6400 provides a 64″ maximum crosscut while the 6800 provides a 74″ maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.

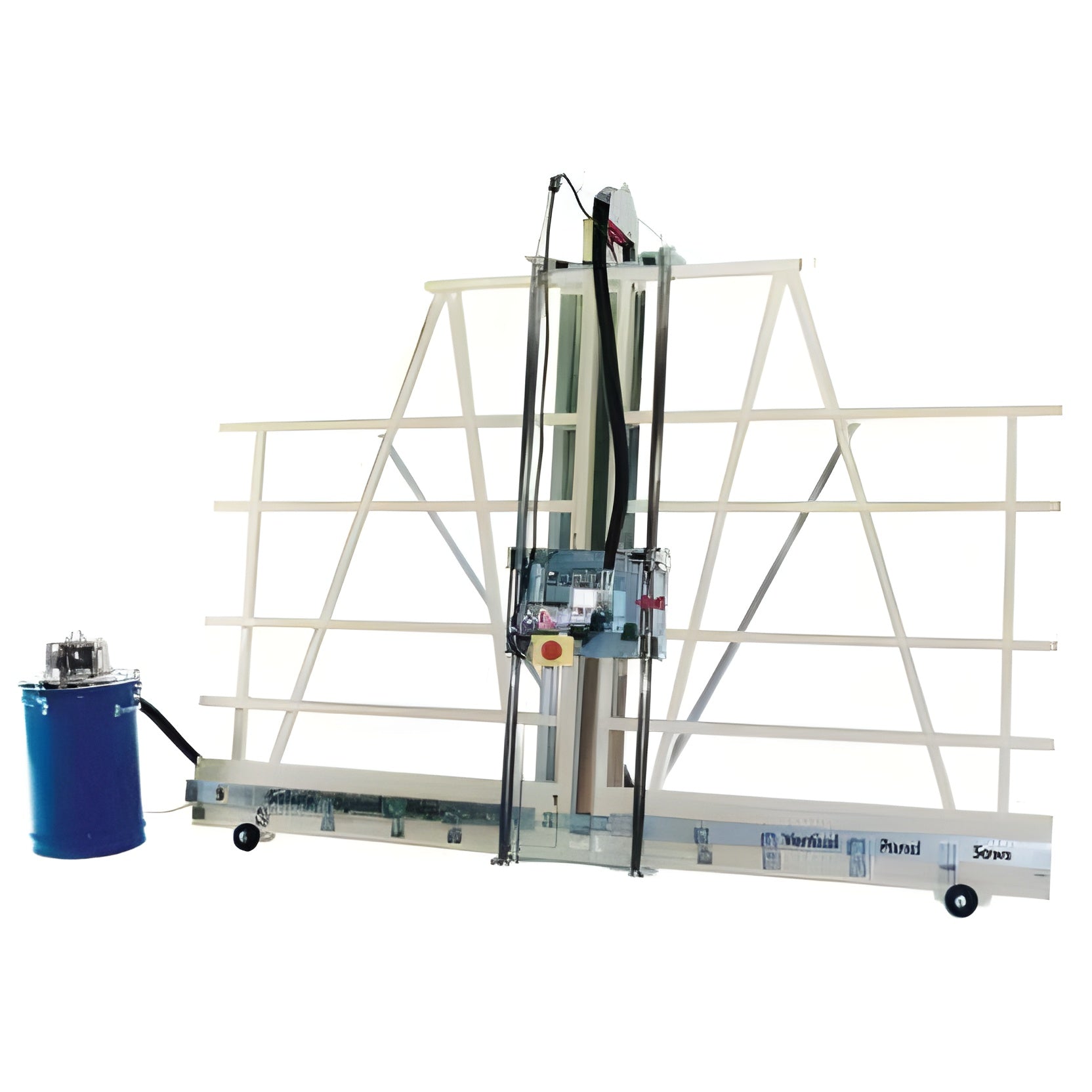

Photos are shown shown with a stand, wheels, and a dust kit,  which are optional accessories

Upgrades on the 6400 & 6800 model panel saws compared to our H-Series Panel Saws include:

• An upgraded, worm drive motor providing greater longevity.
• 1/64″ straight and square cutting tolerance compared to 1/32″ on our H-Series Machines that’s made possible by additional bearings.
• Additional steel welded at a diagonal plane adding significant weight to the frame.
• A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance.
• Additional bearings within the motor providing a tighter cutting tolerance.
• Aluminum material rollers  instead of red material rollers .

Standard Equipment

• 3 Hp worm driven heavy-duty saw motor.
• 10 ft. welded steel frame.
• Chrome-plated 1 3/4″ guide tubes.
• 8 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• Integrated dust collection bonnet.
• TUV certified to UL/CSA standards.

Specifications

Documents

Product manual

Product parts

6400 Panel Saw Sheet

What Our Experts Think

The Safety Speed 6400 Panel Saw is a versatile and durable solution for cutting large panels with accuracy and ease. Here’s why it’s a standout tool:

• Precision Cutting: Provides clean, consistent cuts, making it ideal for projects requiring high accuracy.
• Robust Construction: Built with durable materials to ensure long-lasting performance, even in demanding work environments.
• Large Panel Capacity: Designed to handle oversized panels, improving efficiency for large-scale cutting tasks.
• Space-Saving Vertical Design: The vertical format maximizes workspace without compromising stability or functionality.
• Easy-to-Operate: Simple controls and adjustable settings make it user-friendly for both experienced and novice operators.
• Versatile Material Compatibility: Capable of cutting wood, plastic, composites, and more, making it suitable for diverse applications.
• Industrial-Grade Performance: Designed to meet the needs of professional workshops, cabinet makers, and sign manufacturers.

Q&A

Q: What is the Safety Speed 6400 Panel Saw used for?
A: The Safety Speed 6400 Panel Saw is designed for precise and efficient cutting of large panels made from wood, composites, plastics, and other sheet materials.

Q: What is the maximum panel size it can handle?
A: It can handle panels up to 64" tall and virtually unlimited in width.

Q: What is the cutting depth capacity?
A: The saw is capable of cutting materials up to 1¾" thick.

Q: How is precision achieved?
A: The 6400 Panel Saw features a vertical cutting system with an easily adjustable rotating saw head for both vertical and horizontal cuts, along with precision guides for accurate results.

Q: Is this saw portable?
A: While designed to be stationary for stability, its compact vertical design makes it a space-saving solution for workshop environments.

Q: What industries is this panel saw ideal for?
A: It is commonly used in woodworking, cabinetry, sign-making, and other applications requiring large panel cutting.

Q: Does it include safety features?
A: Yes, it includes blade guards, a counterbalance system, and easy-to-use controls for operator safety.

Maintenance Tips

• Inspect the Saw Regularly: Check the frame, guide rails, and cutting mechanism for wear, damage, or misalignment. Tighten any loose bolts or fasteners.
• Lubricate Moving Parts: Apply a suitable lubricant to the guide tubes, rollers, and carriage bearings to ensure smooth movement and reduce wear.
• Clean the Machine: After each use, remove sawdust, debris, and residue from the blade area, guide rails, and motor housing to prevent buildup and overheating.
• Monitor the Blade Condition: Regularly inspect the saw blade for dullness, warping, or damage. Replace or sharpen the blade as necessary for clean and accurate cuts.
• Test Safety Features: Ensure all safety guards, blade covers, and emergency stop mechanisms are functional and securely in place.
• Check Cutting Alignment: Periodically verify the alignment of the blade and the fence to ensure accurate and straight cuts. Adjust as needed.
• Use Correct Materials: Operate the saw only on materials that meet the manufacturer's recommended thickness and type to prevent damage and ensure safe operation.
• Replace Worn Components: Monitor the condition of rollers, bearings, and other wear-prone parts, replacing them as needed to maintain optimal performance.
• Wear Personal Protective Equipment (PPE): Always use safety goggles, hearing protection, and a dust mask to safeguard against debris, noise, and dust exposure.
• Store Properly: When not in use, keep the saw in a clean, dry location, and cover it to protect against dust and environmental damage.
