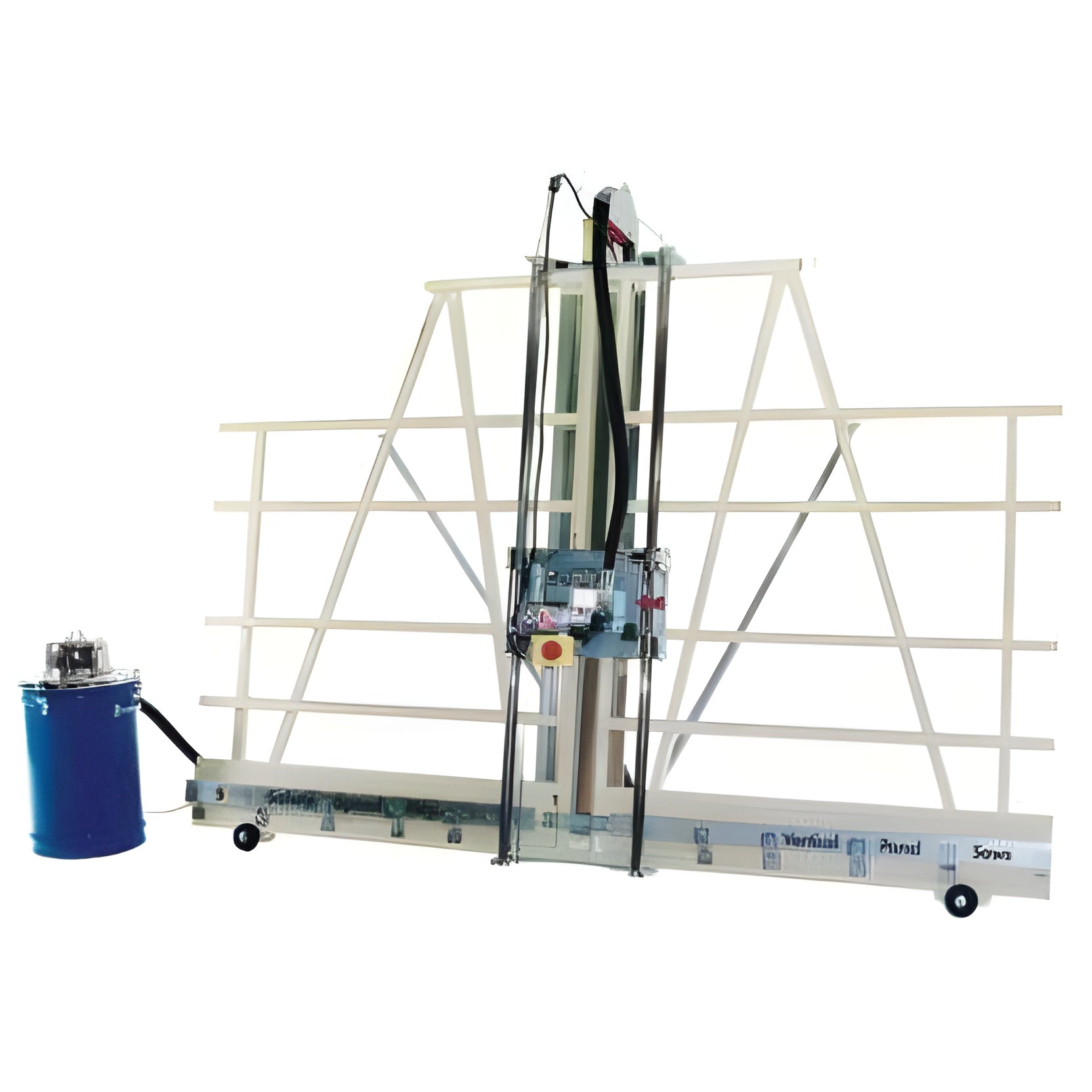

Safety Speed 6800 Panel Saw

Featuring a heavy duty worm drive motor, additional steel frame supports, aluminum wheels and double bearings, this machine will deliver an accuracy of 1/64″. The 6800 can cut sheets up to 74″ without blinking an eye.

The 6800 provides a 74″ maximum crosscut while the 6400 provides a 64″ maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.

Upgrades on the 6400 & 6800 model panel saws compared to our H-Series Panel Saws include:

• An upgraded, worm drive motor providing greater longevity.
• 1/64″ straight and square cutting tolerance compared to 1/32″ on our H-Series Machines that’s made possible by additional bearings.
• Additional steel welded at a diagonal plane adding significant weight to the frame.
• A weighted pulley system for pulling the saw motor up and down the guide tubes vs a spring loaded counter balance.
• Additional bearings within the motor providing a tighter cutting tolerance.
• Aluminum material rollers  instead of red material rollers .

Standard Equipment

• 3 Hp worm driven heavy-duty saw motor.
• 10 ft. welded steel frame.
• Chrome-plated 1 3/4″ guide tubes.
• 8 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• Integrated dust collection bonnet.
• TUV certified to UL/CSA standards.

Specifications

Documents

Product manual

Product parts

6800 Panel Saw Sheet

What Our Experts Think

The Safety Speed 6800 Panel Saw is a robust and efficient tool for cutting large panels with precision and ease. Here’s why it’s highly regarded:

• Heavy-Duty Performance: Designed for handling demanding tasks, it can cut through various materials, including wood, plastic, and composites.
• Precision Cutting: Delivers clean, accurate cuts, making it ideal for projects that require consistent results.
• Large Panel Capacity: Capable of cutting large panels efficiently, improving productivity in high-volume operations.
• Compact Vertical Design: Saves floor space while offering excellent stability and control during operation.
• User-Friendly Controls: Easy-to-use features and straightforward adjustments make it accessible for operators of all skill levels.
• Durable Construction: Built with high-quality materials to ensure longevity and reliability in industrial or workshop environments.
• Versatile Applications: Suitable for cabinetry, furniture production, sign-making, and other precision cutting tasks.

Q&A

Q: What is the Safety Speed 6800 Panel Saw used for?
A: The Safety Speed 6800 Panel Saw is designed for accurately cutting large panels of wood, plastic, composites, and other sheet materials.

Q: What is the maximum panel size it can handle?
A: It can handle materials up to 74" tall and virtually unlimited in width.

Q: What is the cutting depth capacity?
A: The saw can cut through materials up to 1¾" thick.

Q: How is precision ensured during cutting?
A: The 6800 Panel Saw features a vertical design with a quick-change rotating saw head for precise vertical and horizontal cuts, along with adjustable guides for consistency.

Q: Is the saw portable?
A: The saw is built for stationary use in workshop environments but is compact enough to save space while providing stability for accurate cuts.

Q: What industries is this panel saw ideal for?
A: It is widely used in woodworking shops, sign-making businesses, construction, and other industries requiring precise panel cutting.

Q: Does it come with any safety features?
A: Yes, it includes blade guards and a counterbalance system for safe and efficient operation.

Maintenance Tips

• Inspect the Frame and Components: Regularly examine the saw frame, guide rails, and cutting mechanism for wear, damage, or misalignment. Tighten loose bolts and fasteners.
• Lubricate Moving Parts: Apply lubricant to the guide tubes, rollers, and carriage bearings to ensure smooth movement and reduce wear.
• Check the Saw Blade: Inspect the blade for dullness, warping, or damage. Replace or sharpen the blade as necessary to maintain cutting precision and efficiency.
• Clean the Machine: Remove sawdust, debris, and residue from the blade area, guide rails, and motor housing after each use to prevent buildup and overheating.
• Test Safety Features: Ensure that safety guards, blade covers, and emergency stop mechanisms are functioning correctly and securely in place.
• Verify Cutting Alignment: Periodically check the alignment of the blade and fence to ensure straight and accurate cuts. Adjust if necessary.
• Adhere to Material Specifications: Only cut materials within the thickness and type recommended by the manufacturer to avoid damaging the saw or risking injury.
• Replace Worn Parts: Monitor the condition of rollers, bearings, and other wear components, replacing them as needed to maintain optimal performance.
• Use Personal Protective Equipment (PPE): Always wear safety goggles, ear protection, and a dust mask to protect against flying debris and loud noise.
• Store Properly: Keep the saw in a clean, dry environment when not in use to prevent corrosion and damage. Cover the saw if stored for extended periods.
