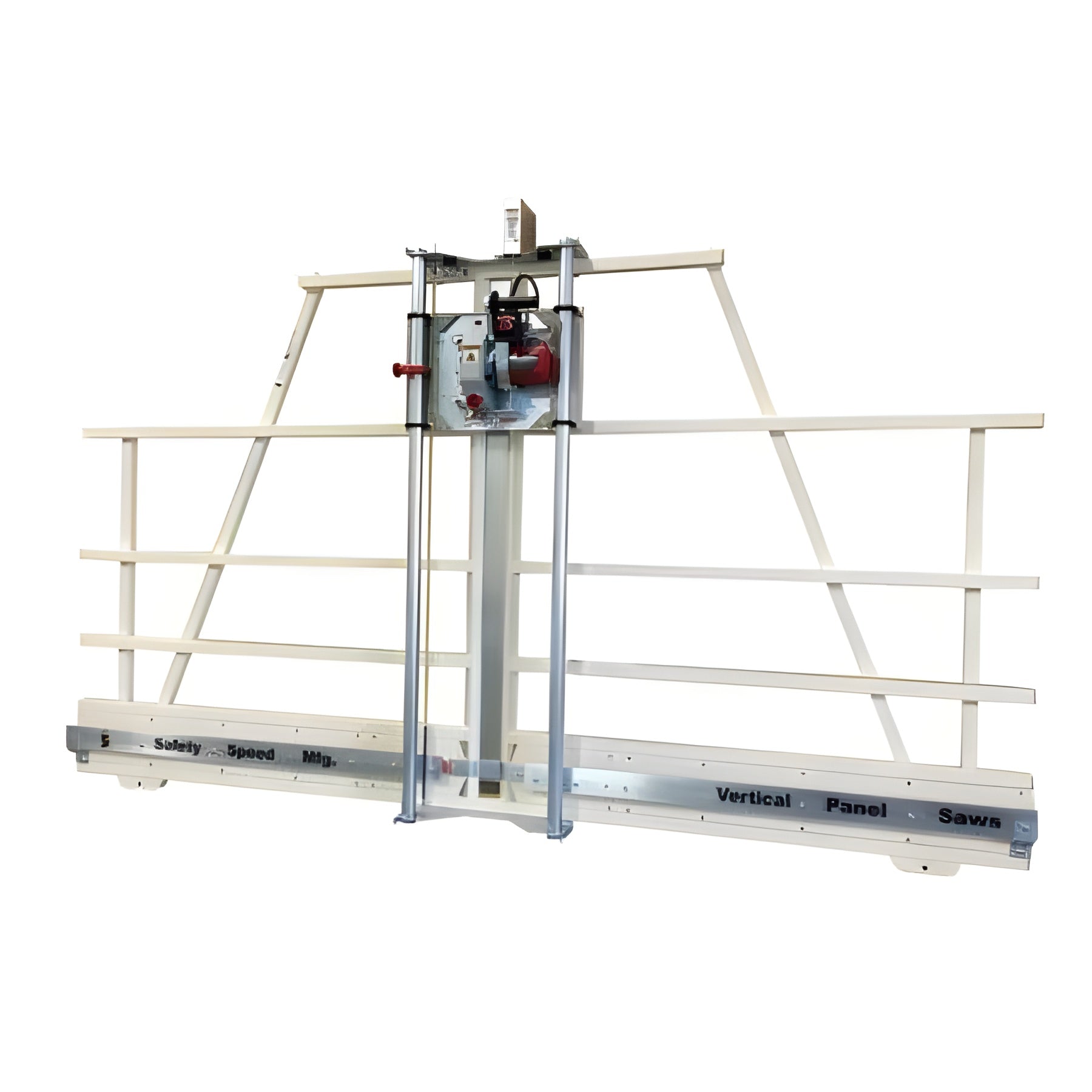

Safety Speed H4 Panel Saw

The H4 offers full-sized vertical panel saw productivity in economical machines. The model H4 saws cut within 1/32″ on a wide variety of panel materials up to 1¾” thick. H-Series saws are used in all kinds of panel processing applications.

Standard Equipment

• 3 ¼ Hp, 15 amp industrial duty saw motor.
• Zinc plated 1 ¾”steel guide tubes.
• 4 Nylatron roller bearing systems.
• Adjustable vertical and horizontal rulers.
• Quick change from vertical to horizontal cutting.
• Thin material pressure guard.

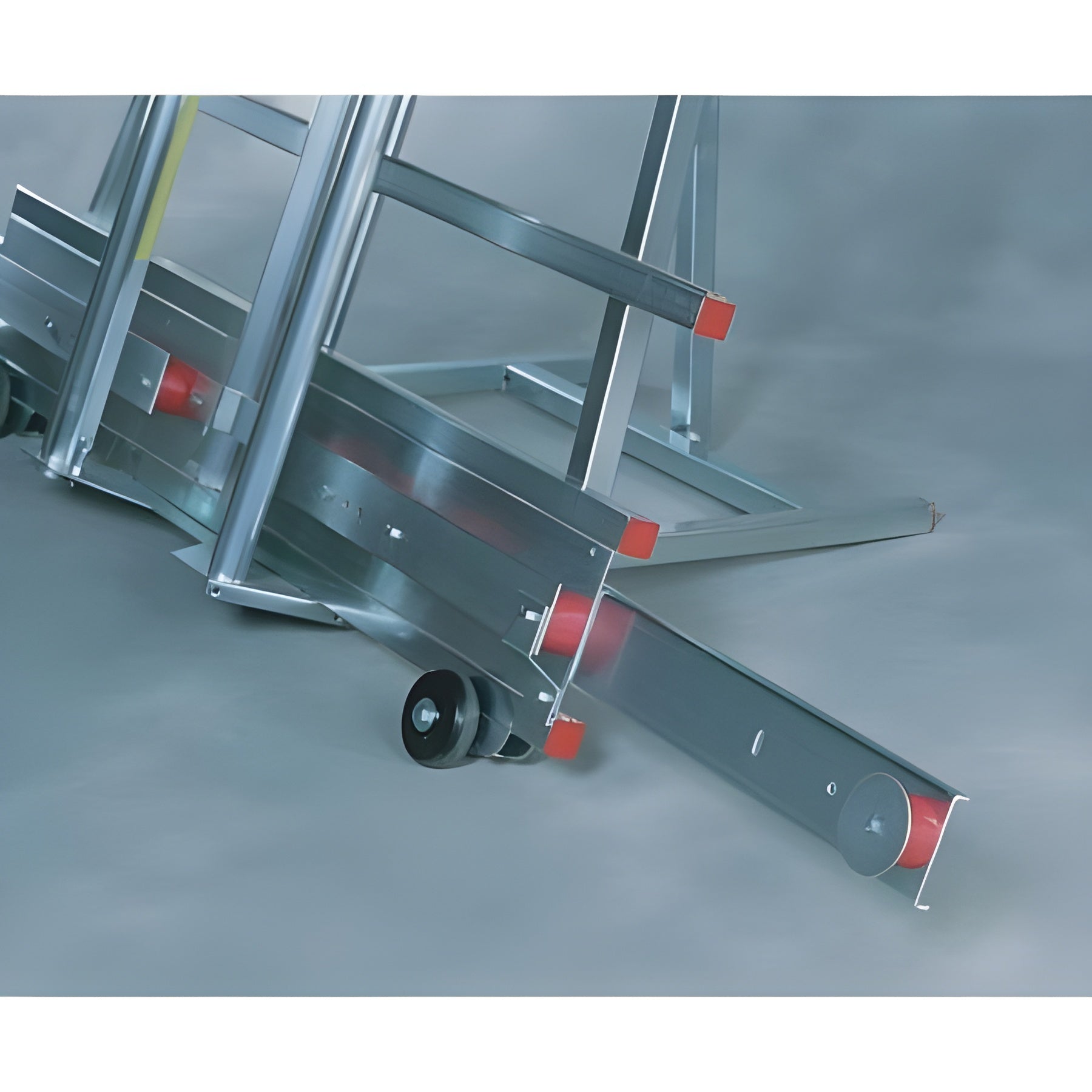

• Injection-molded plastic material rollers.
• Spring loaded counter balance system.
• Integrated dust collection bonnet.
• Extended warranty.
• TUV certified to UL/CSA standards

Specifications

Documents

Product manual

Product parts

H4 Panel Saw Sheet

What Our Experts Think

The Safety Speed H4 Panel Saw is a high-performance, reliable tool that provides precision cutting in industrial environments. Here’s why it’s a top choice for professional use:

• Precision and Accuracy: Delivers clean, straight cuts on various materials such as wood, plastic, and composites, ensuring consistent results.
• Heavy-Duty Construction: Designed with durable materials to withstand daily use, ensuring long-lasting reliability and performance.
• Compact Design: The vertical design saves space in workshops while maintaining a stable, secure cutting environment.
• User-Friendly Operation: Easy-to-use controls and adjustable settings allow for quick setup and efficient operation, even for operators with less experience.
• Versatile Material Compatibility: Perfect for cutting large panels, making it ideal for woodworking, cabinetry, and sign-making applications.
• Safety Features: Built-in safety mechanisms protect operators during use, promoting a secure work environment.
• Efficient Performance: Designed for high-volume production, this saw helps improve workflow and productivity without sacrificing quality.

Q&A

Q: What is the Safety Speed H4 Panel Saw used for?
A: The Safety Speed H4 Panel Saw is designed for precise and efficient cutting of large panels, including wood, plastics, and composites, ideal for woodworking, cabinetry, and panel processing.

Q: What is the maximum panel size it can handle?
A: It can handle panels up to 48" tall and virtually unlimited in width.

Q: What is the cutting depth capacity?
A: The H4 Panel Saw can cut through materials up to 1¾" thick.

Q: How is precision achieved during operation?
A: The H4 features a vertical cutting system with a rotating saw head and adjustable guides for accurate and consistent cuts.

Q: Is the saw portable?
A: While designed to be stationary for stability, the compact vertical design helps save space and makes it suitable for smaller workspaces.

Q: What industries is this panel saw suitable for?
A: Perfect for woodworking, cabinetry, sign-making, and other industries requiring precise panel cutting.

Q: Does the H4 include safety features?
A: Yes, it includes blade guards, a counterbalance system, and user-friendly controls for enhanced safety.

Maintenance Tips

• Inspect Components Regularly: Examine the frame, guide rails, rollers, and cutting mechanism for any wear, damage, or misalignment. Tighten all bolts and fasteners to ensure stability.
• Lubricate Moving Parts: Apply lubricant to the guide rails, rollers, and bearings to ensure smooth, friction-free movement of the cutting head.
• Clean After Use: Remove sawdust, debris, and moisture from the blade area, guide tubes, and motor housing after each use to prevent rust and maintain optimal performance.
• Monitor Blade Condition: Regularly check the blade for dullness, chips, or damage. Replace or sharpen the blade as needed to ensure clean and accurate cuts.
• Test Safety Features: Confirm that all safety guards, emergency stop buttons, and blade covers are functioning correctly before each use.
• Verify Alignment: Periodically check the alignment of the blade, guide rails, and fences to ensure straight and precise cuts. Adjust as needed.
• Use Appropriate Materials: Always cut materials that fall within the manufacturer's specified thickness and type to prevent damage and ensure safe operation.
• Replace Worn Components: Monitor parts like rollers, bearings, and other wear-prone components, replacing them when necessary to maintain performance.
• Wear PPE: Always wear safety goggles, hearing protection, and a dust mask to protect against flying debris, noise, and dust exposure.
• Store Properly: When not in use, store the saw in a clean, dry place, and cover it to protect it from dust, moisture, and damage.
